CasesKolink

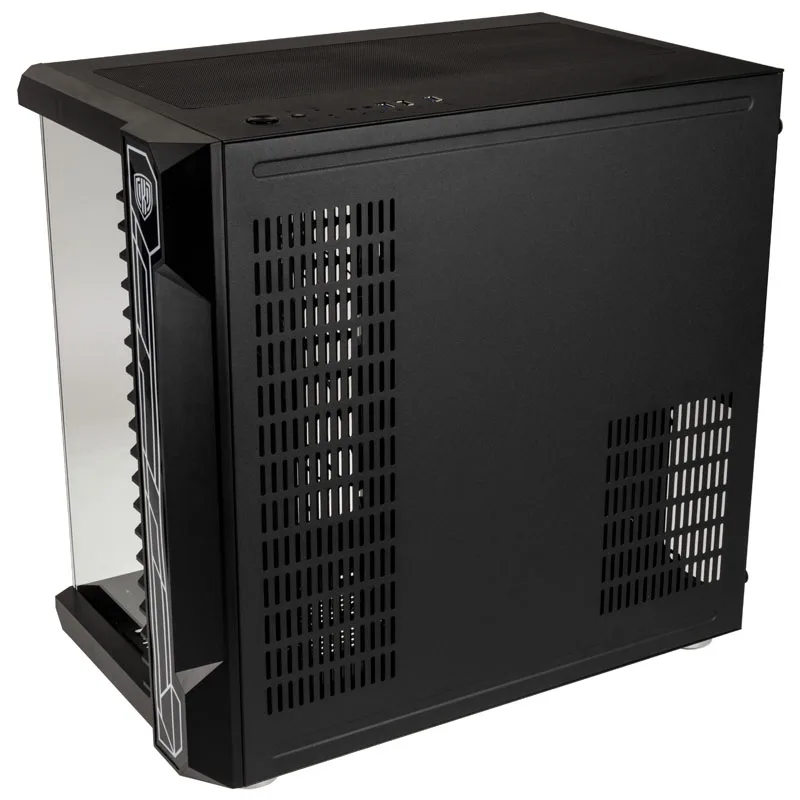

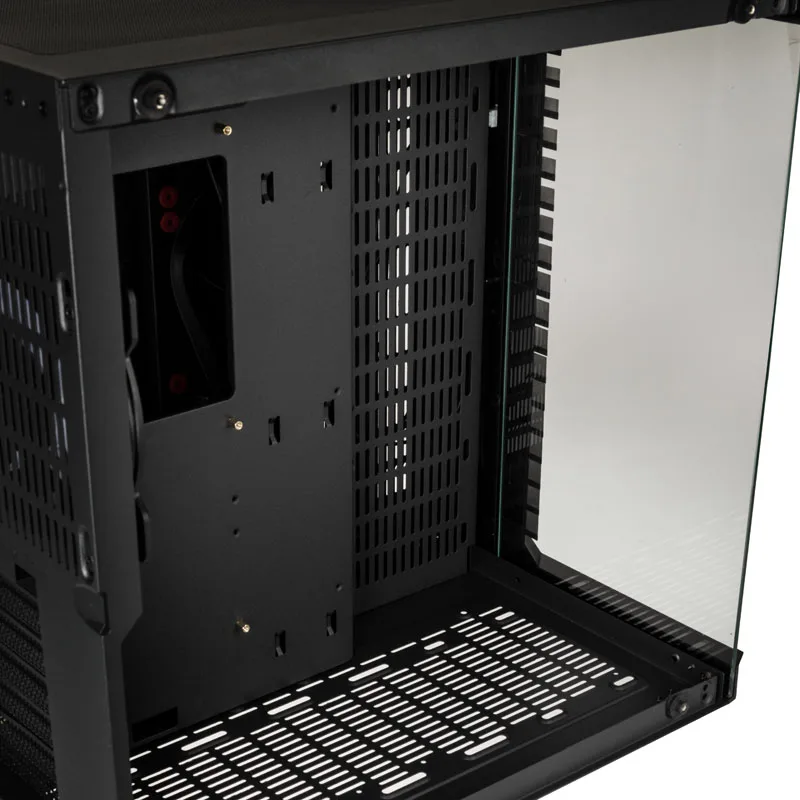

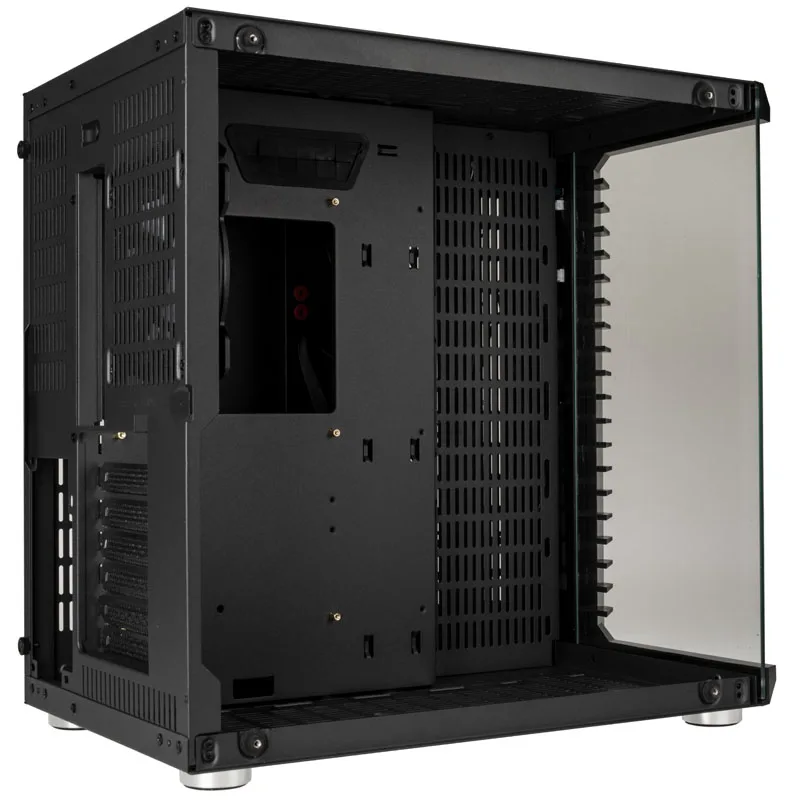

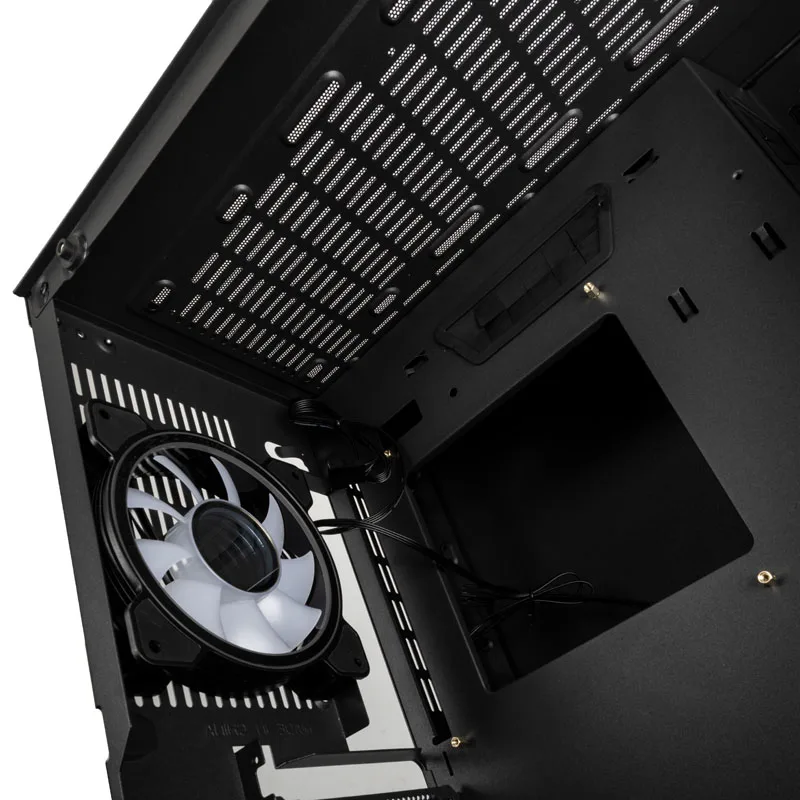

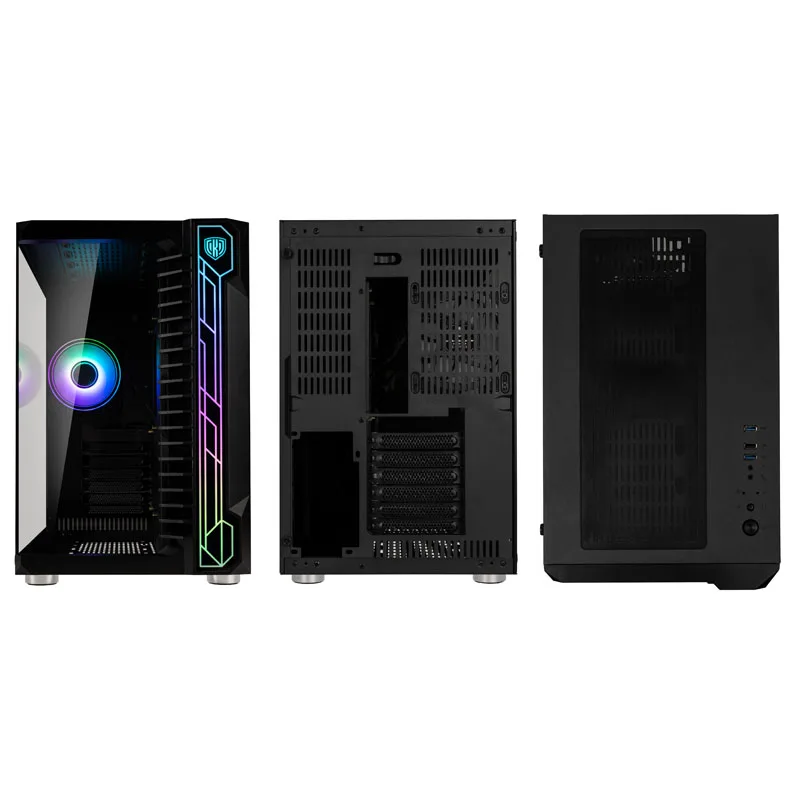

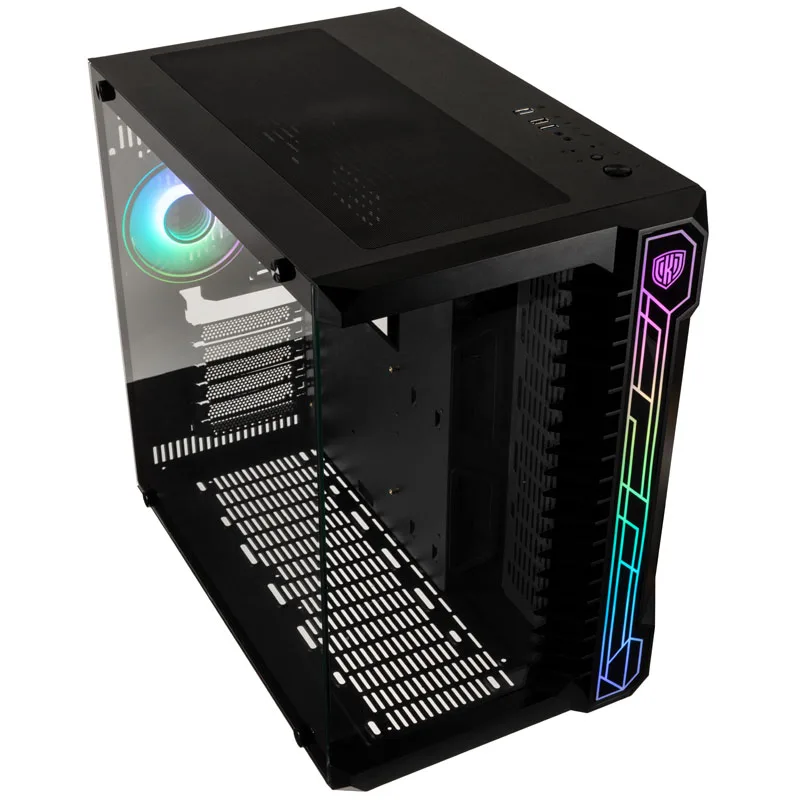

Kolink Unity Code X Midi-Tower ARGB Gaming Case - Black Window
Model: UNITY CODE X
Technical Specifications73 specs
Additional Contents
Fans Included
Yes
Included Fans
1x 120 mm
Additional Information
Model Number
UNITY CODE X
Gtin
5999094004399
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Fan Main Colour Frame
White
Fan Main Colour Rotor
Black
Fan Secondary Colour Rotor
White
Compliance
Compliance Documents
Kolink Case Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Connectivity
Card Reader
No
Dimensions
Length Depth
440 mm
Width
280 mm
Height
427 mm
Weight
7.4 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7

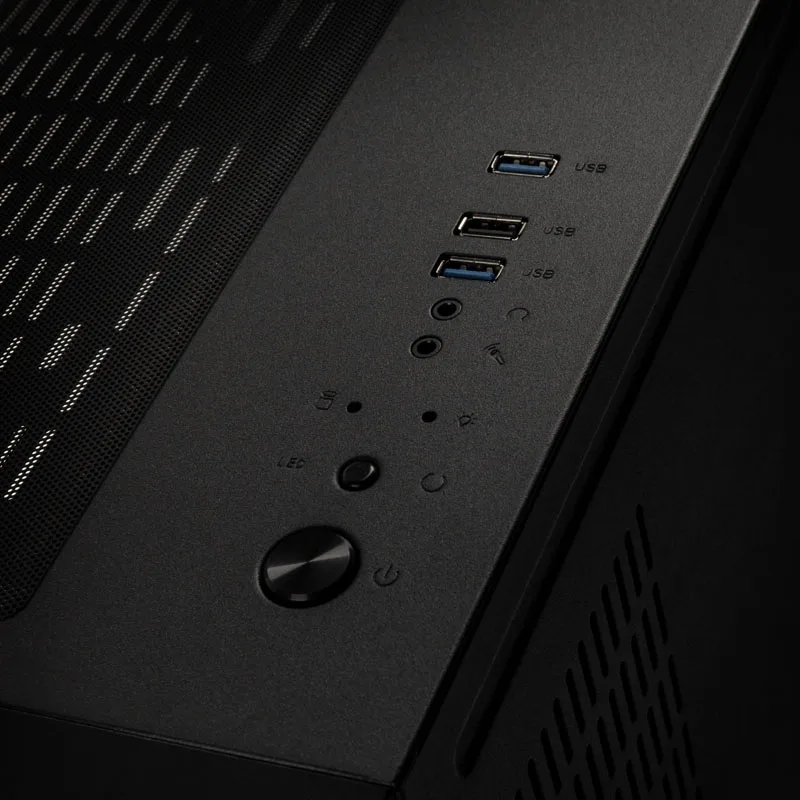

External Ports
Front I O Usb Type A Ports Total
3
Usb 3 0 External Type A
2
Usb 2 0 External Type A
1
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Max Number Of Fans
10
Case Fan Support Bottom
120mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
Case Fan Support Side
120mm Fan (3x)
Case Fan Support Top
120mm Fan (3x)
120 Mm Fans
10
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
165 mm
Max Gpu Length
400 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Lighting Colour
RGB
Materials
Materials
Plastic, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear side
Radiator Support
Radiator Aio Support Side
240mm Radiator, 360mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 3x Triple (360 mm)
Radiator Aio Support Bottom
240mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator
Radiator Aio Support Top
240mm Radiator, 360mm Radiator
