CasesCORSAIR

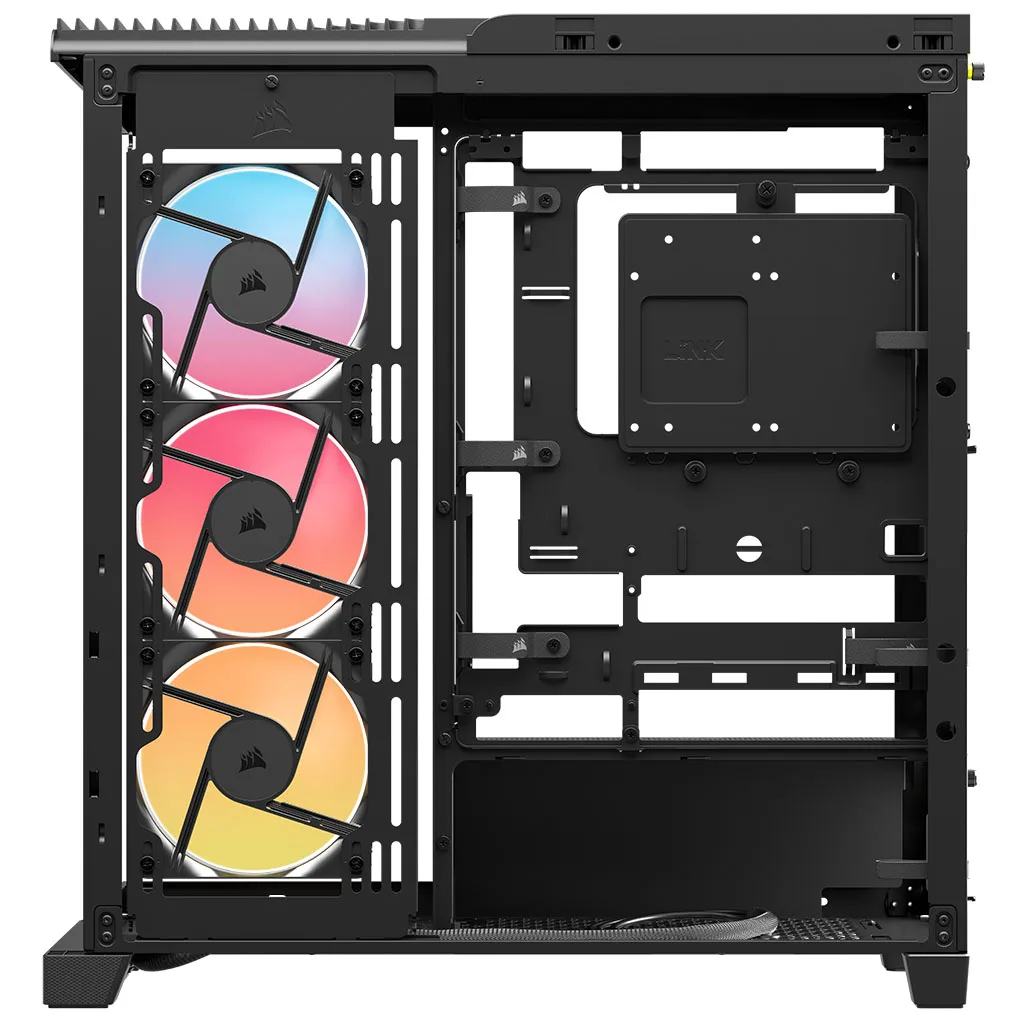

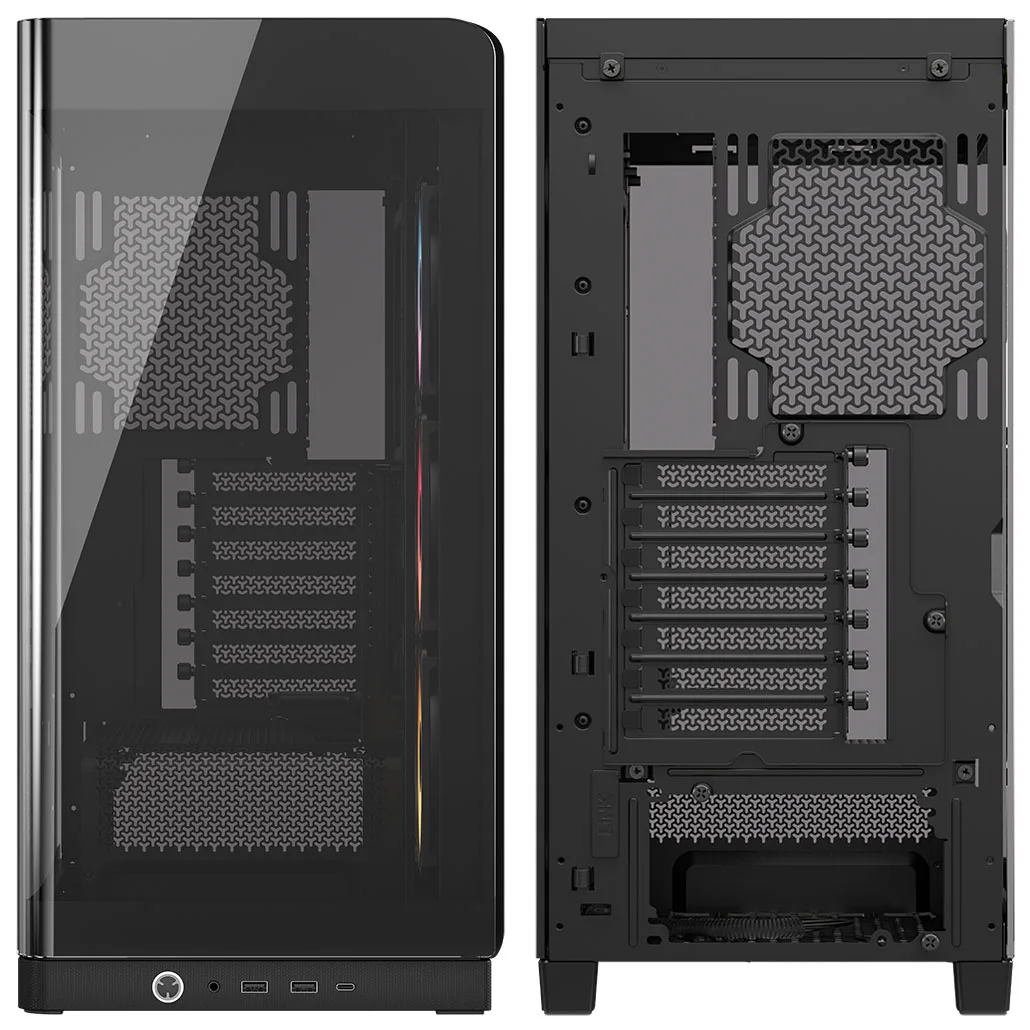

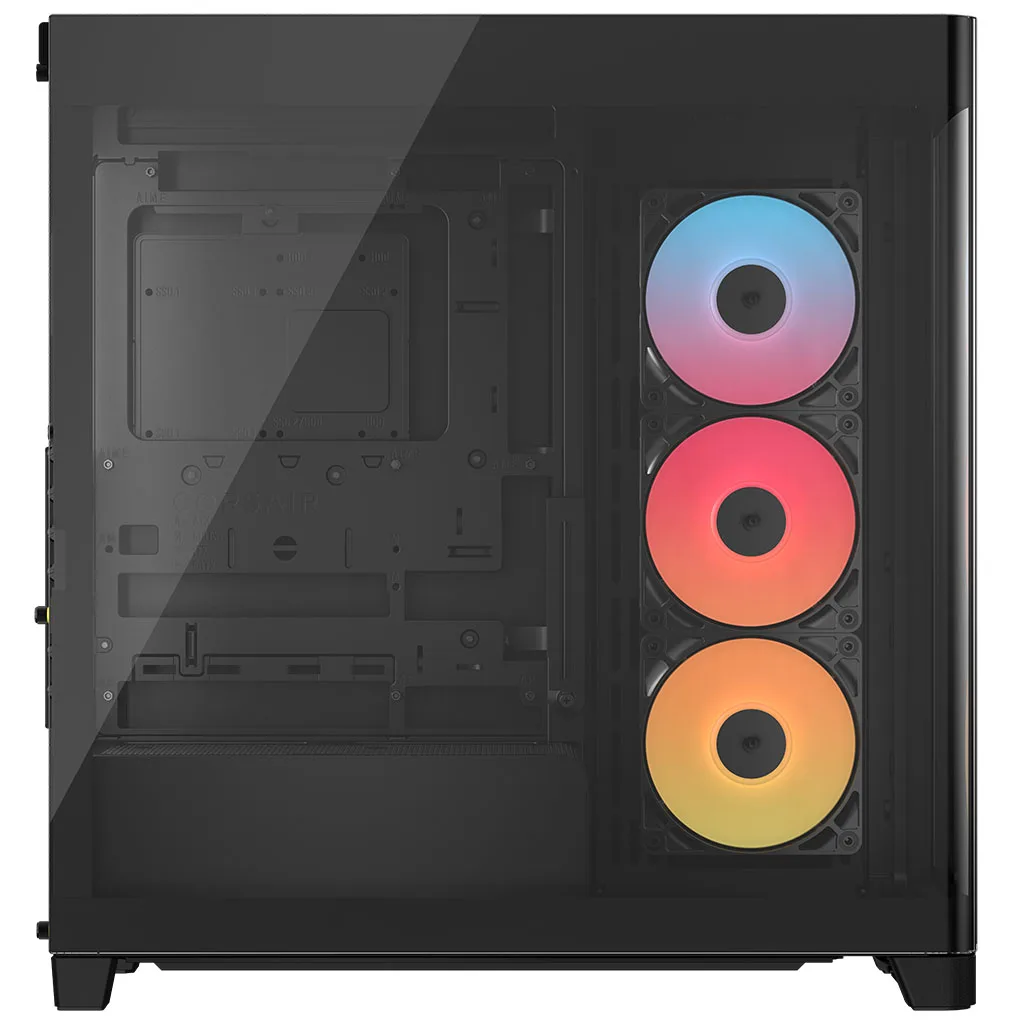

CORSAIR FRAME 4500X RS-R ARGB Panoramic Glass Mid-Tower PC Case, Black
MPN: CC-9011314-WW
Key specifications
Max GPU460.0 mm
Max Cooler185.0 mm
Max PSU250.0 mm
Form factorUnknown
Full Specifications67 fields
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm
Additional Information
Model Number
CC-9011314-WW
Gtin
0840440402770
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Connectivity
Card Reader
No
Dimensions
Length Depth
499 mm
Width
246 mm
Height
478 mm
Weight
11.58 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7

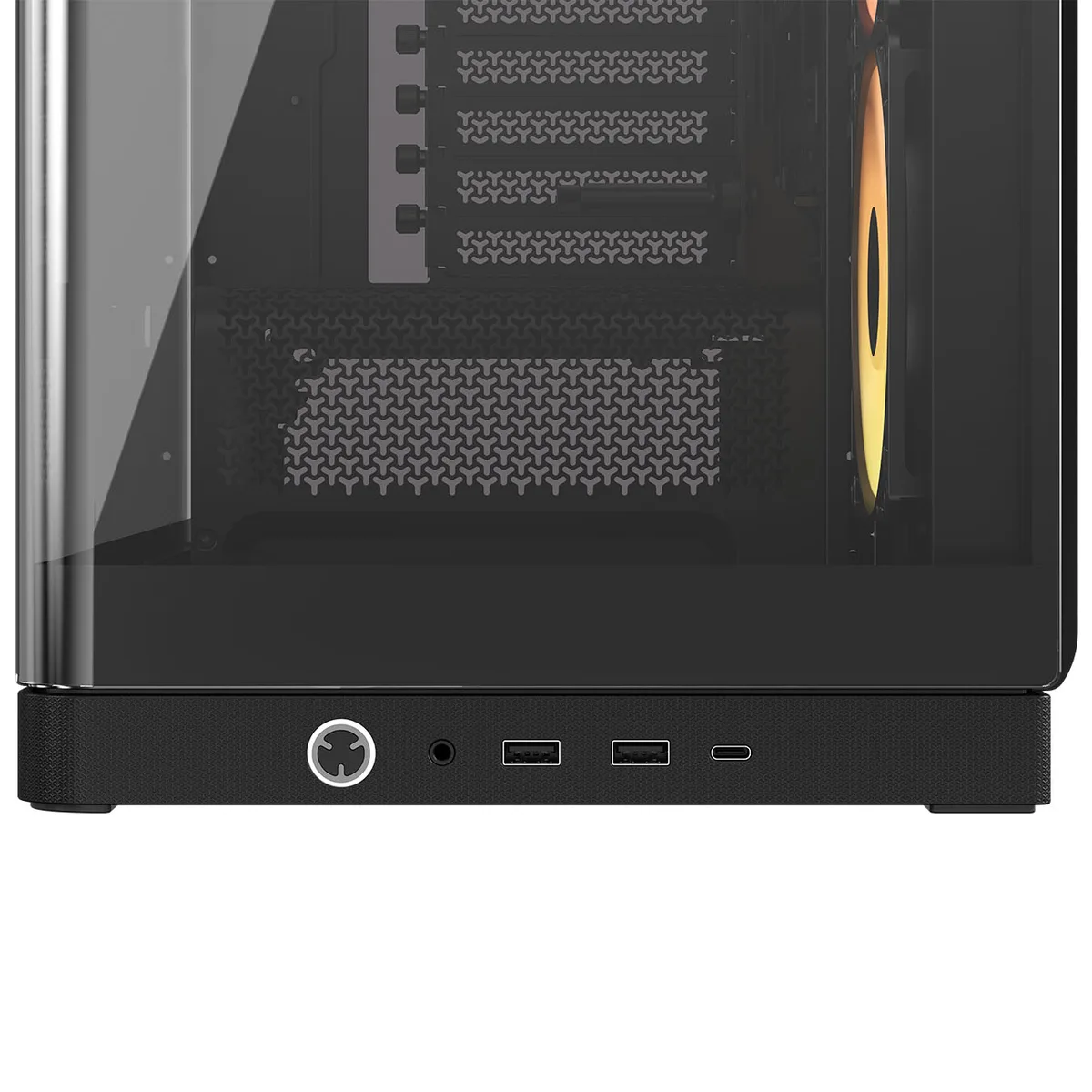

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Side
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (1x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Max Number Of Fans
10
120 Mm Fans
10
140 Mm Fans
6
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
185 mm
Max Gpu Length
460 mm
Max Psu Length Depth
250 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
No
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Materials
Materials
Plastic, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Max Radiator Compatibility
1x Single (140 mm), 2x Triple (360 mm)
Radiator Aio Support Top
240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
Radiator Aio Support Side
240mm Radiator, 280mm Radiator, 360mm Radiator
Best indexed price
£145.00GBP
Indexed 19 Mar 2026 — verify at retailer
