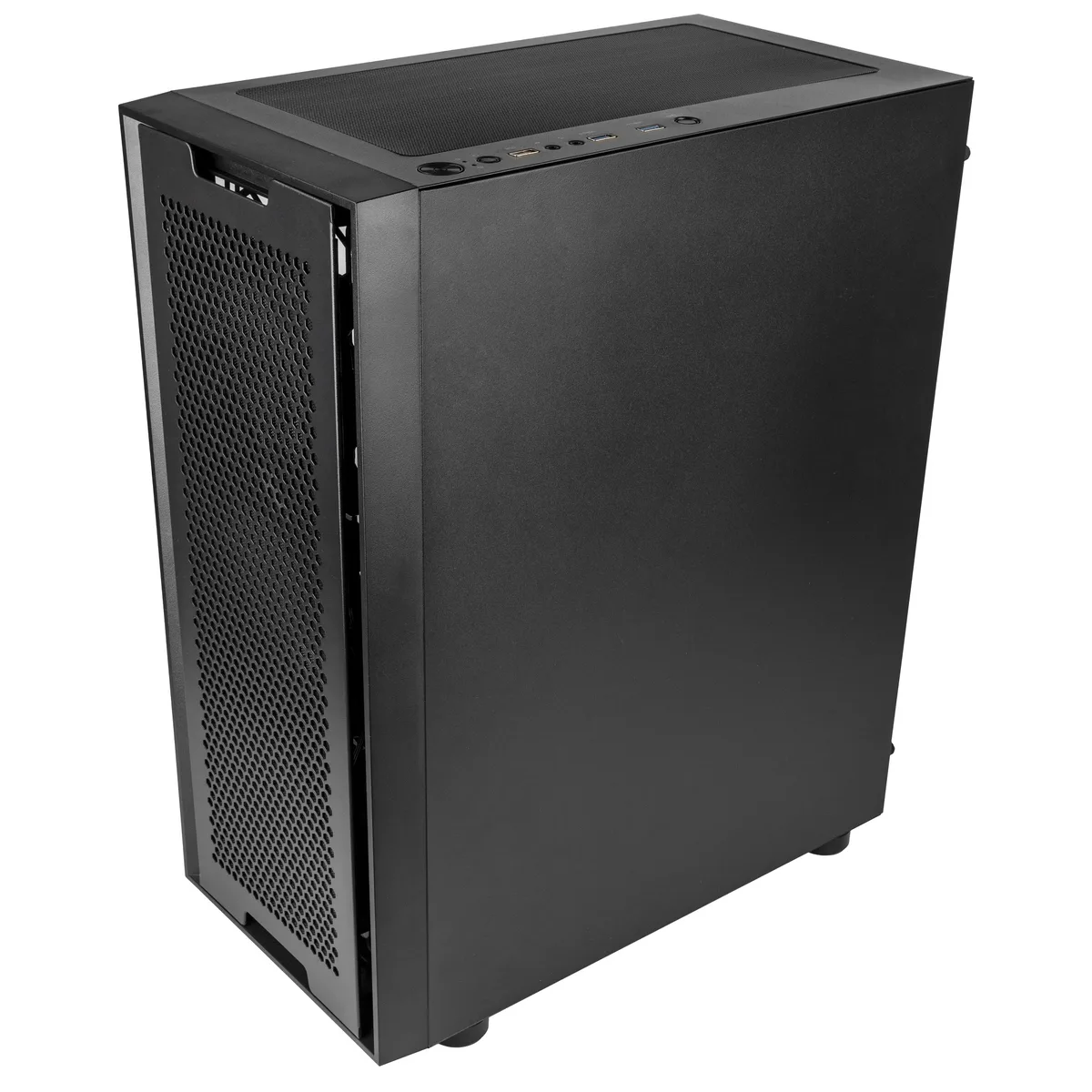

Kolink Observatory Duo ARGB Midi Tower Case - Black Window
Model: OBSERVATORY DUO
Technical Specifications72 specs
Additional Contents
Fans Included
Yes
Included Fans
4x 120 mm
Additional Information
Model Number
OBSERVATORY DUO
Gtin
5999094005006
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Side
Side Panel
closed
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No

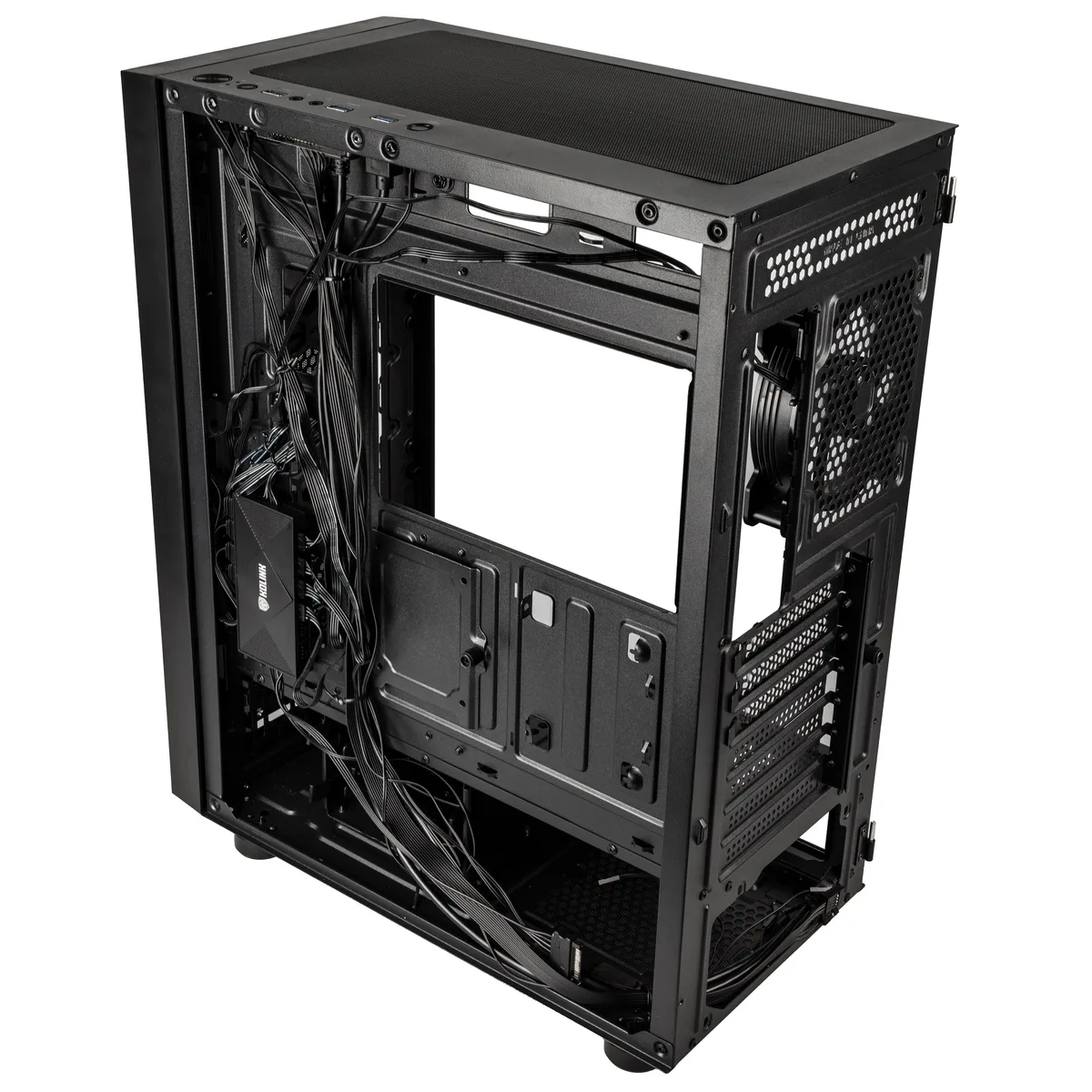

Cable Management
Yes
Filters Included
No
Filter Position
Top, Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Secondary Colour
Transparent
Fan Main Colour Frame
White
Compliance
Compliance Documents
Kolink Case Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Connectivity
Card Reader
No
Dimensions
Length Depth
390 mm
Width
212 mm
Height
490 mm
Weight
6.1 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports

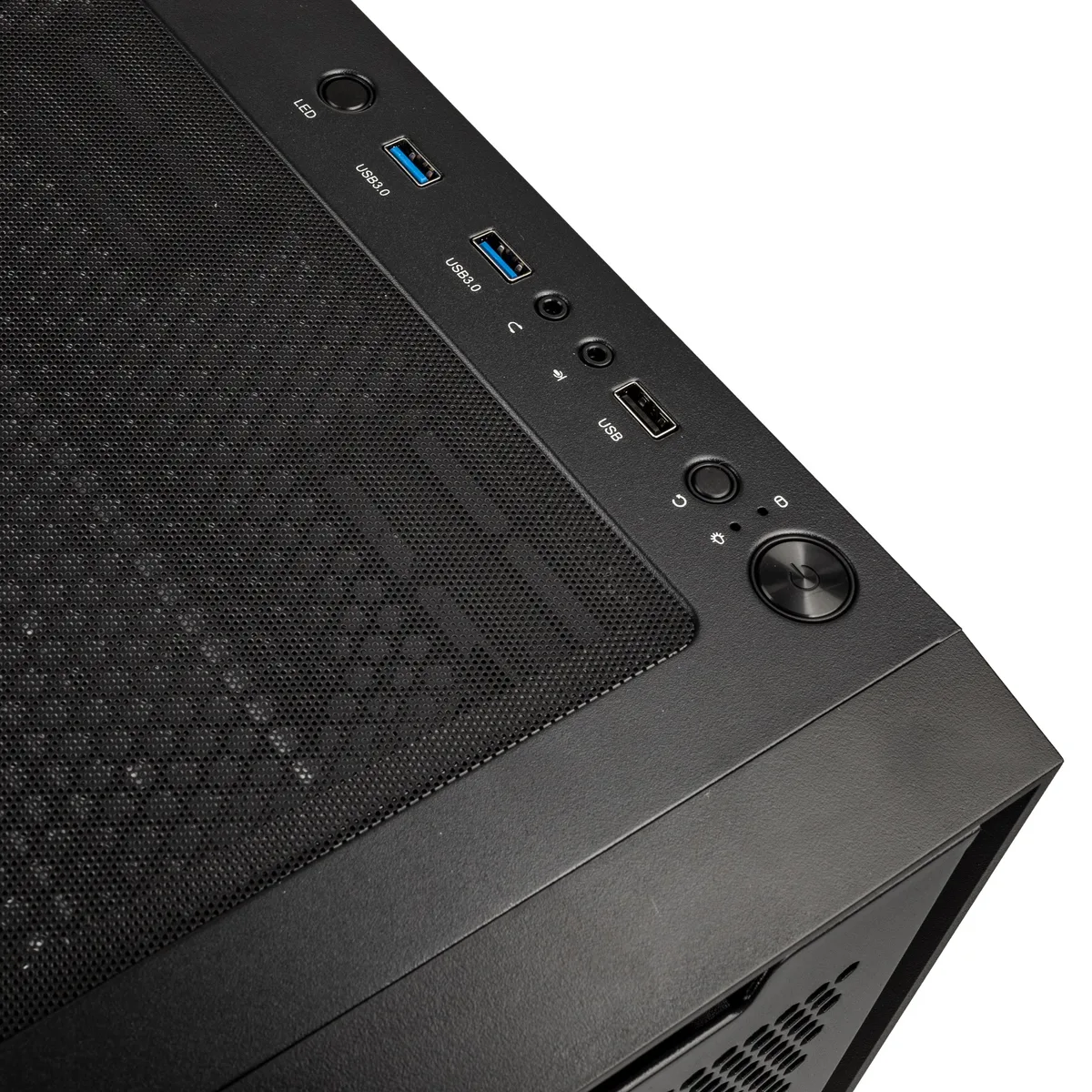

Front I O Usb Type A Ports Total
3
Usb 3 0 External Type A
2
Usb 2 0 External Type A
1
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Max Number Of Fans
8
Case Fan Support Top
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Bottom
120mm Fan (2x)

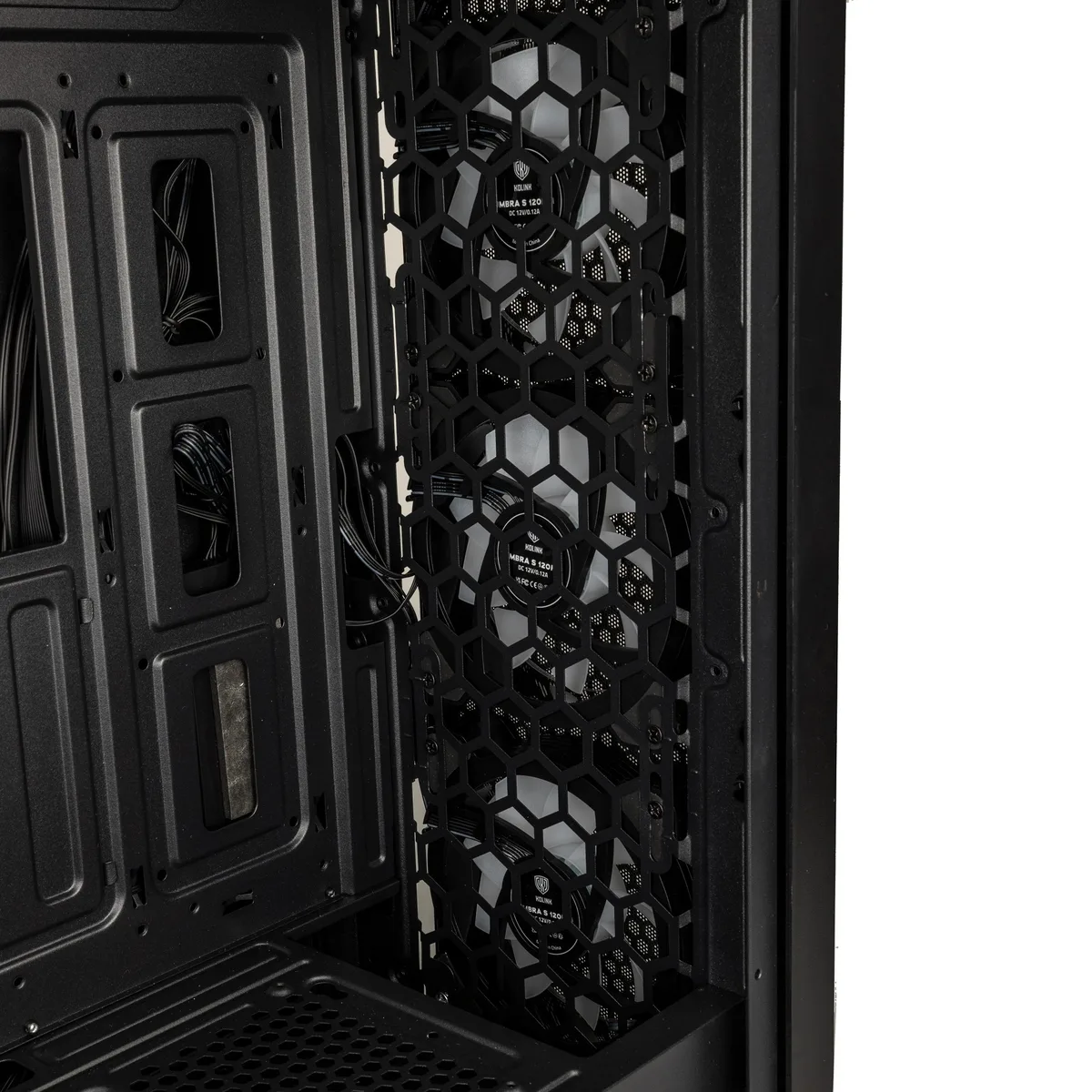

Case Fan Support Front
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
120 Mm Fans
8
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
170 mm
Max Gpu Length
360 mm
Max Psu Length Depth
180 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Lighting Colour
RGB
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Dual (280 mm), 1x Triple (360 mm)
Radiator Aio Support Rear
120mm Radiator
Radiator Aio Support Top
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator
