CasesPhanteks

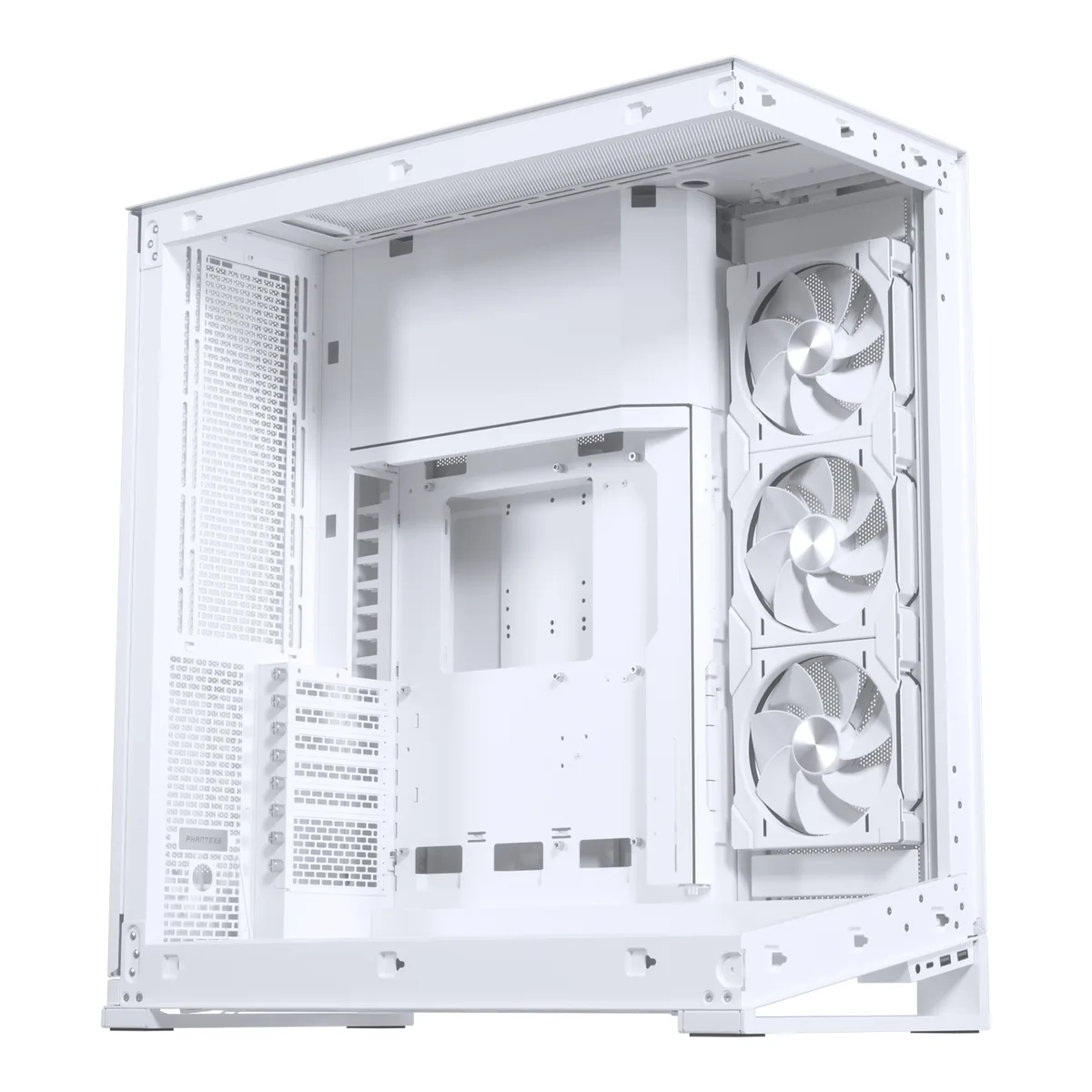

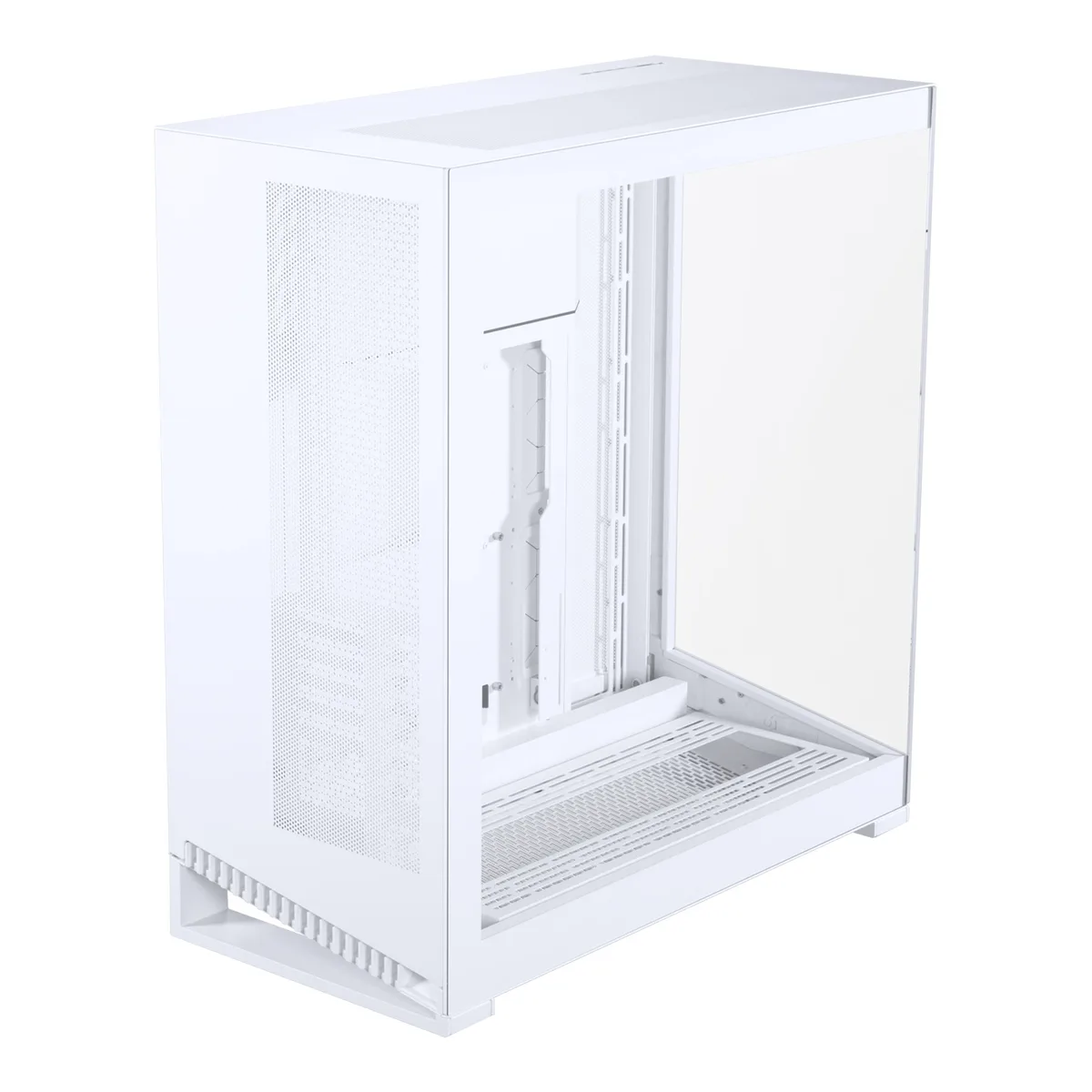

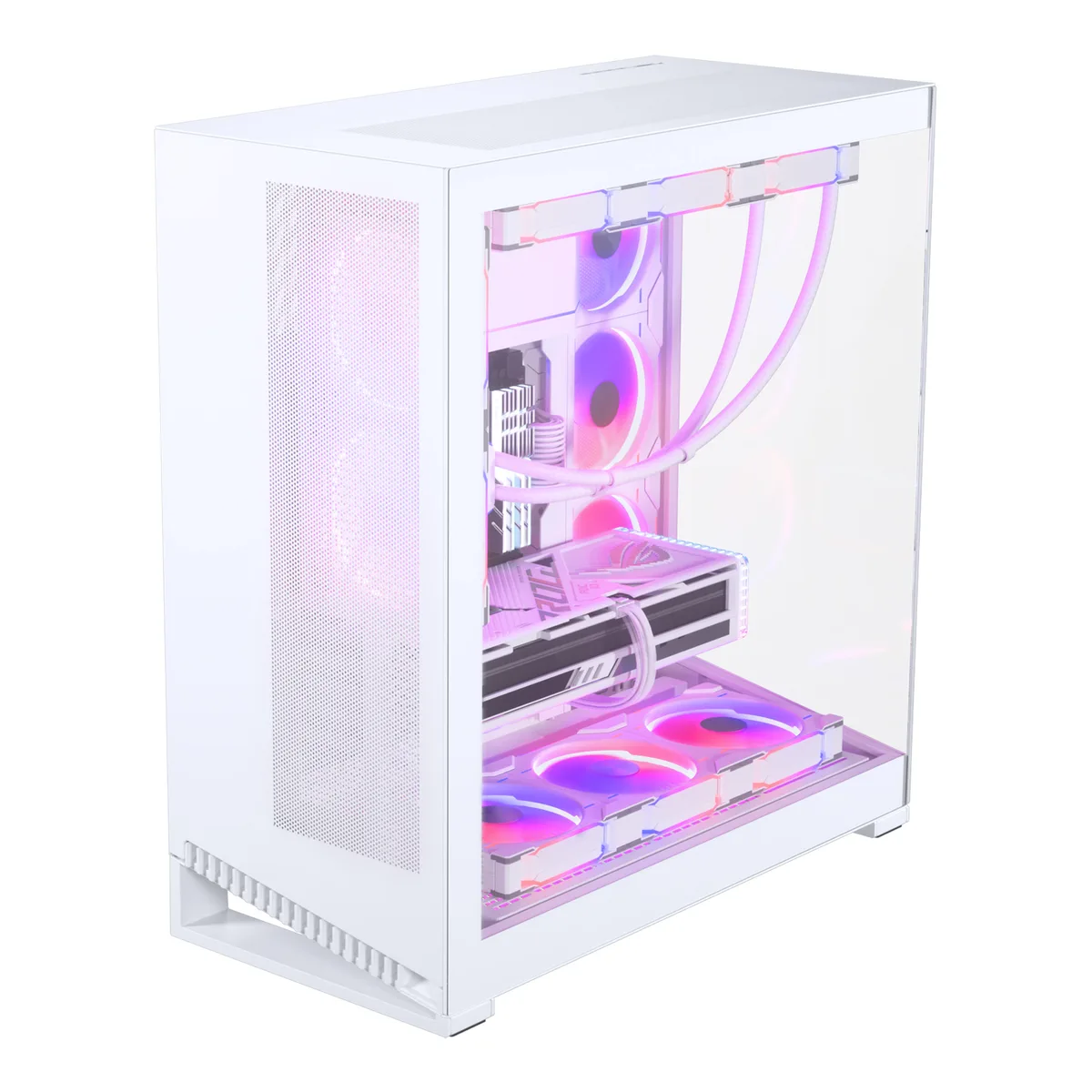

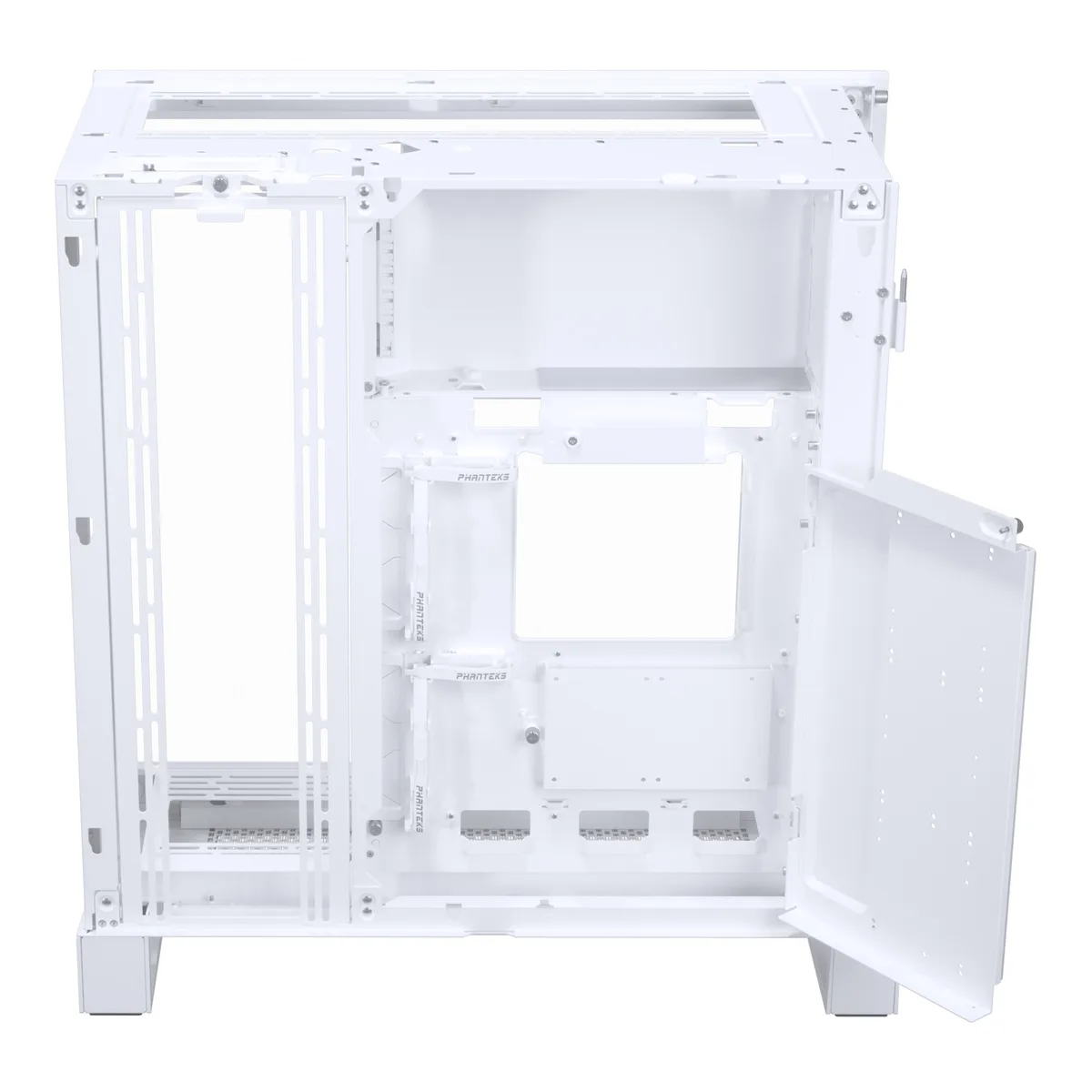

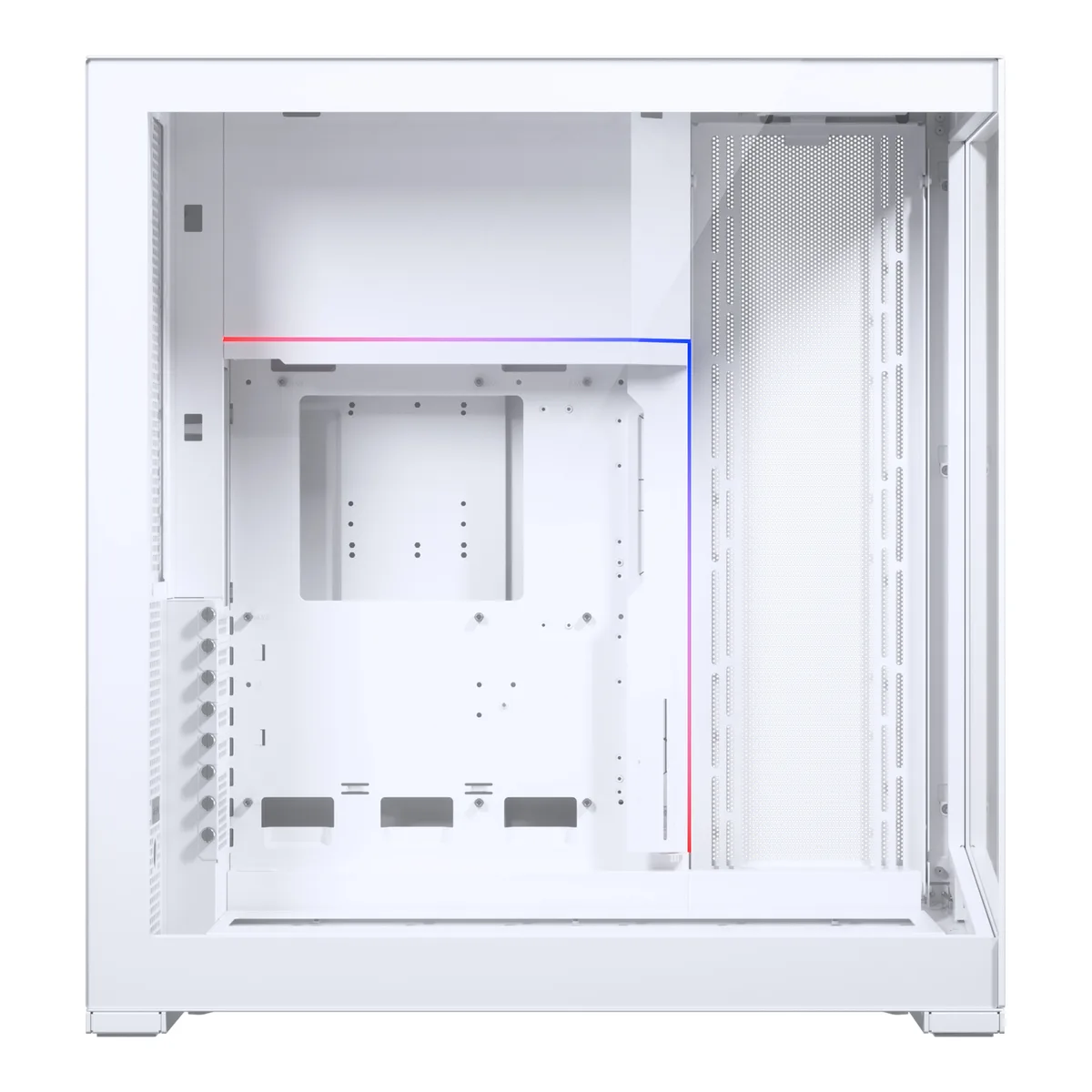

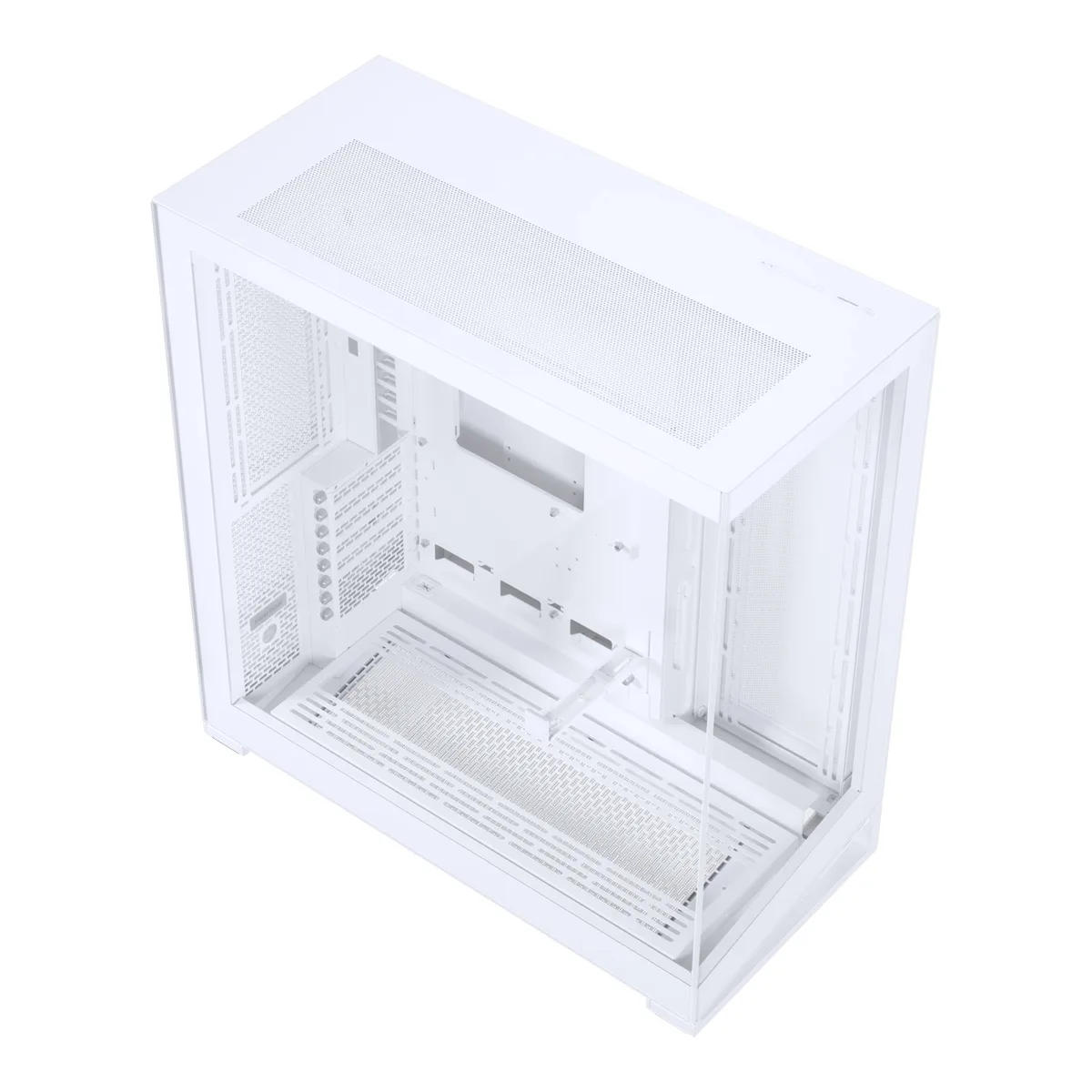

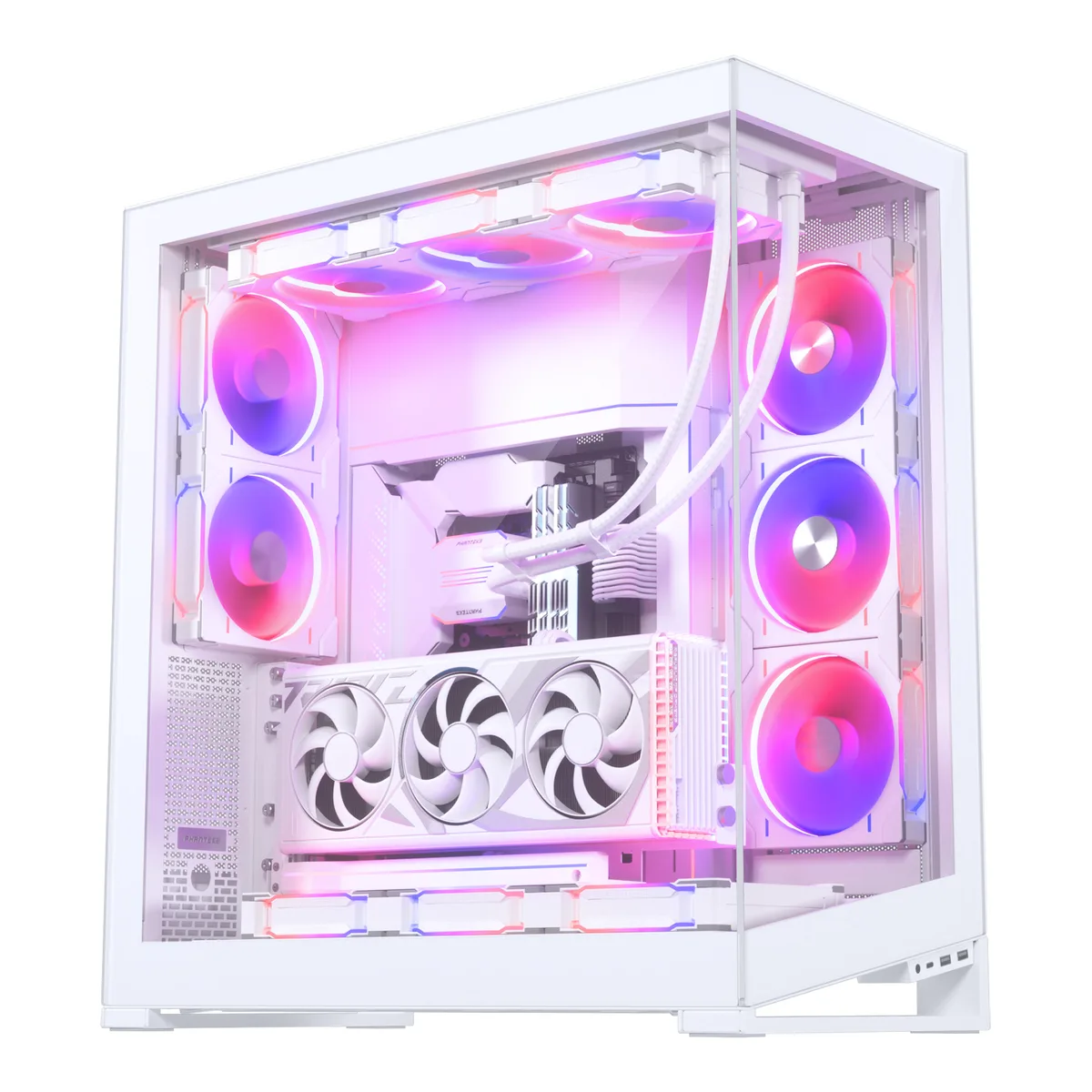

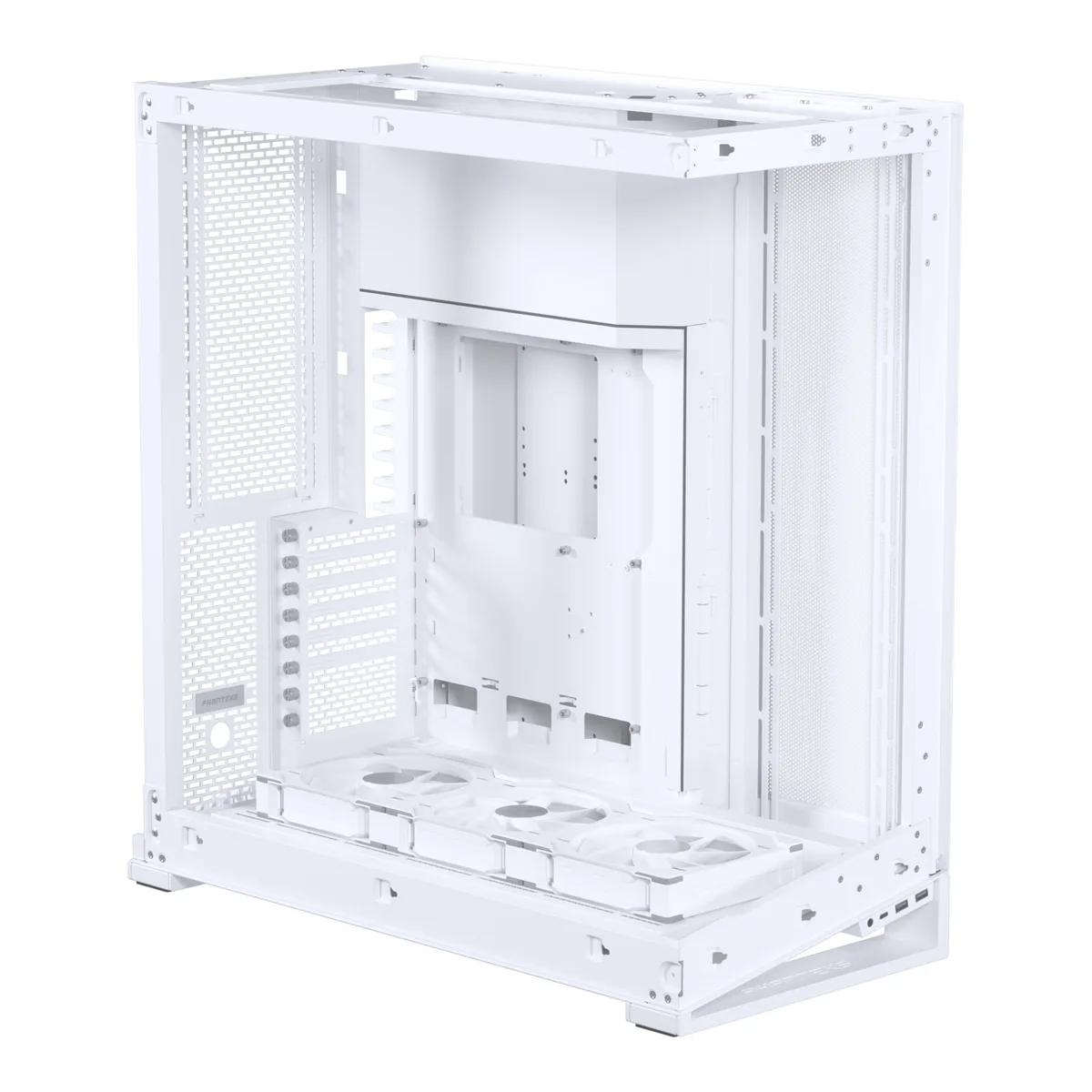

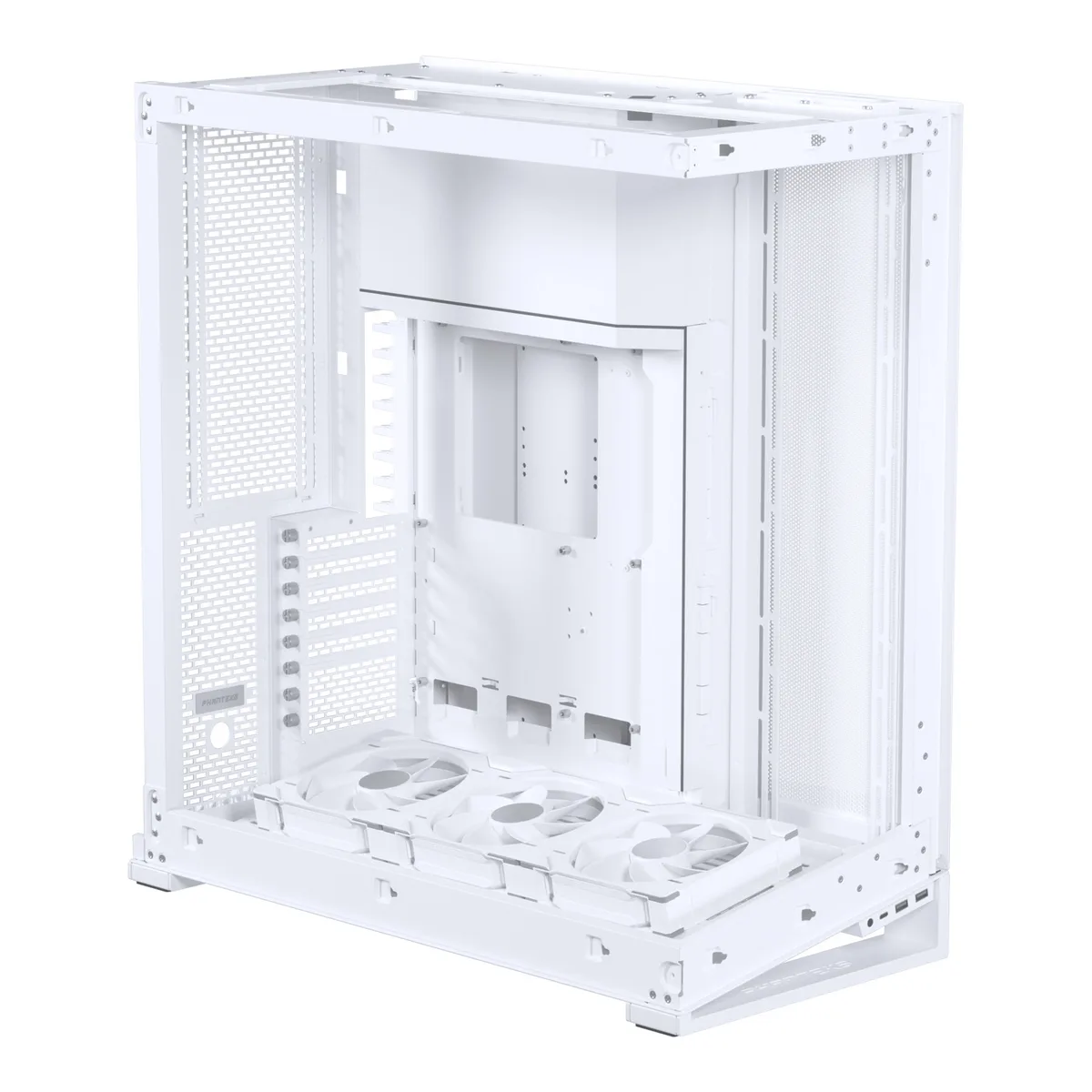

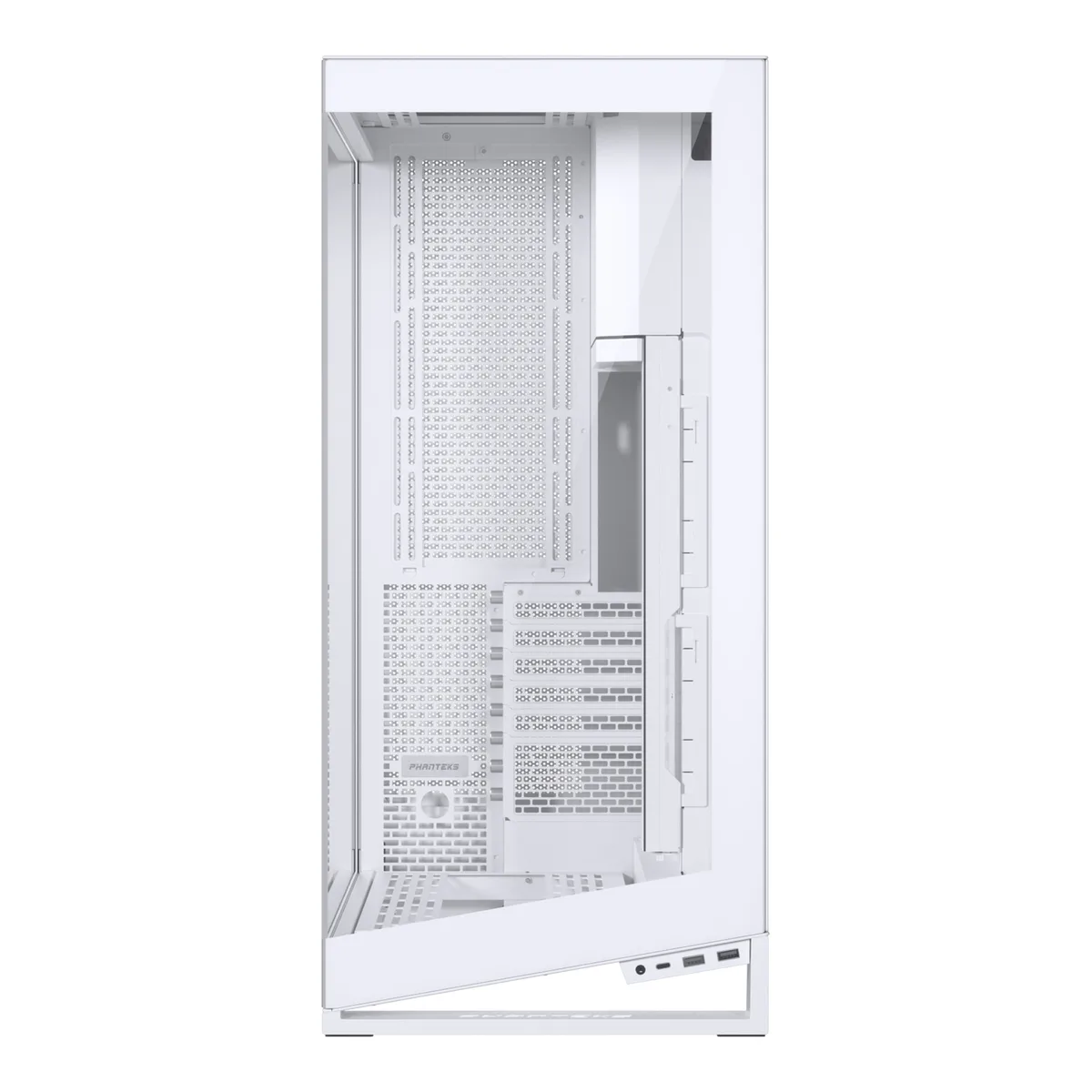

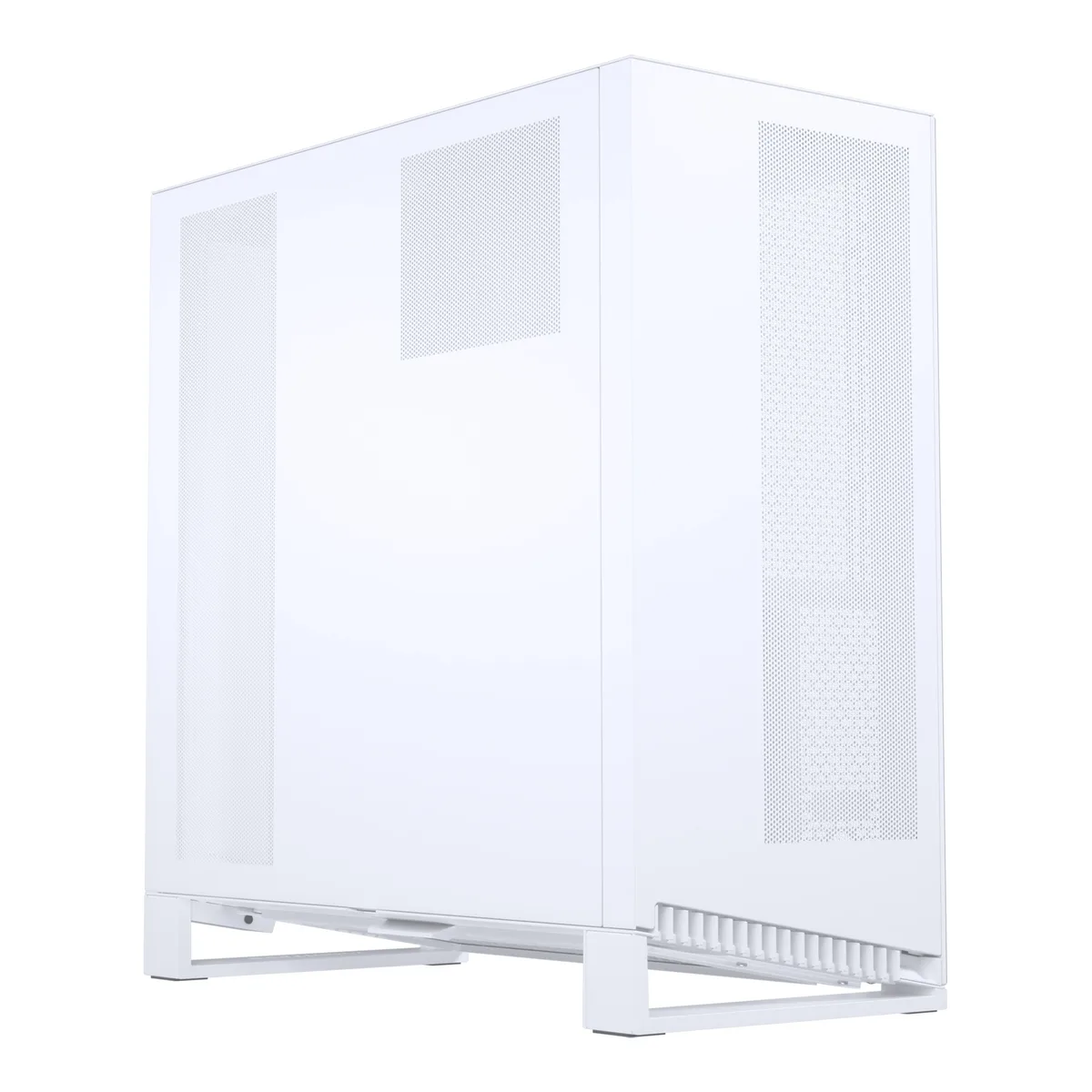

Phanteks NV9 Case Tempered Glass Windows, DRGB, Matte White
MPN: PH-NV923TG_DMW01
Key specifications
Max GPU490.0 mm
Max Cooler205.0 mm
Max PSU210.0 mm
Form factorUnknown
Full Specifications78 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
PH-NV923TG_DMW01
Gtin
0886523303084
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Full Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Colour Finish
Matt
Secondary Colour
Transparent
Fan Main Colour Frame
White
Fan Main Colour Rotor
White
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
575 mm
Width
280 mm
Height
615 mm
Weight
19.52 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
6
Max 3 5 Inch Drives
3
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
6
3 5 Inch Internal Drive Bay
3
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
8
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Max Number Of Fans
12
Case Fan Support Side
120mm Fan (4x), 140mm Fan (3x)
Case Fan Support Rear
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (3x)
120 Mm Fans
12
140 Mm Fans
11
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
205 mm
Max Gpu Length
490 mm
Max Gpu Width
205 mm
Max Psu Length Depth
210 mm

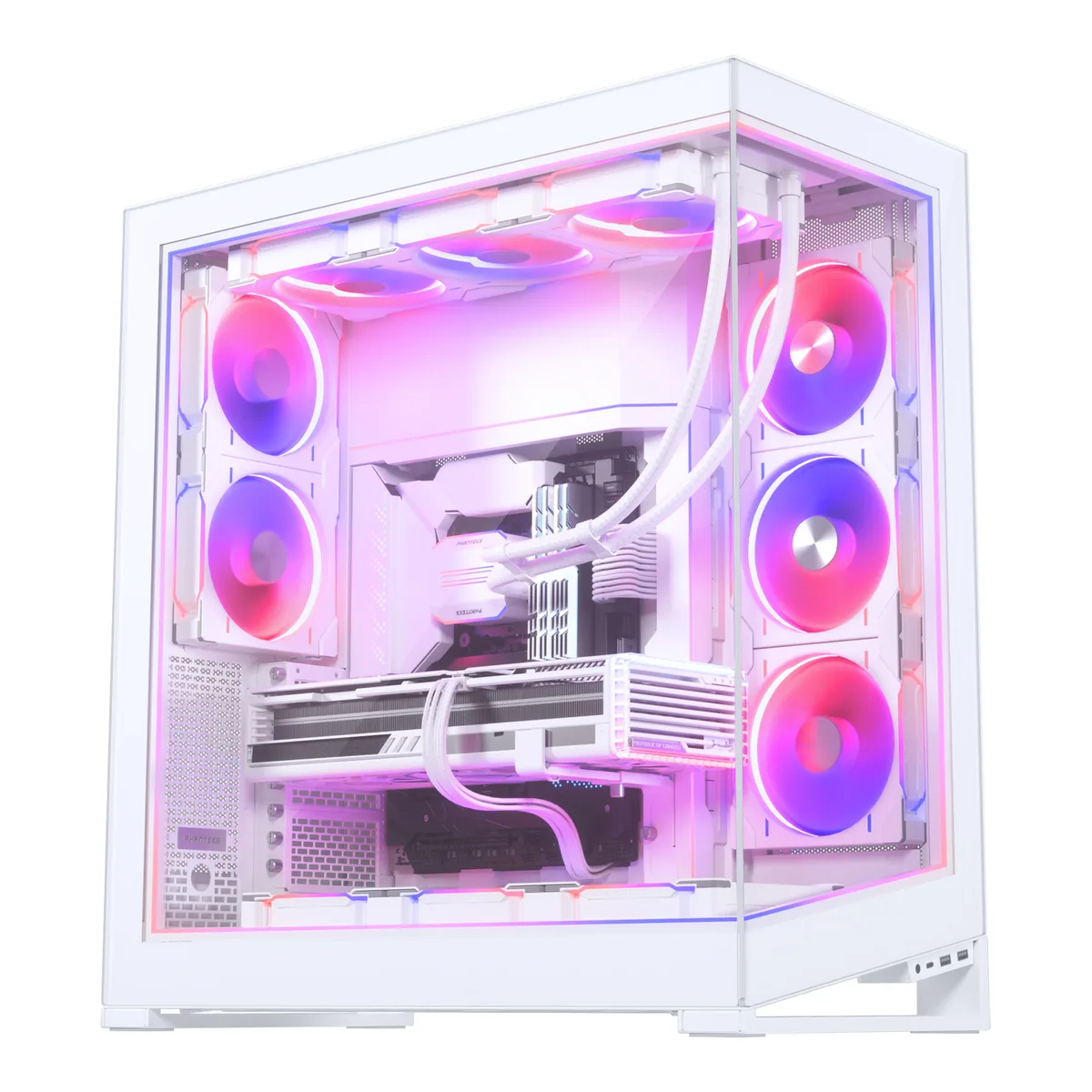

Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Rgb Type
ARGB / DRGB
Number Of Rgb Connectors
4
Lighting Colour
RGB
Lighting Compatibility
ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome Sync, Razer Chroma
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX, SSI-CEB
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear top
Product Series
Product Series Family
NV9
Radiator Support
Radiator Aio Support Bottom
360mm Radiator, 420mm Radiator
Radiator Aio Support Side
420mm Radiator, 480mm Radiator
Radiator Aio Support Rear
240mm Radiator, 280mm Radiator
Max Radiator Compatibility
2x Triple (420 mm)
Radiator Aio Support Top
360mm Radiator, 420mm Radiator
Best indexed price
£252.02GBP
Indexed 19 Mar 2026 — verify at retailer
