Casesbe quiet!

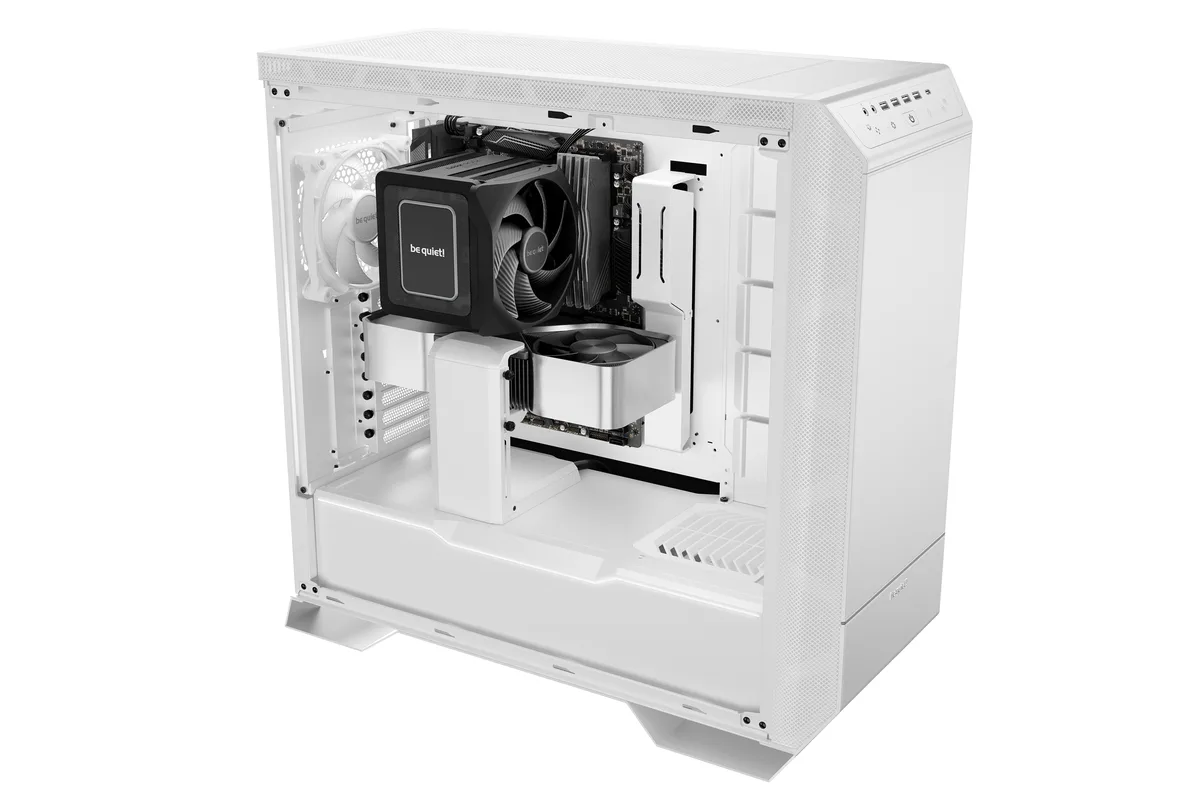

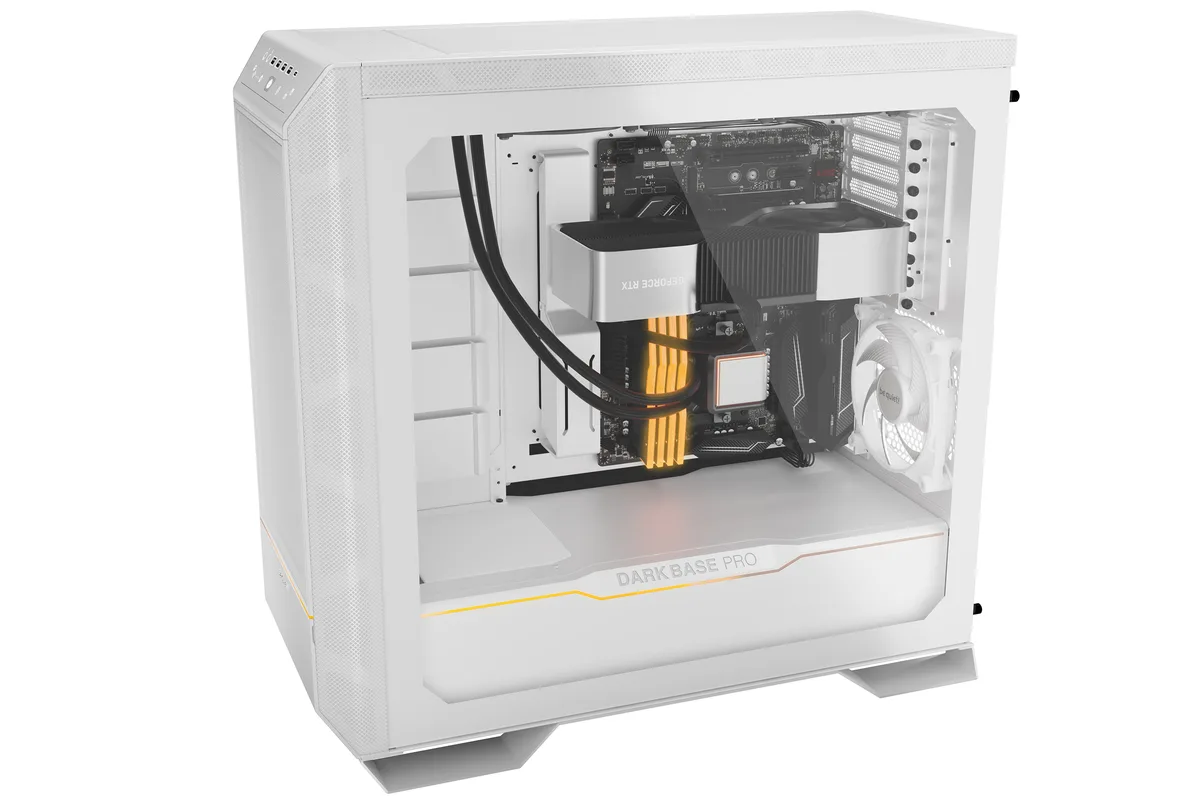

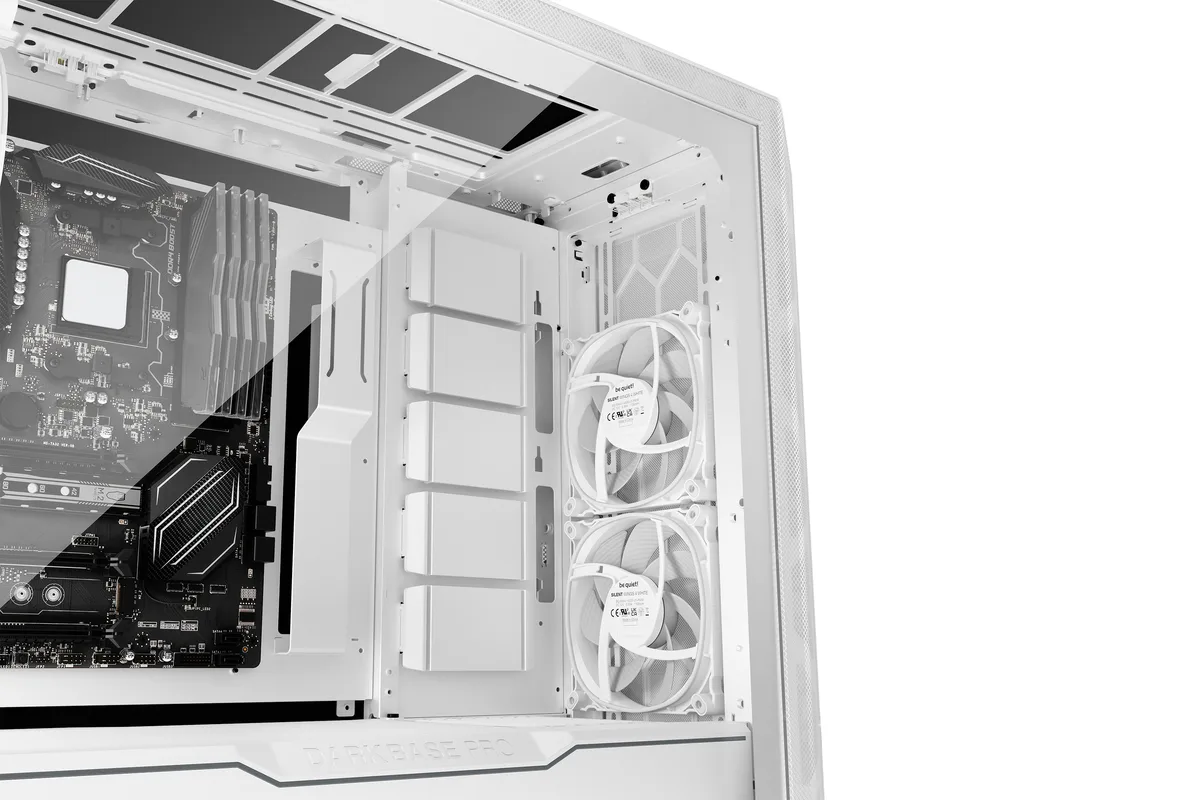

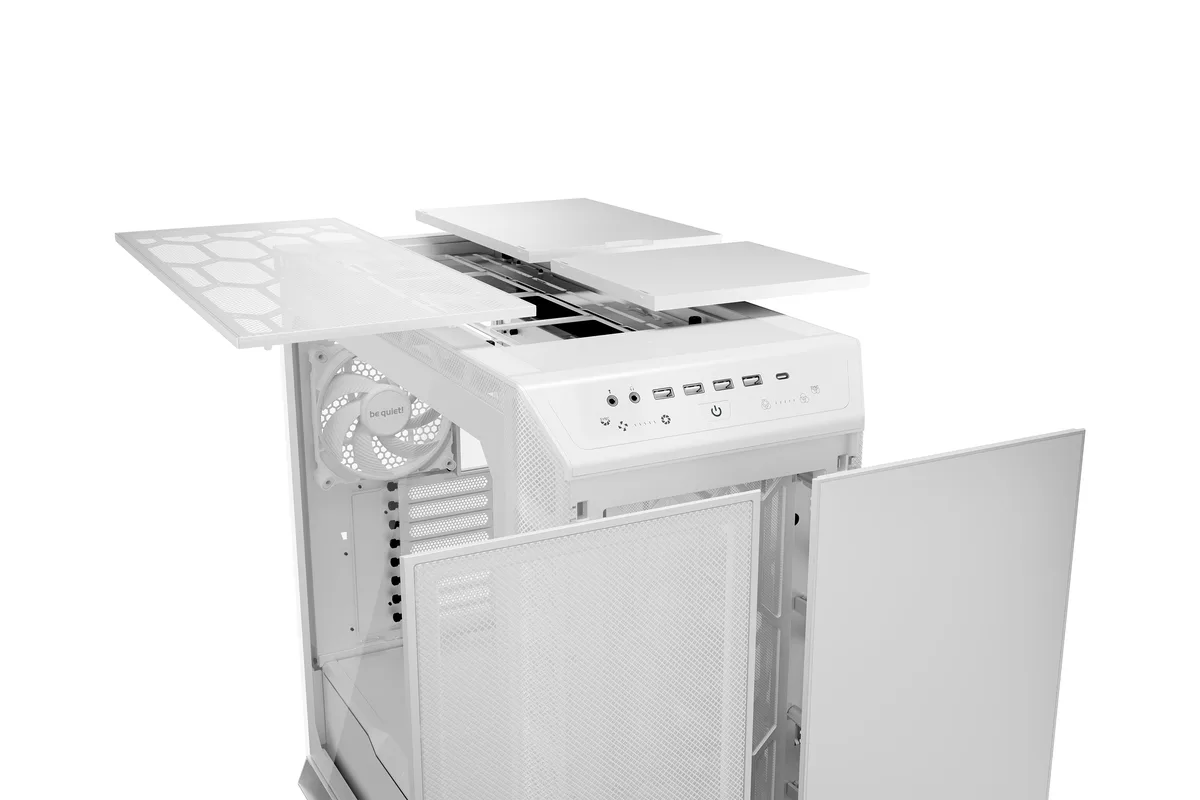

Be quiet Dark Base Pro 901 Full Tower Tempered Glass Case - White
£305.82
Model: BGW51
Technical Specifications81 specs
Additional Information
Model Number
BGW51
Gtin
4260052191118
Chassis Physical Specifications
Colour
Black
Chassis Construction Materials
Steel / Aluminium / Tempered Glass
Dimensions
275 x 569 x 604 (WxHxD mm)
Package Type
-
Please Note
-
Clearances
Max Cooler Height
190 mm
Max Gpu Length
495 (without HDD Cage) mm
Cable Routing Space
-
Cooling

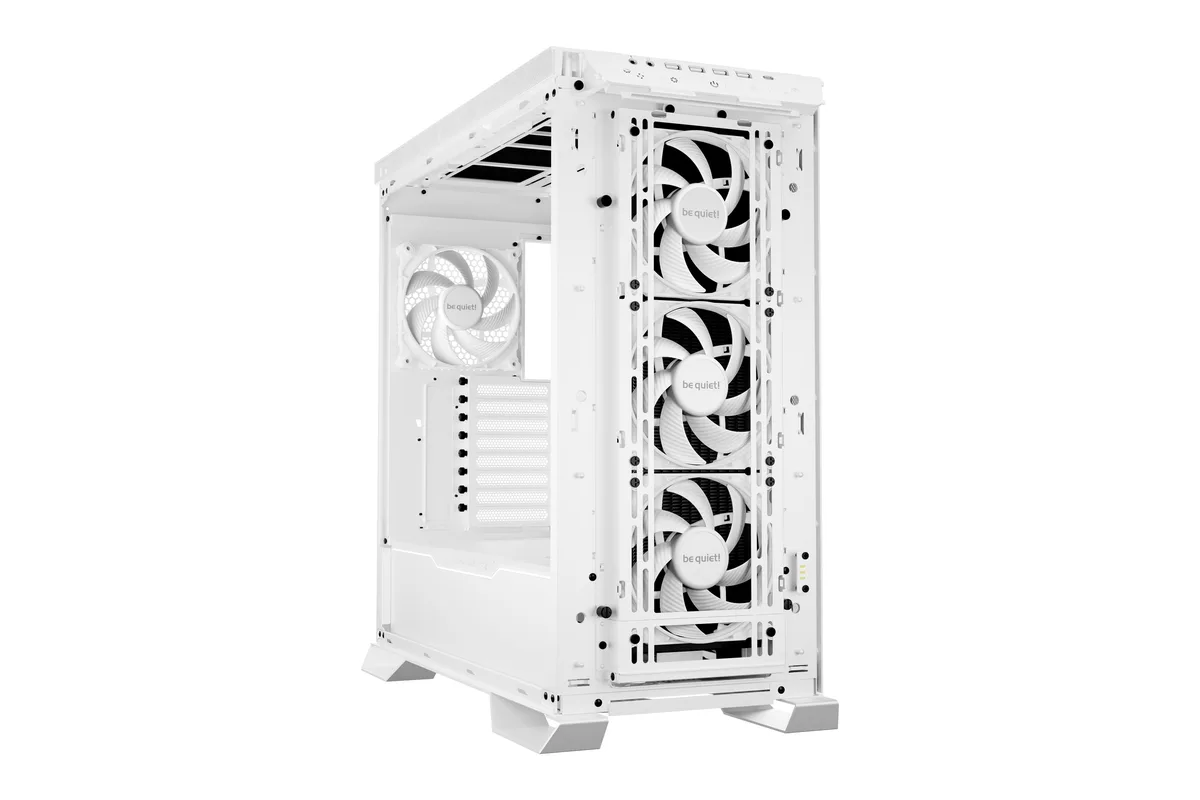

Front Fans Installed
2x 140 mm
Number Of Front Fans Supported Max
3
Front Fans Diameters Supported
120,140 mm
Number Of Side Fans Supported Max
3
Side Fans Diameters Supported
120 mm
Rear Fans Installed
1x 140 mm
Number Of Top Fans Supported Max
3
Top Fans Diameters Supported
120,140 mm
Number Of Bottom Fans Supported Max
1
Bottom Fans Diameters Supported
120,140 mm
Liquid Cooling Capability
Yes
Front Radiator Sizes Supported
120,140,240,360,420 mm
Side Radiator Sizes Supported
120,240,360 mm
Rear Radiator Sizes Supported
120,240 mm
Top Radiator Sizes Supported
120,240,360 mm
Core Chassis Specifications
Edition
Dark Base Pro 901 White
Motherboard Form Factor
9.6" x 9.6"
ATX
E-ATX
MicroATX
Mini-ATX
XL-ATX
Back Connect Compatible
No
Design
Material
Aluminium
Form Factor
Tower
Type
PC
Product Colour
White
Supported Motherboard Form Factors
ATX, EATX, micro ATX, Mini-ATX, XL-ATX
Number Of 3 5 Bays
2
Number Of 5 25 Bays
1
Number Of 2 5 Bays
6
Number Of Expansion Slots
8
Side Window
Yes
Led Indicators
Yes
Maximum Cpu Cooler Height
19 cm
Maximum Graphics Card Length
49.5 cm
Fans & Filters
Fan Bays
3 x 120mm
11 x 120mm / 9x 140mm
Fans Included
3 x 140mm
Fan Controller Hub
Built-in Fan Hub with Front Panel Controller
Dust Filters
Bottom
Front
I/O, Bays & Expansion

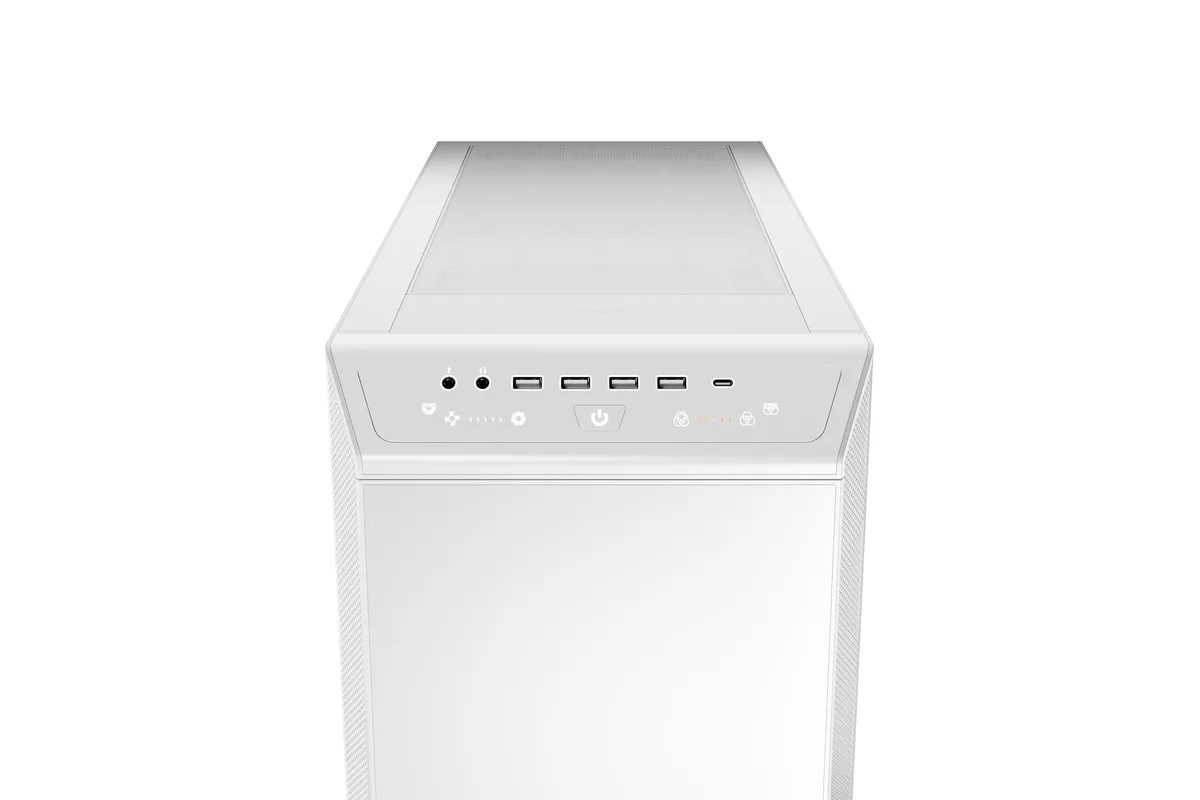

Front Side Top Panel I O
1 x Fan Controller Button(s)
1 x Headphone Out
1 x Mic In
1 x Qi Charger
1 x RGB LED Control Button
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Type-A
Drive Bays
6 x 2.5" Internal
2 x 3.5" Internal
1 x 5.25"
Standard Expansion Slots
8
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Case Accent Lighting
Led Lighting Colour
RGB
Led Lighting Support Control
Control via Inc. Controller/Hub (Buttons/Switches)
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280/360/
420mm
Top Radiator Compatibility
1 x 120/240/360mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120/140mm
Side Radiator Compatibility
1 x 120/240/360mm
Ports & interfaces
Audio Input
Yes
Audio Output
Yes
Usb 3 2 Gen 1 3 1 Gen 1 Type A Ports Quantity
2
Usb 3 2 Gen 2 3 1 Gen 2 Type C Ports Quantity
1
Power supply
Power Supply Included
No
Power Supply Location
Bottom
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
-
Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
Storage
Supported Hdd Sizes
2.5,3.5"
Weight & dimensions
Width
275 mm
Depth
604 mm
Height
569 mm
Weight
18 kg
