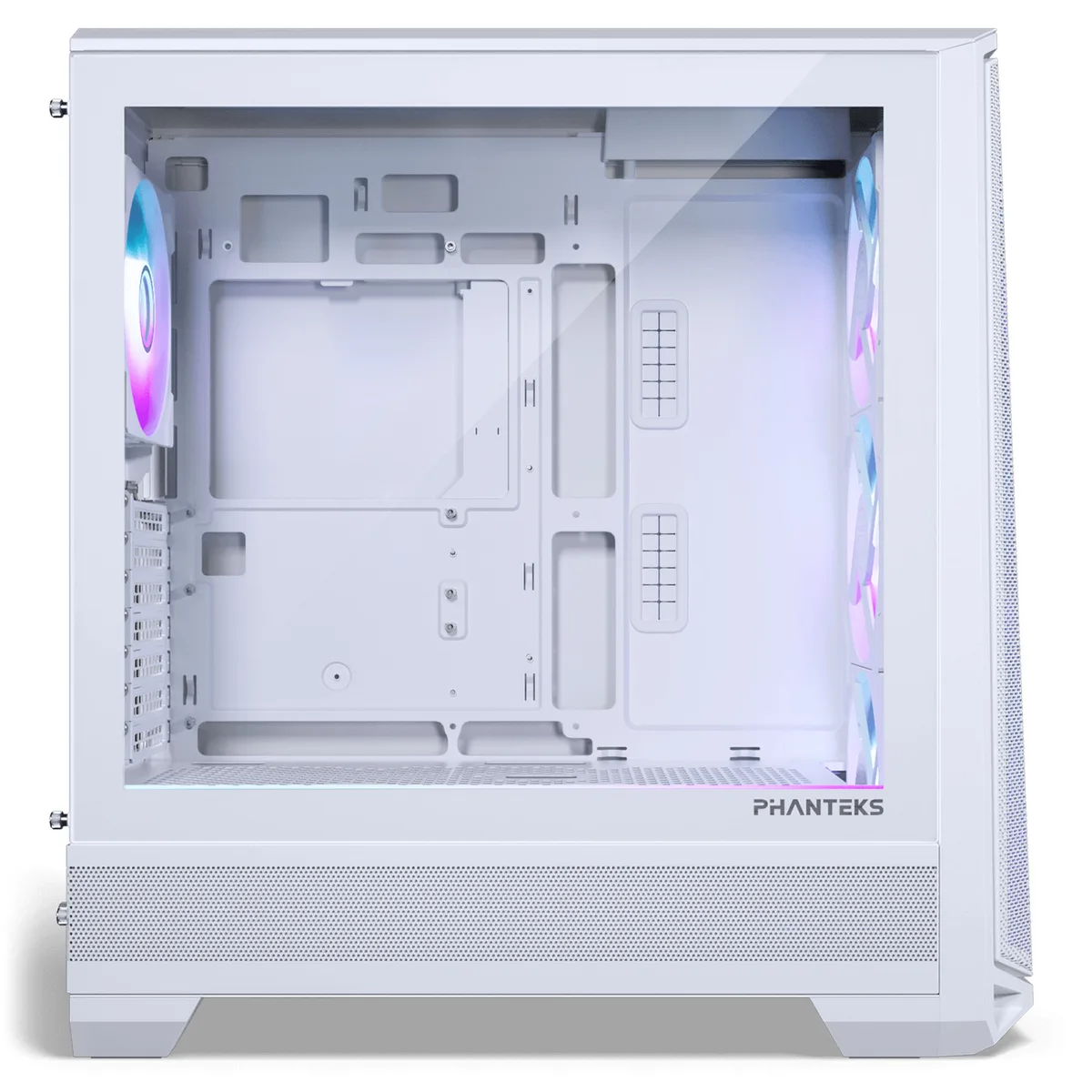

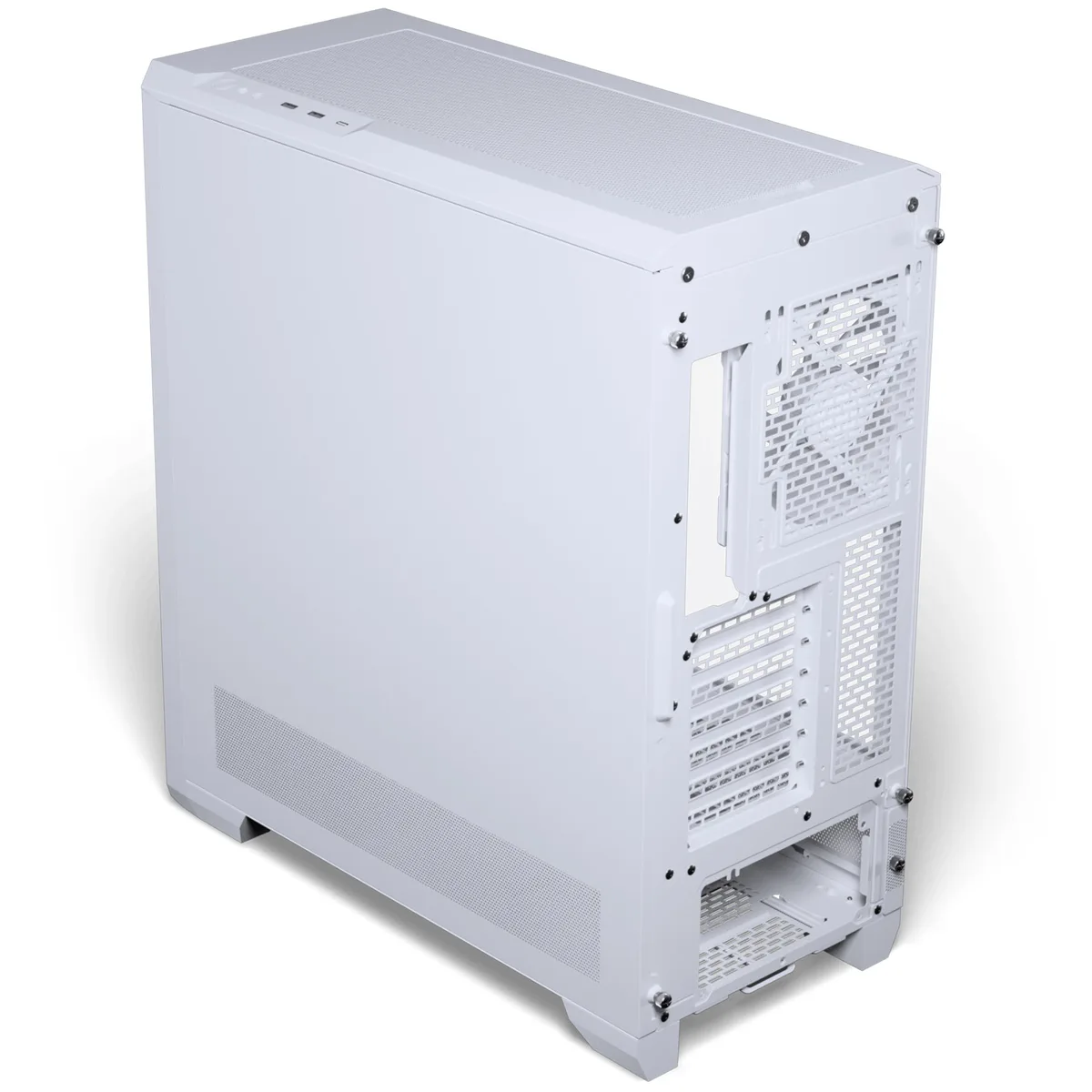

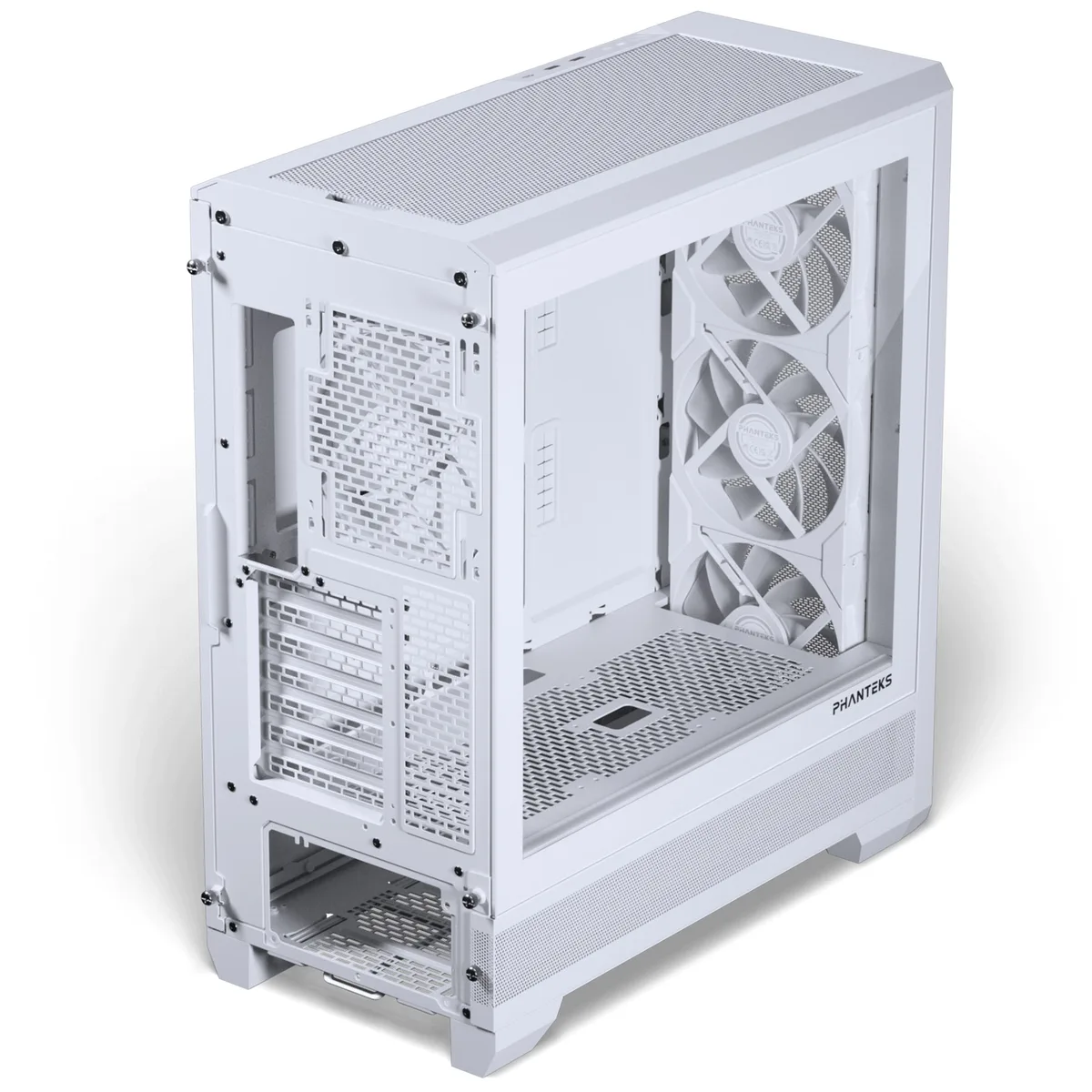

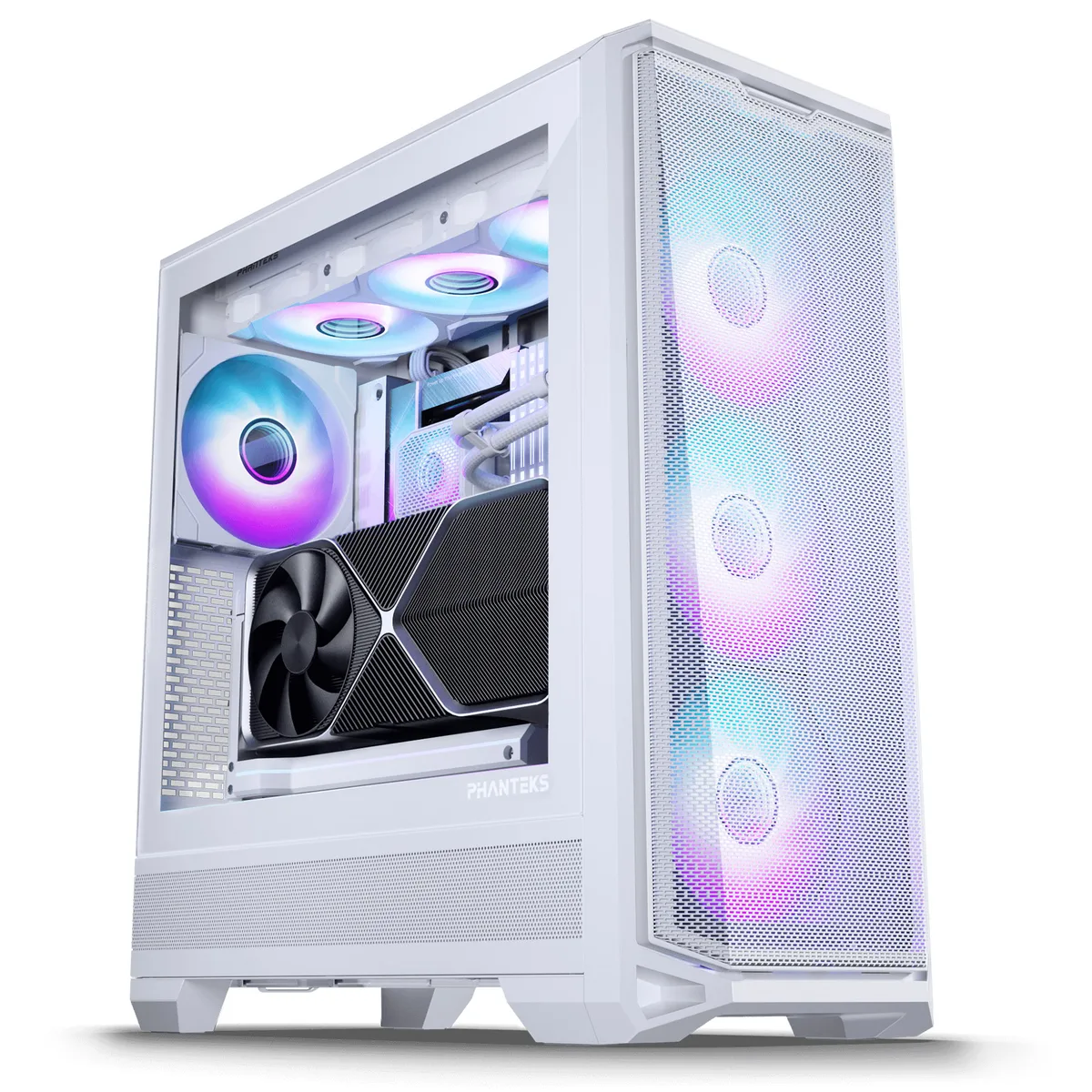

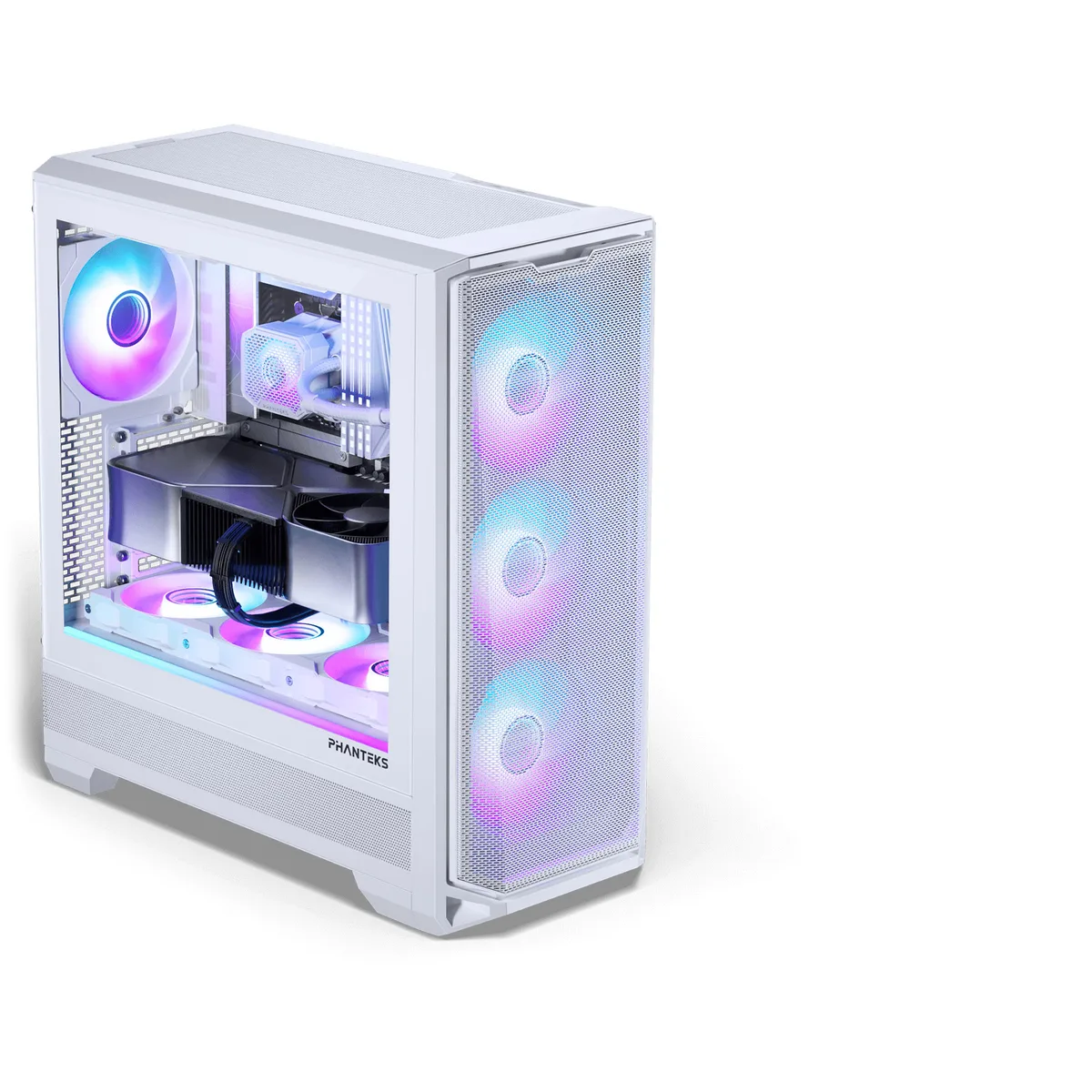

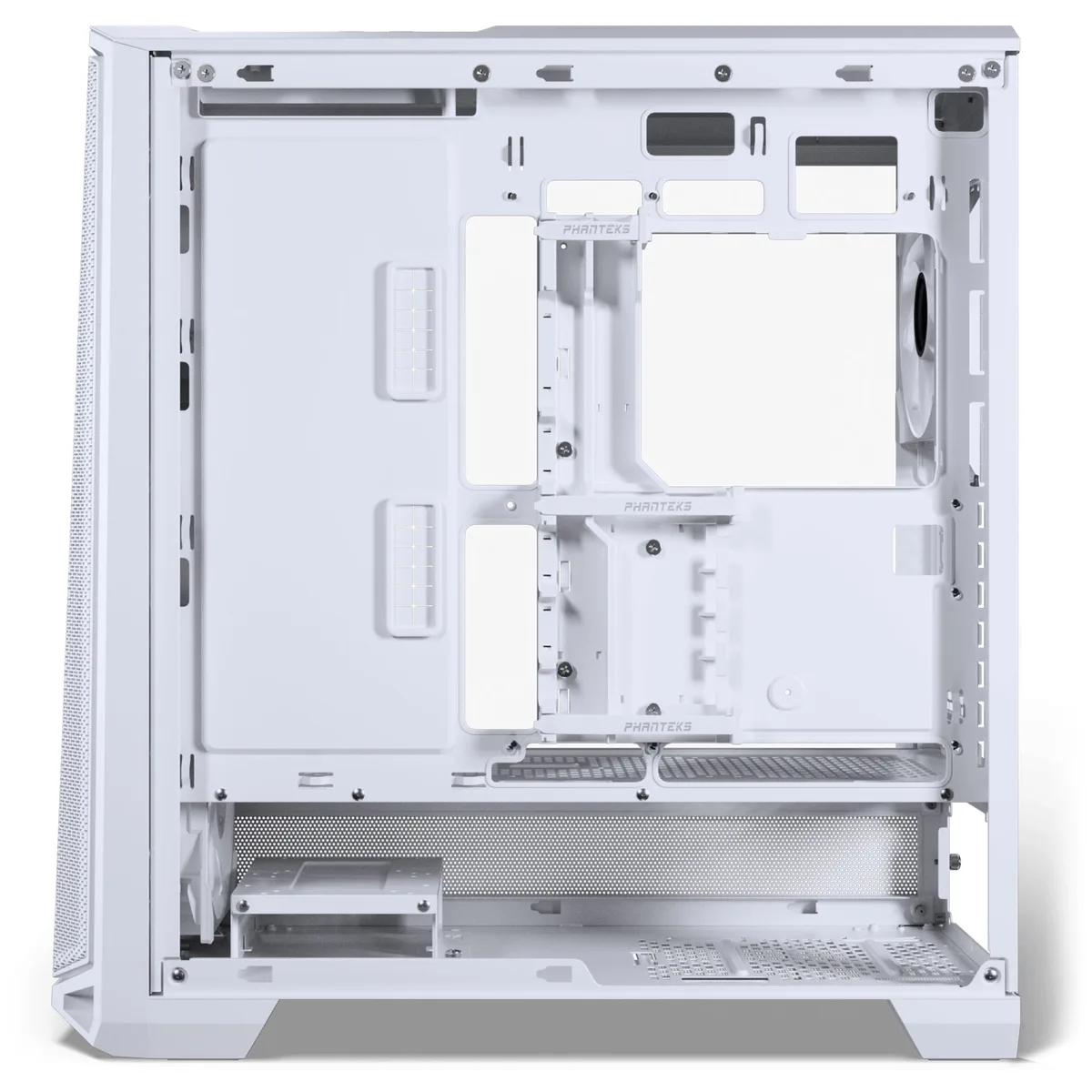

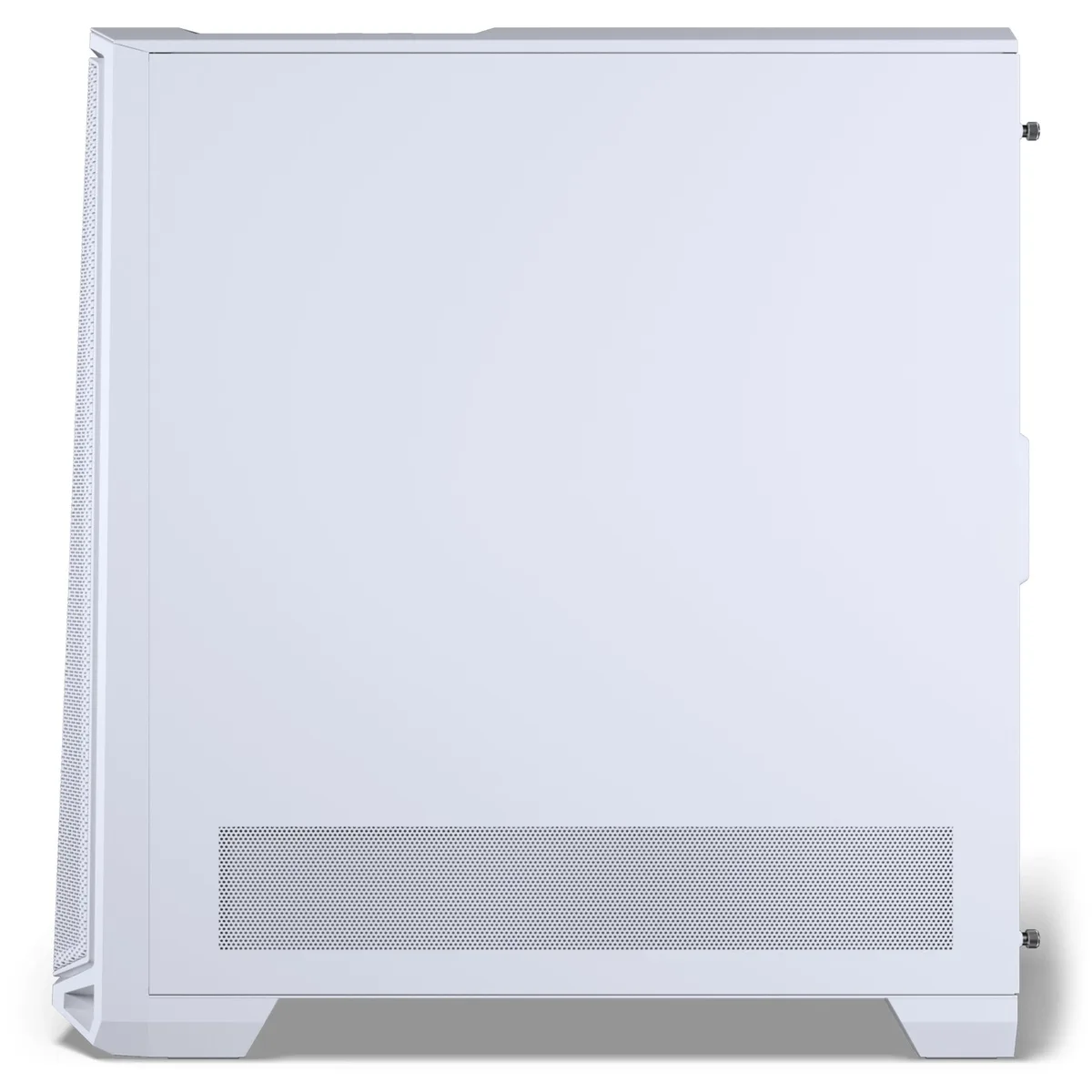

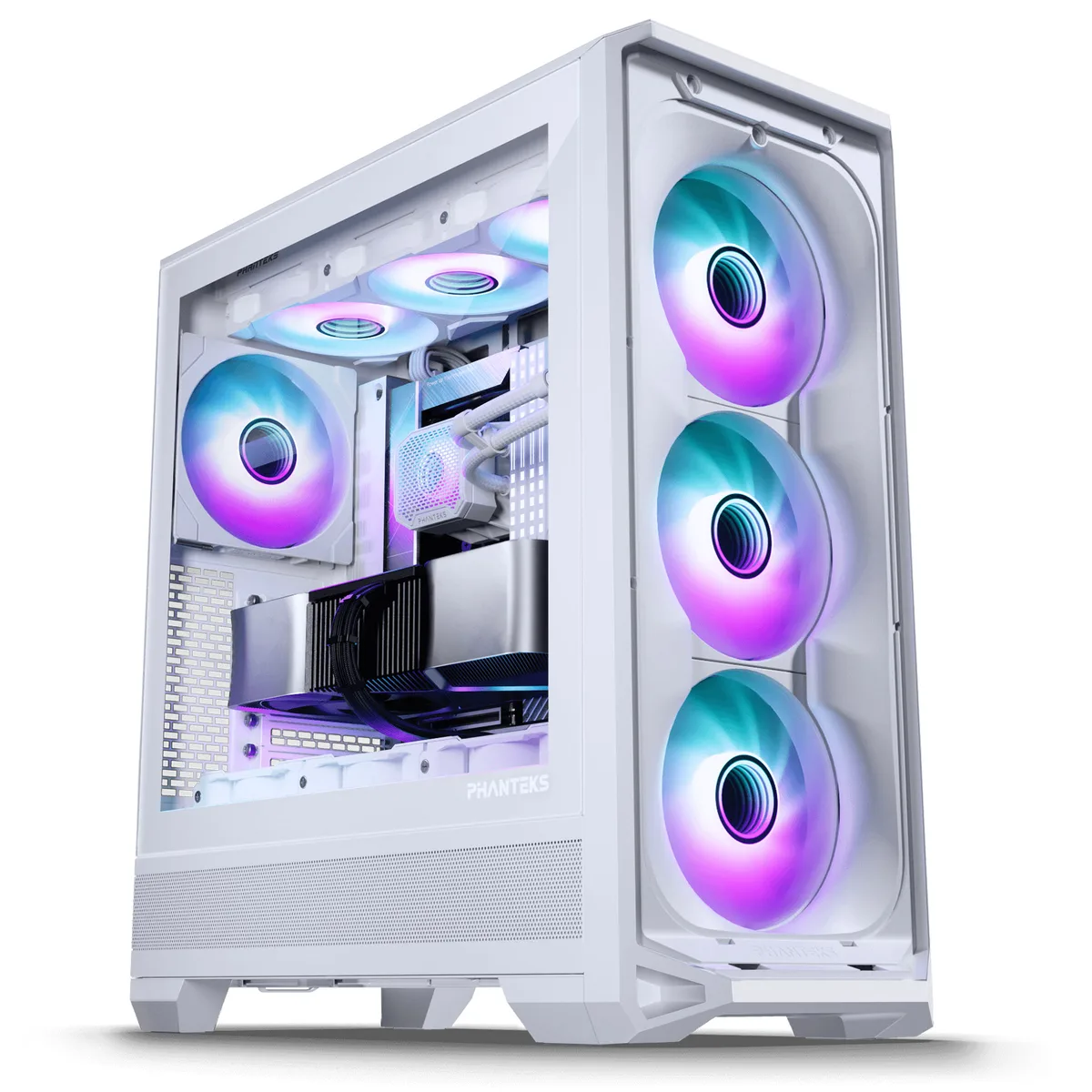

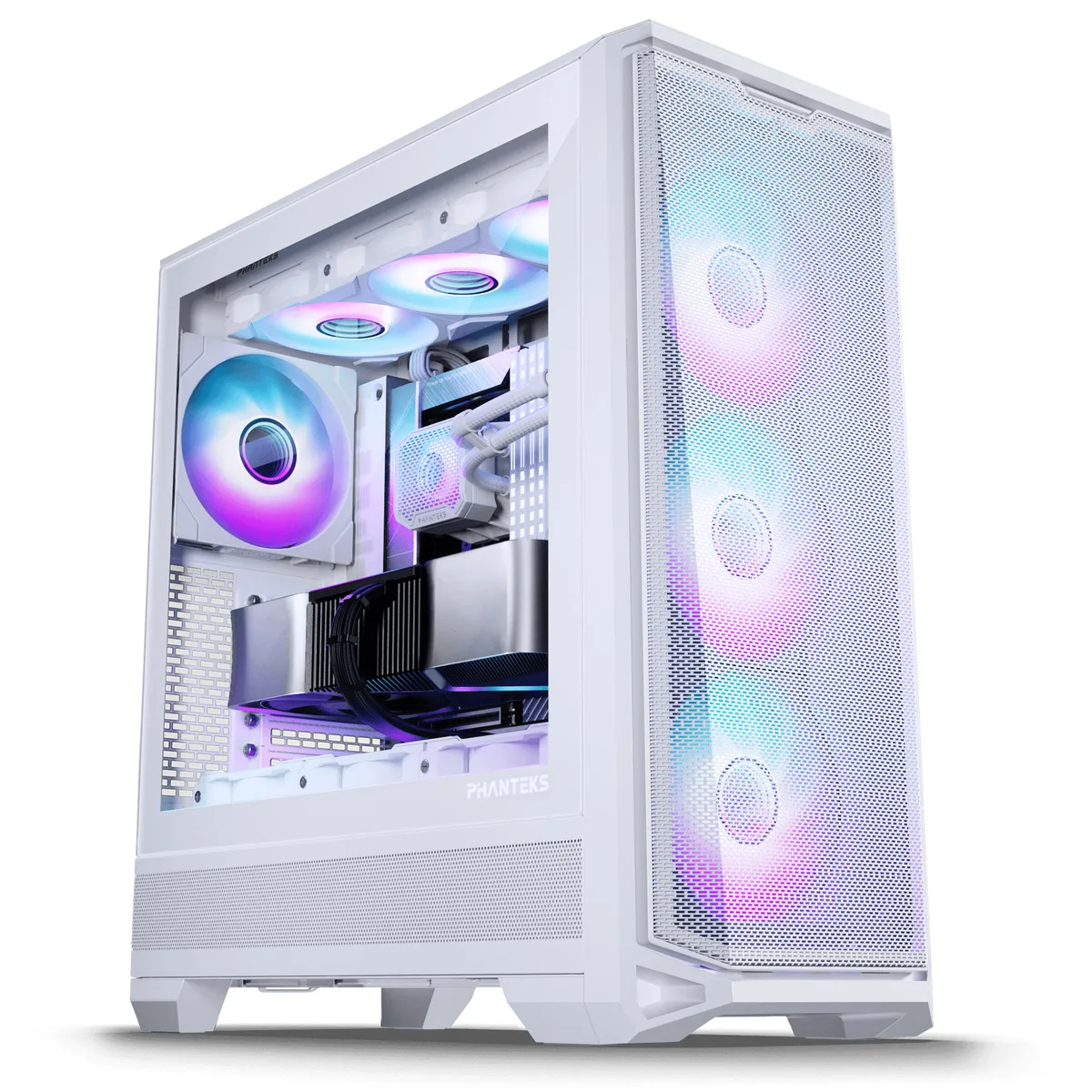

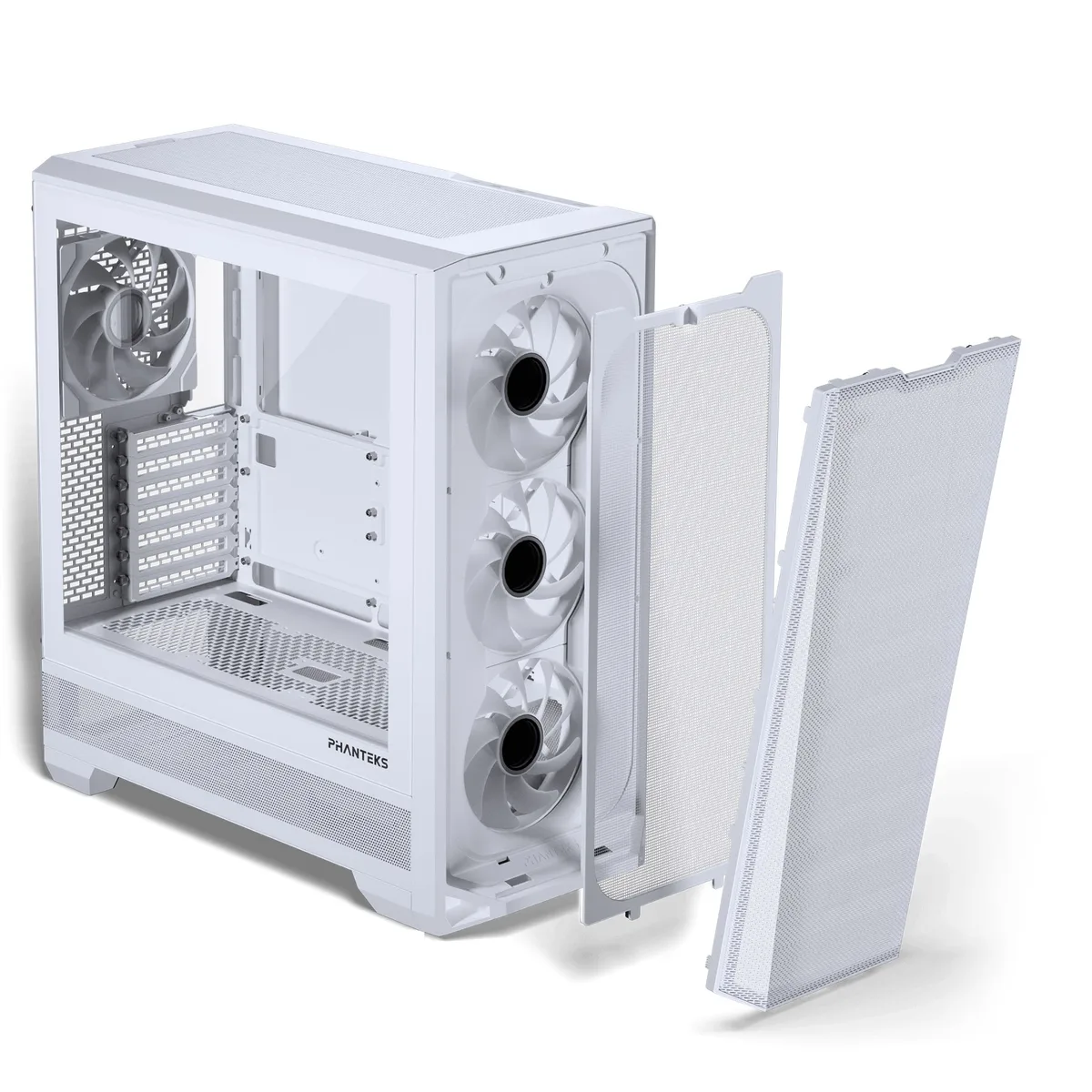

Phanteks Eclipse G400A Case Tempered Glass DRGB Matte White
£92.94
Model: PH-EC400GA_DMW01
Technical Specifications68 specs
Additional Contents
Fans Included
Yes
Included Fans
4x 140 mm
Additional Information
Model Number
PH-EC400GA_DMW01
Gtin
0886523303565
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Colour
Primary Colour
White
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
495 mm
Width
230 mm
Height
522 mm
Weight
8.63 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
3 5 Inch Internal Drive Bay
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7

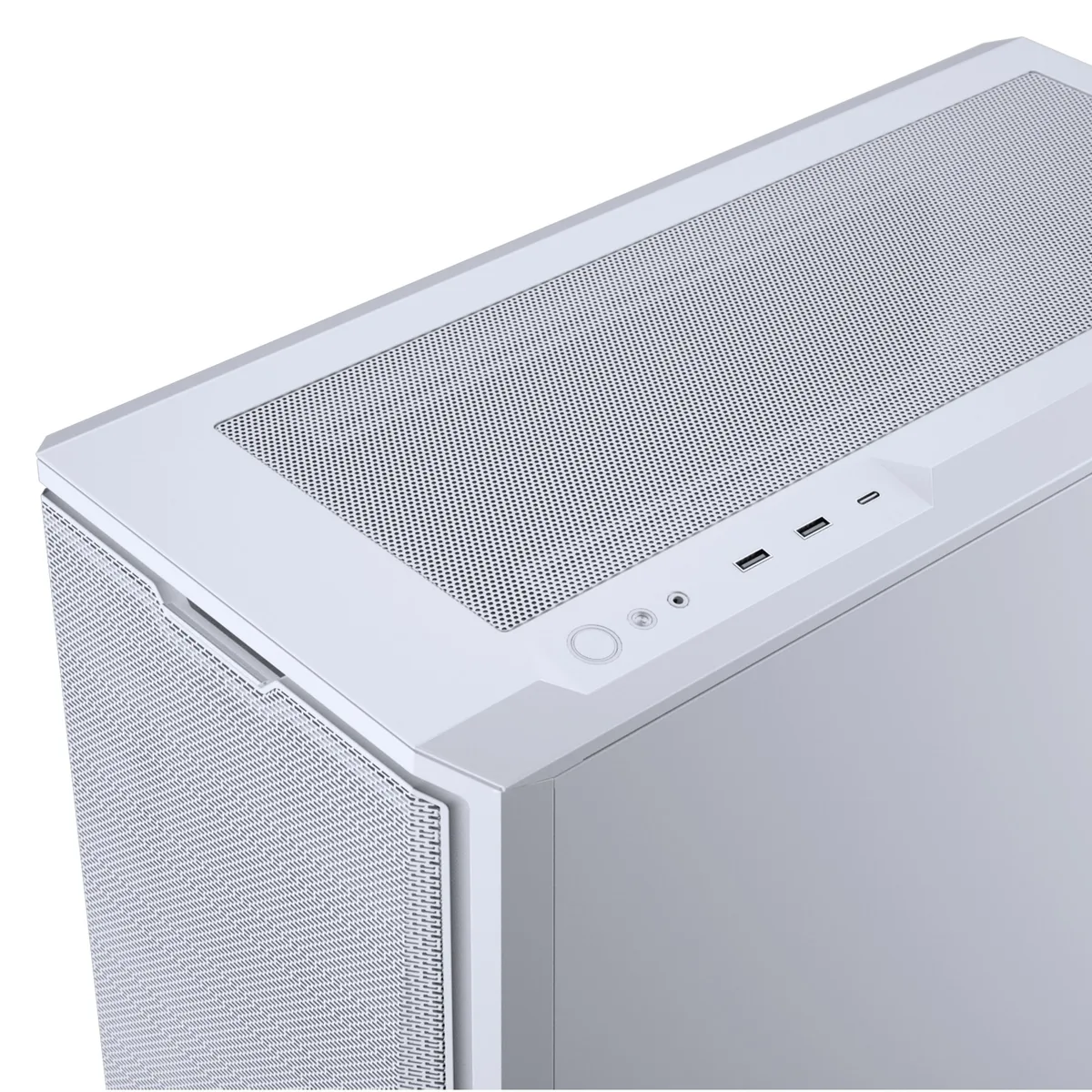

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 1 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Bottom
120mm Fan (3x)
Max Number Of Fans
7
Case Fan Support Front
140mm Fan (3x)
120 Mm Fans
7
140 Mm Fans
6
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
184 mm
Max Gpu Length
415 mm
Max Gpu Width
184 mm
Max Psu Length Depth
270 mm
Lighting
Lighting Rgb
No
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
Eclipse G400A
Radiator Support
Max Radiator Compatibility
360
Radiator Aio Support Top
280mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator
