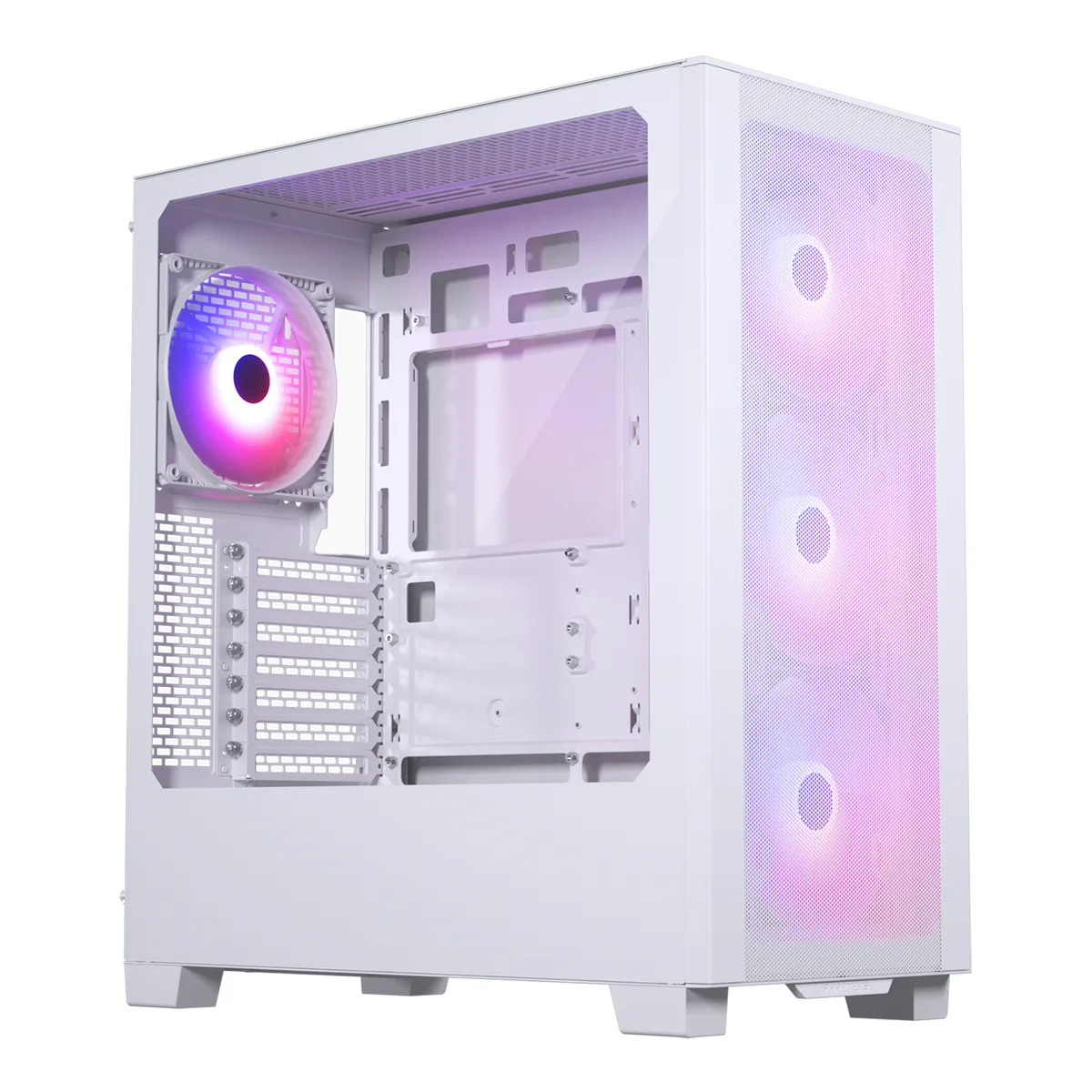

Phanteks XT Pro Ultra ATX Case Tempered Glass Window, White
MPN: PH-XT523P1_DWT01
Key specifications
Max GPU415.0 mm
Max Cooler184.0 mm
Max PSU270.0 mm
Form factorUnknown
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 415.0mm GPU clearance.
Supports up to 184.0mm CPU cooler height.
Full Specifications69 fields
Additional Contents
Fans Included
Yes
Included Fans
4x 140 mm
Additional Information
Model Number
PH-XT523P1_DWT01
Gtin
0886523303145
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Connectivity
Card Reader
No
Dimensions
Length Depth
450 mm
Width
230 mm
Height
500 mm
Weight
7.55 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
5
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
5
3 5 Inch Internal Drive Bay
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 2 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Max Number Of Fans
10
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Bottom
120mm Fan (3x)
120 Mm Fans
10
140 Mm Fans
6
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
184 mm
Max Gpu Length
415 mm
Max Gpu Width
184 mm
Max Psu Length Depth
270 mm
Lighting
Lighting Rgb
No
Materials
Materials
ABS, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
XT Pro Ultra
Radiator Support
Radiator Aio Support Front
240mm Radiator
Radiator Aio Support Rear
120mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Dual (240 mm), 1x Triple (360 mm)
Radiator Aio Support Top
360mm Radiator
