Kolink Citadel Mesh Micro-ATX Case - Black
MPN: CITADEL MESH
Key specifications
Max GPU345.0 mm
Max Cooler190.0 mm
Max PSU200.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 345.0mm GPU clearance.
Supports up to 190.0mm CPU cooler height.
Full Specifications67 fields
Additional Contents
Fans Included
Yes
Included Fans
2x 120 mm
Additional Information
Model Number
CITADEL MESH
Gtin
5999094003583
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Fan Main Colour Frame
Black
Fan Main Colour Rotor
Black
Compliance
Compliance Documents
Kolink Case Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Connectivity
Card Reader
No
Dimensions
Length Depth
400 mm
Width
230 mm
Height
375 mm
Weight
5.3 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
5
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
4

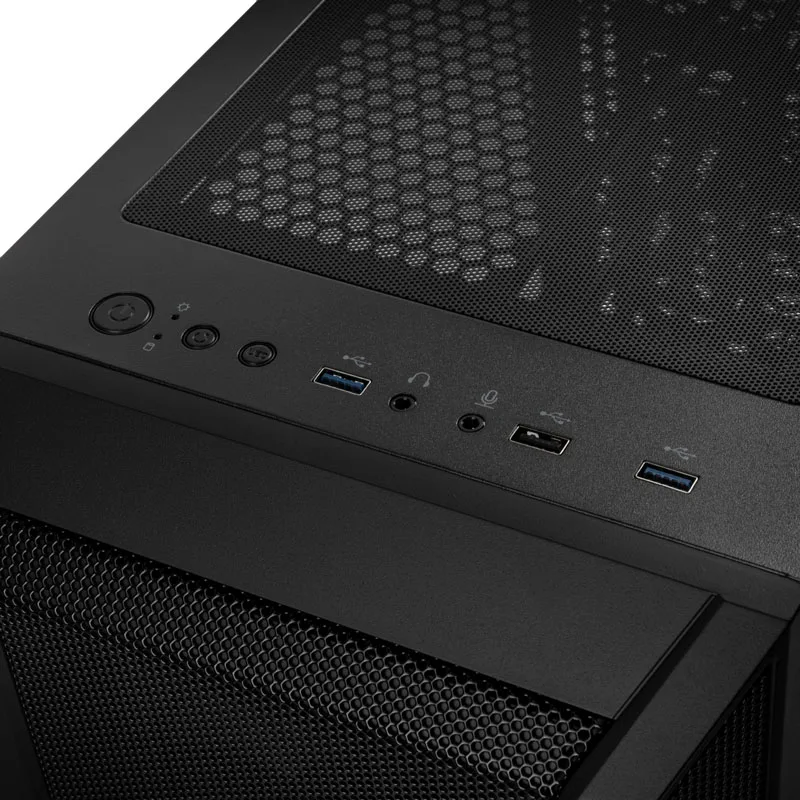

External Ports
Front I O Usb Type A Ports Total
3
Usb 3 0 External Type A
2
Usb 2 0 External Type A
1
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Front
120mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
5
Case Fan Support Top
120mm Fan (2x)
120 Mm Fans
5
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
190 mm
Max Gpu Length
345 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
No
Materials
Materials
Plastic, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
Micro-ATX, Mini-ITX
Max Motherboard Format
Micro-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
280mm Radiator
Radiator Aio Support Top
240mm Radiator
Max Radiator Compatibility
1x Dual (240 mm), 1x Dual (280 mm)
