CasesAntec

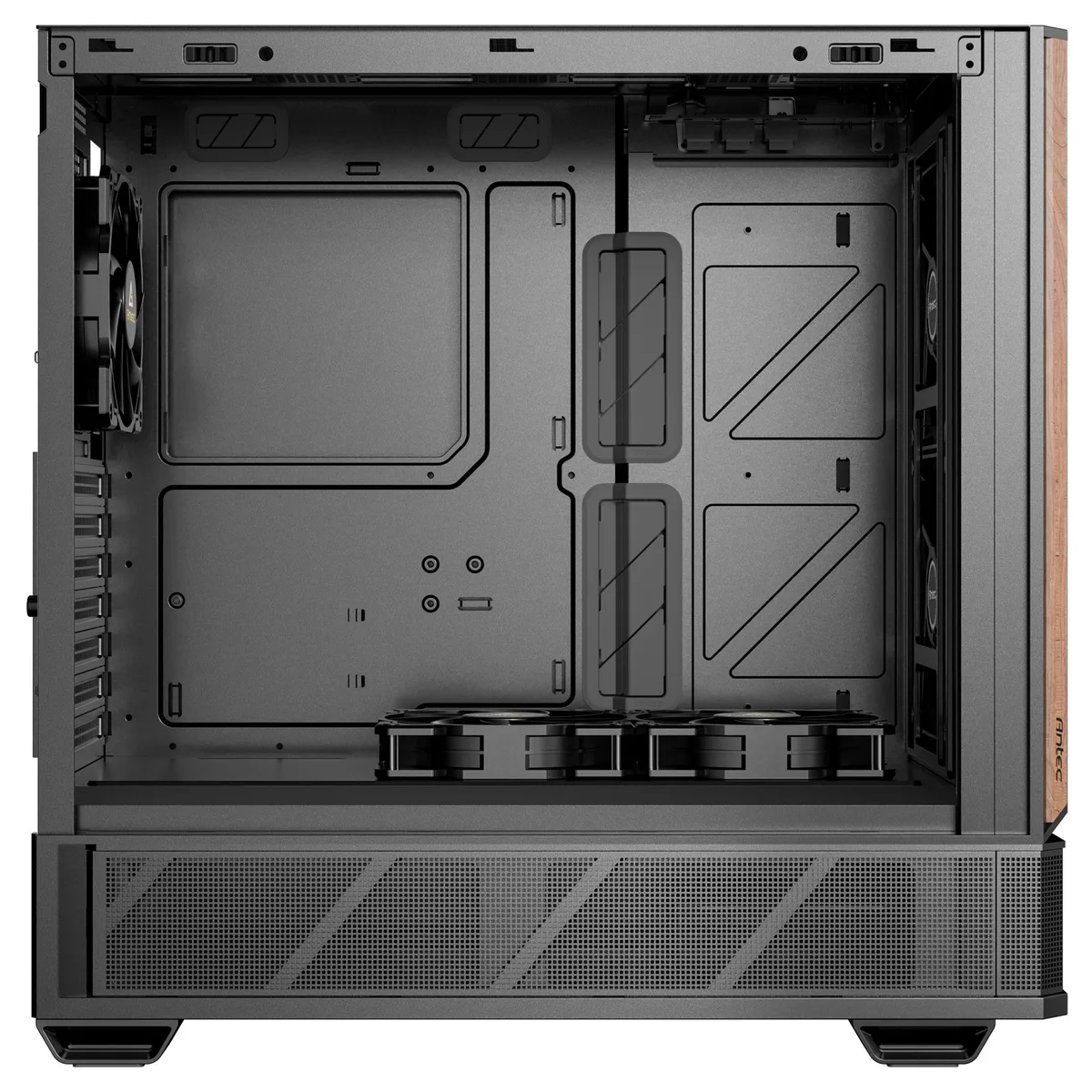

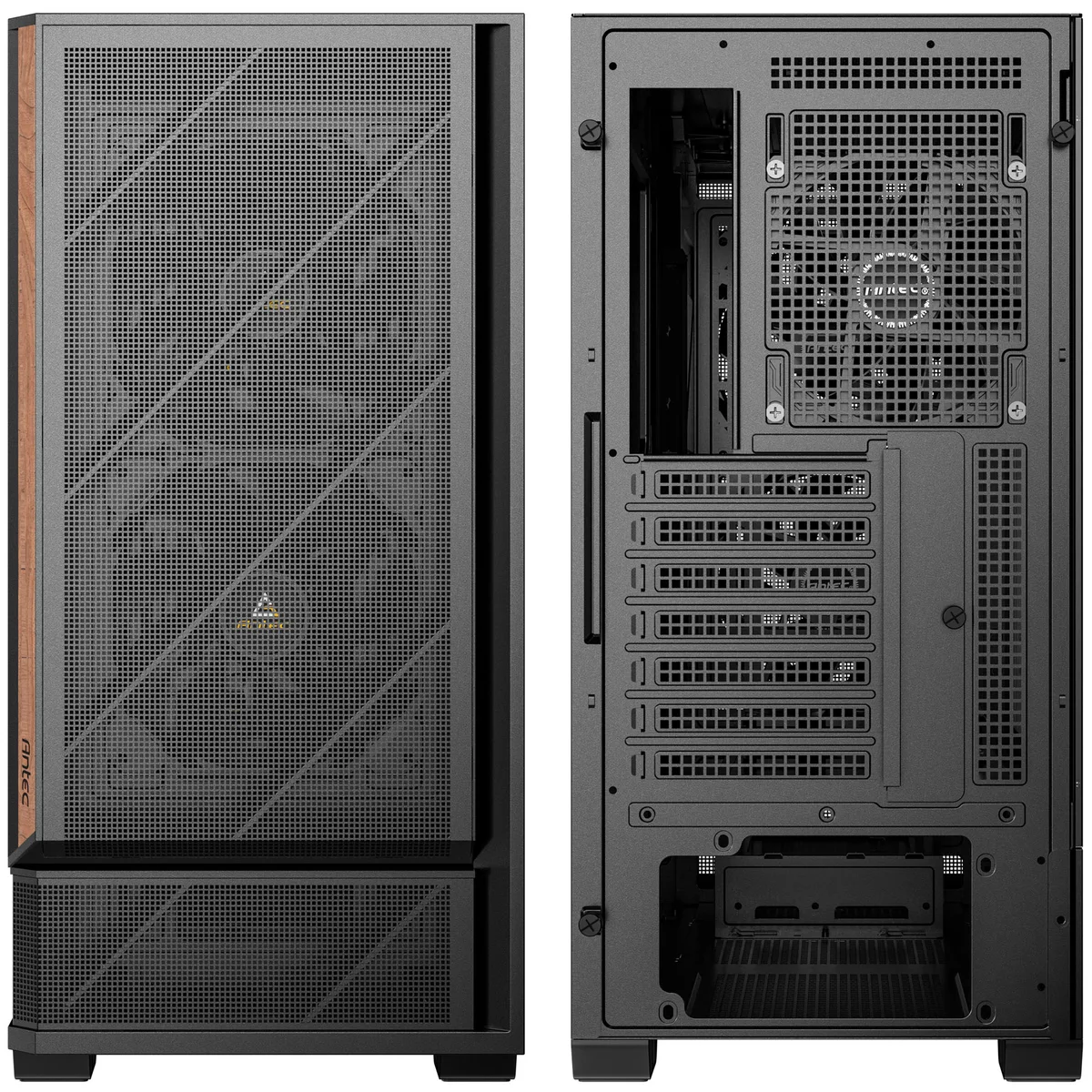

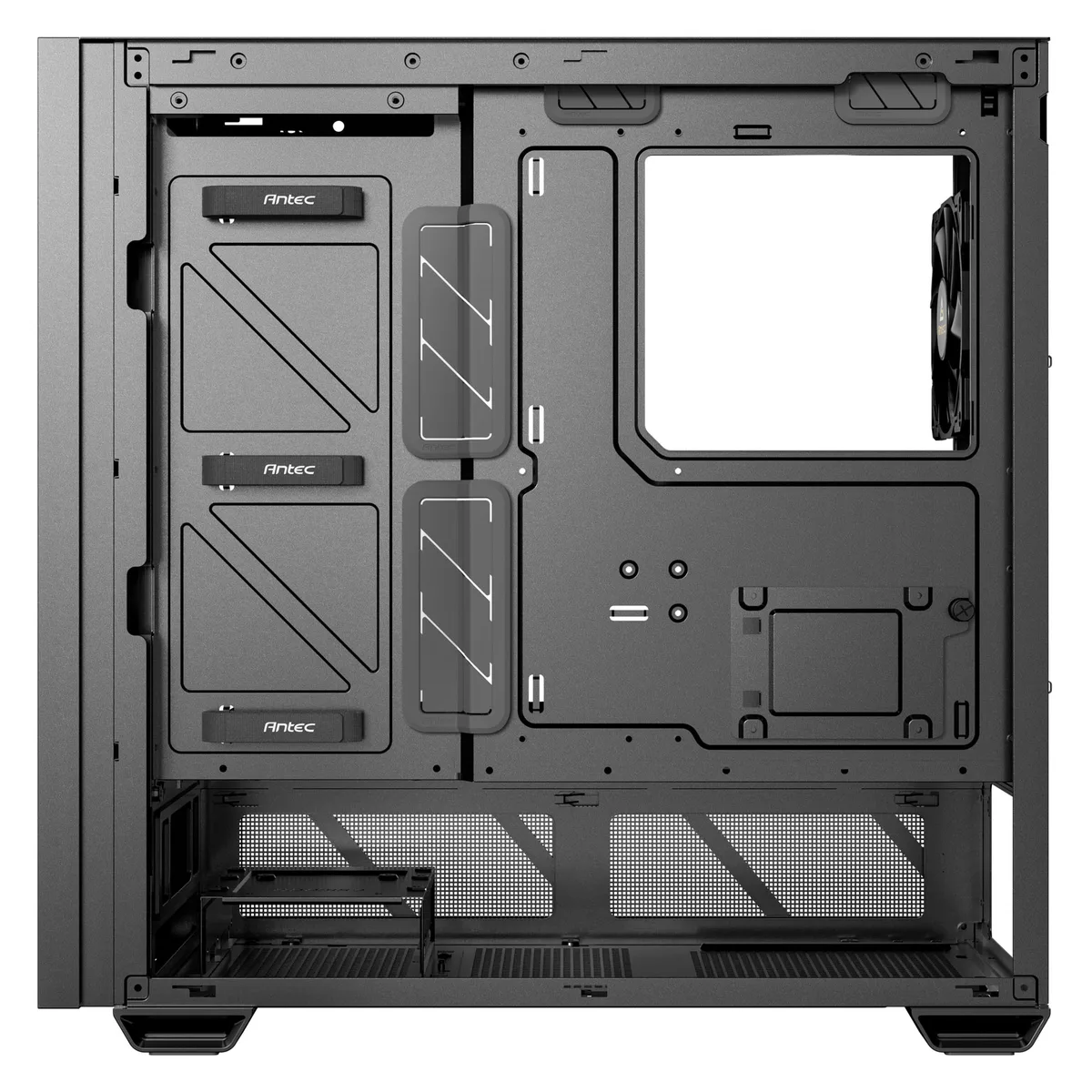

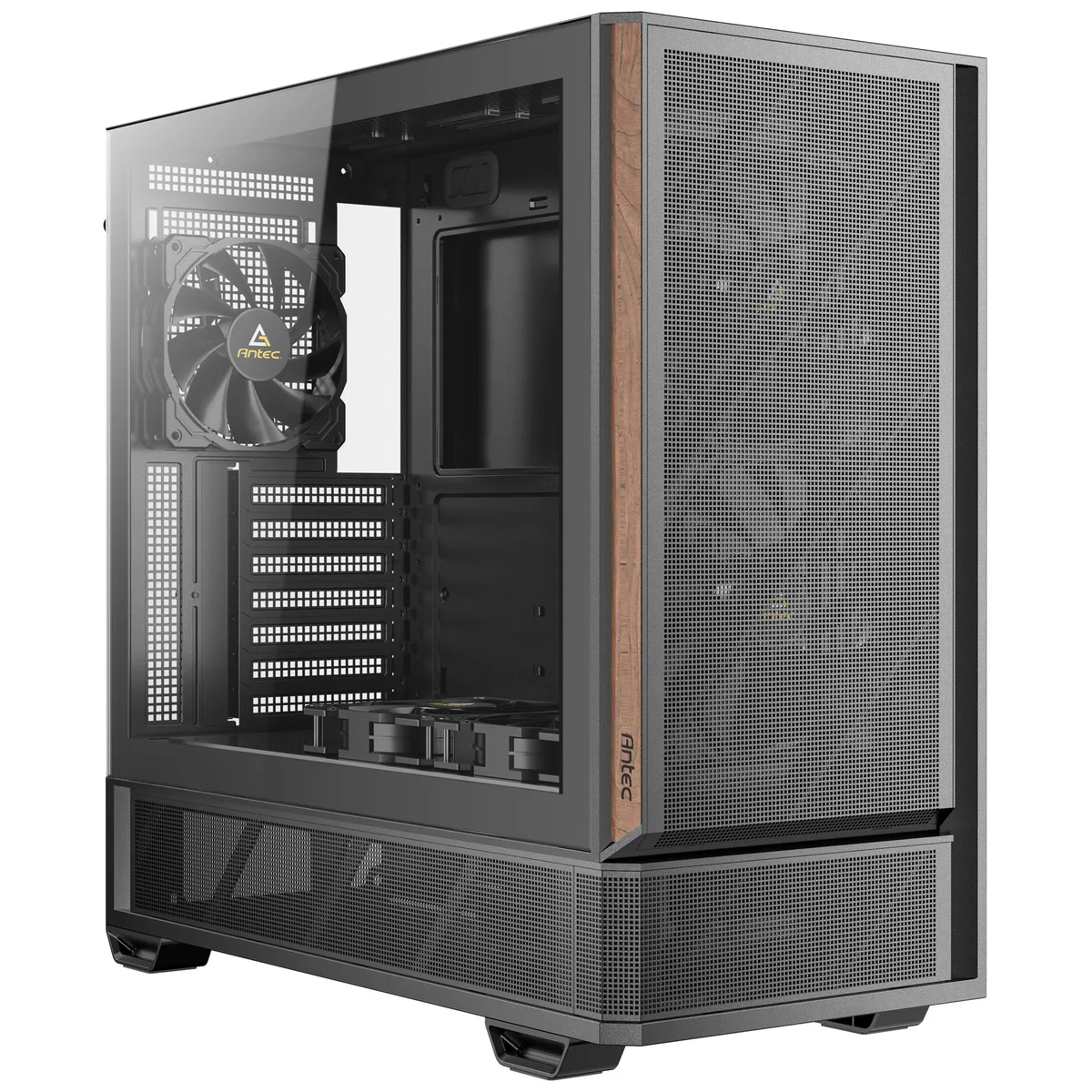

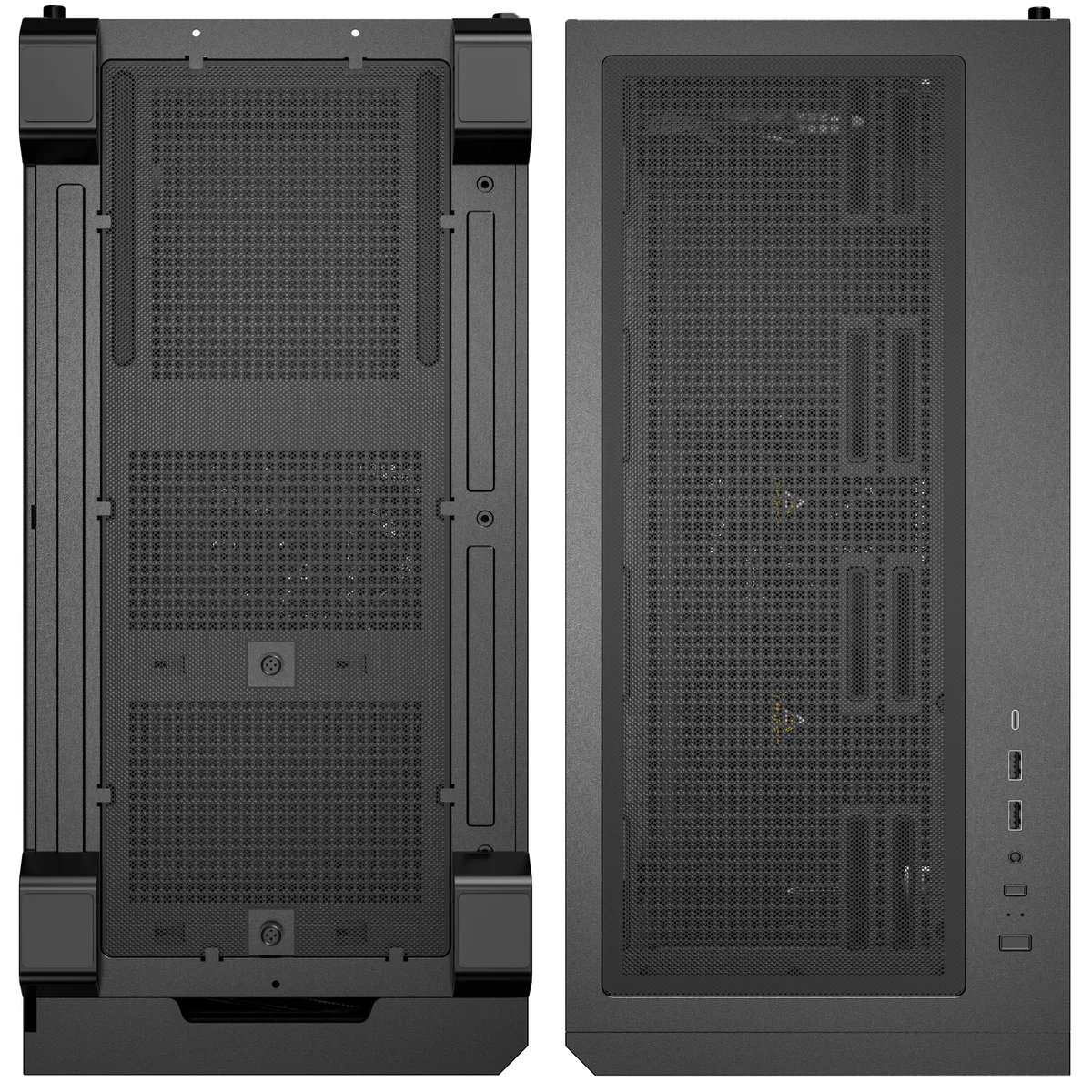

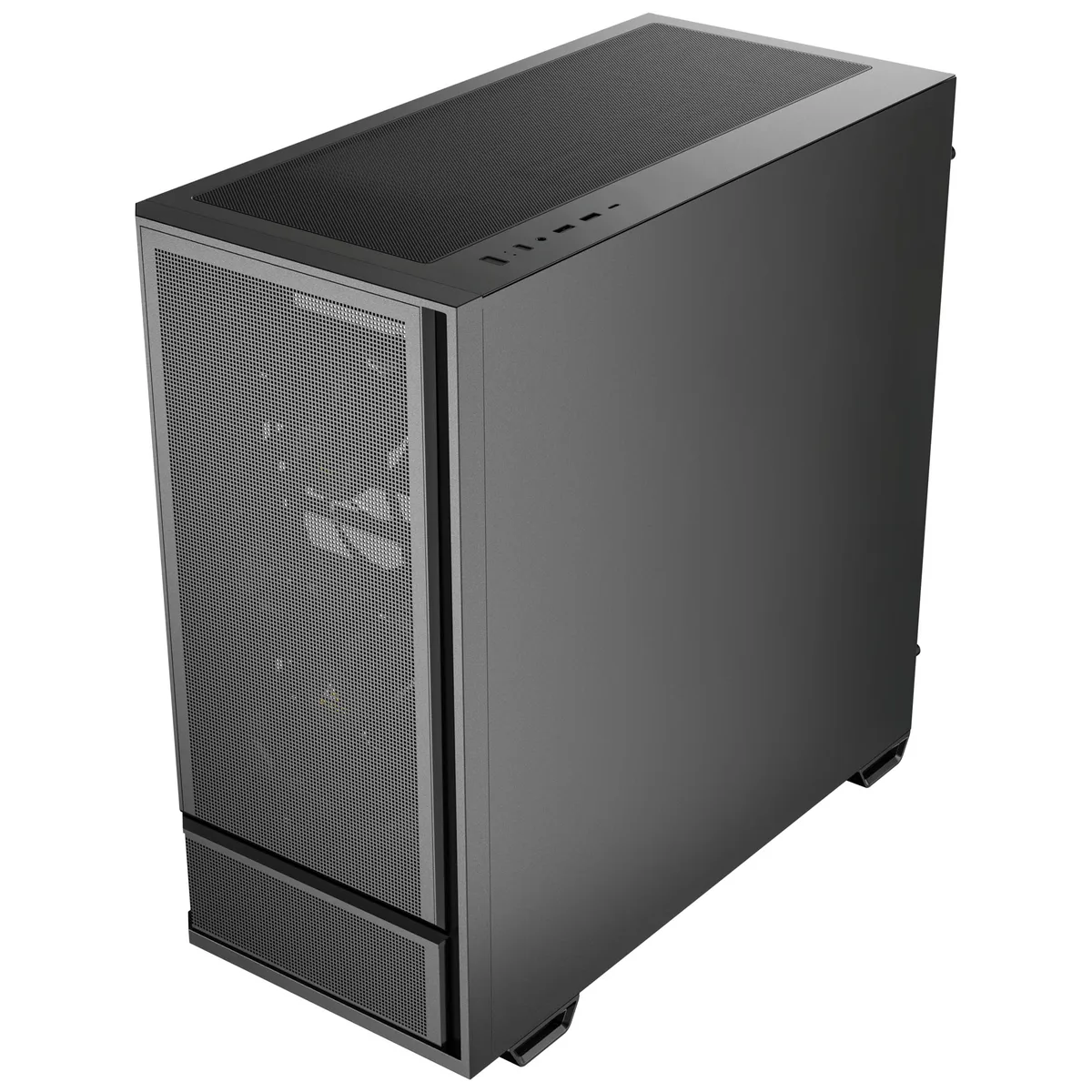

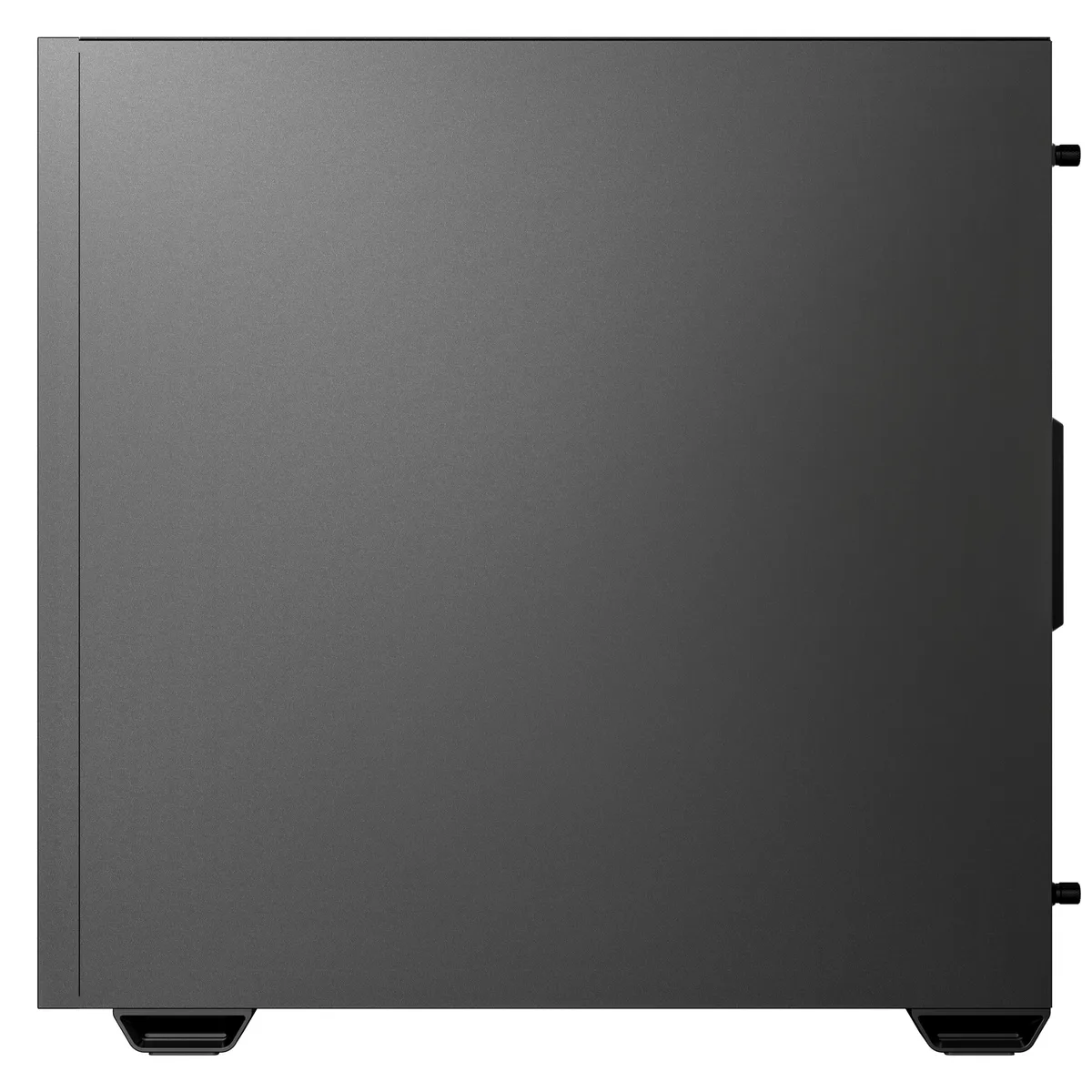

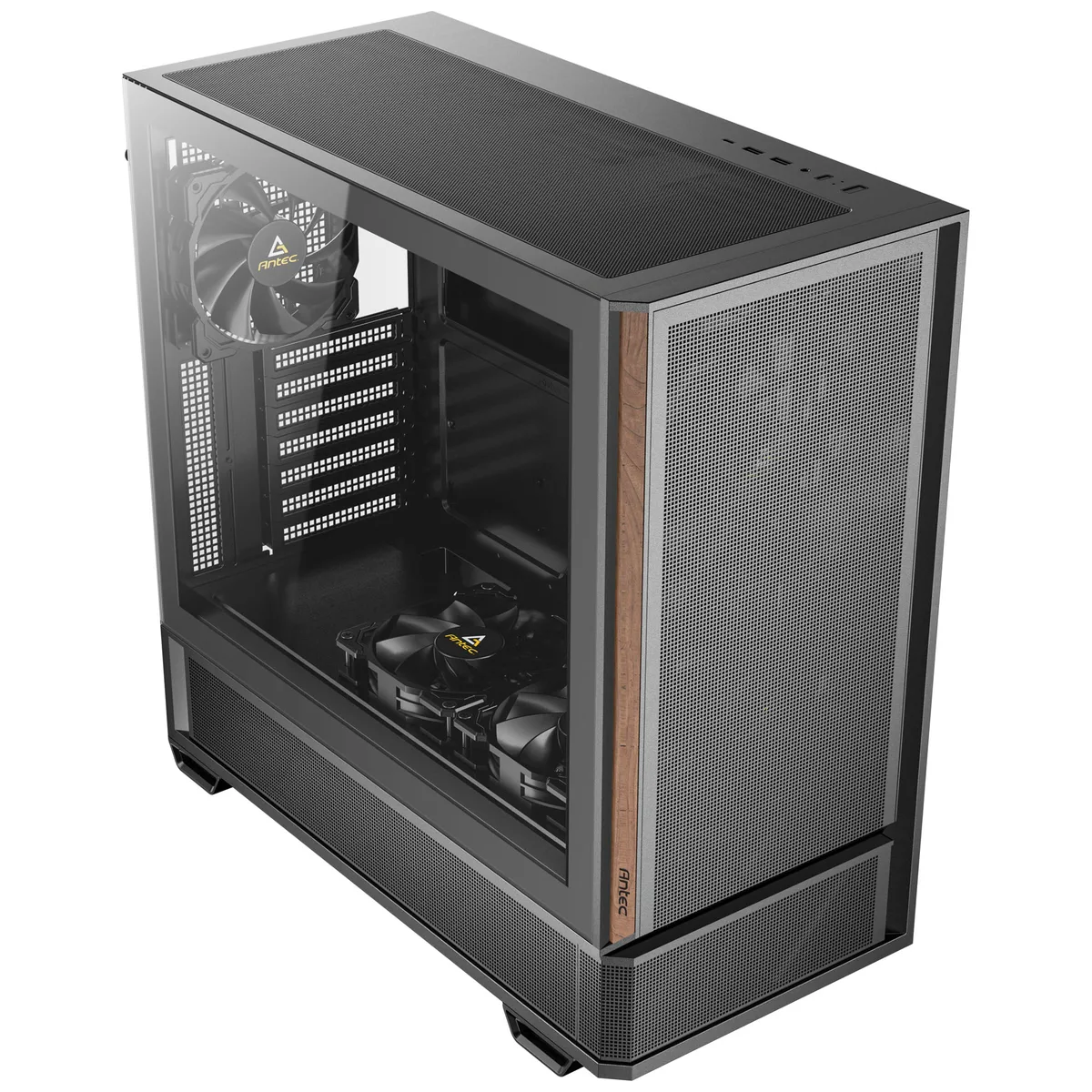

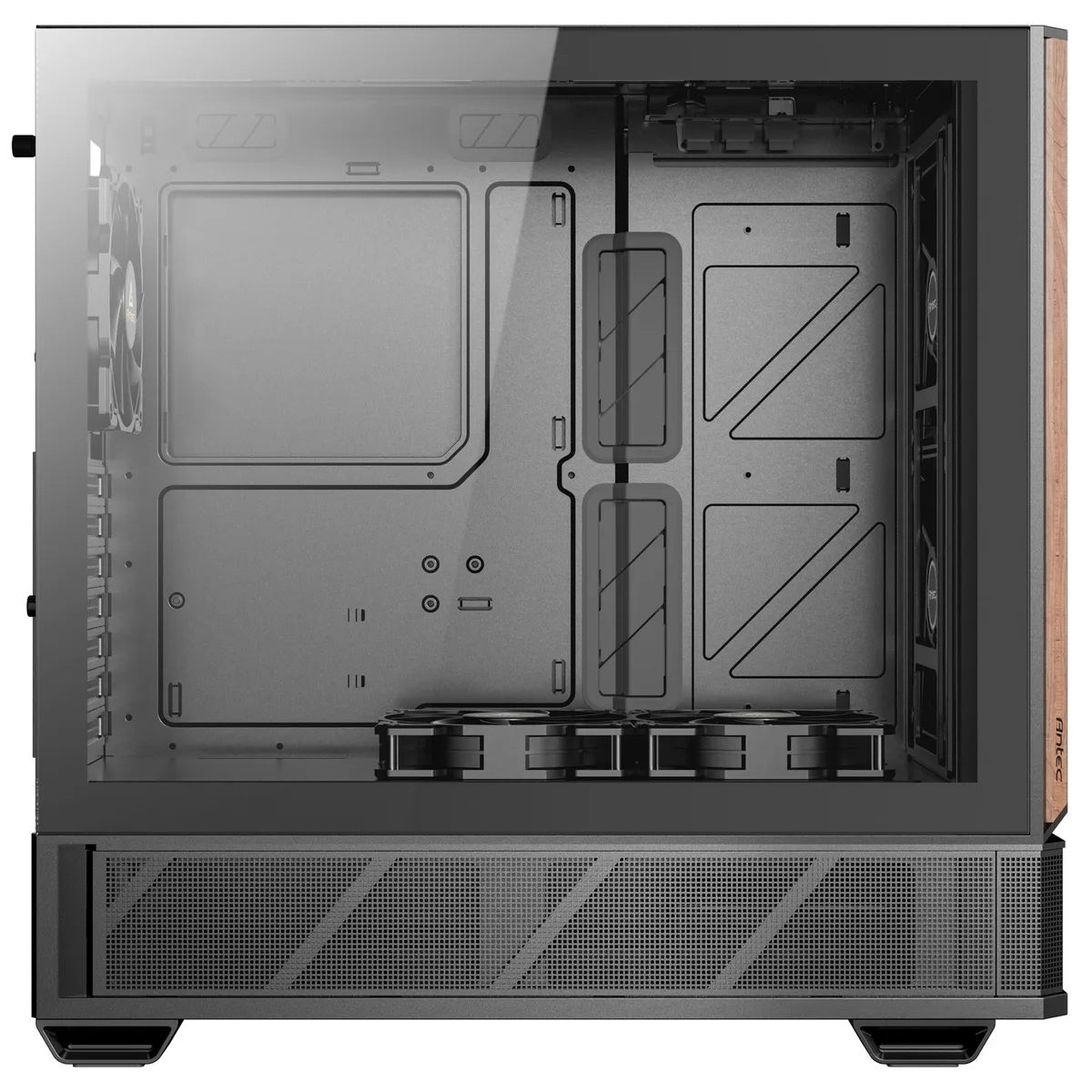

Antec P30 Air Mesh Mid Tower Case - Black
£70.58
Model: 0-761345-10256-8
Technical Specifications64 specs
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm, 2x 140 mm
Additional Information
Model Number
0-761345-10256-8
Gtin
0761345102568
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Connectivity
Card Reader
No
Dimensions
Length Depth
478 mm
Width
222 mm
Height
465 mm
Weight
6.85 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Front
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Bottom
120mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
8
120 Mm Fans
8
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
175 mm
Max Gpu Length
405 mm
Max Psu Length Depth
270 mm
Lighting
Lighting Rgb
No
Materials
Materials
Plastic, Steel, Tempered Glass, Wood
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
120mm Radiator, 140mm Radiator, 240mm Radiator
Radiator Aio Support Rear
120mm Radiator
Radiator Aio Support Top
120mm Radiator, 240mm Radiator, 360mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Dual (240 mm), 1x Triple (360 mm)
