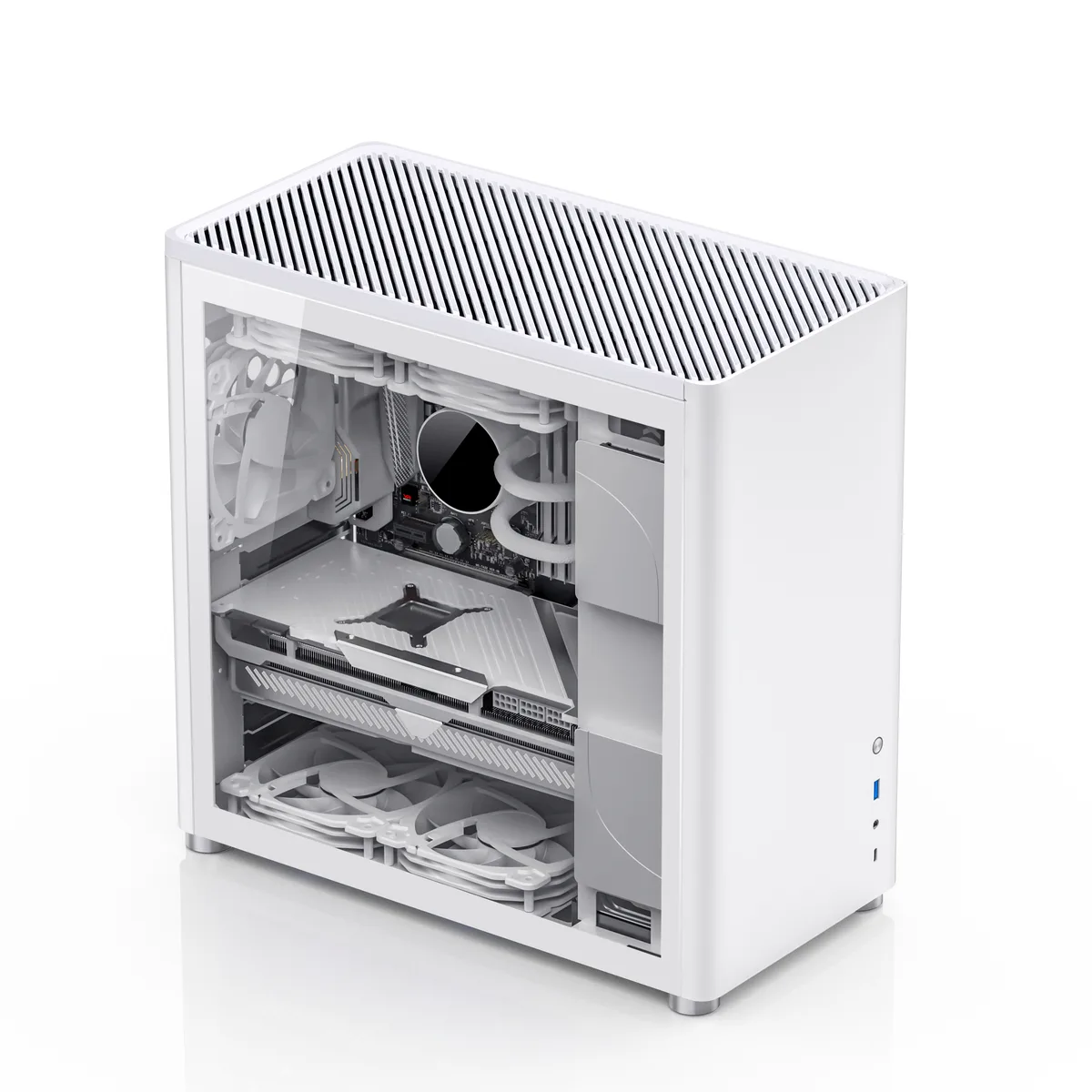

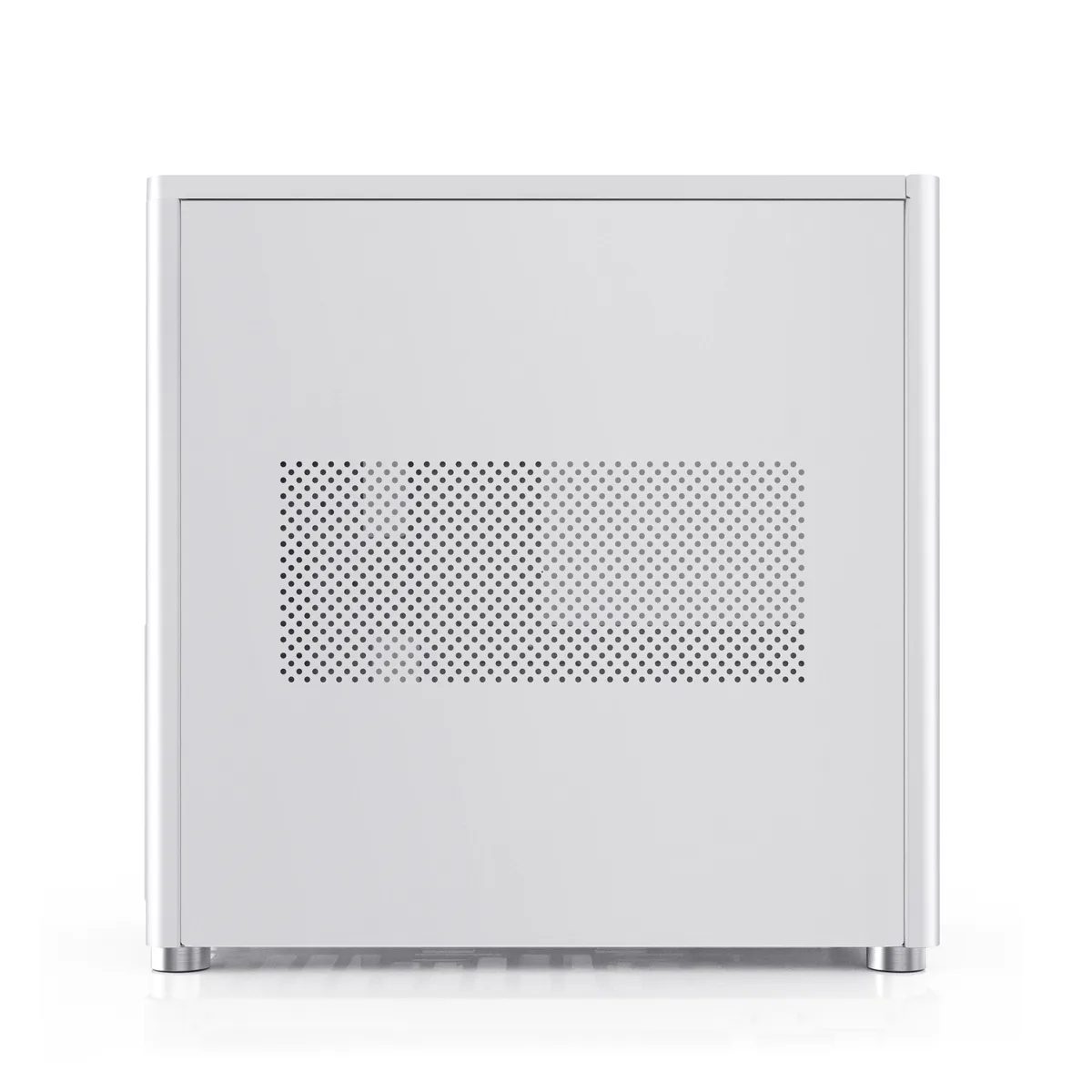

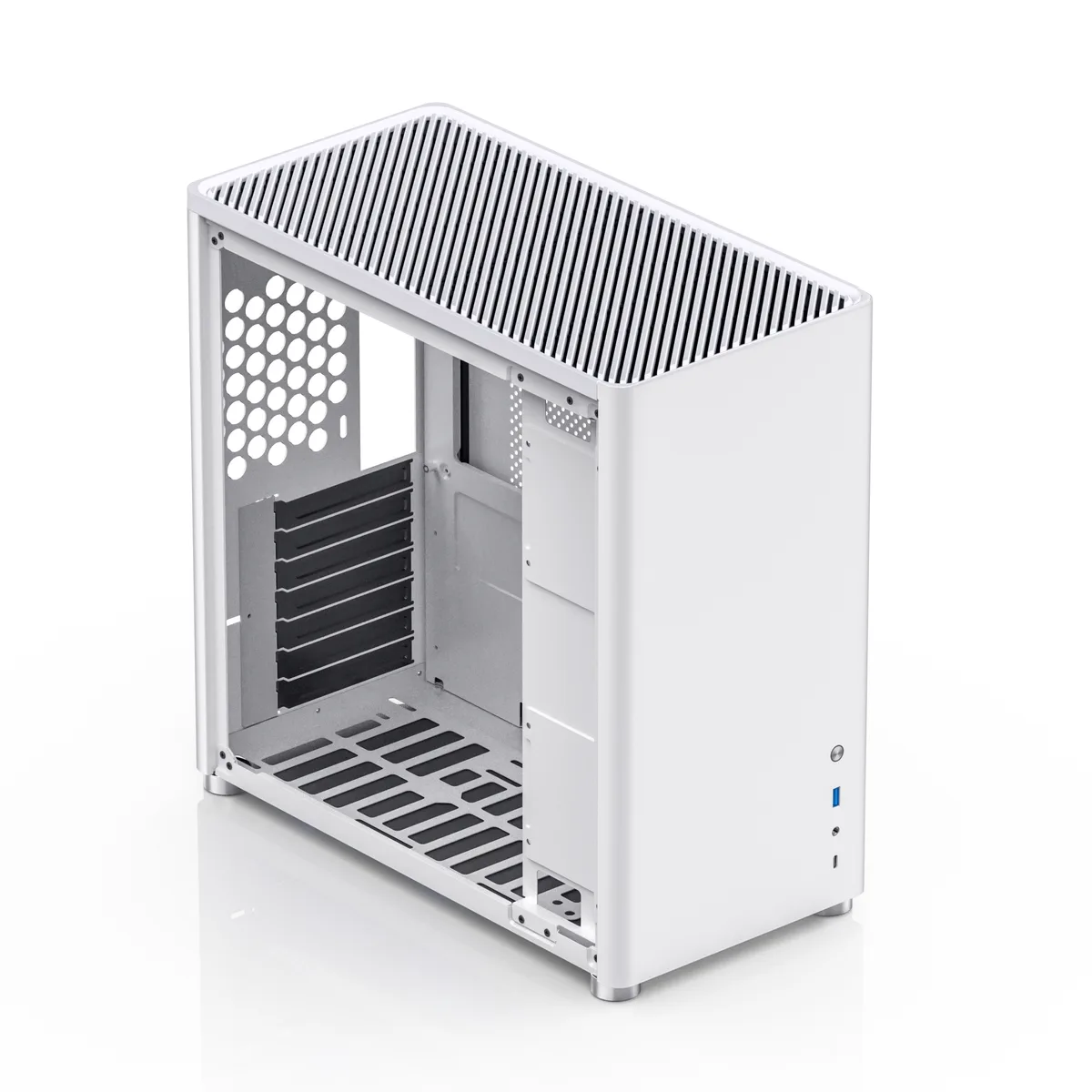

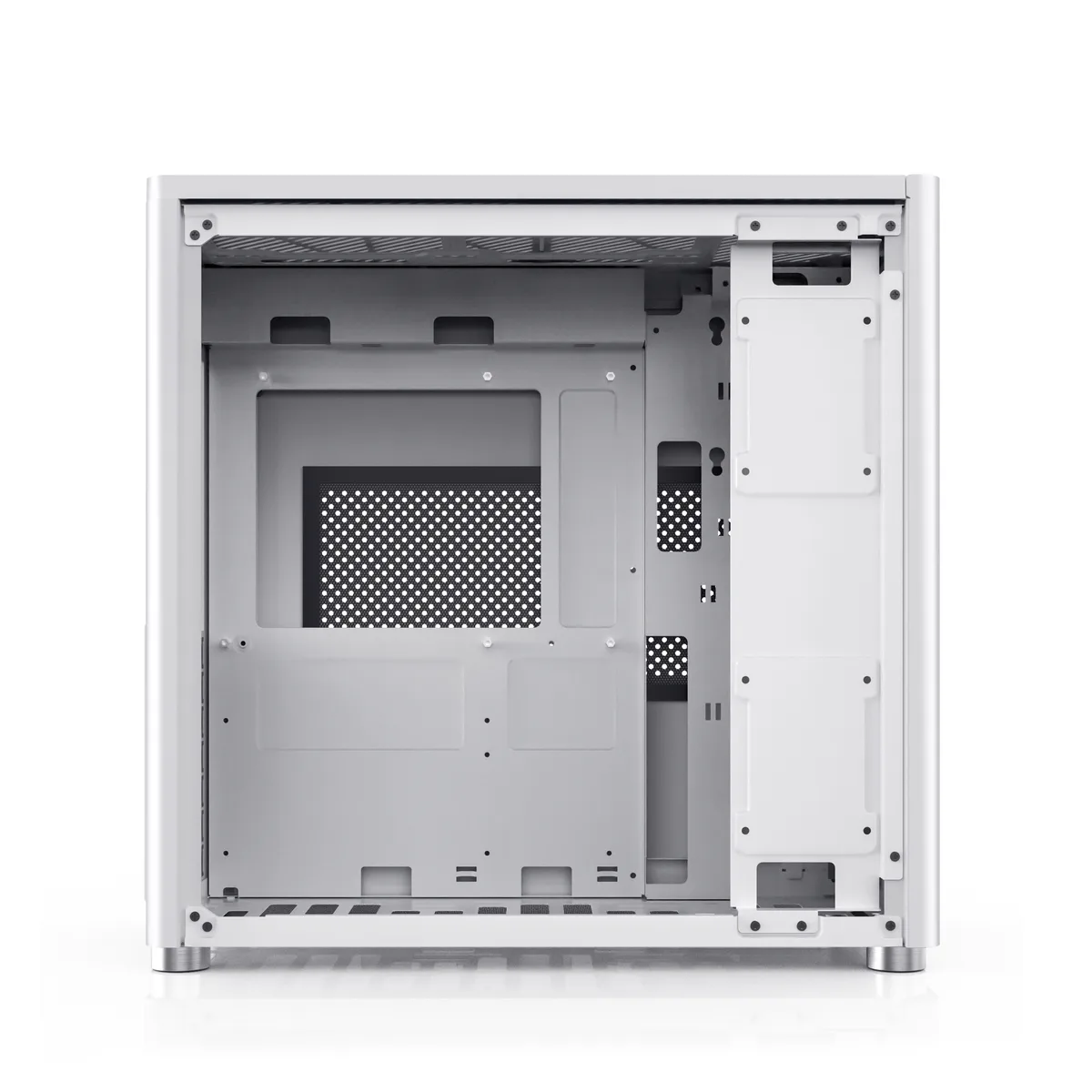

Jonsbo D40 ATX PC Case – White
MPN: D40 white
Key specifications
Max GPU374.0 mm
Max Cooler168.0 mm
Max PSU200.0 mm
Form factorUnknown
Full Specifications67 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
D40 white
Gtin
6970620551944
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front

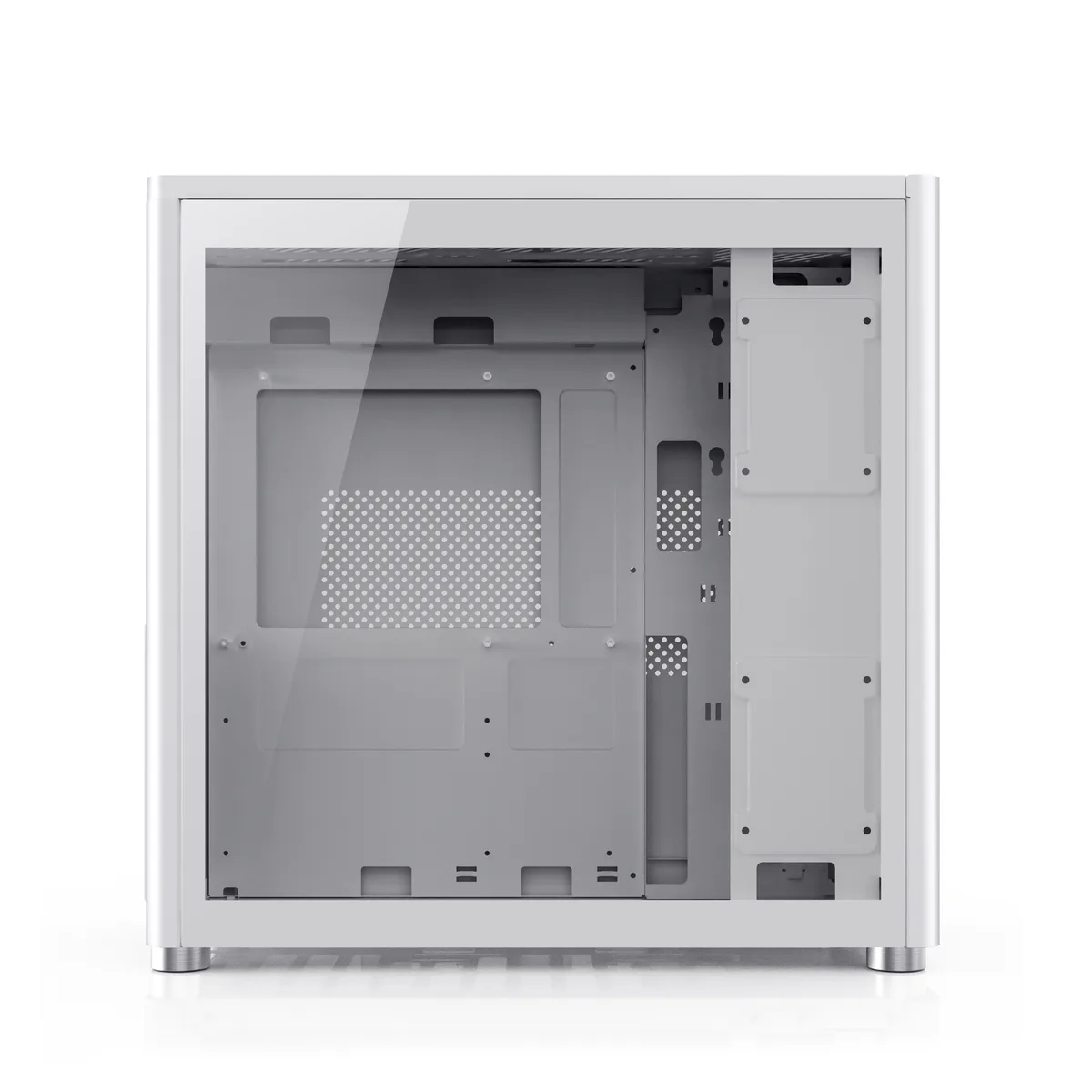

Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Compliance
Compliance Documents
Jonsbo PC Case Compliance and Safety
Connectivity
Card Reader
No
Dimensions
Length Depth
401 mm
Width
204 mm
Height
386 mm
Weight
5.68 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
4
3 5 Inch Internal Drive Bay
1
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
1
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 2 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No

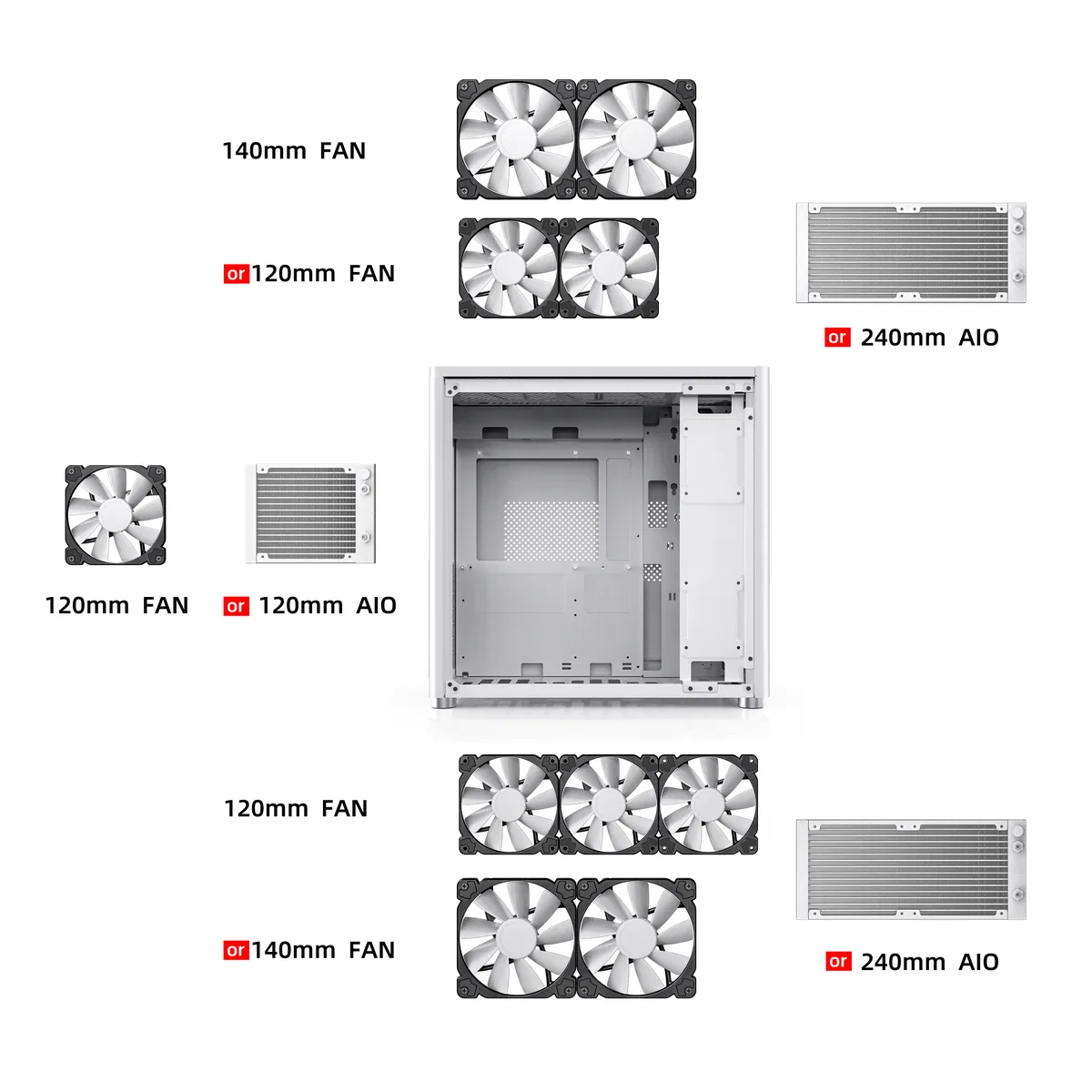

Fan Support
Case Fan Support Top
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
6
120 Mm Fans
6
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
168 mm
Max Gpu Length
374 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
No

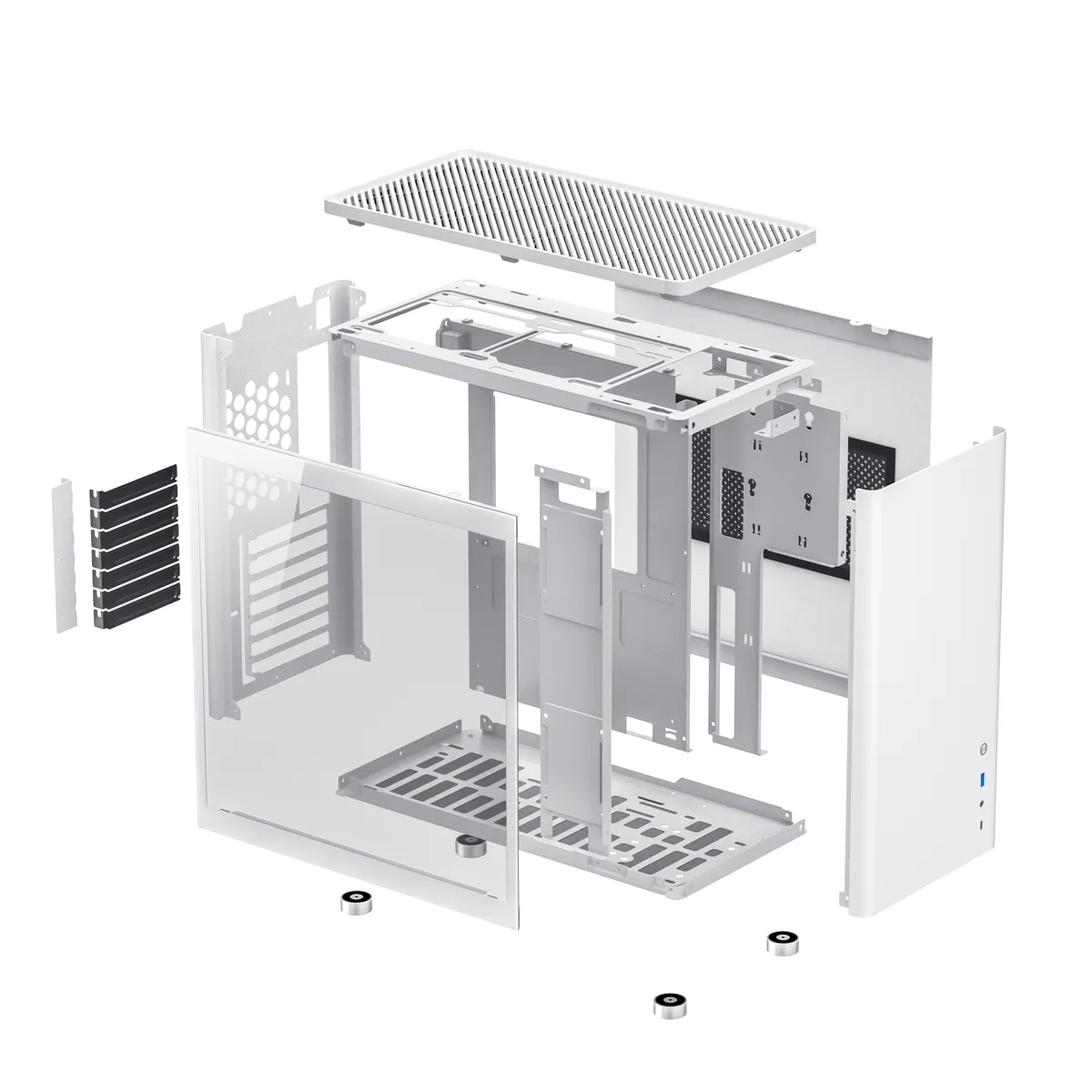

Materials
Materials
Aluminium, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX
Max Motherboard Format
ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
front
Radiator Support
Max Radiator Compatibility
1x Single (120 mm), 2x Dual (240 mm)
Radiator Aio Support Bottom
240mm Radiator
Radiator Aio Support Top
240mm Radiator
Radiator Aio Support Rear
120mm Radiator
