CasesPhanteks

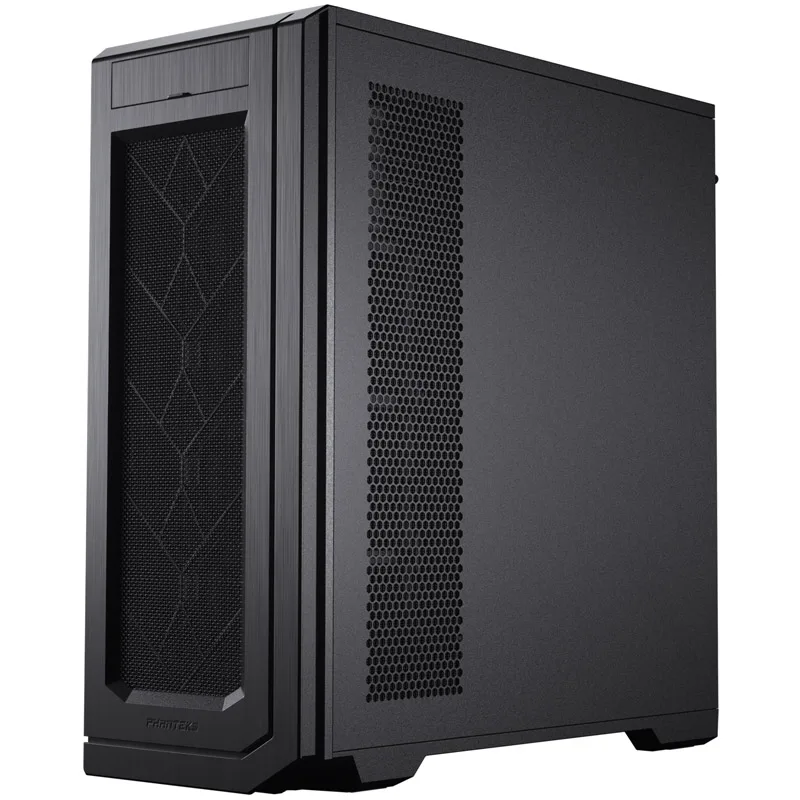

Phanteks Enthoo Pro II Server Edition Closed Panel Full Tower Case - Black
MPN: PH-ES620PC_BK02
Key specifications
Max GPU503.0 mm
Max Cooler195.0 mm
Max PSUUnknown
Form factorUnknown
Full Specifications69 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
PH-ES620PC_BK02
Gtin
0886523302742
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Full Tower
Case Features
I O Position
Front
Side Panel
closed
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom, Side, Front
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Colour
Primary Colour
Black
Fan Main Colour Frame
Black
Fan Main Colour Rotor
White
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
580 mm
Width
240 mm
Height
560 mm
Weight
13.19 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
11
Max 3 5 Inch Drives
10
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
11
3 5 Inch Internal Drive Bay
4
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
11
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
4
Usb 3 1 External Type C
1
Usb 3 0 External Type A
4
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
15
Case Fan Support Side
120mm Fan (4x)
Case Fan Support Front
120mm Fan (4x), 140mm Fan (3x)
120 Mm Fans
15
140 Mm Fans
6
Features
Housing Feedthrough
Yes
Internal Dimensions
Max Cooler Height
195 mm
Max Gpu Length
503 mm
Lighting
Lighting Rgb
No
Fan Rgb Control
No
Materials
Materials
Plastic, Aluminium, Steel
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX, XL-ATX, SSI-EEB
Max Motherboard Format
SSI-EEB
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator, 480mm Radiator
Max Radiator Compatibility
2x Quad (480 mm)
Radiator Aio Support Side
120mm Radiator, 240mm Radiator, 360mm Radiator, 480mm Radiator
Radiator Aio Support Rear
120mm Radiator
Radiator Aio Support Top
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Best indexed price
£176.94GBP
Indexed 19 Mar 2026 — verify at retailer
