Technical Specifications63 specs
Additional Contents
Fans Included
Yes
Included Fans
1x 140 mm, 2x 180 mm
Additional Information
Model Number
HVN-CA-BF360-04
Gtin
4251442513658
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Compliance
Compliance Documents
HAVN Case Compliance and Safety
Manufacturer Information
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person
Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Connectivity
Card Reader
No
Dimensions
Length Depth
515 mm
Width
254 mm
Height
522.6 mm
Weight
14.79 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7

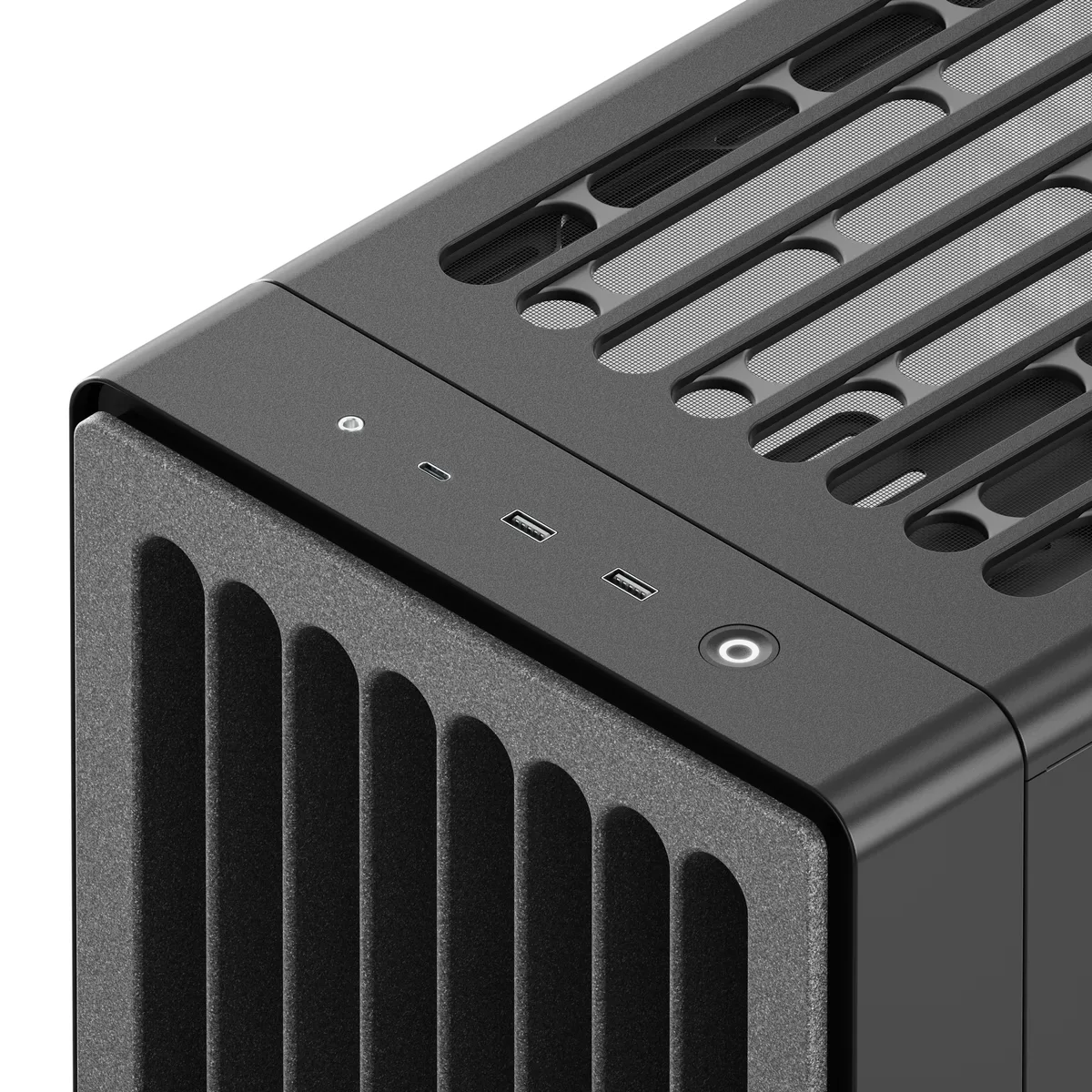

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
Yes
4 Pin Fan Connectors
6
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x), 180mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Front
180mm Fan (2x)
Max Number Of Fans
6
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
195 mm
Max Gpu Length
410 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
No
Materials
Materials
ABS, Nylon, Zinc alloy, Tempered Glass, SGCC (Steel), Silicon
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
Internal
Product Series
Product Series Family
BF 360
Radiator Support
Max Radiator Compatibility
360
Radiator Aio Support Top
280mm Radiator, 360mm Radiator
