CasesCooler Master

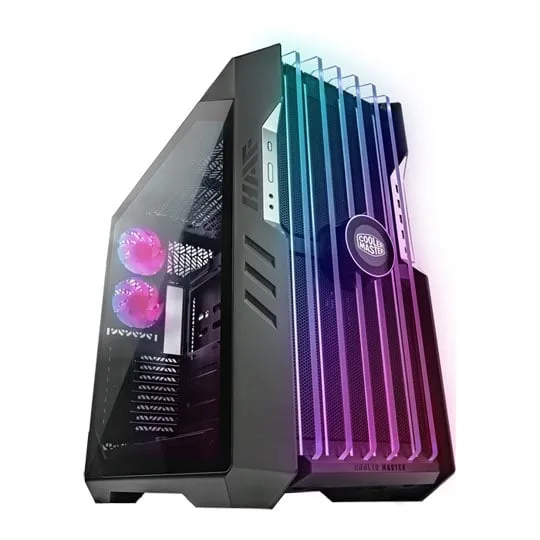

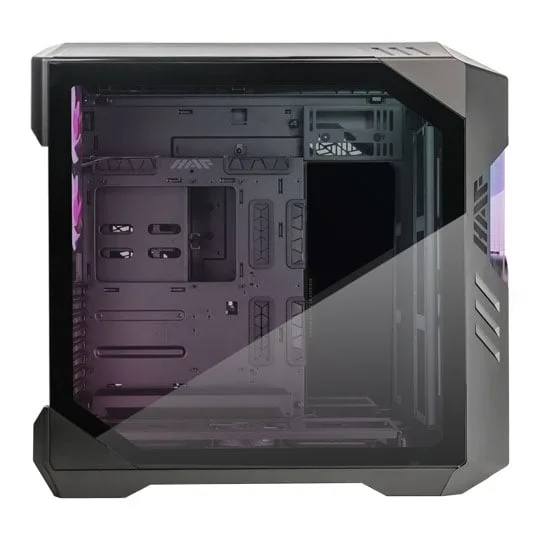

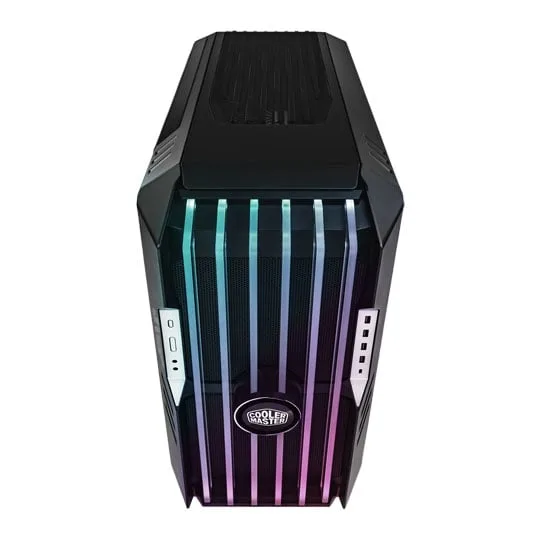

Cooler Master HAF700 EVO Windowed Full Tower Case - Black Tempered Glass
Model: H700E-IGNN-S00
Technical Specifications74 specs
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm, 2x 200 mm
Additional Information
Model Number
H700E-IGNN-S00
Gtin
4719512126271
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom, Side, Front
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Secondary Colour
Grey
Connectivity
Card Reader
No
Dimensions
Length Depth
666 mm
Width
291 mm
Height
626 mm
Weight
24.3 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
12
Max 3 5 Inch Drives
12
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
12
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
12
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
8
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
4
Usb 3 2 External Type C
1
Usb 3 0 External Type A
4
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Fan Header
Fan Controller Fan Hub
Yes
Fan Support
Max Number Of Fans
18
Case Fan Support Top
120mm Fan (6x), 140mm Fan (3x), 200mm Fan (2x)
Case Fan Support Rear
120mm Fan (2x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x), 200mm Fan (2x)
Case Fan Support Side
120mm Fan (4x), 140mm Fan (3x)
120 Mm Fans
18
140 Mm Fans
12
200 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
166 mm
Max Gpu Length
490 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Lighting Colour
RGB
Materials
Materials
Plastic, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX, SSI-EEB, SSI-CEB
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear side
Product Series
Product Series Family
HAF
Radiator Support
Radiator Aio Support Bottom
360mm Radiator, 420mm Radiator
Radiator Aio Support Top
360mm Radiator, 420mm Radiator
Radiator Aio Support Rear
240mm Radiator
Max Radiator Compatibility
1x Dual (240 mm), 3x Triple (420 mm), 1x Quad (480 mm)
Radiator Aio Support Side
420mm Radiator, 480mm Radiator
Radiator Aio Support Front
360mm Radiator, 420mm Radiator
