CasesFractal Design

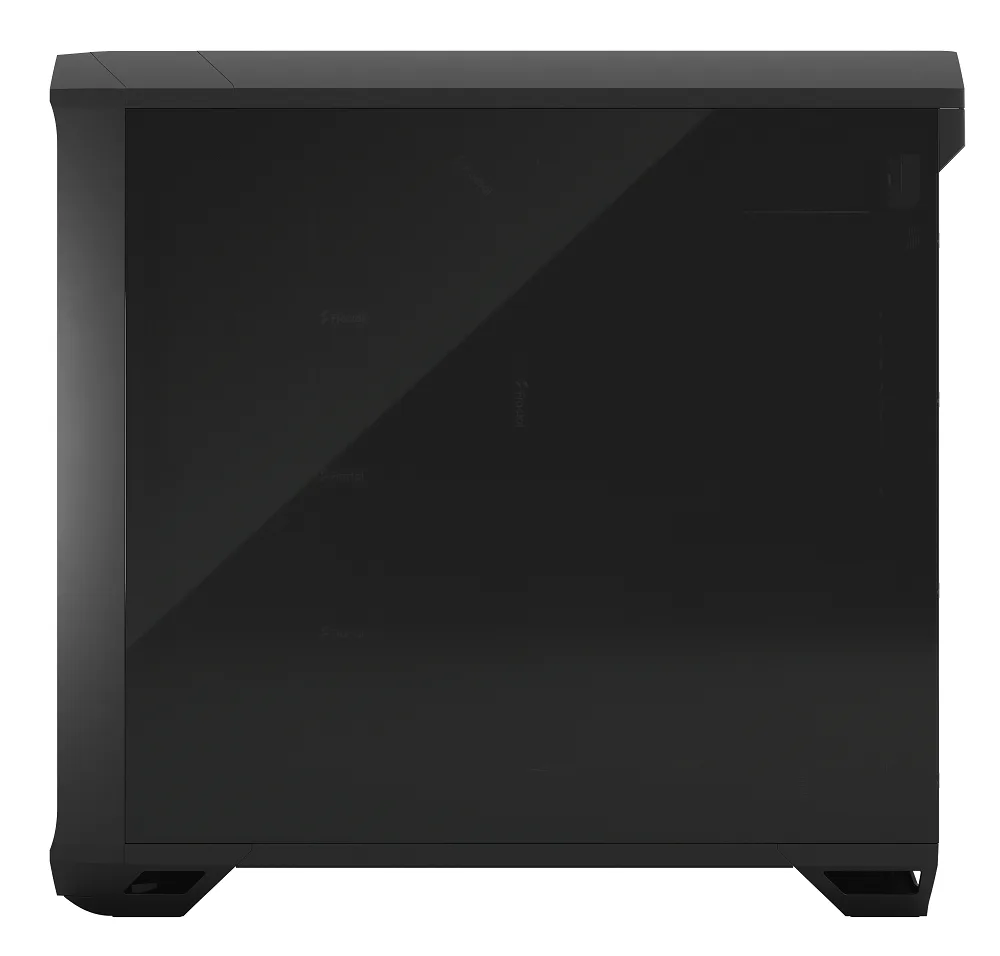

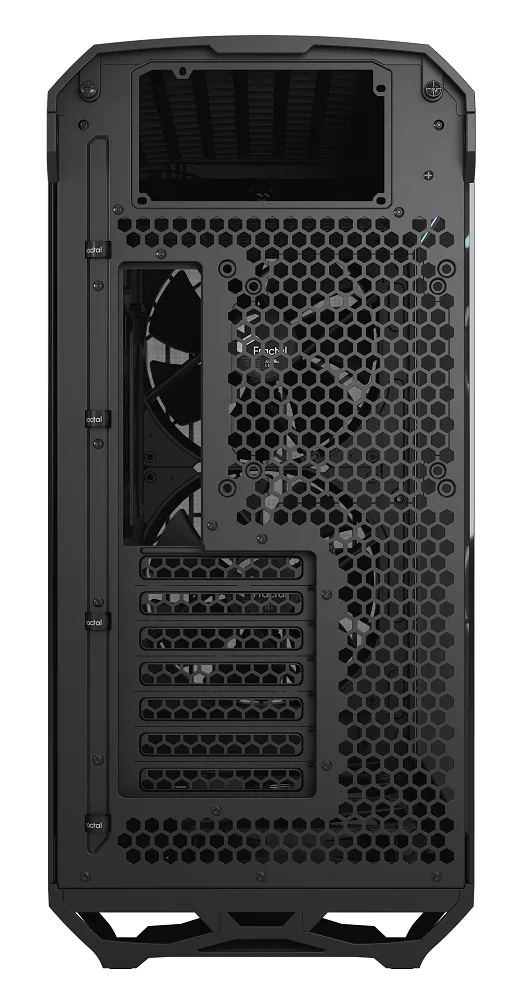

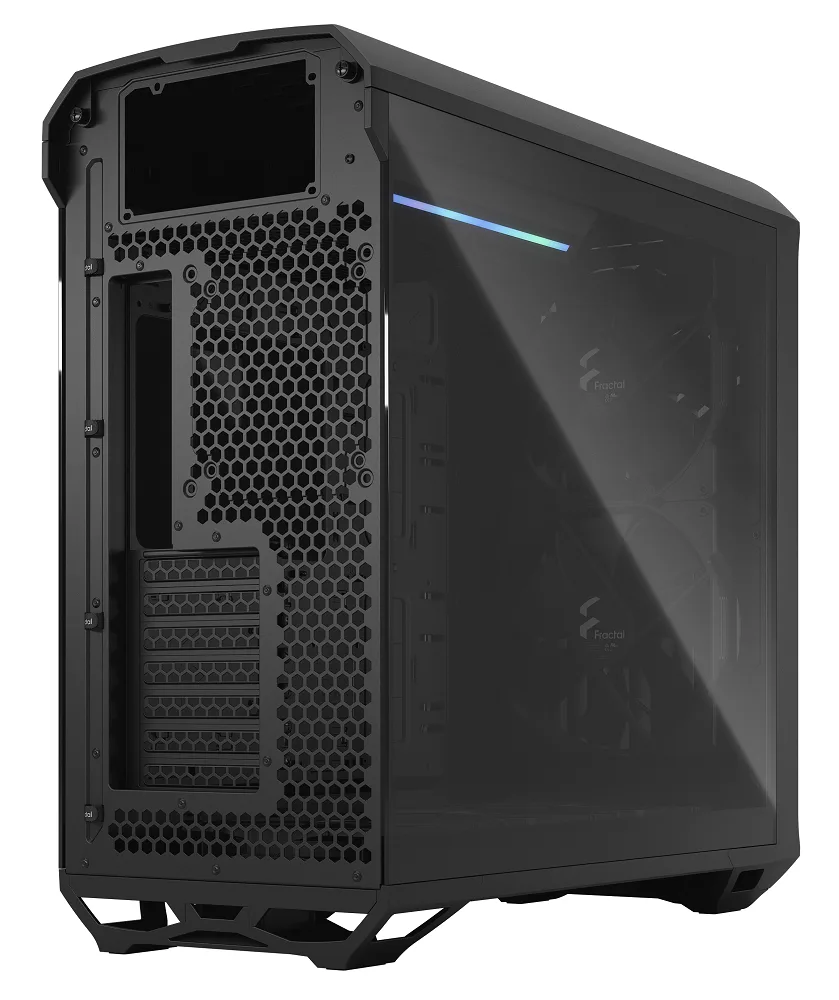

Fractal Design Torrent Black TG Light Tint Mid Tower Case
£179.99
Model: FD-C-TOR1A-01
Technical Specifications99 specs
Additional Contents
Fans Included
Yes
Included Fans
3x 140 mm, 2x 180 mm
Additional Information
Model Number
FD-C-TOR1A-01
Gtin
7340172702283
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom, Front
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Chassis Physical Specifications
Colour
Black
Chassis Construction Materials
Steel
Dimensions
242 x 530 x 544 (WxHxD mm)
Package Type
-
Please Note
-
Clearances
Cable Routing Space
32 mm
Colour
Primary Colour
Black
Connectivity
Card Reader
No
Core Chassis Specifications
Edition
Torrent Black Light Tint
Case Form Factor
Mid Tower
Motherboard Form Factor
ATX
E-ATX
MicroATX
Mini-ITX
SSI CEB
SSI EEB
Back Connect Compatible
No
Dimensions
Length Depth
544 mm
Width
242 mm
Height
530 mm
Weight
11.1 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
4
3 5 Inch Internal Drive Bay
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 1 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Fan Header
Fan Controller Fan Hub
Yes
Fans & Filters
Fan Bays
7 x 120/140mm
4 x 180mm
Fan Controller Hub
Built-in Fan Hub
Dust Filters
Bottom
Front
Fan Support
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x), 180mm Fan (2x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (3x), 180mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
120 Mm Fans
7
140 Mm Fans
7
180 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
188 mm
Max Gpu Length
461 mm
Max Psu Length Depth
230 mm
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone Out
1 x Mic In
1 x Power Button
1 x Reset Button
2 x USB 3.0
1 x USB 3.1 Gen2 Type-C
Drive Bays
4 x 2.5" Internal
2 x 3.5" Internal
Standard Expansion Slots
7
Vertical Expansion Slots
2
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Internal PSU Shroud ARGB LED Strip
Led Lighting Colour
-
Led Lighting Support Control
-
Lighting
Lighting Rgb
No
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280/360/
420mm
Top Radiator Compatibility
-
Bottom Radiator Compatibility
1 x 120/140/240/280/360/
420mm
Rear Radiator Compatibility
1 x 120/140mm
Side Radiator Compatibility
-
Materials
Materials
Plastic, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, ITX, SSI-EEB, SSI-CEB
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear top
Power Supply Compatibility
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Top Mount, Rear
Max Psu Length
230 mm
Radiator Support
Max Radiator Compatibility
1x Single (140 mm), 2x Triple (420 mm)
Radiator Aio Support Front
360mm Radiator, 420mm Radiator
Radiator Aio Support Bottom
360mm Radiator, 420mm Radiator
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
-
