CasesFractal Design

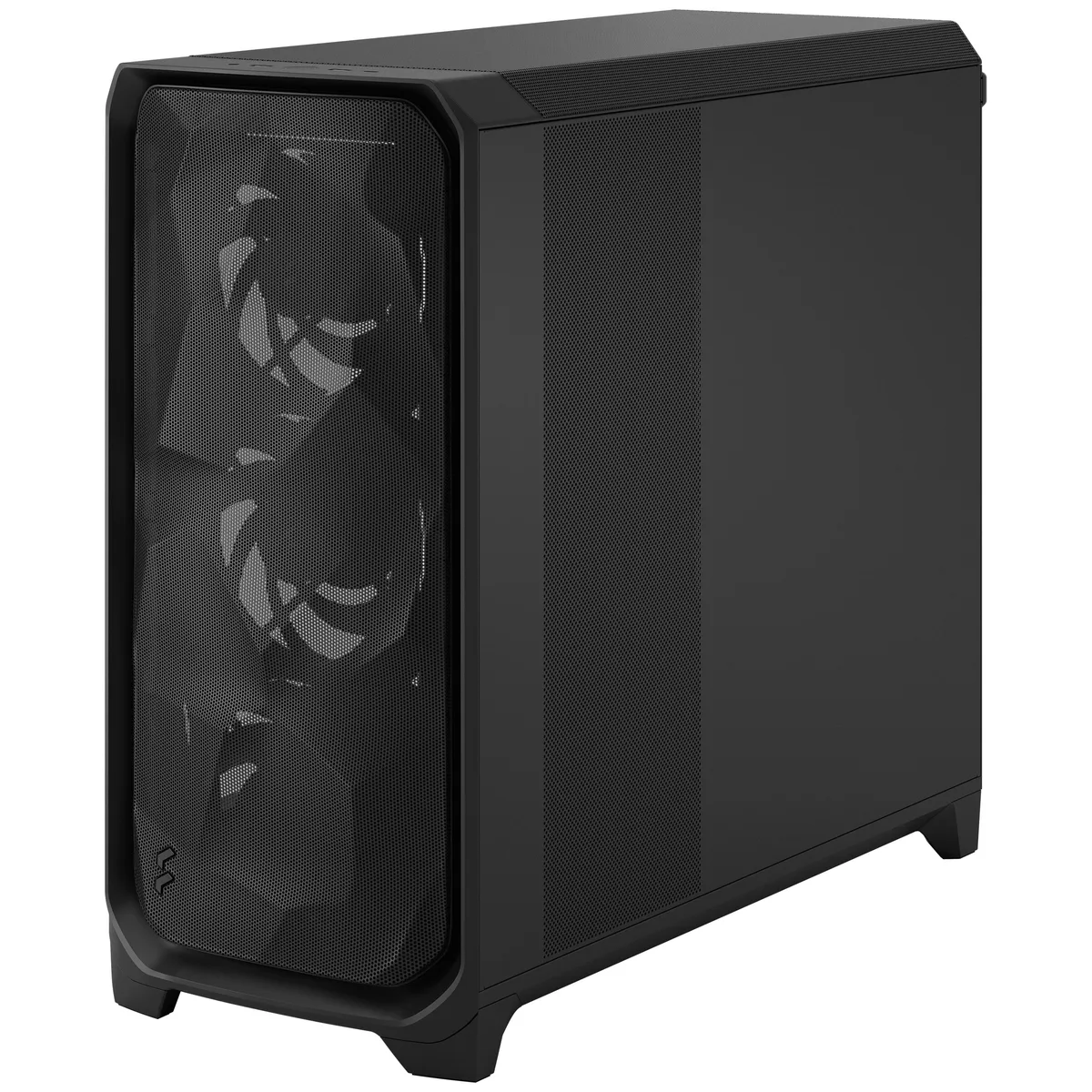

Fractal Design Meshify 3 XL Black TG Light Tint Case
MPN: FD-C-MES3X-02
Key specifications
Max GPU512.0 mm
Max Cooler182.0 mm
Max PSU230.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKSearch link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 512.0mm GPU clearance.
Supports up to 182.0mm CPU cooler height.
Full Specifications68 fields
Additional Contents
Fans Included
Yes
Included Fans
3x 140 mm
Additional Information
Model Number
FD-C-MES3X-02
Gtin
7340172707226
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Full Tower
Case Features

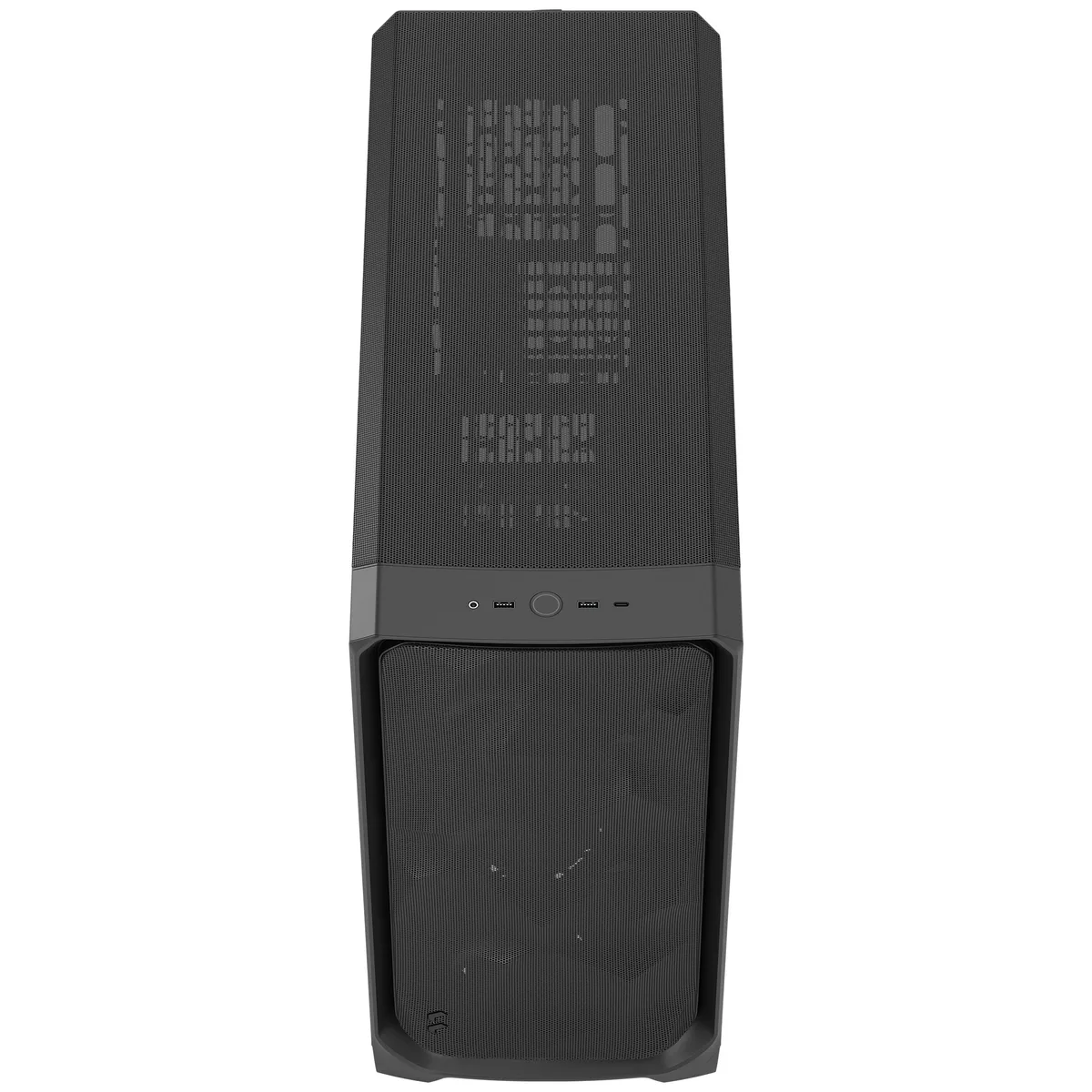

I O Position
Top

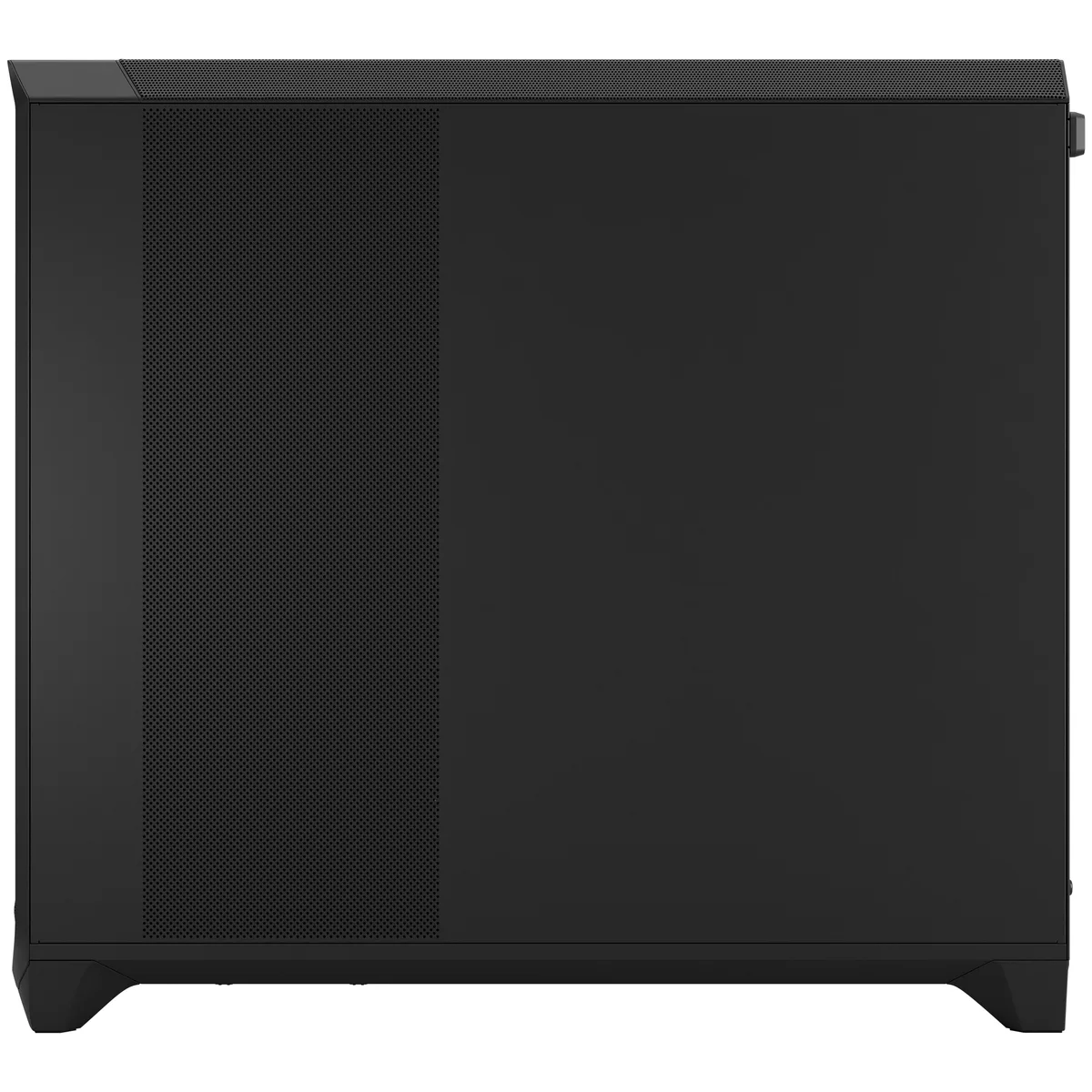

Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Connectivity
Card Reader
No
Dimensions
Length Depth
575 mm
Width
245 mm
Height
515 mm
Weight
10.9 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
5
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
4
3 5 Inch Internal Drive Bay
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Max Number Of Fans
10
Case Fan Support Side
140mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x), 180mm Fan (2x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
120 Mm Fans
7
140 Mm Fans
10
180 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
182 mm
Max Gpu Length
512 mm
Max Psu Length Depth
230 mm
Lighting
Lighting Rgb
No
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, ITX, SSI-EEB, SSI-CEB, EE-ATX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Side
360mm Radiator
Max Radiator Compatibility
1x Triple (420 mm)
Radiator Aio Support Front
280mm Radiator, 360mm Radiator
Radiator Aio Support Top
360mm Radiator, 420mm Radiator
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
