About this cases

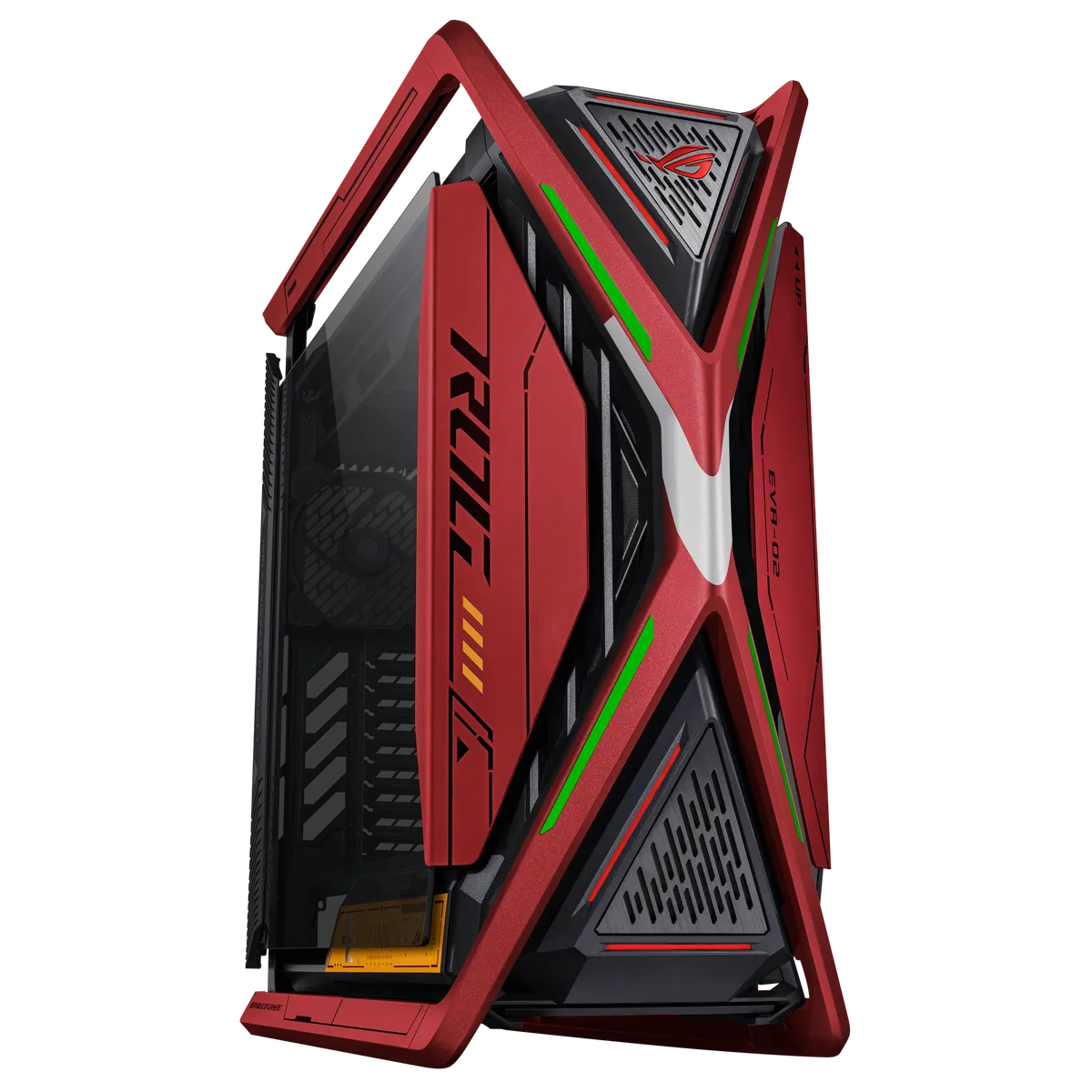

ROG Hyperion EVA-02 PC case, 420 mm dual radiator support, four 140 mm fans, metal GPU holder, component storage, ARGB fan hub, 60W fast charging. The beefiest graphics cards get plenty of room; cable management gets an expansive chamber that is 34 mm deep, with a 46 mm wide routing channel. Created and designed collaboration with the EVANGELION project.
Technical Specifications47 specs
Physical Dimensions
Length Mm
268
Width Mm
639
Height Mm
659
Weight G
20800
Technical Specifications
Motherboard Support
- EATX (12"x10.9")
- ATX
- Micro-ATX
- Mini-ITX
Drive Bays
- 5 x 2.5" Bay
- 2 x 2.5"/3.5" Combo Bay
Expansion Slots
- 9
- 3 (additional vertical)
Front I O Port
- 1 x headphone / Microphone
- 4 x USB 3.2Gen1
- 1 x USB 3.2 Gen2 Type C
- LED Control Button
- Reset Button
- 1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C this spec might vary by region
Tempered Glass
- Left Side
- Right Side
Radiator Support Front
- 120 mm
- 140 mm
- 240 mm
- 280 mm
- 360 mm
- 420 mm
Radiator Support Top
- 120 mm
- 140 mm
- 240 mm
- 280 mm
- 360 mm
- 420 mm
Radiator Support Rear
- 120 mm
- 140 mm
Cooling Support Front
- 3 x 120 mm
- 3 x 140 mm
Cooling Support Top
- 3 x 120 mm
- 3 x 140 mm
Cooling Support Rear
- 1 x 120 mm
- 1 x 140 mm
Pre Installed Fans Front
- 3 x 140 mm
- PWM
Pre Installed Fans Rear
1 x 140 mm
Maximum Cpu Cooler Height
190 mm
Max Gpu Length
460 mm
Maximum Psu Length
240 mm
Removable Dust Filters
- Front
- Top
- Bottom
Maximum Cable Management Space
34 mm
Dimensions
268 * 639 * 659 mm
Weight
20.8 Kg
21.3 Kg (GR701 BTF Edition)
Aura Sync
ARGB
Btf Motherboard Compatible
ROG Hyperion GR701 BTF Edition ONLY
Motherboard Support
- EATX (12"x10.9")
- ATX
- Micro-ATX
- Mini-ITX
Drive Bays
- 5 x 2.5" Bay
- 2 x 2.5"/3.5" Combo Bay
Expansion Slots
- 9
- 3 (additional vertical)
Front I O Port
- 1 x headphone / Microphone
- 4 x USB 3.2Gen1
- 1 x USB 3.2 Gen2 Type C
- LED Control Button
- Reset Button
- 1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C this spec might vary by region
Tempered Glass
- Left Side
- Right Side
Radiator Support Front
- 120 mm
- 140 mm
- 240 mm
- 280 mm
- 360 mm
- 420 mm
Radiator Support Top
- 120 mm
- 140 mm
- 240 mm
- 280 mm
- 360 mm
- 420 mm
Radiator Support Rear
- 120 mm
- 140 mm
Cooling Support Front
- 3 x 120 mm
- 3 x 140 mm
Cooling Support Top
- 3 x 120 mm
- 3 x 140 mm
Cooling Support Rear
- 1 x 120 mm
- 1 x 140 mm
Pre Installed Fans Front
- 3 x 140 mm
- PWM
Pre Installed Fans Rear
1 x 140 mm
Maximum Cpu Cooler Height
190 mm
Max Gpu Length
460 mm
Maximum Psu Length
240 mm
Removable Dust Filters
- Front
- Top
- Bottom
Maximum Cable Management Space
34 mm
Dimensions
268 * 639 * 659 mm
Weight
20.8 Kg
Aura Sync
ARGB
