CasesFractal Design

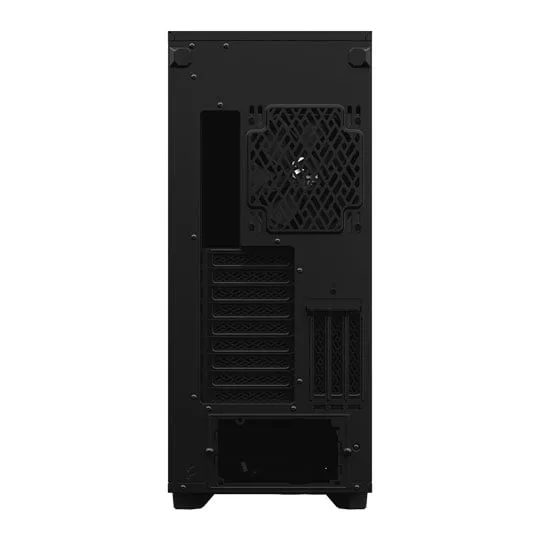

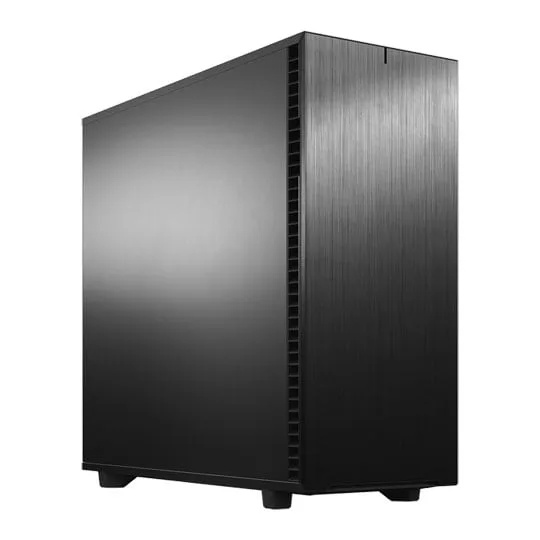

Fractal Design Define 7 XL Black Full Tower Gaming Case
Model: FD-C-DEF7X-01
Technical Specifications41 specs
Additional Information
Model Number
FD-C-DEF7X-01
Gtin
4537694274296
Chassis Physical Specifications
Colour
Black
Chassis Construction Materials
-
Dimensions
240 x 566 x 604 (WxHxD mm)
Weight
16.53 kg (Approx)
Package Type
-
Please Note
-
Clearances
Max Cooler Height
185 mm
Max Gpu Length
549 (524 w/ Front Fan, 359 w/ Optional HDD Cage) mm
Cable Routing Space
30 mm
Core Chassis Specifications
Edition
Define 7 XL
Case Form Factor
Full Tower
Motherboard Form Factor
ATX
E-ATX
Enhanced E-ATX
MicroATX
Mini-ITX
SSI CEB
SSI EEB
Back Connect Compatible
No
Fans & Filters
Fan Bays
3 x 120/140mm
8 x 120mm / 6x 140mm
Fans Included
3 x 140mm
Fan Controller Hub
-
Dust Filters
Bottom
Front
PSU
Top
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone Out
1 x Mic In
1 x Power Button
1 x Reset Button
2 x USB 2.0
2 x USB 3.0
1 x USB 3.1 Gen2 Type-C
Drive Bays
2 x 2.5" Internal
3 x 2.5" Internal (Optional)
8 x 2.5"/ 3.5" Internal
10 x 2.5"/ 3.5" Internal (Optional)
2 x 5.25" External (Hidden, Optional)
Standard Expansion Slots
9
Vertical Expansion Slots
3
LED Lighting Functionality
Led Lighting
No
Led Lighting Emitters
-
Led Lighting Colour
-
Led Lighting Support Control
-
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280/360/
420/480mm
Top Radiator Compatibility
1 x 120/140/240/280/360/
420/480mm
Bottom Radiator Compatibility
1 x 120/140/240/280mm
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
-
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
250 mm
Side Panels
Window S
No
Window Configuration
-
Window Construction
-
