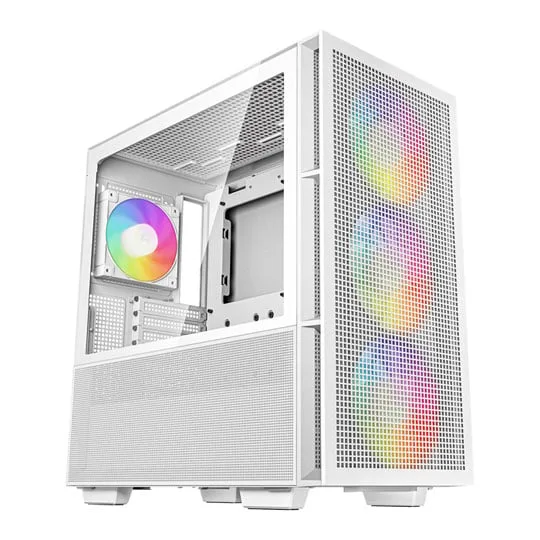

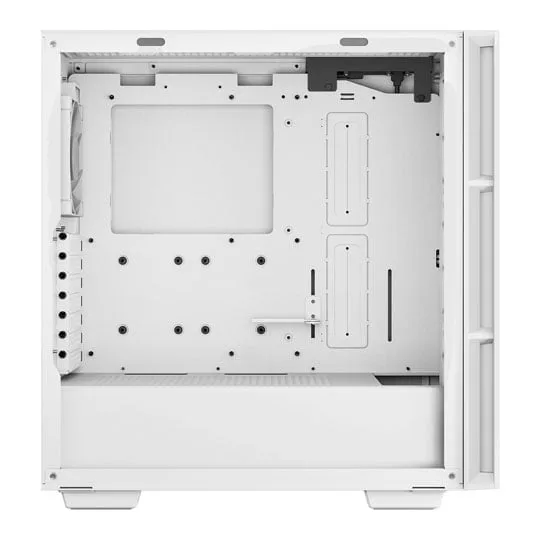

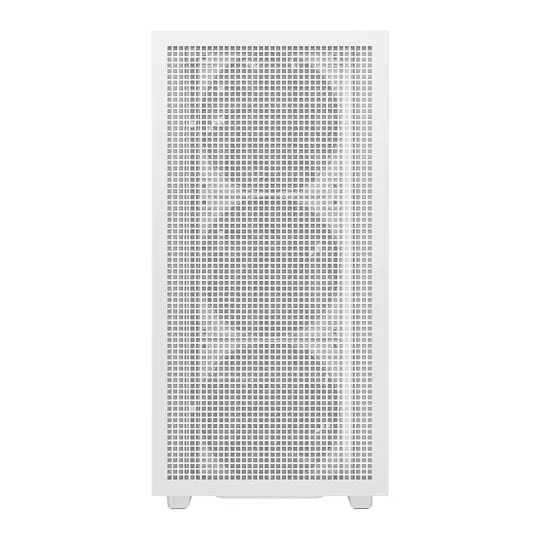

DeepCool CH560 Tempered Glass Mid Tower White Gaming Case
Model: R-CH560-WHAPE4-G-1
Technical Specifications41 specs
Additional Information
Model Number
R-CH560-WHAPE4-G-1
Gtin
6933412774907
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Steel
Dimensions
230 x 471 x 458 (WxHxD mm)
Weight
7.5 kg (Approx)
Package Type
-
Please Note
-
Clearances
Max Cooler Height
175 mm
Max Gpu Length
380 mm
Cable Routing Space
-
Core Chassis Specifications
Edition
CH560 White
Case Form Factor
Mid Tower
Motherboard Form Factor
ATX
E-ATX
MicroATX
Mini-ITX
Back Connect Compatible
No
Fans & Filters
Fan Bays
9 x 120mm / 6x 140mm
Fans Included
1 x 120mm w/ Addressable RGB LEDs
3 x 140mm w/ Addressable RGB LEDs
Fan Controller Hub
-
Dust Filters
-
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone/Mic Combo
1 x USB 3.0
1 x USB Type-C
Drive Bays
3 x 2.5" Internal
2 x 3.5" External
Standard Expansion Slots
7
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Included Addressable LED Fan/s
Led Lighting Colour
RGB
Led Lighting Support Control
-
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280/360mm
Top Radiator Compatibility
1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120/140mm
Side Radiator Compatibility
-
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
-
Max Psu Length
170 mm
Side Panels
Window S
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
