CORSAIR FRAME 5000D RS ARGB Modular Mid-Tower PC Case - White
MPN: CC-9011310-WW
Key specifications
Max GPU450.0 mm
Max Cooler175.0 mm
Max PSUUnknown
Form factorUnknown
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 450.0mm GPU clearance.
Supports up to 175.0mm CPU cooler height.
Full Specifications68 fields
Additional Contents
Fans Included
Yes
Included Fans
4x 140 mm
Additional Information
Model Number
CC-9011310-WW
Gtin
840440491309
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Connectivity
Card Reader
No
Dimensions
Length Depth
556 mm
Width
250 mm
Height
542 mm
Weight
15.48 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
6
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
8

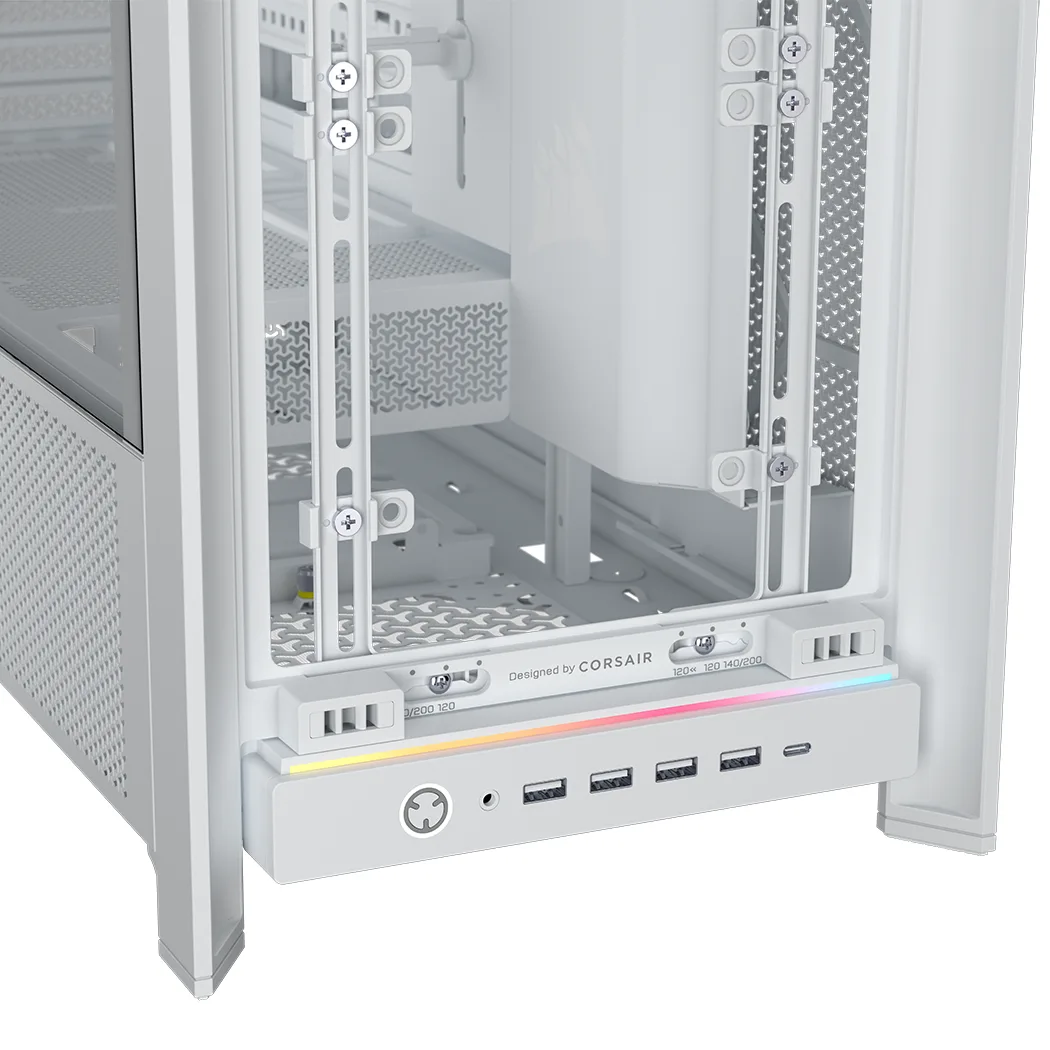

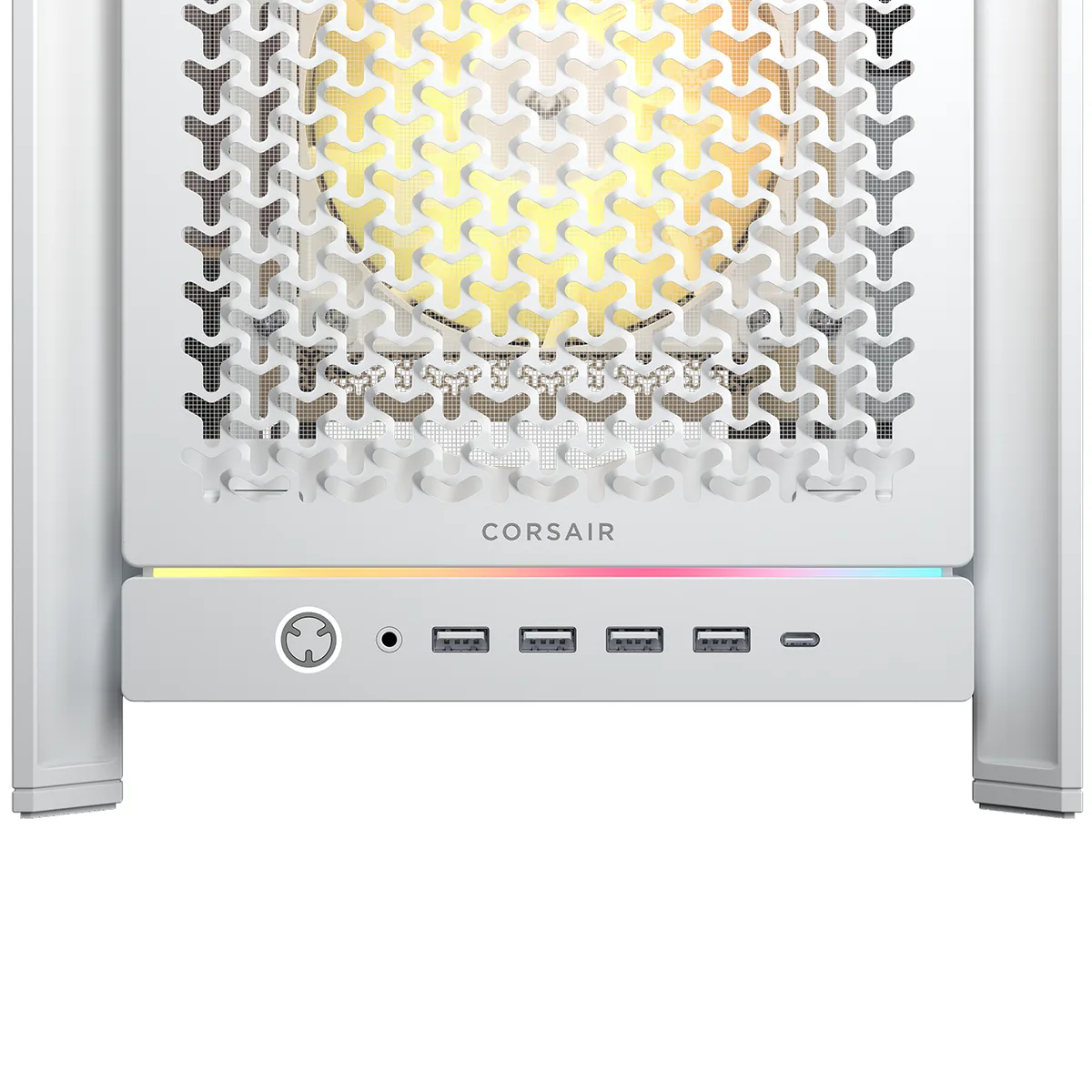

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
4
Usb 3 2 External Type C
1
Usb 3 0 External Type A
4
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Bottom
120mm Fan (4x)
Case Fan Support Side
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x), 200mm Fan (2x)
Max Number Of Fans
14
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
120 Mm Fans
14
140 Mm Fans
10
200 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
175 mm
Max Gpu Length
450 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
No
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
240mm Radiator, 280mm Radiator, 360mm Radiator
Max Radiator Compatibility
1x Single (140 mm), 2x Triple (360 mm), 1x Triple (420 mm)
Radiator Aio Support Top
240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
Radiator Aio Support Side
240mm Radiator, 280mm Radiator, 360mm Radiator
