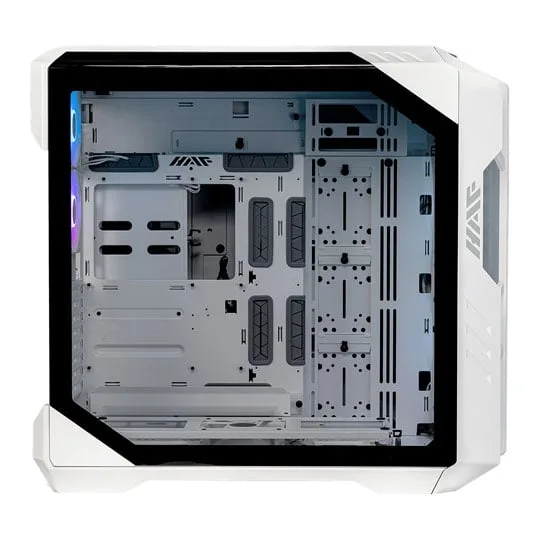

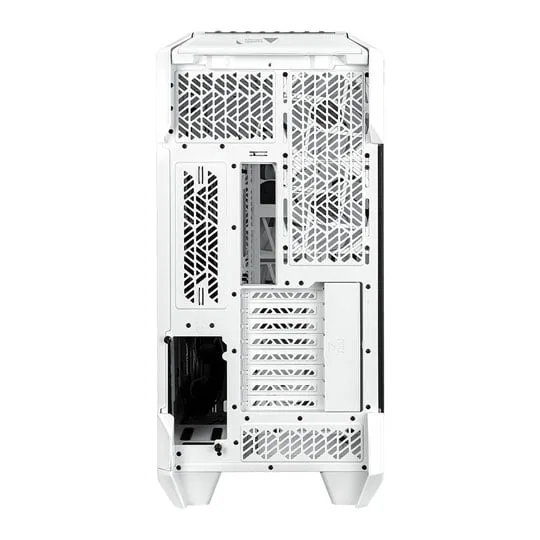

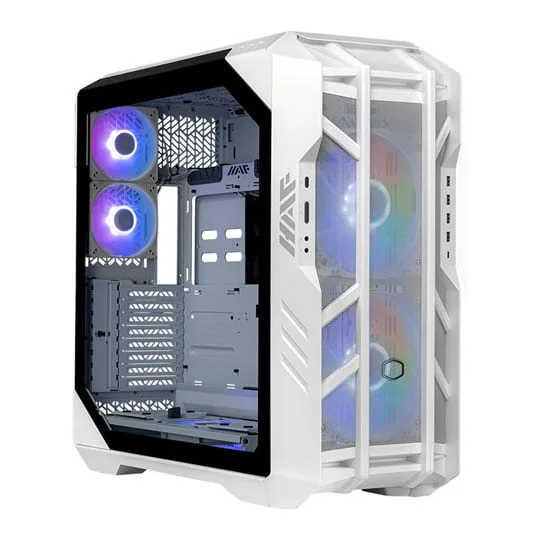

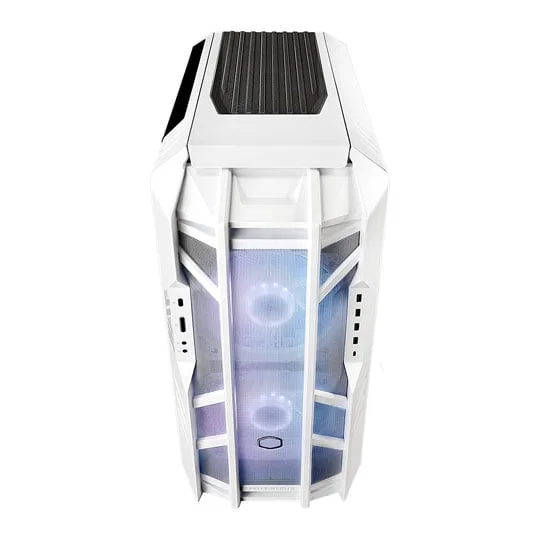

Cooler Master HAF 700 White Full Tower PC Gaming Case
Model: H700-WGNN-S00
Technical Specifications41 specs
Additional Information
Model Number
H700-WGNN-S00
Gtin
4719512143995
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Steel / Plastic
Dimensions
291 x 626 x 666 (WxHxD mm)
Weight
19.6 kg (Approx)
Package Type
-
Please Note
-
Clearances
Max Cooler Height
166 mm
Max Gpu Length
490 mm
Cable Routing Space
90 ~ 101 mm
Core Chassis Specifications
Edition
HAF 700
Case Form Factor
Full Tower
Motherboard Form Factor
ATX
E-ATX
MicroATX
Mini-ITX
SSI CEB
SSI EEB
Back Connect Compatible
No
Fans & Filters
Fan Bays
2 x 120mm
6 x 120mm / 3x 140mm / 2x 200mm
7 x 120mm / 6x 140mm
Fans Included
3 x 120mm w/ Addressable RGB LEDs
2 x 200mm w/ Addressable RGB LEDs
Fan Controller Hub
-
Dust Filters
Bottom
Side
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone Out
1 x Mic In
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-C
Drive Bays
9 x 2.5"/ 3.5" Internal
Standard Expansion Slots
8
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Included Addressable LED Fan/s
Led Lighting Colour
RGB
Led Lighting Support Control
Control via Inc. Controller/Hub (Software Control)
Liquid Cooling Support
Front Radiator Compatibility
2 x 360/1x 420mm
Top Radiator Compatibility
-
Bottom Radiator Compatibility
1 x 120/140/240/280/360/
420mm
Rear Radiator Compatibility
1 x 120/240mm
Side Radiator Compatibility
1 x 120/140/240/280/360/
420/480mm
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
200 mm
Side Panels
Window S
Yes
Window Configuration
1 x Front
1 x Main Side
Window Construction
Tempered Glass
