CasesLian Li

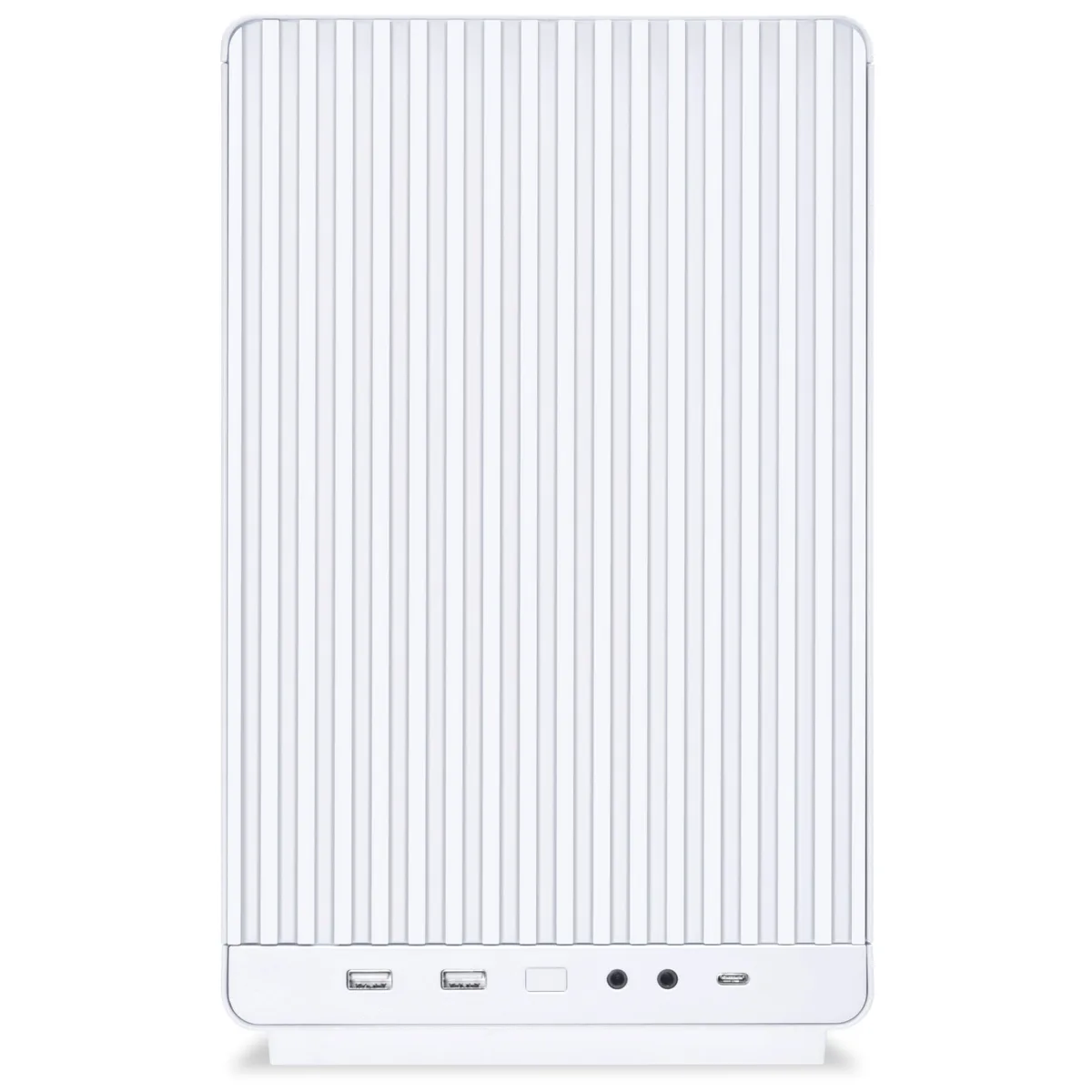

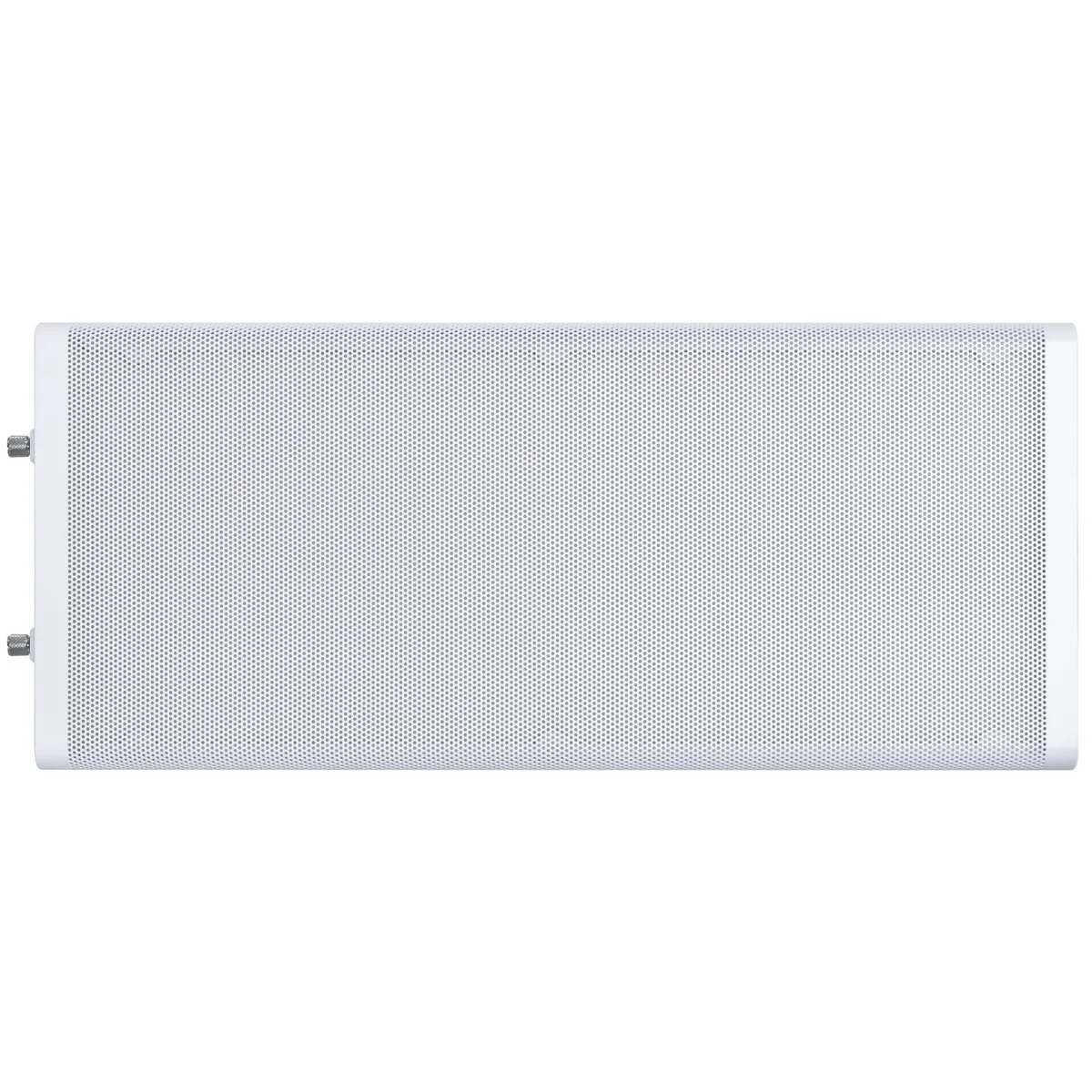

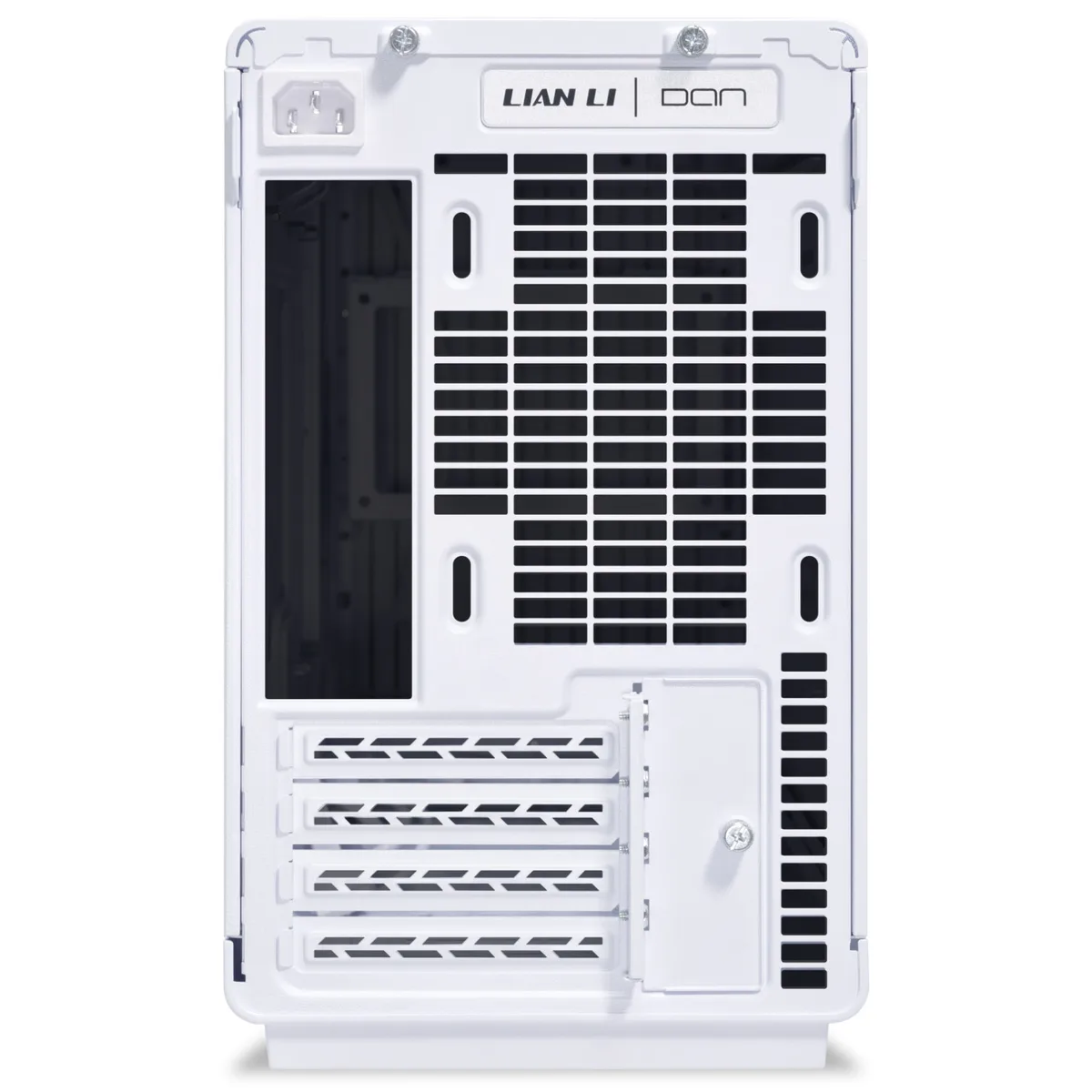

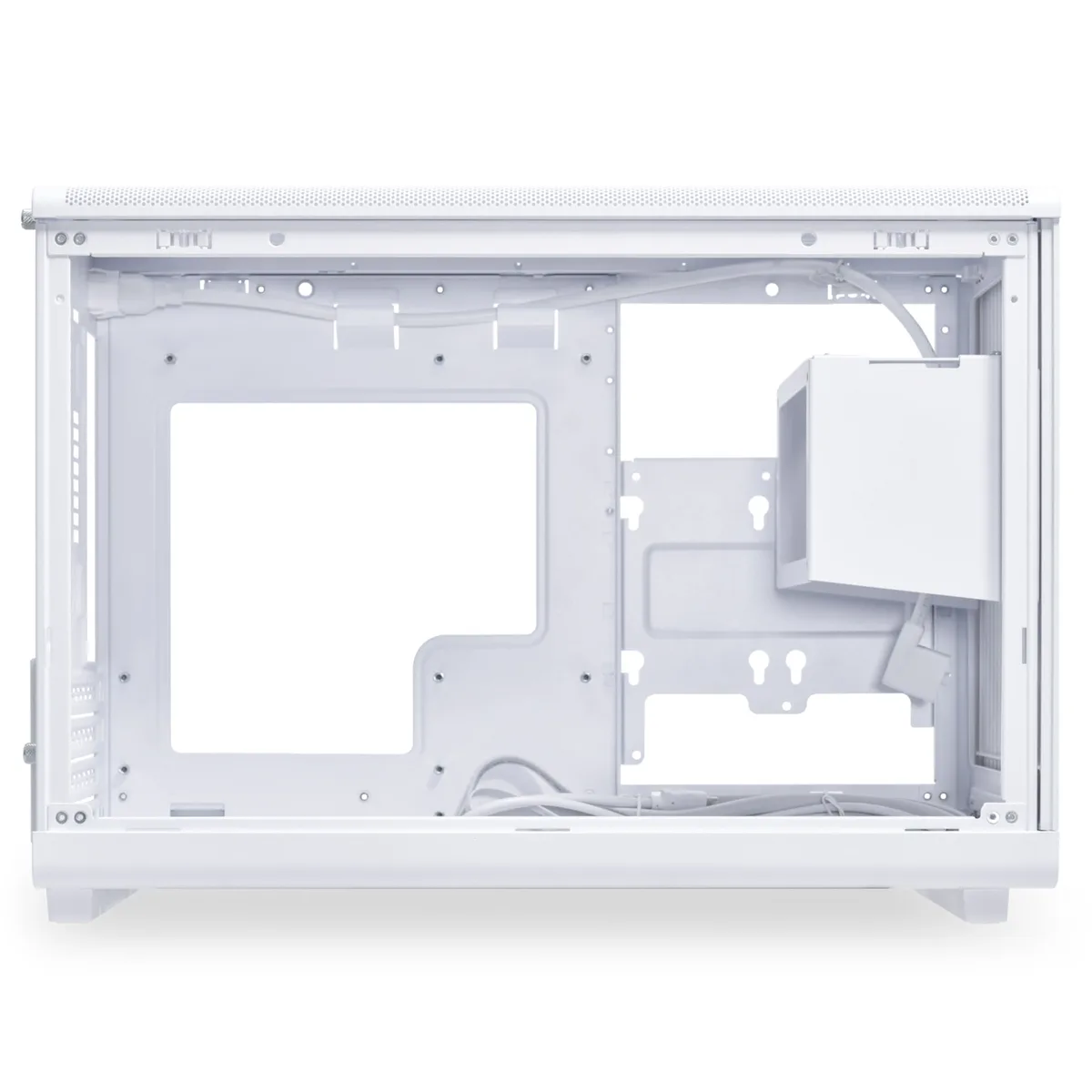

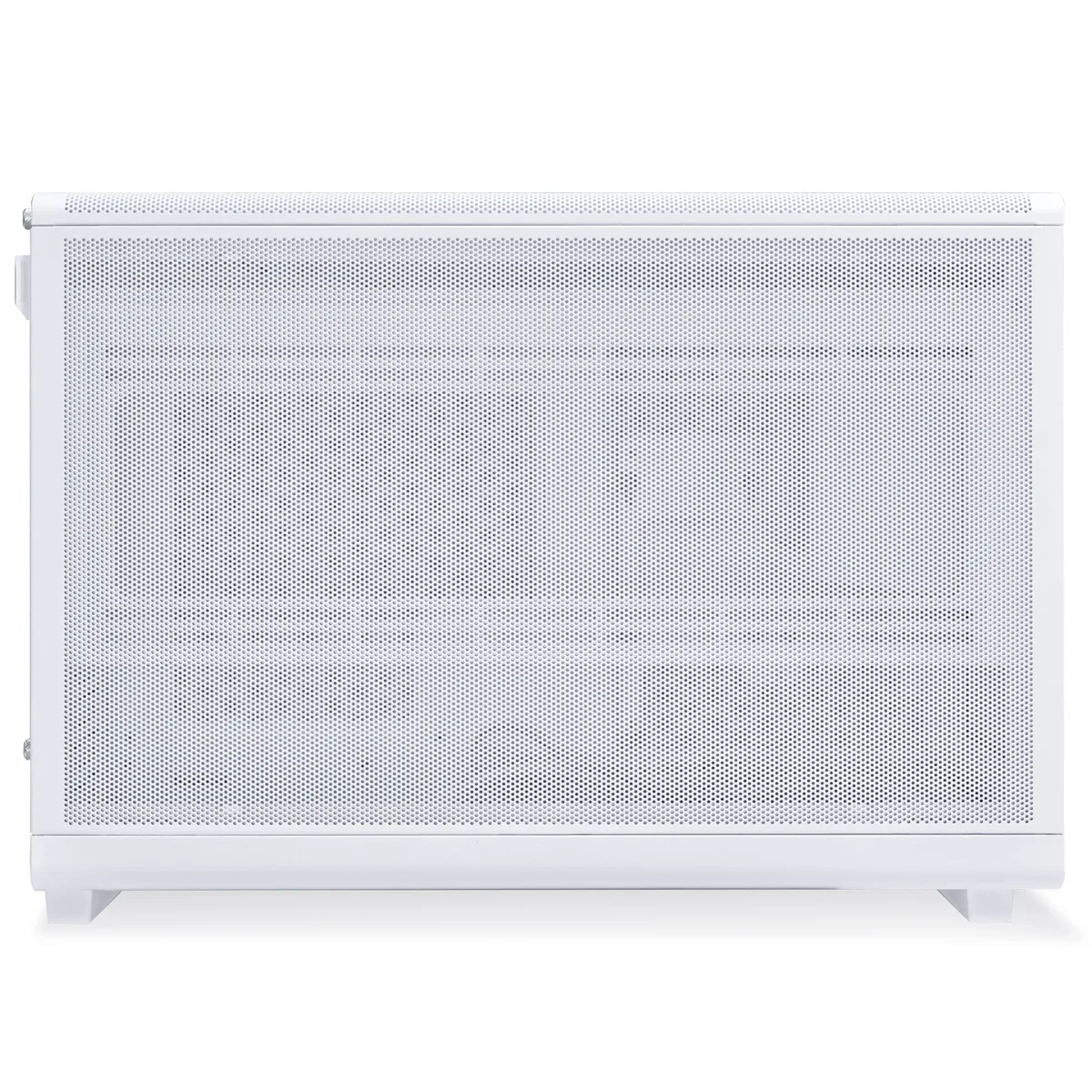

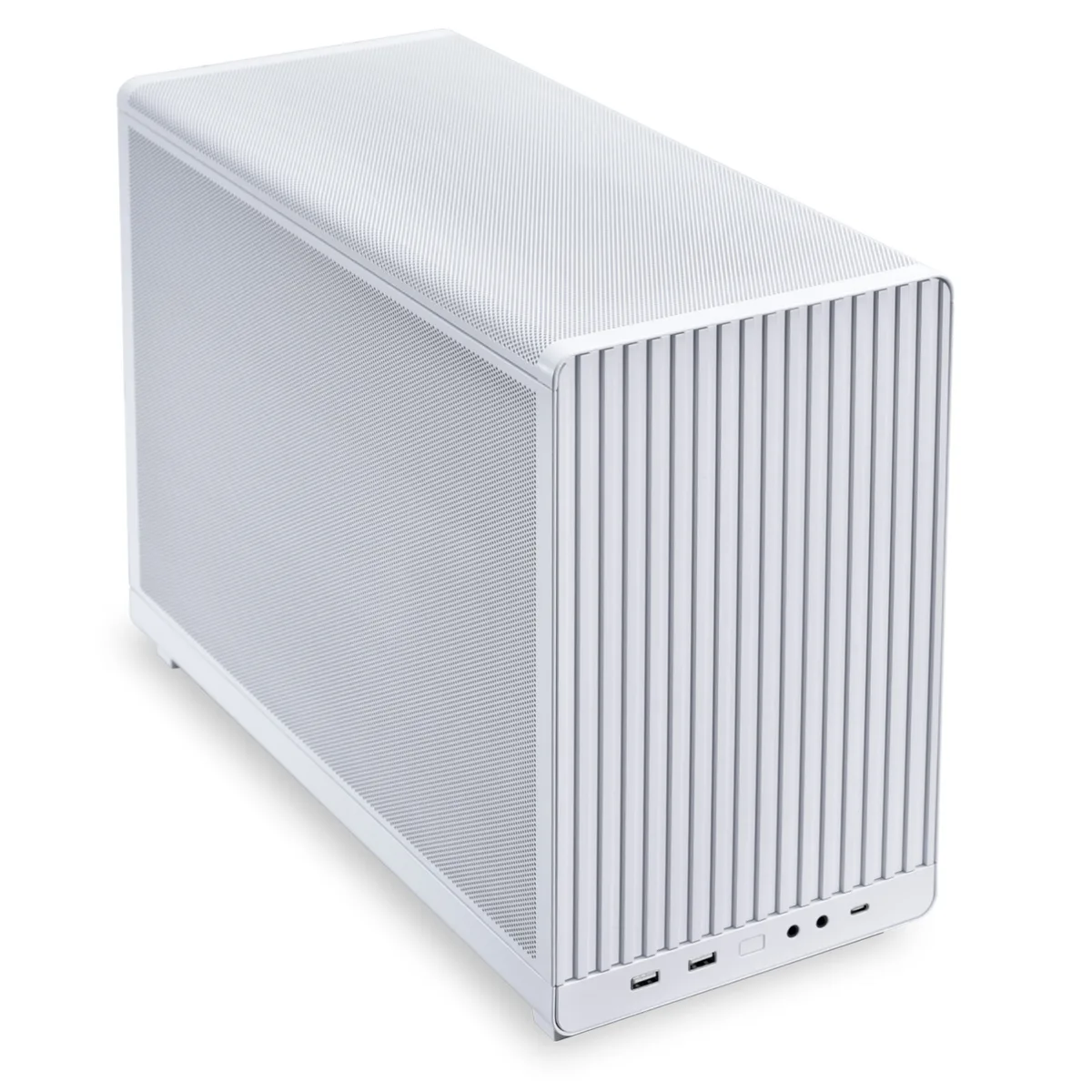

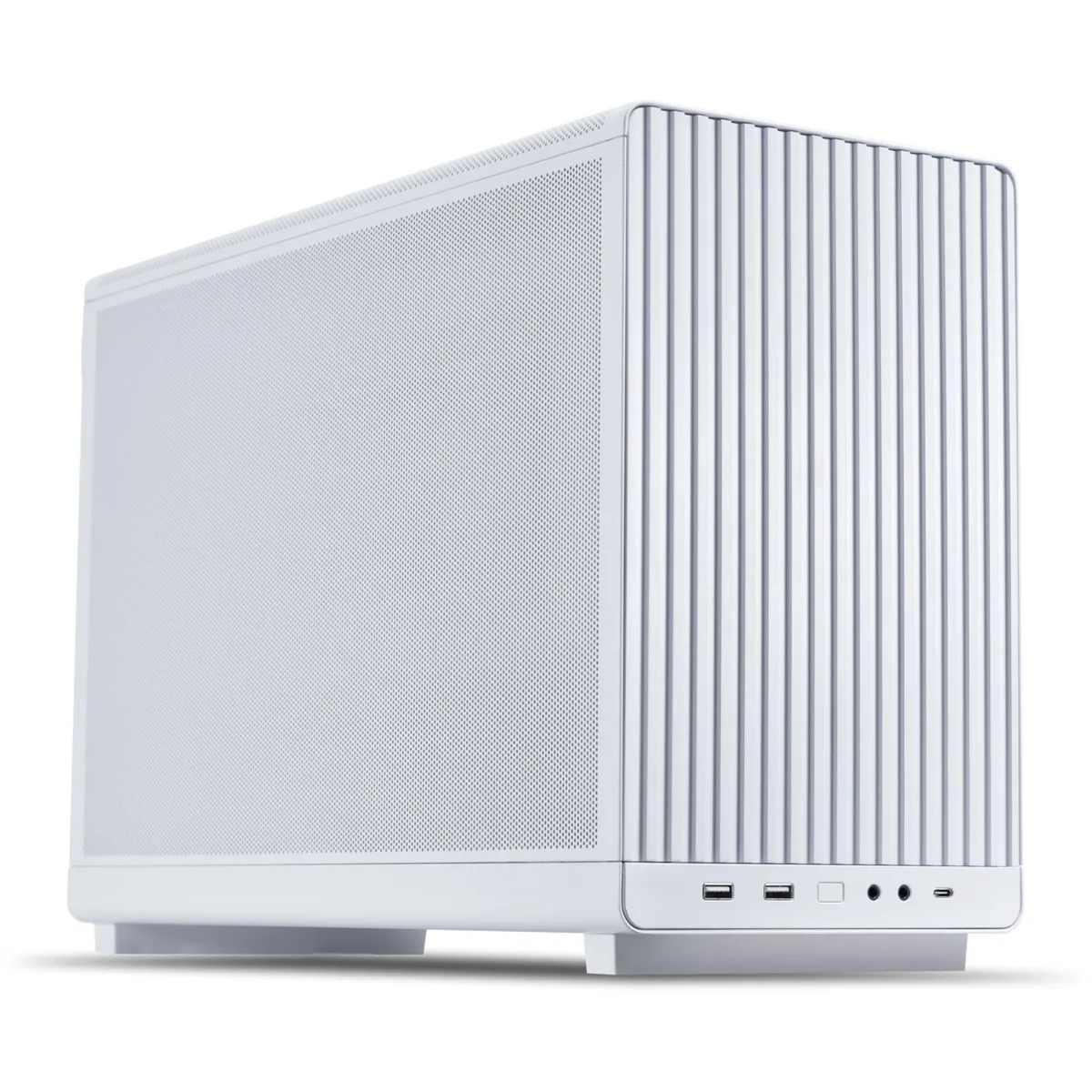

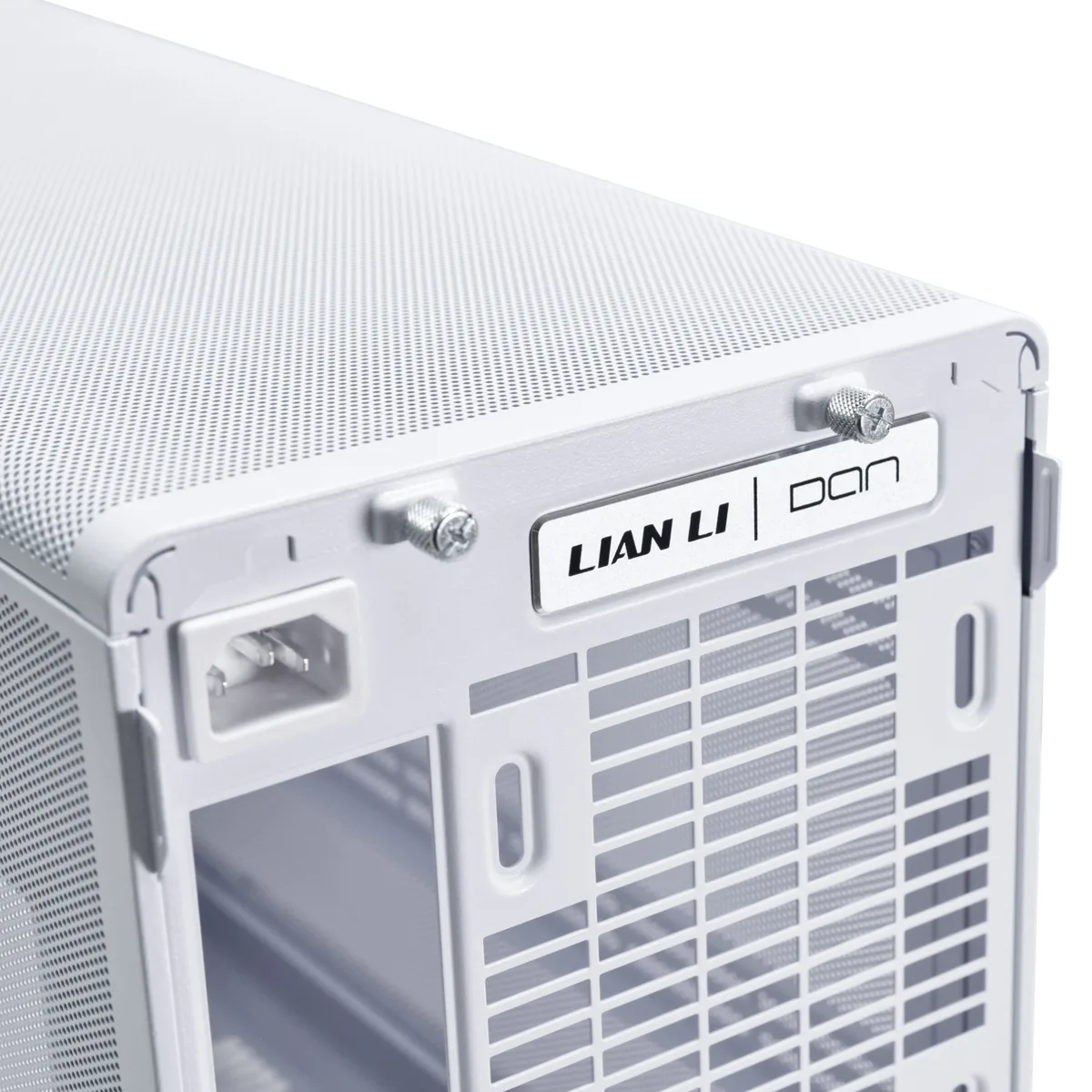

Lian Li A3 mATX White
£60.43
Model: A3- mATX White
Technical Specifications103 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
A3- mATX White
Gtin
4718466015631
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Front
Side Panel
with mesh
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Steel
Dimensions
194 x 321.5 x 443 (WxHxD mm)
Package Type
Retail
Please Note
Measurements inc. feet
Clearances
Cable Routing Space
-
Colour
Primary Colour
White
Colour Finish
Matt
Compliance
Compliance Documents
Lian Li Case Compliance and Safety
Core Chassis Specifications
Edition
A3-mATX
Case Form Factor
MicroATX
Motherboard Form Factor
MicroATX
Mini-ITX
Back Connect Compatible
No
Dimensions
Length Depth
443 mm
Width
194 mm
Height
321.5 mm
Weight
5 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
3
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
1x 3 5 1x 2 5 Inch Internal Drive Bays Combined
1
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
4
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 1 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fans & Filters
Fan Bays
7 x 120mm
3 x 120mm / 2x 140mm
Fan Controller Hub
-
Dust Filters
Bottom
Fan Support
Case Fan Support Top
120mm Fan (3x)
Case Fan Support Bottom
120mm Fan (3x)
Max Number Of Fans
10
Case Fan Support Rear
120mm Fan (1x)
Case Fan Support Side
120mm Fan (3x), 140mm Fan (2x)
120 Mm Fans
10
140 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
165 mm
Max Gpu Length
415 mm
Max Psu Length Depth
220 mm
Inner Volume
26.3 l
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone Out
1 x Mic In
1 x Power Button
2 x USB 3.0
1 x USB 3.1 Type-C
Drive Bays
2 x 2.5" Internal
1 x 2.5"/ 3.5" Internal
Standard Expansion Slots
4
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
No
Led Lighting Emitters
-
Led Lighting Colour
-
Led Lighting Support Control
-
Lighting
Lighting Rgb
No
Liquid Cooling Support
Front Radiator Compatibility
-
Top Radiator Compatibility
1 x 240/360mm
Bottom Radiator Compatibility
1 x 240/360mm
Rear Radiator Compatibility
-
Side Radiator Compatibility
1 x 240/280/360mm
Materials
Materials
Plastic, Steel
Motherboard Support
Compatible Motherboard Formats
Micro-ATX, Mini-ITX
Max Motherboard Format
Micro-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX, SFX-L, SFX
Power Supply Position
Internal
Power Supply Compatibility
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX + SFX-L
Psu Mounting Location
-
Max Psu Length
220 mm
Radiator Support
Radiator Aio Support Bottom
240mm Radiator, 360mm Radiator
Max Radiator Compatibility
2x Triple (360 mm)
Radiator Aio Support Side
240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Top
240mm Radiator, 360mm Radiator
Side Panels
Window S
No
Window Configuration
-
Window Construction
-
