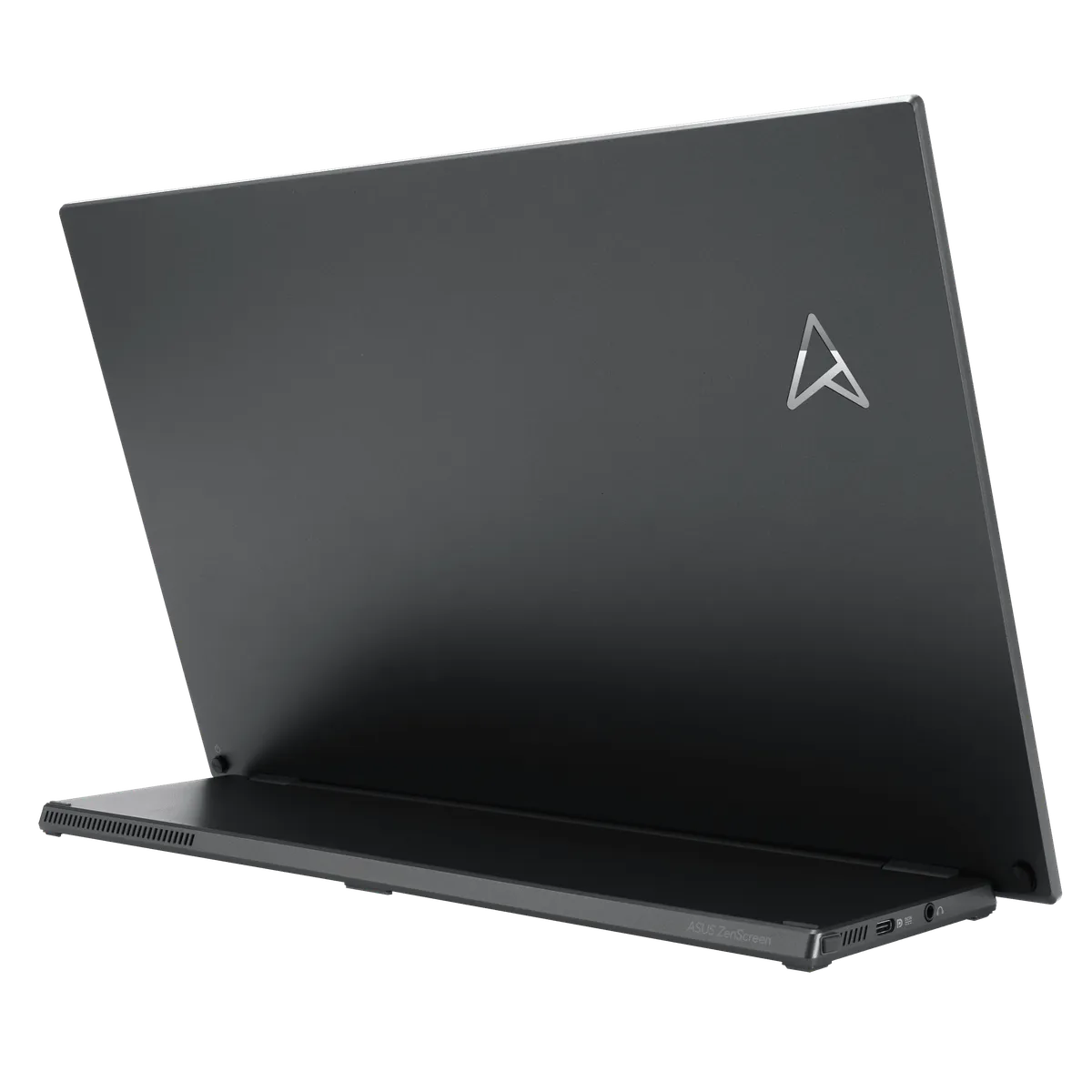

ASUS ZenScreen MB17AHG
MPN: 22567
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Add this to your build in the PC Builder to automatically check dimensions, sockets, and power draw.
Related Products
Full Specifications17 fields
General
Model
ASUS ZenScreen MB17AHG
Display
- Panel Size (inch) : 17.3
- Pixels Per Inch (PPI) : 127
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 381.888 x 214.812 mm
- Display Surface : Anti-Glare
- Backlight Type : LED
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.199mm
- Resolution : 1920x1080
- Color Space (sRGB) : 100%
- Brightness (Typ.) : 300cd/㎡
- Contrast Ratio (Typ.) : 800:1
- Display Colors : 16.7M
- Response Time : 5ms(GTG)
- Refresh Rate (Max) : 144Hz
- Flicker-free : Yes
Features
- Trace Free Technology : Yes
- SPLENDID Technology : Yes
- Color Temp. Selection : Yes (4 modes)
- Auto Rotation:Yes, supported by DisplayWidget Center
- GamePlus : Yes
- QuickFit : Yes (Photo/Alighment Grid)
- HDCP : Yes, 2.2
- VRR Technology : Yes (Adaptive-Sync)
- DisplayWidget : Yes, DisplayWidget Center
- Low Blue Light : Yes
Audio
Speaker : No
I O Ports
- USB-C x 2 (DP Alt Mode)
- HDMI(v1.4) x 1
- Earphone Jack : Yes
Signal Frequency
- Digital Signal Frequency : HDMI: 30KHz~180KHz(H)/60Hz ~144Hz (V)
- USB-C: 180KHz(H)/60Hz ~144Hz (V)
Power Consumption
- Power Consumption : <18W
- Power Saving Mode : <0.5W
- Power Off Mode : <0.5W
- Voltage : 100-240V, 50/60Hz
Mechanical Design
- Height Adjustment : No
- 1/4" Tripod Socket : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 38.99 x 24.91 x 0.70 cm (15.35" x 9.81" x 0.28")
- Box Dimension (W x H x D) : 47.30 x 32.30 x 11.90 cm (18.62" x 12.72" x 4.69")
Weight Esti
- Net Weight : 1.29 kg (2.84 lbs)
- Gross Weight : 3.75 kg (8.27 lbs)
Accessories Vary By Regions
- ZenScreen sleeve
- Warranty Card
- USB-C cable
- Quick start guide
- Power adapter
- HDMI cable
Operation Temperature Humidity
- Operation Temperature : 5~35℃
- Operation Humidity : 20-90% RH
Certificate
- AMD FreeSync Premium
- TÜV Low Blue Light
- TÜV Flicker-free
Physical Dimensions
Length Mm
389.9
Width Mm
249.1
Height Mm
7
Weight G
1290
