MonitorsAsus

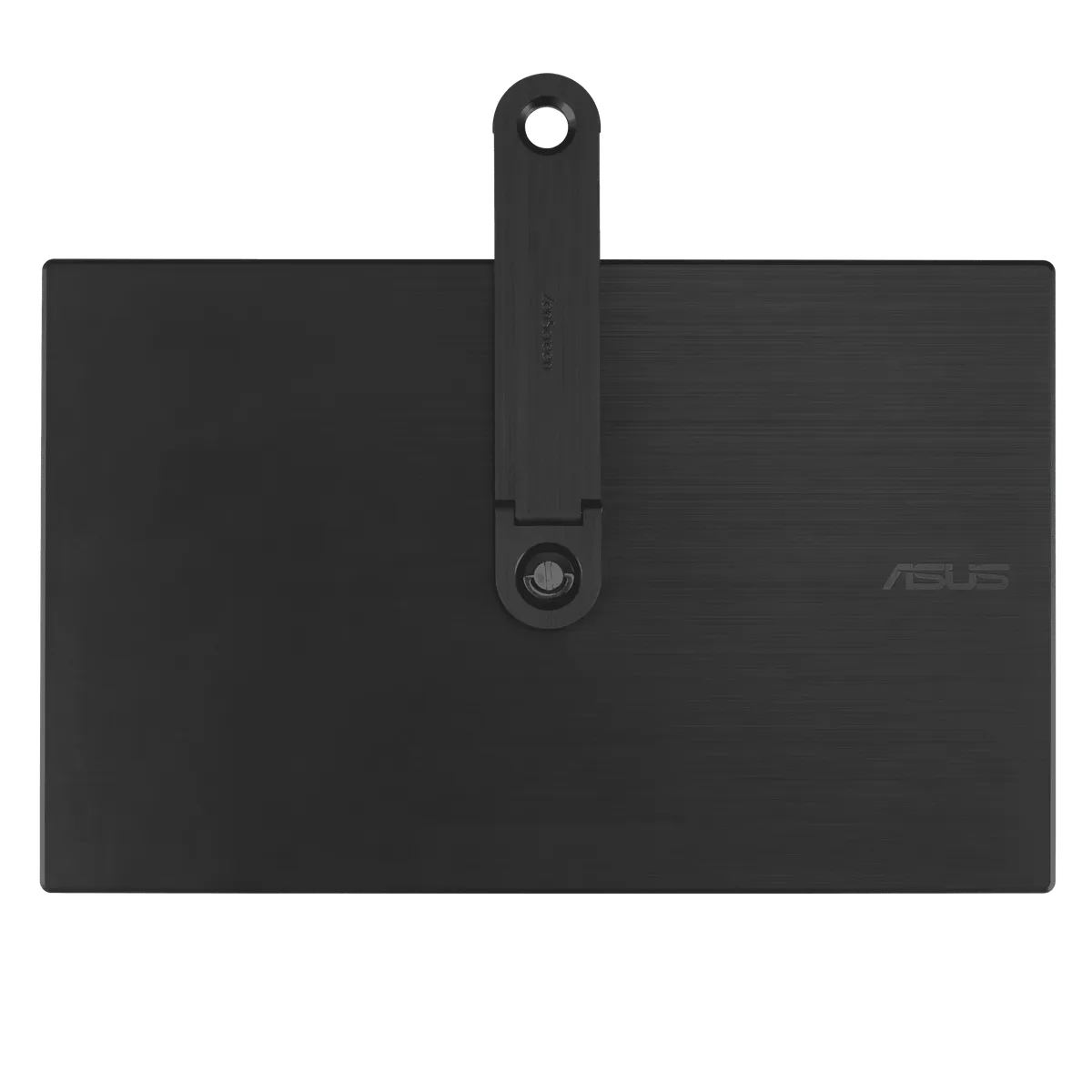

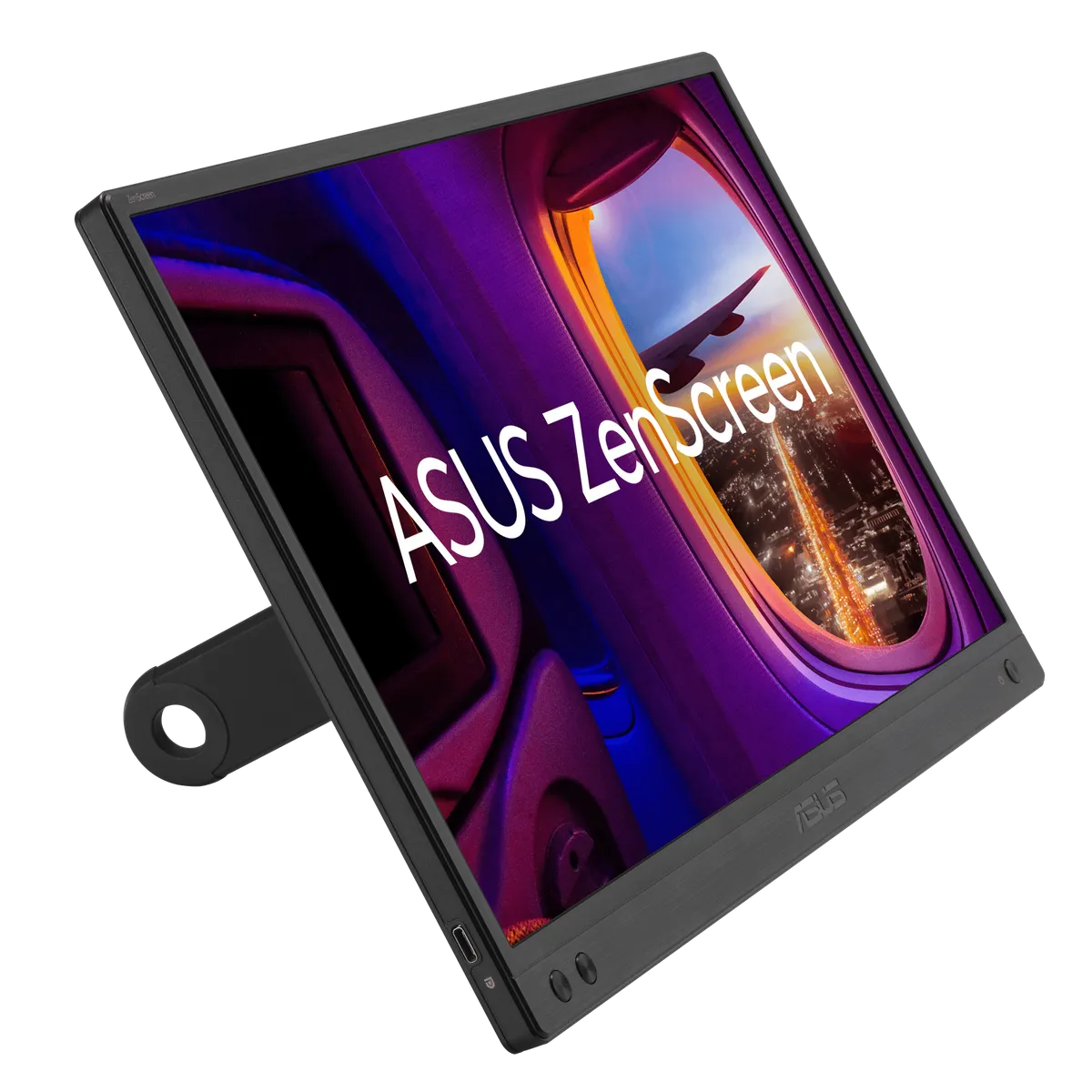

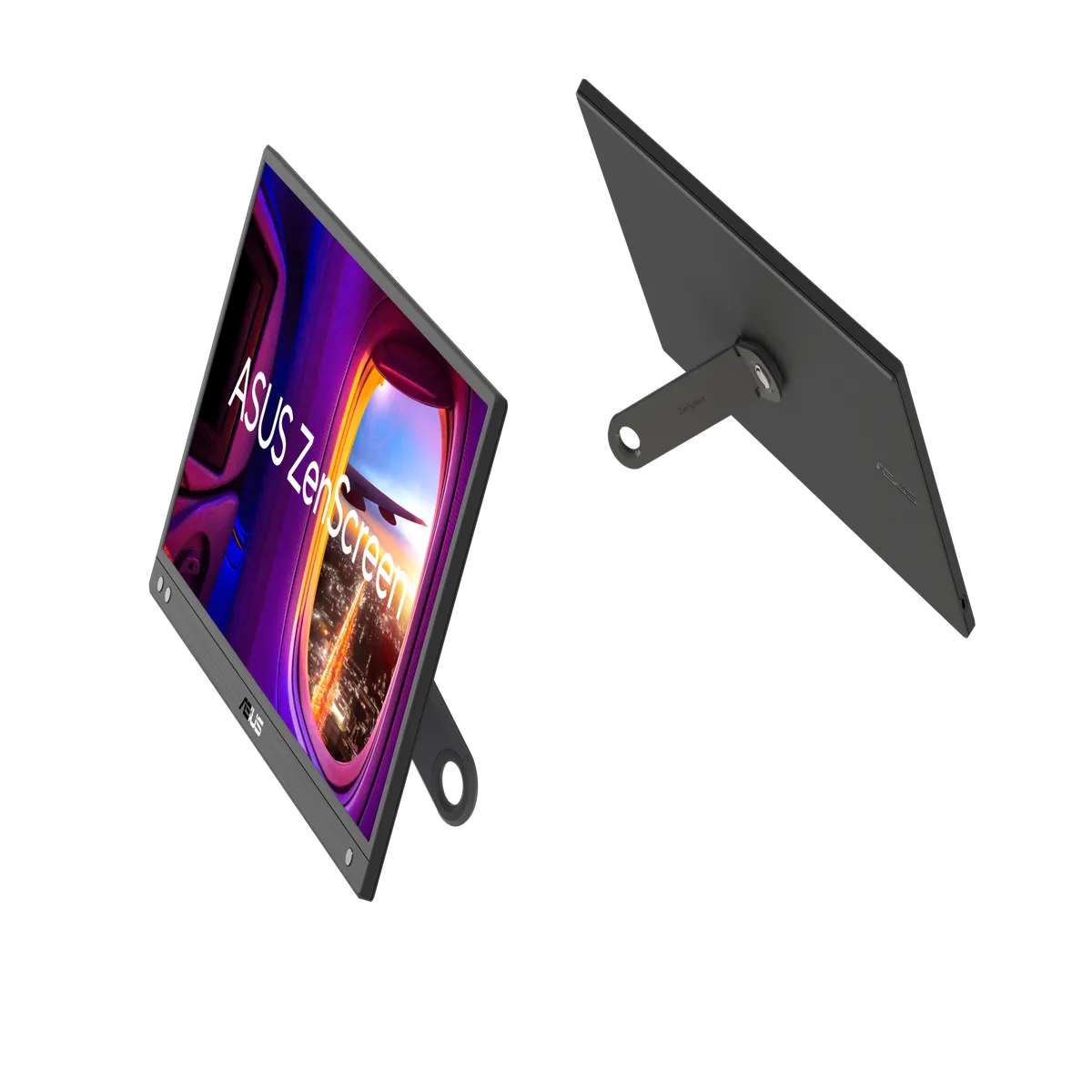

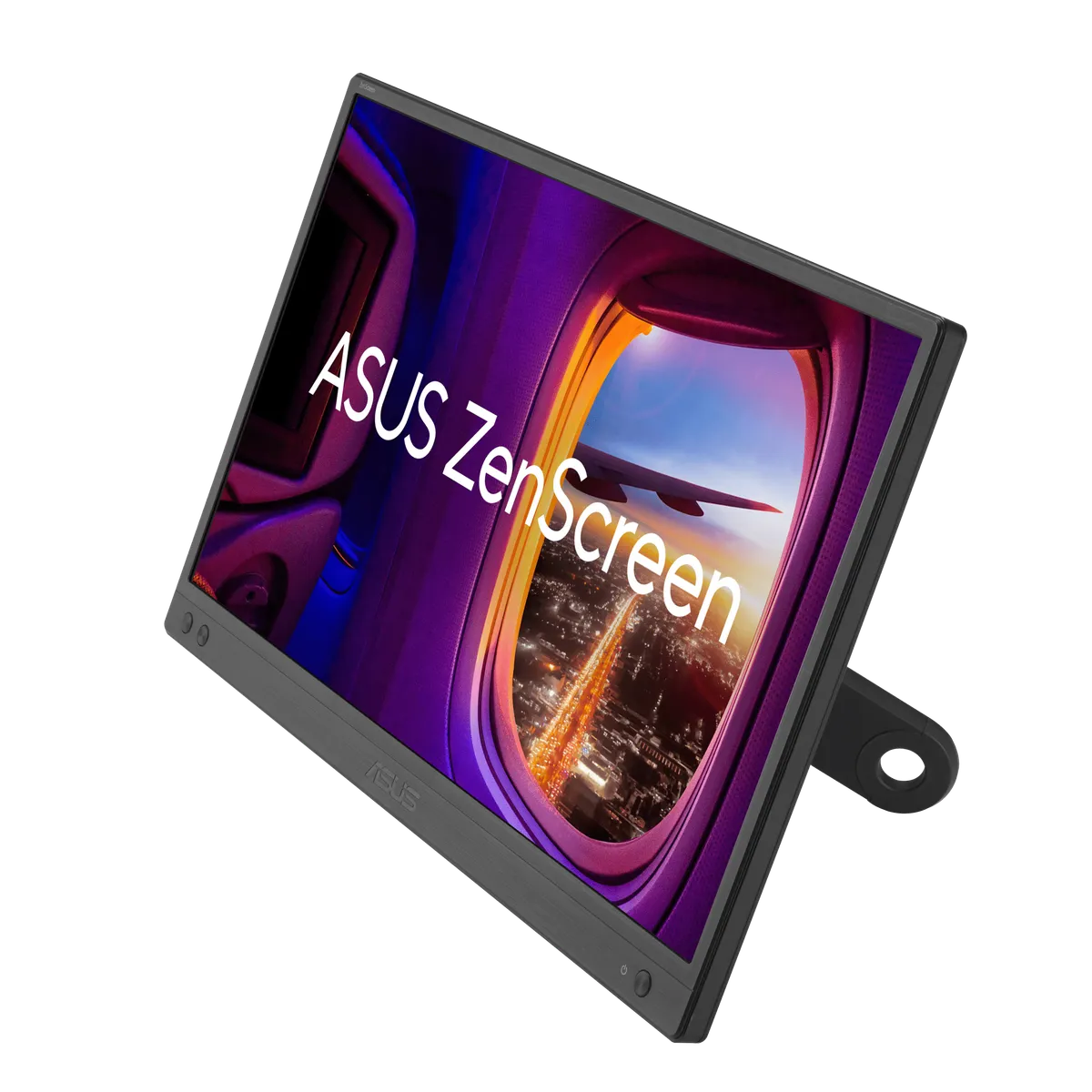

ASUS ZenScreen MB166CR
Price TBC
Compatibility Data
Monitor Resolution1920x1080
Monitor Refresh Rate Hz60
Monitor Panel TypeIPS
Monitor Aspect Ratio16:9
Monitor Response Time Ms5
Monitor CurvedNo
Model: 25092
Technical Specifications16 specs
General
Model
ZenScreen MB166CR
Display
- Panel Size (inch) : 15.6
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 344.16 x 193.59mm
- Display Surface : Anti-Glare
- Backlight Type : LED
- Panel Type : IPS
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.179mm
- Resolution : 1920x1080
- Brightness (Typ.) : 250cd/㎡
- Contrast Ratio (Typ.) : 800:1
- Display Colors : 262K
- Response Time : 5ms(GTG)
- Refresh Rate (Max) : 60Hz
- Flicker-free : Yes
Features
- Trace Free Technology : Yes
- SPLENDID Technology : Yes
- Color Temp. Selection : Yes (4 modes)
- GamePlus : Yes
- QuickFit : Yes (Photo/Alighment Grid)
- HDCP : Yes
- DisplayWidget : Yes, DisplayWidget Center
- Low Blue Light : Yes
Audio
Speaker : No
I O Ports
USB-C x 1 (DP Alt Mode)
Signal Frequency
Digital Signal Frequency : USB-C: 24-83KHZ (H) / 60Hz(V)
Power Consumption
- Power Consumption : 5.24 W
- Power Saving Mode : <0.5W
- Power Off Mode : <0.3W
- Voltage : 100-240V, 50/60Hz
Mechanical Design
- Height Adjustment : No
- 1/4" Tripod Socket : Yes
Dimensions Esti
- Phys. Dimension without Stand (W x H x D) : 36.01 x 22.56 x 1.18 cm (14.18" x 8.88" x 0.46")
- Box Dimension (W x H x D) : 43.40 x 29.00 x 7.60 cm (17.09" x 11.42" x 2.99")
Weight Esti
- Net Weight without Stand : 0.78 kg (1.72 lbs)
- Gross Weight : 1.70 kg (3.75 lbs)
Accessories Vary By Regions
- ZenScreen sleeve
- Warranty Card
- USB-C cable
- Quick start guide
- 360° kickstand
Certificate
- TÜV Low Blue Light
- TÜV Flicker-free
Physical Dimensions
Length Mm
360.1
Width Mm
225.6
Height Mm
11.8
Weight G
780
