Technical Specifications76 specs
Additional Information
Model Number
90DC0090-B19010
Gtin
4711081800439
Chassis Physical Specifications
Colour
Black
Chassis Construction Materials
-
Dimensions
285 x 450 x 446 (WxHxD mm)
Weight
11 kg (Approx)
Package Type
-
Please Note
-
Clearances
Max Cooler Height
163 mm
Max Gpu Length
400 mm
Cable Routing Space
-
Cooling
Number Of Rear Fans Supported Max
1
Rear Fans Diameters Supported
120 mm
Number Of Top Fans Supported Max
3
Top Fans Diameters Supported
120,140 mm
Rear Radiator Sizes Supported
120 mm
Top Radiator Sizes Supported
120,140,240,280,360 mm
Core Chassis Specifications
Edition
TUF Gaming GT502 PLUS
Case Form Factor
Mid Tower
Motherboard Form Factor
ATX
MicroATX
Mini-ITX
Back Connect Compatible
No
Design
Form Factor
Midi Tower
Type
PC
Product Colour
Black
Supported Motherboard Form Factors
ATX, micro ATX, Mini-ITX
Number Of 3 5 Bays
4
Number Of 2 5 Bays
4
Number Of Expansion Slots
8
Tempered Glass Panel S
Yes
Anti Dust Filter
Yes
Rgb Control Button
Yes
Maximum Cpu Cooler Height
16.3 cm
Maximum Graphics Card Length
40 cm
Maximum Psu Length
20 cm
Fans & Filters
Fan Bays
1 x 120mm
3 x 120mm / 2x 140mm
Fans Included
4 x 120mm w/ Addressable RGB LEDs
Fan Controller Hub
-
Dust Filters
Bottom
Side
Top
I/O, Bays & Expansion

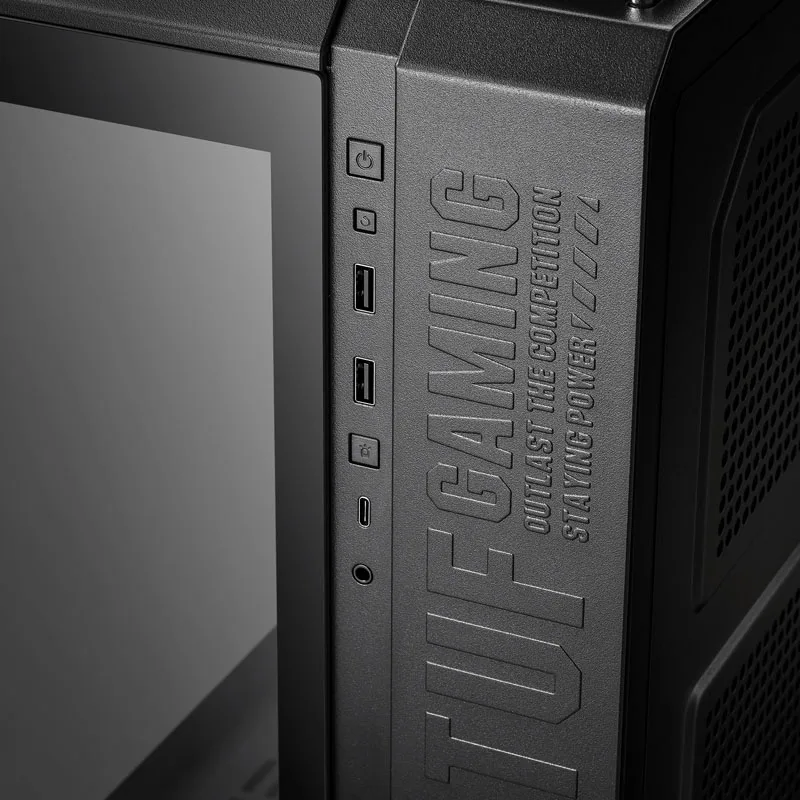

Front Side Top Panel I O
1 x Headphone/Mic Combo
1 x LED Control Button
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2x2 Type-C
Drive Bays
4 x 2.5"/ 3.5" Internal
Standard Expansion Slots
8
Vertical Expansion Slots
3
LED Lighting Functionality
Led Lighting
Yes
Led Lighting Emitters
Included LED Fan/s
Led Lighting Colour
RGB (16.7 Million Colours)
Led Lighting Support Control
Control via Inc. Controller/Hub (Software Control)
Liquid Cooling Support
Front Radiator Compatibility
-
Top Radiator Compatibility
1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
-
Packaging data
Package Width
380 mm
Package Depth
557 mm
Package Height
525 mm
Package Weight
13.2 kg
Ports & interfaces
Usb 3 2 Gen 1 3 1 Gen 1 Type A Ports Quantity
2
Usb 3 2 Gen 2 3 1 Gen 2 Type C Ports Quantity
1
Combo Headphone Mic Port
Yes
Power Supply Compatibility
Psu Included
No
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Bottom Mount, Rear
Max Psu Length
200 mm
Side Panels
Window S
Yes
Window Configuration
1 x Front
1 x Main Side
Window Construction
Tempered Glass
Storage
Supported Hdd Sizes
2.5,3.5"
Weight & dimensions
Width
285 mm
Depth
446 mm
Height
450 mm
Weight
11 kg
