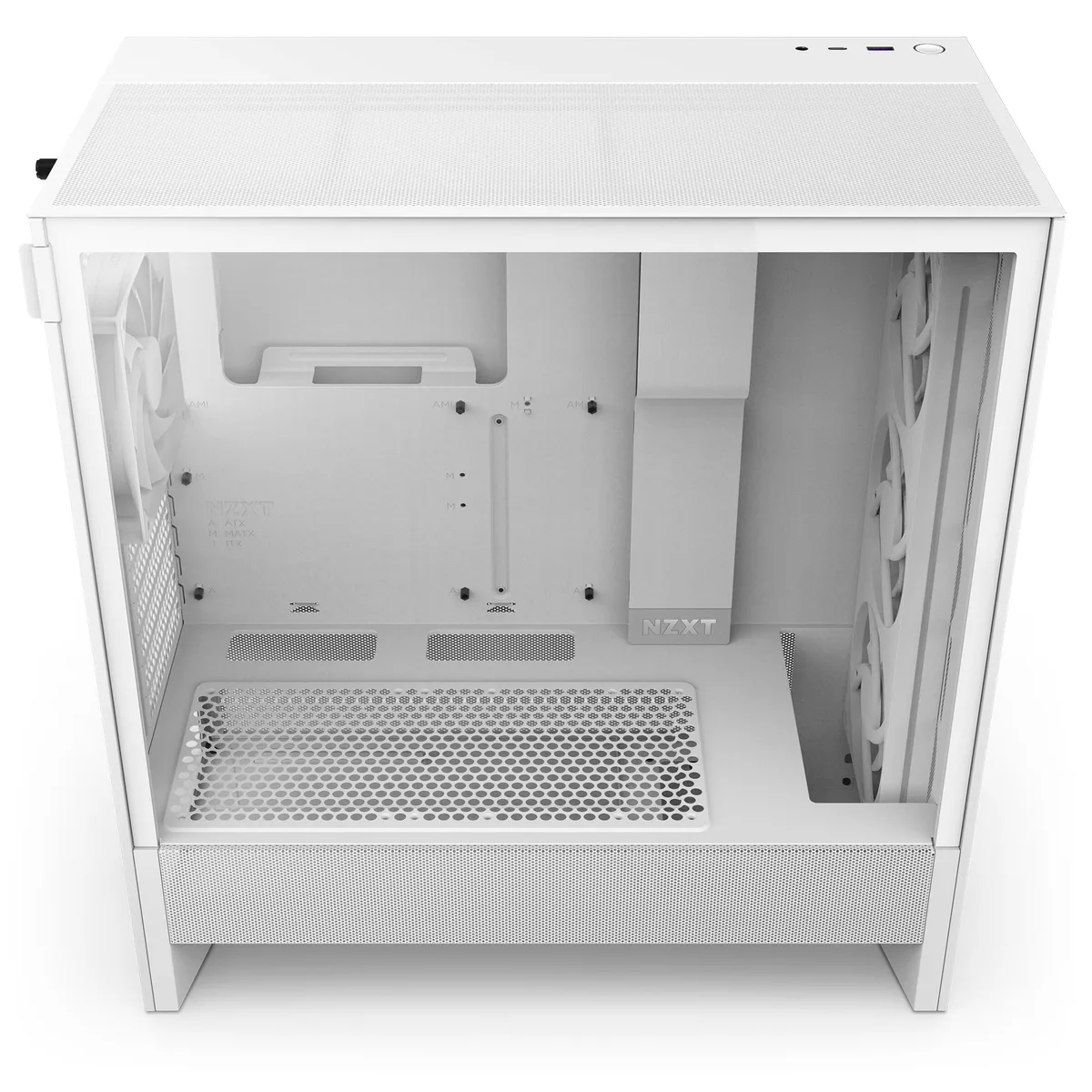

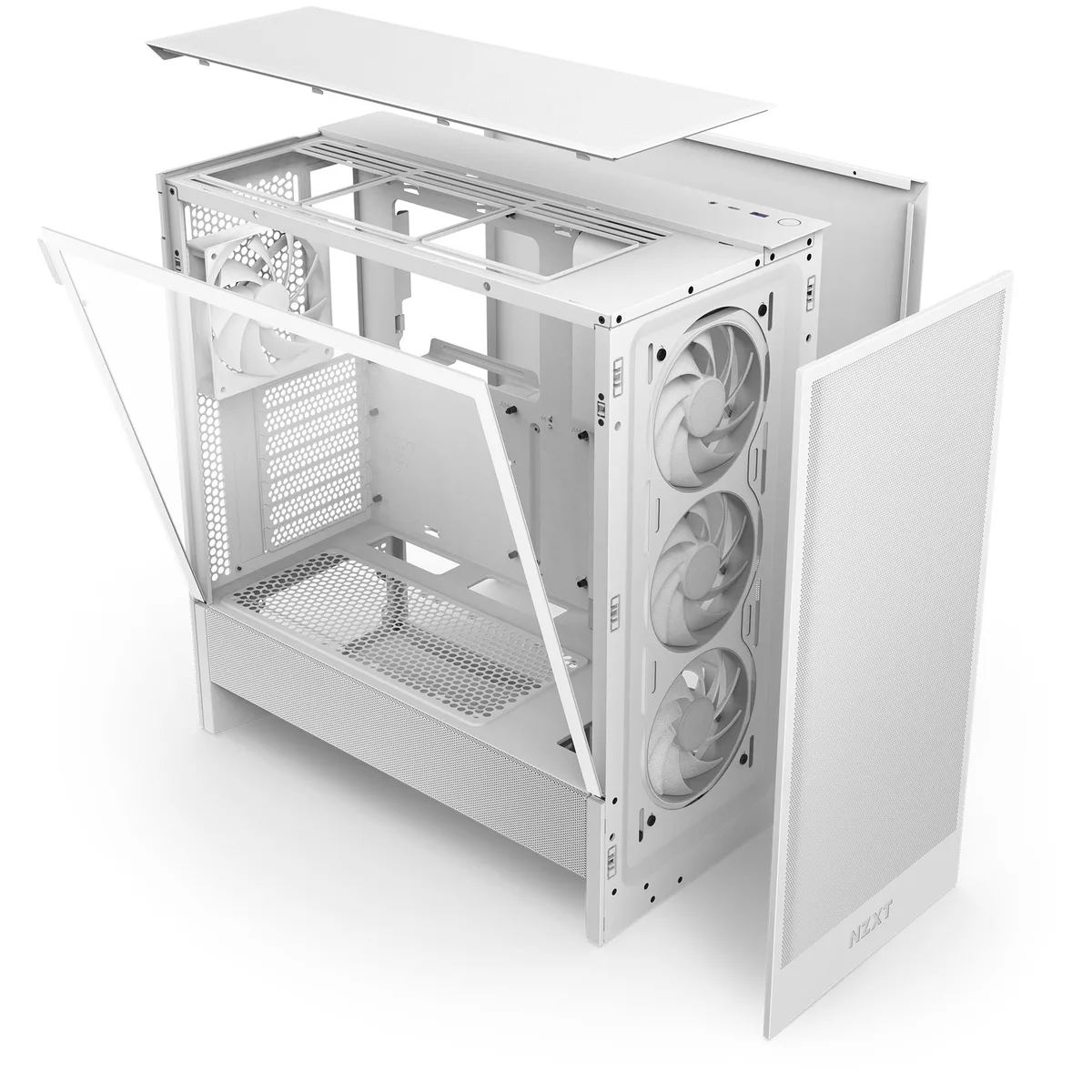

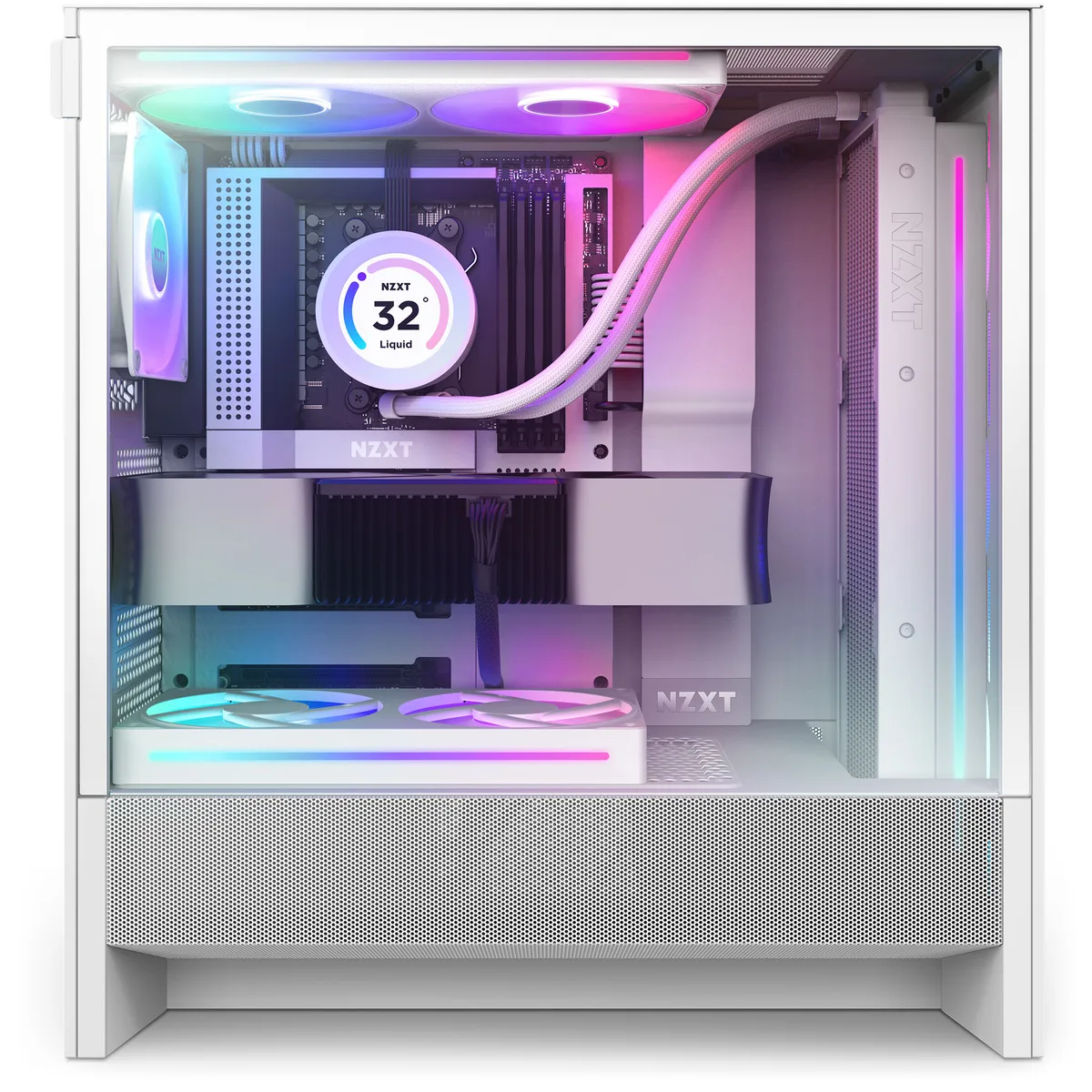

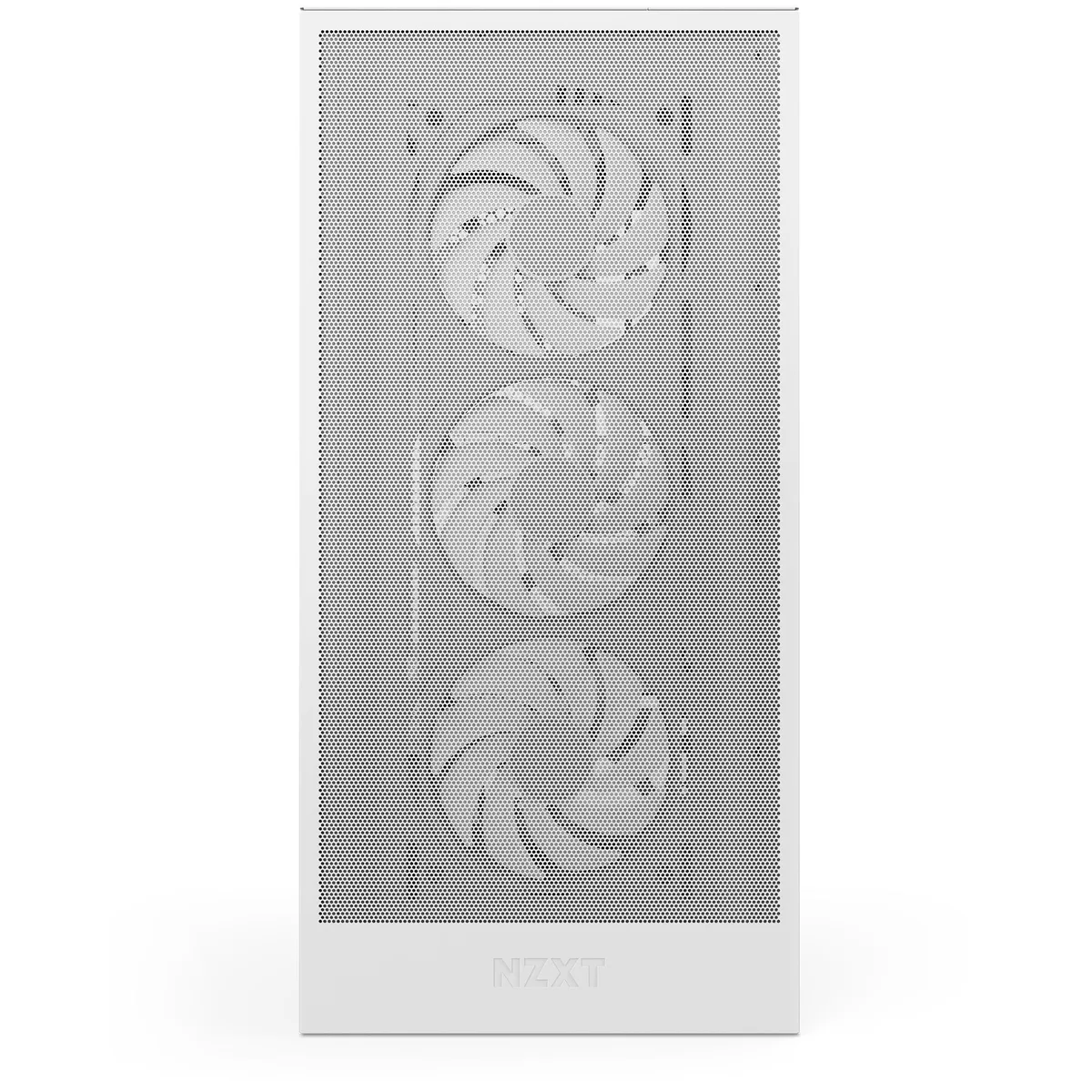

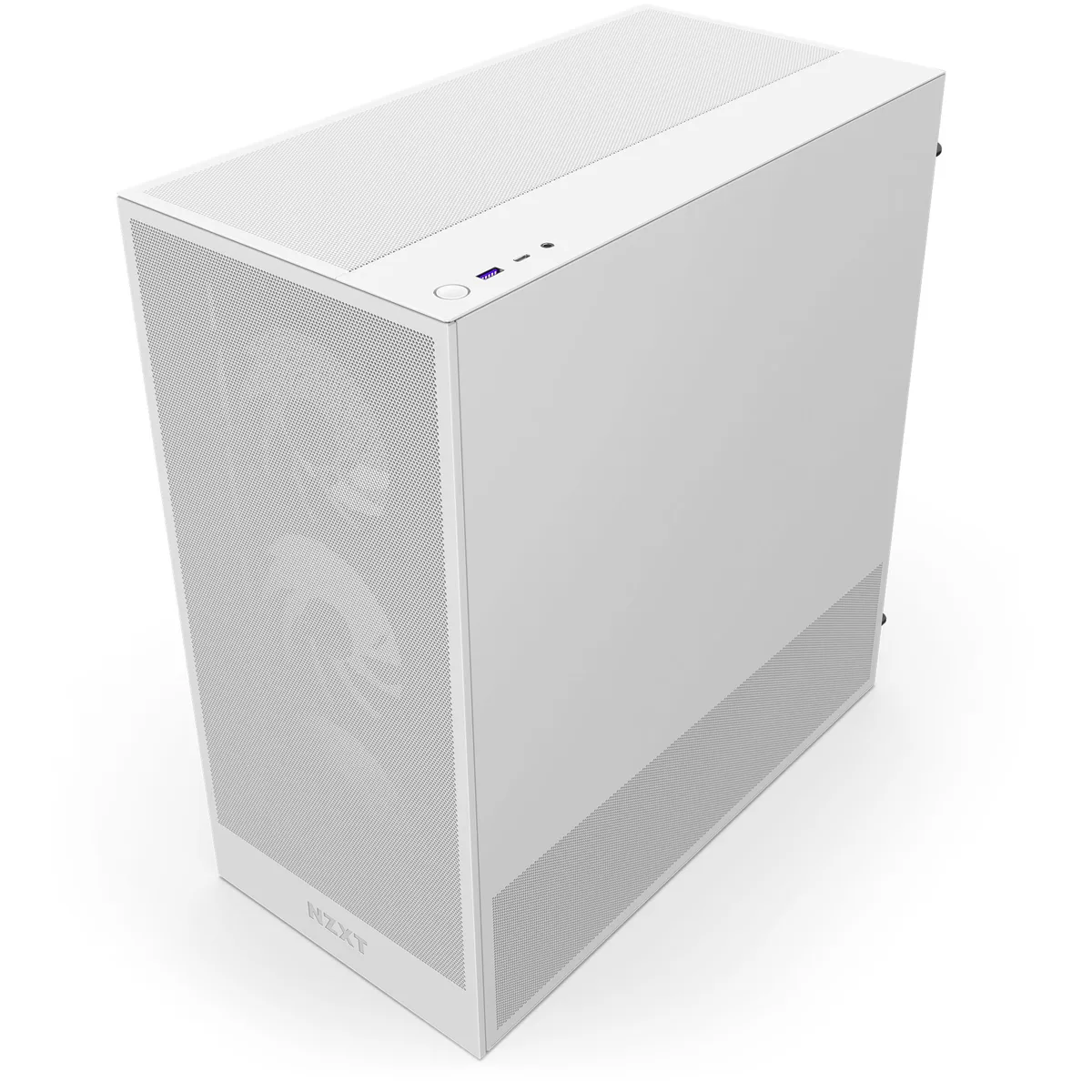

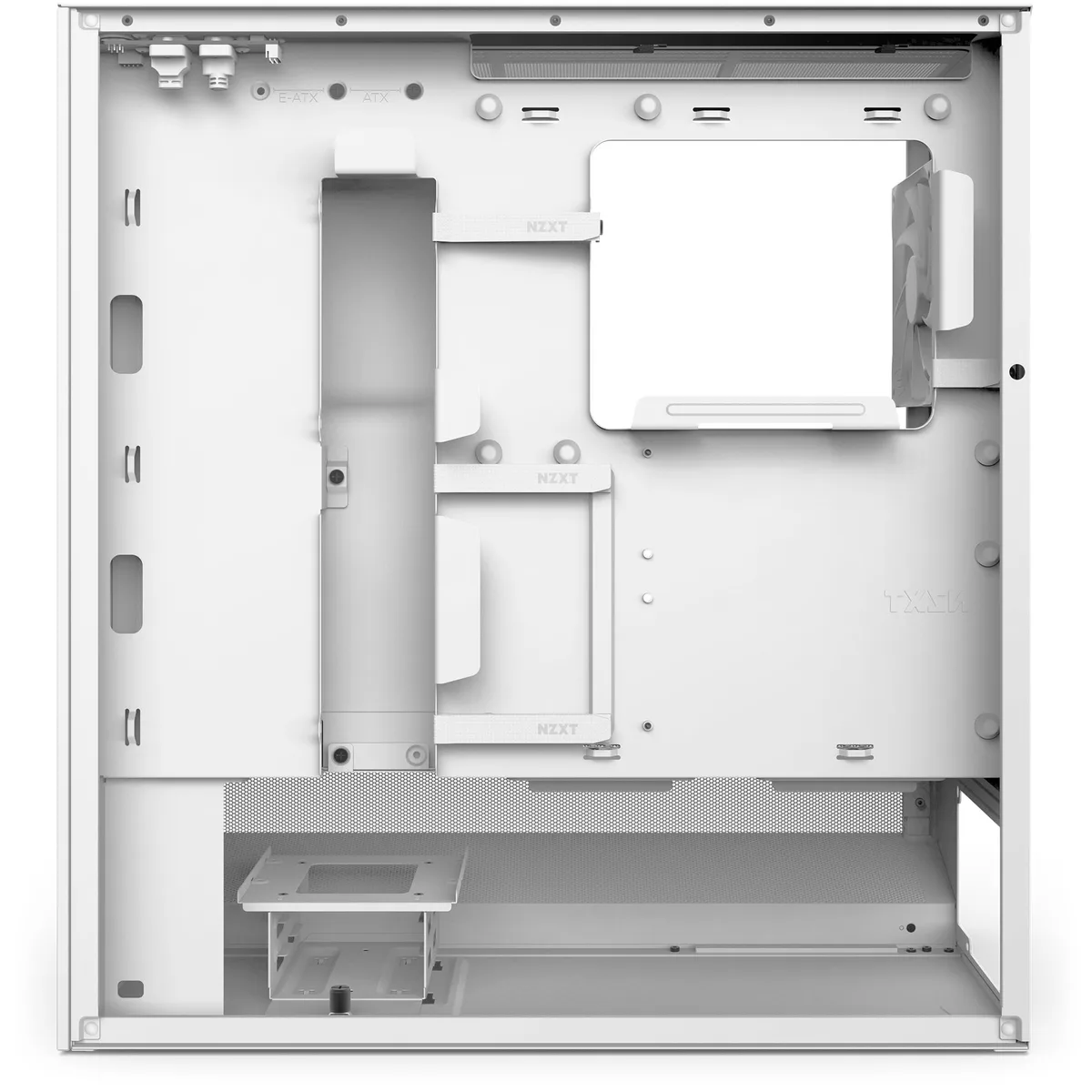

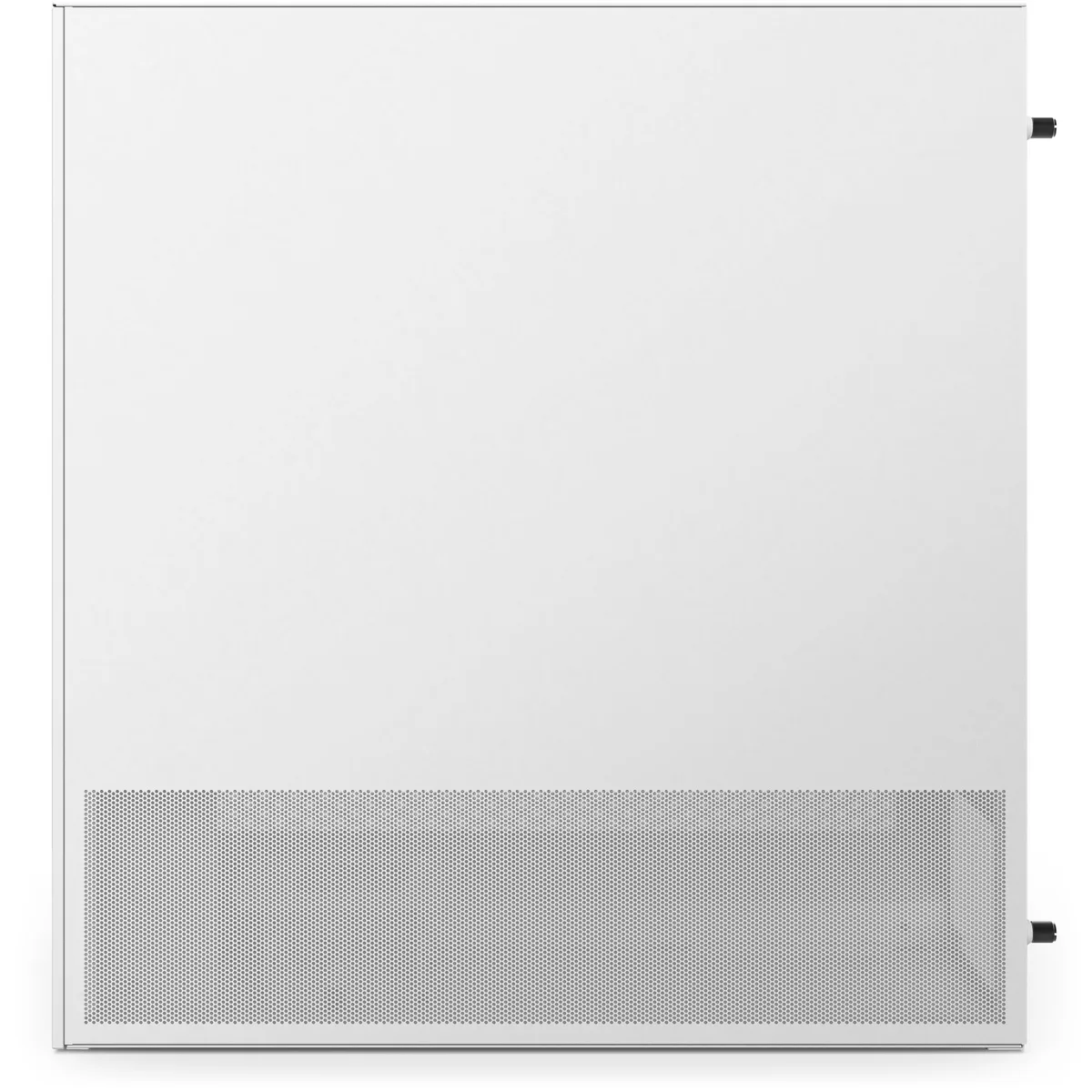

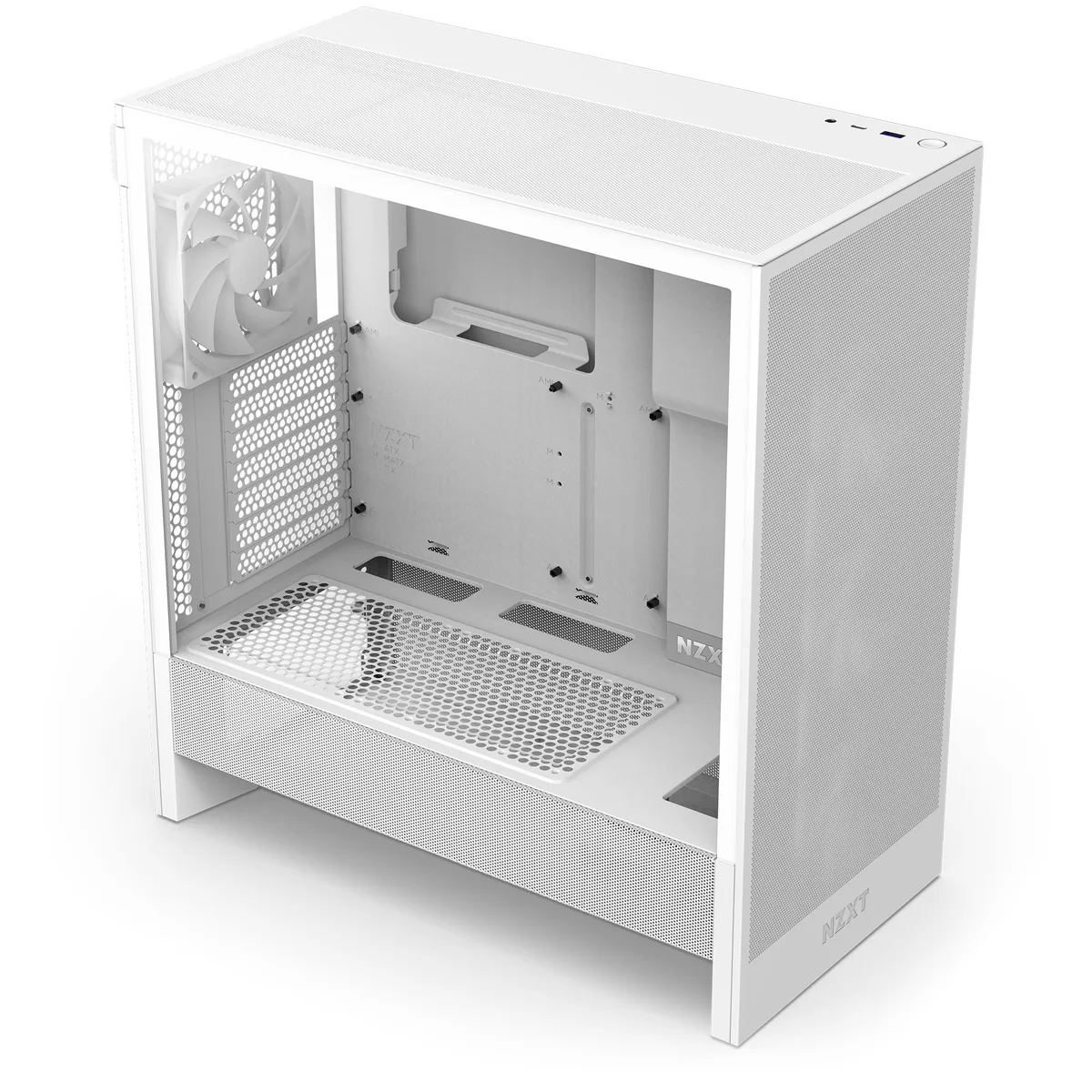

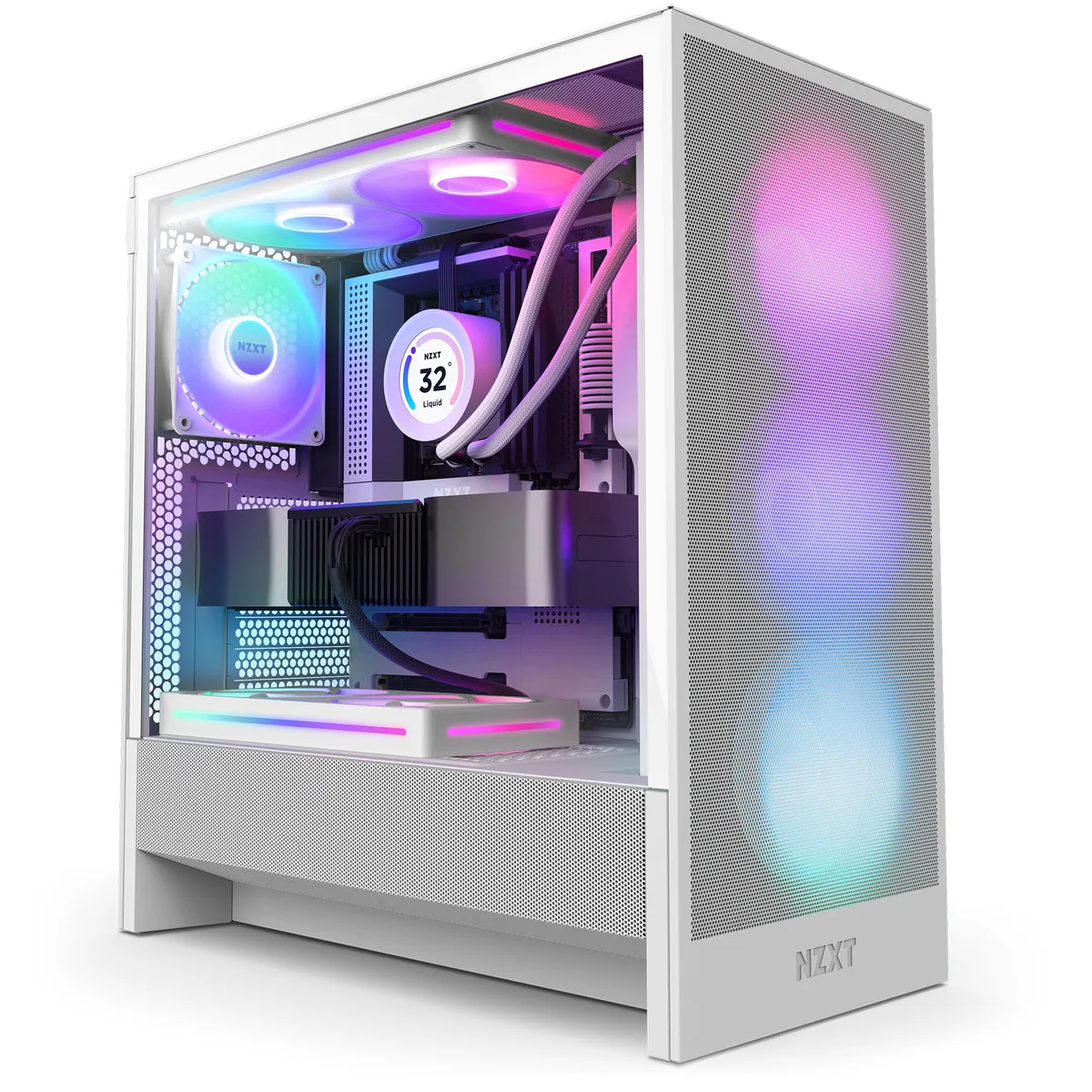

NZXT H5 Flow RGB Matte White Mid Tower Case
MPN: CC-H52FW-R1
Key specifications
Max GPU410.0 mm
Max Cooler170.0 mm
Max PSU200.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKSearch link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 410.0mm GPU clearance.
Supports up to 170.0mm CPU cooler height.
Full Specifications65 fields
Additional Contents
Fans Included
Yes
Included Fans
1x 120 mm, 3x 120 mm
Additional Information
Model Number
CC-H52FW-R1
Gtin
5056547205861
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front / Lid
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Connectivity
Card Reader
No
Dimensions
Length Depth
430 mm
Width
225 mm
Height
465 mm
Weight
7.63 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 2 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Max Number Of Fans
8
Case Fan Support Bottom
120mm Fan (2x)
Case Fan Support Top
120mm Fan (2x), 140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (2x)
120 Mm Fans
8
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
170 mm
Max Gpu Length
410 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
No
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Materials
Materials
Plastic, Tempered Glass, SGCC (Steel)
Motherboard Support
Max Motherboard Format
E-ATX
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
360mm Radiator
Max Radiator Compatibility
1x Dual (240 mm), 1x Triple (360 mm)
Radiator Aio Support Top
240mm Radiator, 280mm Radiator
