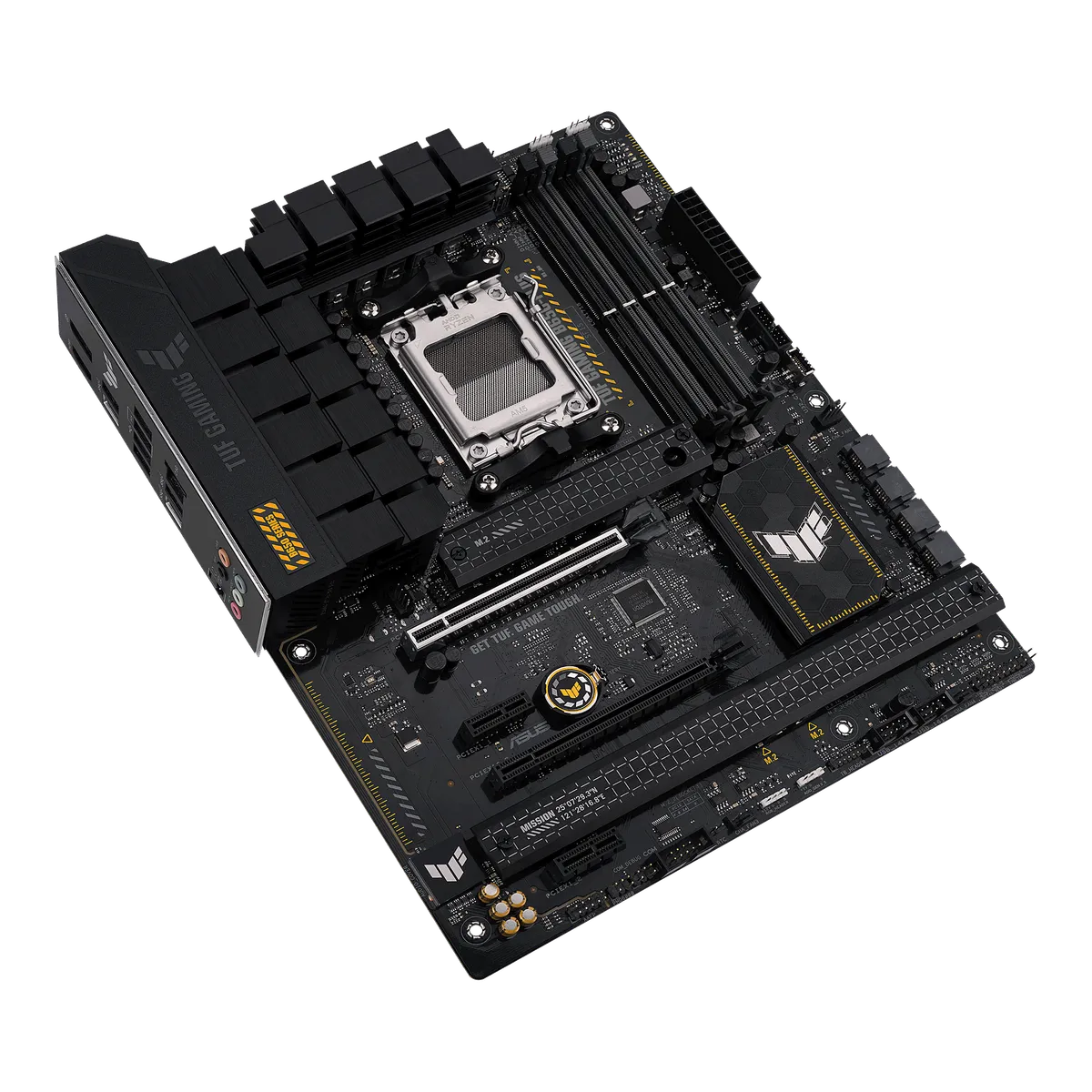

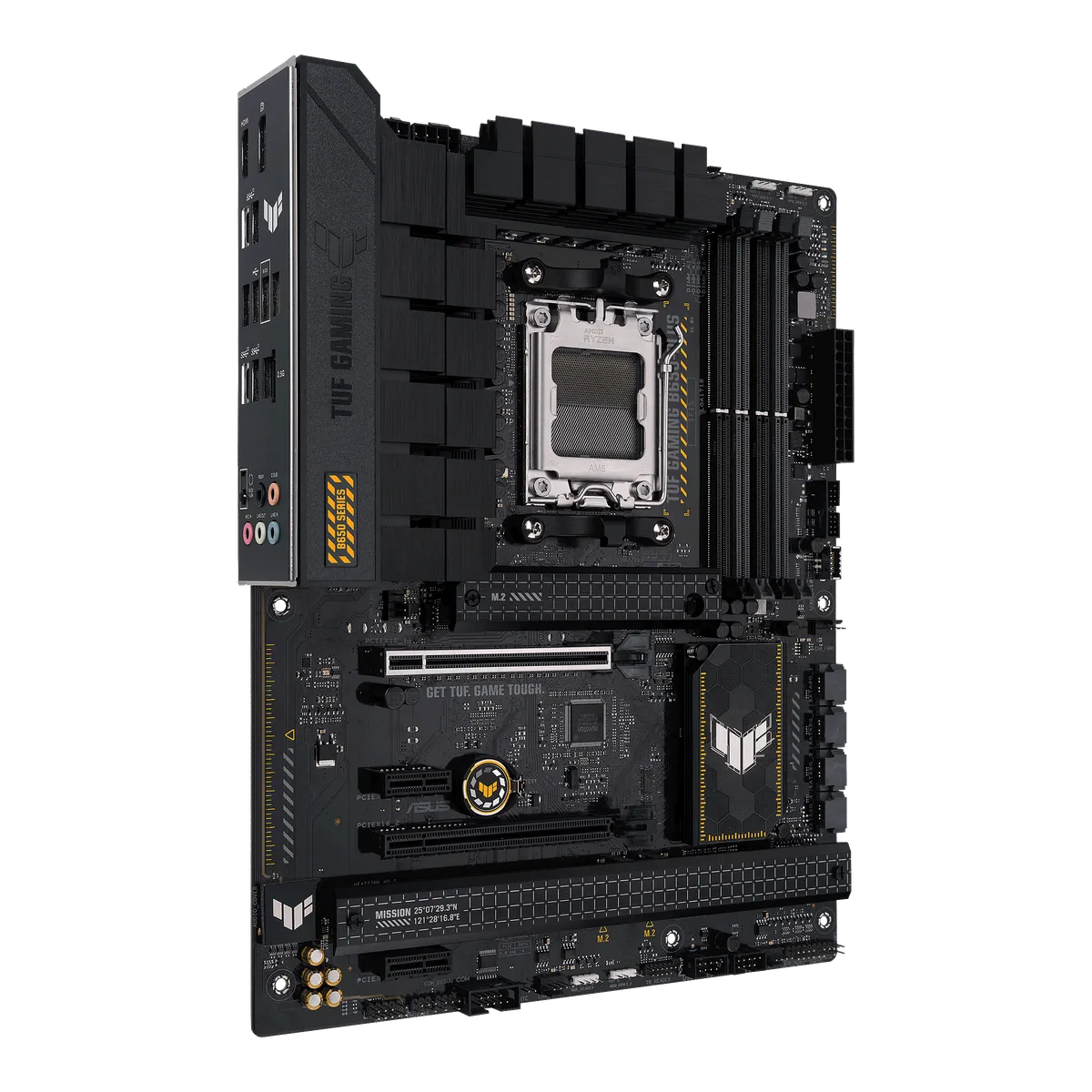

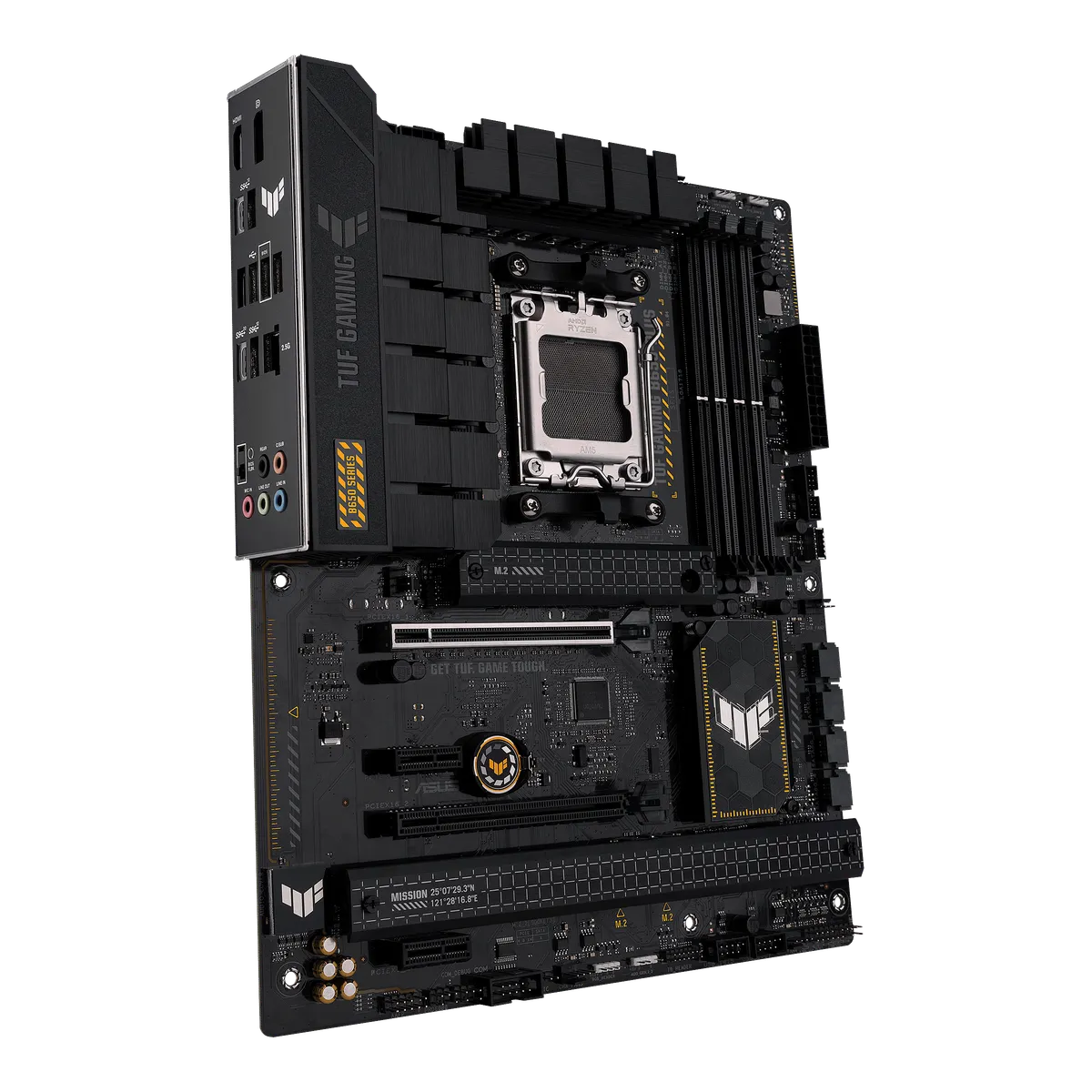

ASUS TUF GAMING B650-PLUS
Quick Specs
ChipsetAMD B650
SocketAM5
MemoryDDR5
Form FactorATX
M.2 Slots8
Model: 21115
About this motherboards
TUF GAMING B650-PLUS is equipped with outstanding features, including 6-layer PCB design, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen2x2 Type-C<sup>®</sup>, front USB 3.2 Gen 1 Type-C<sup>®</sup>, BIOS FlashBack™, DisplayPort/HDMI, USB4<sup>®</sup> (Thunderbolt™ 4) header, Addressable Gen 2 headers, Aura RGB header, Aura Sync, Q-LED Core, ASUS OptiMem II, Fan Xpert 4, Power Saving, Armoury Crate, ASUS TUF PROTECTION and SafeSlot Core+, which will bring users maximizing performance, stability and compatibility for the very best DIY PC experiences.
Technical Specifications20 specs
General
Model
TUF GAMING B650-PLUS
Cpu
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B650
Memory
- 4 x DIMM, Max. 256GB, DDR5
- 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports AMD EXTended Profiles for Overclocking (EXPO™)
- OptiMem II
- ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
- 1 x DisplayPort
- 1 x HDMI® port
- * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
- ** Supports 4K@60Hz as specified in HDMI 2.1.
- *** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 4.0/3.0 x16 slot(s)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD B650 Chipset
- 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
- 2 x PCIe 4.0/3.0 x1 slots
- * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/ 1037507/).
- ** Specifications vary by CPU types.
- - To ensure compatibility of the device installed, please refer to
- https://www.asus.com/support/ for the list of supported peripherals.
Storage
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
- AMD B650 Chipset
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
- ** Specifications vary by CPU types.
- *** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.
Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
Usb
- Rear USB (Total 8 ports)
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 2.0 port(s) (4 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Audio Shielding
- - Power pre-regulator reduces power input noise to ensure consistent performance
- - Premium audio capacitors
- - Dedicated audio PCB layers
- - Audio cover
- - Unique de-pop circuit
- * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
- ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 2.0 port(s) (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
Internal I O
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 4 x 4-pin Chassis Fan header(s)
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )
- 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 header(s)
- 1 x Aura RGB header(s)
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt™ (USB4®) header
Special Features
- ASUS TUF PROTECTION
- - DIGI+ VRM (- Digital power design with DrMOS)
- - Enhanced DRAM Overcurrent Protection
- - ESD Guards
- - TUF LANGuard
- - Overvoltage Protection
- - SafeSlot Core+
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - Q-DIMM
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - BIOS FlashBack™ button
- - BIOS FlashBack™ LED
- - ProCool
- - Pre-mounted I/O shield
- - SafeDIMM
- Aura Sync
- - Aura RGB header(s)
- - Addressable Gen 2 header(s)
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - Aura Creator
- - Aura Sync
- - Fan Xpert 4
- - Power Saving
- - Two-Way AI Noise Cancellation
- AI Suite 3
- - TurboV EVO
- - DIGI+ VRM
- - PC Cleaner
- TUF GAMING CPU-Z
- DTS Audio Processing
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
Bios
256 Mb Flash ROM, UEFI AMI BIOS
Operating System
- Windows® 11
- Windows® 10 64-bit
Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Physical Dimensions
Length Mm
304.8
Width Mm
243.8
Height Mm
774.7
