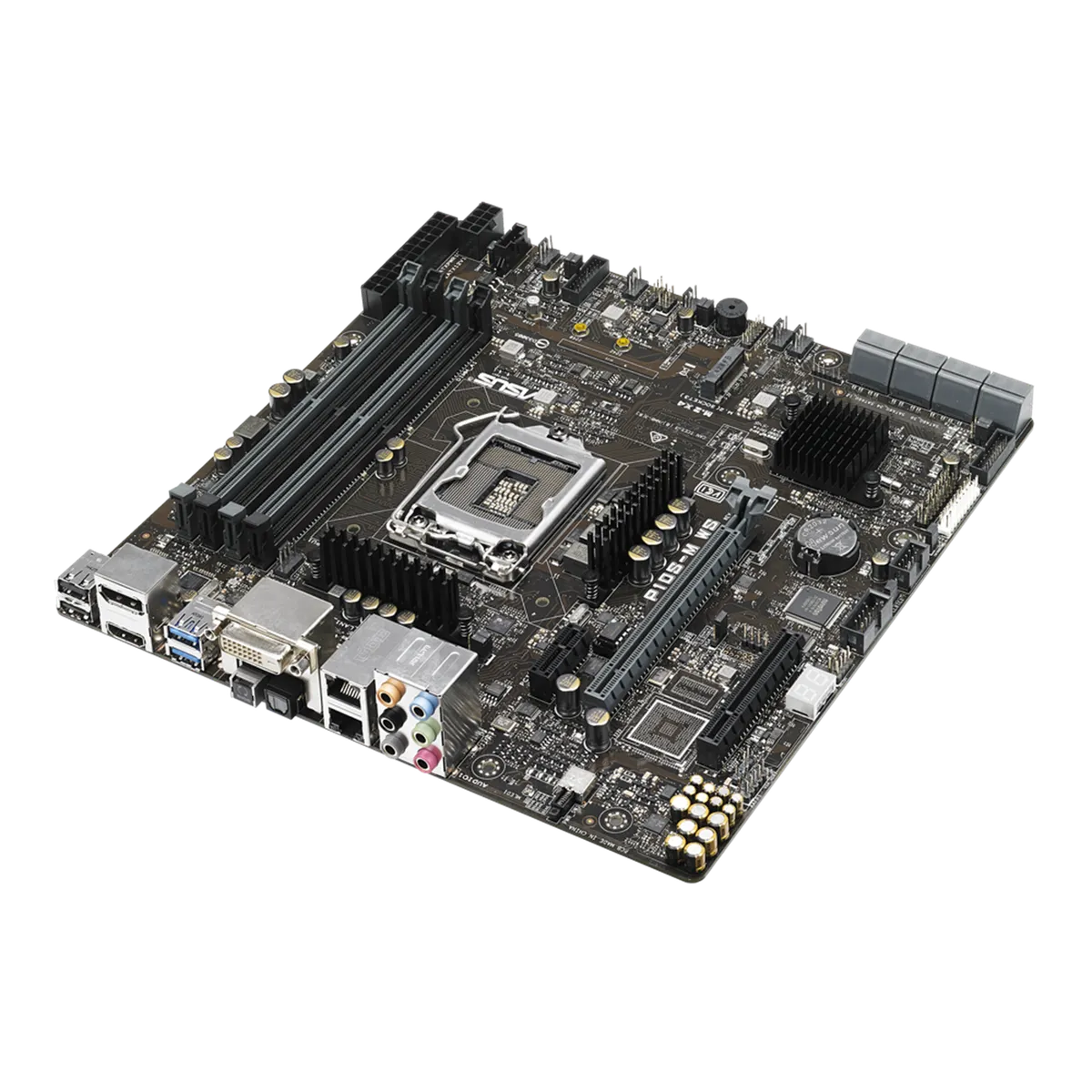

ASUS P10S-M WS

Name: ASUS P10S-M WS
Brand: Asus
SKU: 8327

Check Price

Quick Specs

ChipsetBuild in Intel® C236

MemoryDDR4

Form FactormATX

M.2 Slots1

Model: 8327

About this motherboards

Discover P10S-M WS, a rack-optimized workstation ideal for cloud gaming, video streaming, and more. Experience transformative tech interactions with top-tier specs.

Technical Specifications22 specs

General

Model

P10S-M WS

Cpu

Build in Intel® Socket 1151for 7
th
/6
th
Generation Core™ i7/Core™ i5/Core™ i3/for Xeon® E3-1200 v6/v5 and 7
th
/6
th
generation Core
TM
, Pentium® and Celeron® Processors,Supports Intel® Turbo Boost Technology,Supports Intel® 14nm CPU,* Refer to
www.asus.com
for CPU support list

Chipset

Build in Intel® C236

Memory

4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz ECC, Non-ECC, Un-buffered Memory,* The maximum memory frequency supported varies by processor.,Dual Channel Memory Architecture,* Refer to
www.asus.com

Graphic

- Supports HDMI with max. resolution 4096 x 2160 @ 60Hz / 4096 x 2160 @ 24Hz,Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™,- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz,Integrated Graphics Processor,Maximum shared memory of 512 MB (for iGPU exclusively),Multi-VGA output support : HDMI/DVI-D/DisplayPort ports,Supports up to 3 displays simultaneously,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz

Expansion Slots

1 x PCIe 3.0/2.0 x1 (x1 mode)
1
,1 x PCIe 3.0/2.0 x8 (x4 mode)
1
,1 x PCIe 3.0/2.0 x16 (x16 mode)

Storage

Intel® C236 Chipset :
,1 x M.2 Socket 3
2
, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode),Intel® Rapid Storage Technology Enterprise supports,Support Raid 0, 1, 5, 10,8 x SATA 6Gb/s port(s)

Lan

Intel® I210, 2 x Gigabit LAN Controller(s),Support Teaming Technology

Audio

- High quality112dBSNR stereo playback output(Line-out at rear)and104dBSNR recording input(Line-in),Realtek® ALC11508-Channel High Definition Audio CODEC,- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound,- DTS Studio Sound,- BD Audio Layer Content Protection,- Audio amplifier: Provides the highest-quality sound for headphone and speakers,- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking,- DTS Connect
Audio Feature :
,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,Separate layer for left and right track, ensuring both sound deliver equal quality

Usb Ports

6 x USB 3.0 port(s) (2 at back panel, ),4 x USB 2.0 port(s) (2 at back panel, )
Intel® C236 Chipset :

Special Features

(3-phase for CPU, 2-phase for iGPU)
ASUS Digital Power Design :
,- ASUS EZ Flash
ASUS Quiet Thermal Solution
:,- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY :
,- ASUS CrashFree BIOS 3

Operating System Support

Windows® Server 2008 R2,Windows® Server 2012 R2,Windows® 8.1,Windows® 7,Windows® 10

Back I O Ports

2 x USB 3.1 Gen 1,1 x 8-channel Audio I/O,1 x USB BIOS Flashback
®
Button(s),1 x DVI-D,1 x DisplayPort,1 x HDMI,2 x LAN (RJ45) port(s),2 x USB 2.0,1 x Optical S/PDIF out

Internal I O

1 x CPU fan with PWM control,1 x Front panel connector(s) (1 x 19-pin),4 x Front fan,1 x AUX panel header(s),1 x Rear fan,1 x M.2 Socket 3,1 x 8-pin EATX 12V Power connector,2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s),1 x Chassis intrusion header,1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s),1 x AAFP connector,1 x TPM header,8 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x COM port header

Accessories

1 x ASWM Enterprise SDVD,1 x OSG manual,1 x Metal Plate for LGA1151,8 x SATA 6Gb/s cable(s),1 x COM port cable(s),1 x SCD,User´s manual,I/O Shield

Bios

16 MB Flash ROM, EFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0a, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE

Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ),mATX Form Factor
