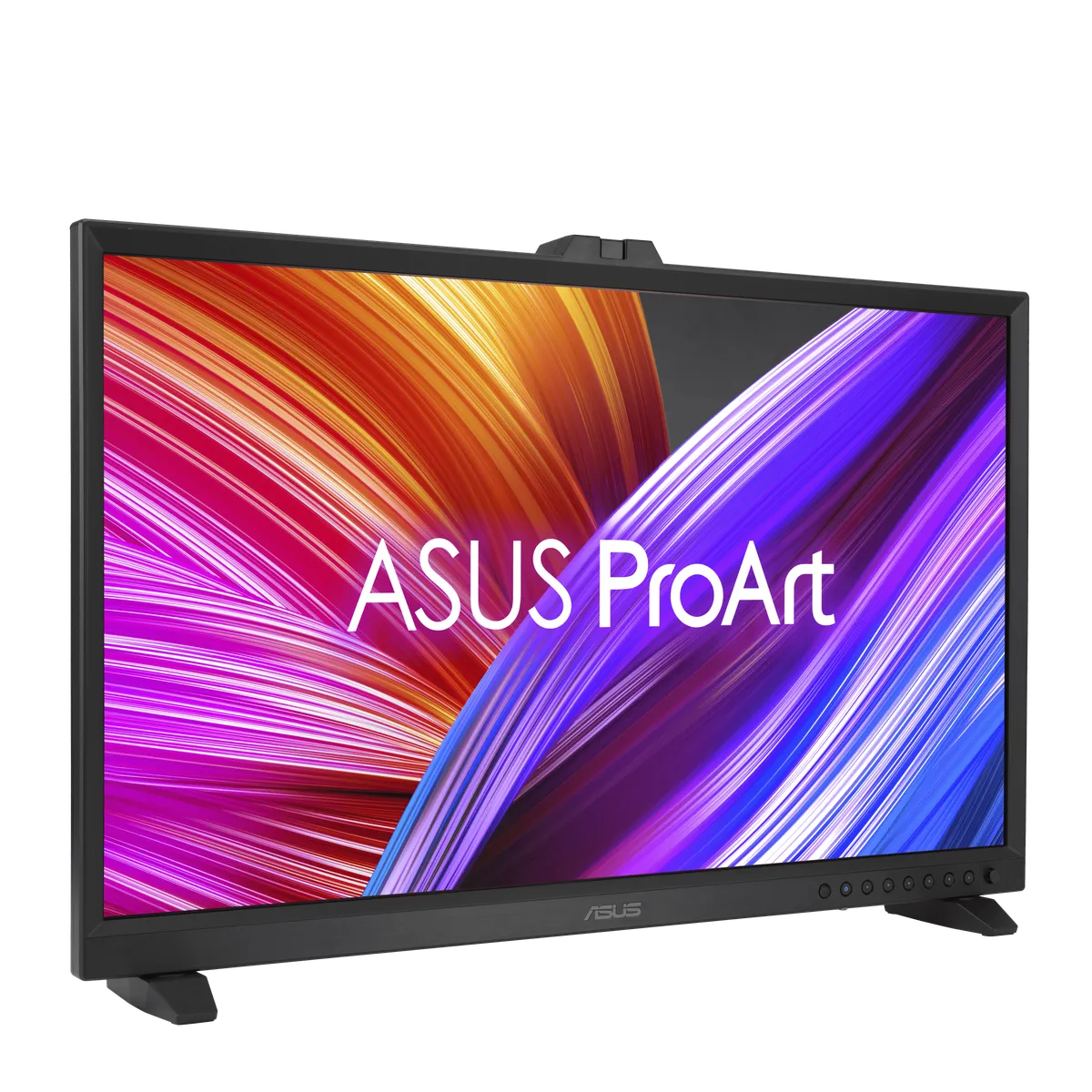

ASUS ProArt Display OLED PA32DC
Quick Specs
Size32"
Resolution3840x2160
Refresh60 Hz
PanelOLED
Response0.1 ms
Model: 19216
About this monitors
ProArt Display OLED PA32DC is the world’s first OLED reference monitor with automatic color calibration. This 31.5-inch 4K HDR monitor is designed for discerning content creators, filmmakers, video editors, photographers and colorists.
Technical Specifications17 specs
General
Model
ProArt Display OLED PA32DC
Display
- Panel Size (inch) : 31.5
- Pixels Per Inch (PPI) : 140
- Aspect Ratio : 16:9
- Display Viewing Area (H x V) : 697.92 x 392.58 mm
- Display Surface : Anti-Glare
- Panel Type : OLED
- Viewing Angle (CR≧10, H/V) : 178°/ 178°
- Pixel Pitch : 0.182mm
- Resolution : 3840x2160
- Color Space (Adobe RGB) : 99%
- Color Space (DCI-P3) : 99%
- Brightness (HDR, Peak) : 500 cd/㎡
- Brightness (Typ.) : 250cd/㎡
- Contrast Ratio (HDR, Max) : 100,000,000:1
- Contrast Ratio (Typ.) : 1,000,000:1
- Display Colors : 1073.7M (10 bit)
- Response Time : 0.1ms(GTG)
- Refresh Rate (Max) : 60Hz
- HDR (High Dynamic Range) Support : Dolby Vision
- HLG
- HDR10
- Flicker-free : Yes
Features
- ProArt Preset : User mode2
- User mode1
- Dolby Vision
- HDR_HLG DCI
- HDR_HLG
- HDR_PQ Rec.2020
- HDR_PQ DCI
- Rec.709
- DICOM
- Rec.2020
- DCI-P3
- Adobe RGB
- sRGB
- Standard
- Color Temp. Selection : Yes (5 modes)
- Color Adjustment : 6-axis adjustment (R,G,B,C,M,Y)
- Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)
- Color Accuracy : △E< 1
- ASUS ProArt Hardware Calibration : Yes
- ProArt Palette : Yes
- QuickFit Plus : Yes
- PIP / PBP Technology : Yes
- HDCP : Yes, 2.2
- HDR Preview : Yes
- Low Blue Light : Yes
- Multiple HDR Mode : Yes
Audio
Speaker : Yes(3Wx2)

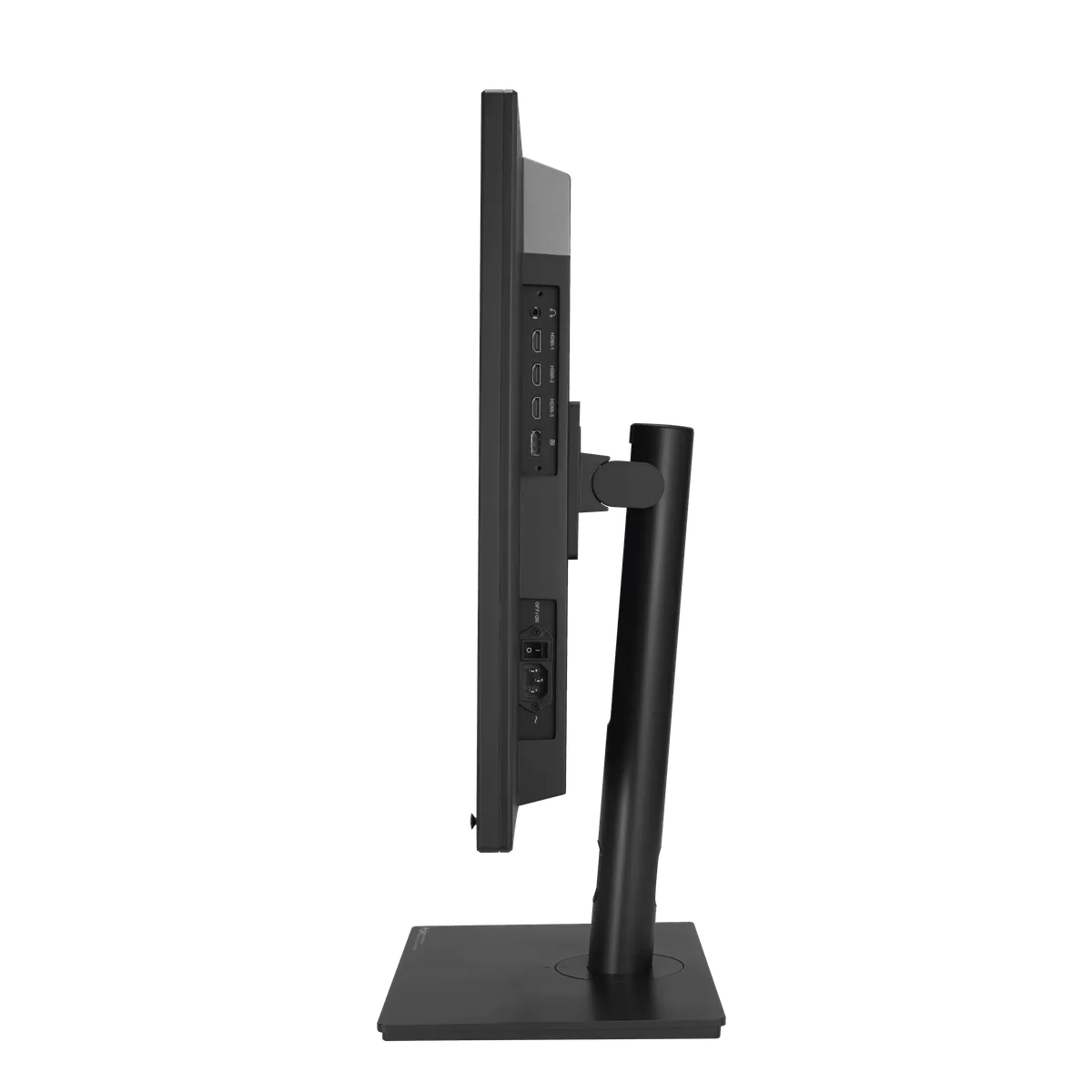

I O Ports
- USB-C x 1 (DP Alt Mode)
- DisplayPort 1.4 x 1
- HDMI(v2.0) x 3
- USB Hub : 4x USB 3.2 Gen 2 Type-A
- Earphone Jack : Yes
- PC Audio Input : Yes
- USB-C Power Delivery : 65W
Signal Frequency
Digital Signal Frequency : 31~135 KHz (H) / 24~75 Hz (V)
Power Consumption
- Power Consumption : <38W
- Power Saving Mode : <0.5W
- Power Off Mode : 0W (hard switch)
- Voltage : 100-240V, 50/60Hz
Mechanical Design
- Tilt : Yes (+23° ~ -5°)
- Swivel : Yes (+30° ~ -30°)

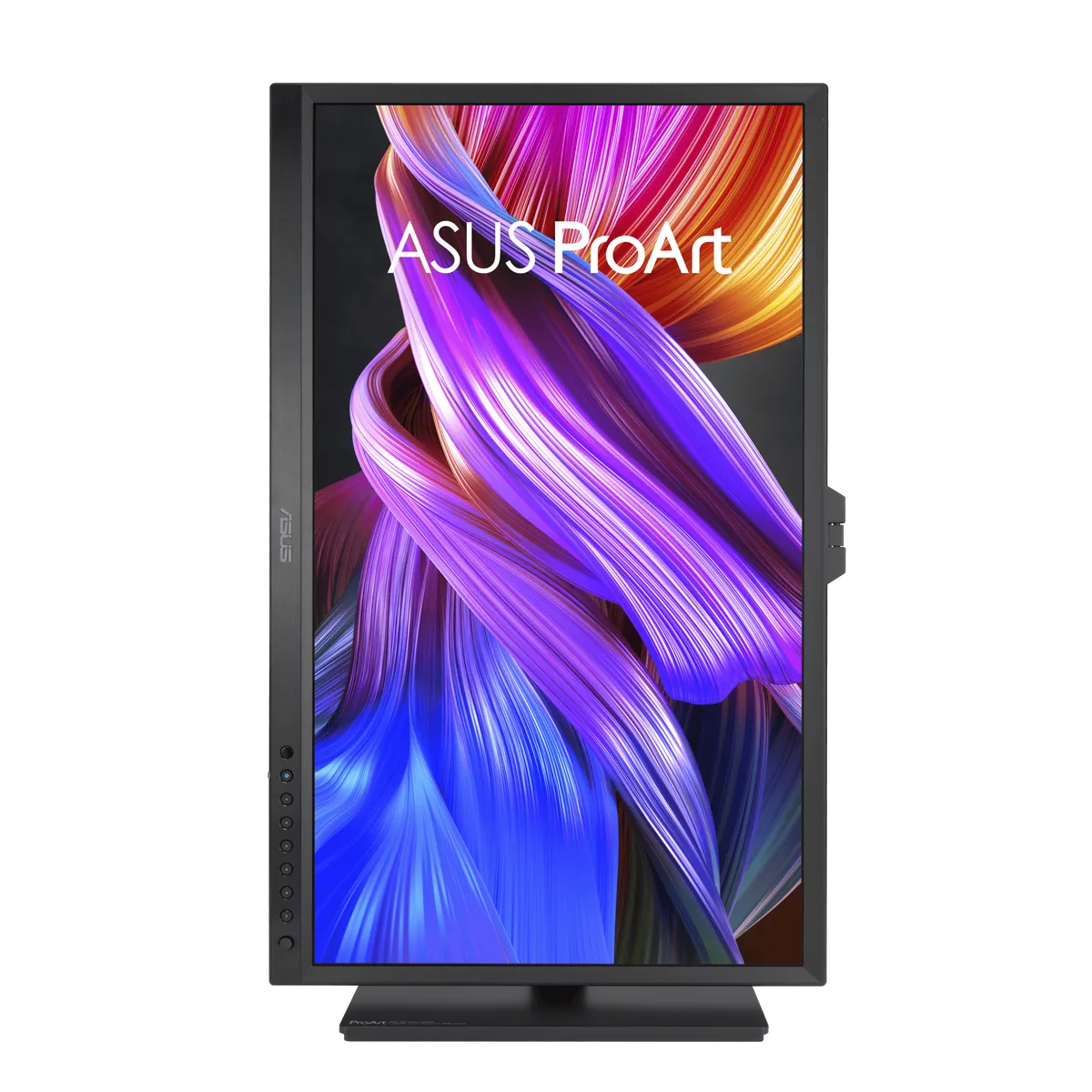

- Pivot : Yes (+90° ~ -90°)
- Height Adjustment : 0~130mm
- Embedded Colorimeter : Yes (Support Self-Calibration)
- Ambient Light Sensor : Yes
- VESA Wall Mounting : 100x100mm
- Kensington Lock : Yes
Dimensions Esti
- Phys. Dimension (W x H x D) : 73.54 x 62.69 x 24.50 cm (28.95" x 24.68" x 9.65")
- Phys. Dimension without Stand (W x H x D) : 73.54 x 46.69 x 5.44 cm (28.95" x 18.38" x 2.14")
- Box Dimension (W x H x D) : 87.80 x 61.60 x 29.80 cm (34.57" x 24.25" x 11.73")
Weight Esti
- Net Weight without Stand : 7.6 kg (16.76 lbs)
- Gross Weight : 20.35 kg (44.86 lbs)
Accessories Vary By Regions
- Warranty Card
- USB-C to A cable
- USB-C cable
- Quick start guide
- Power cord

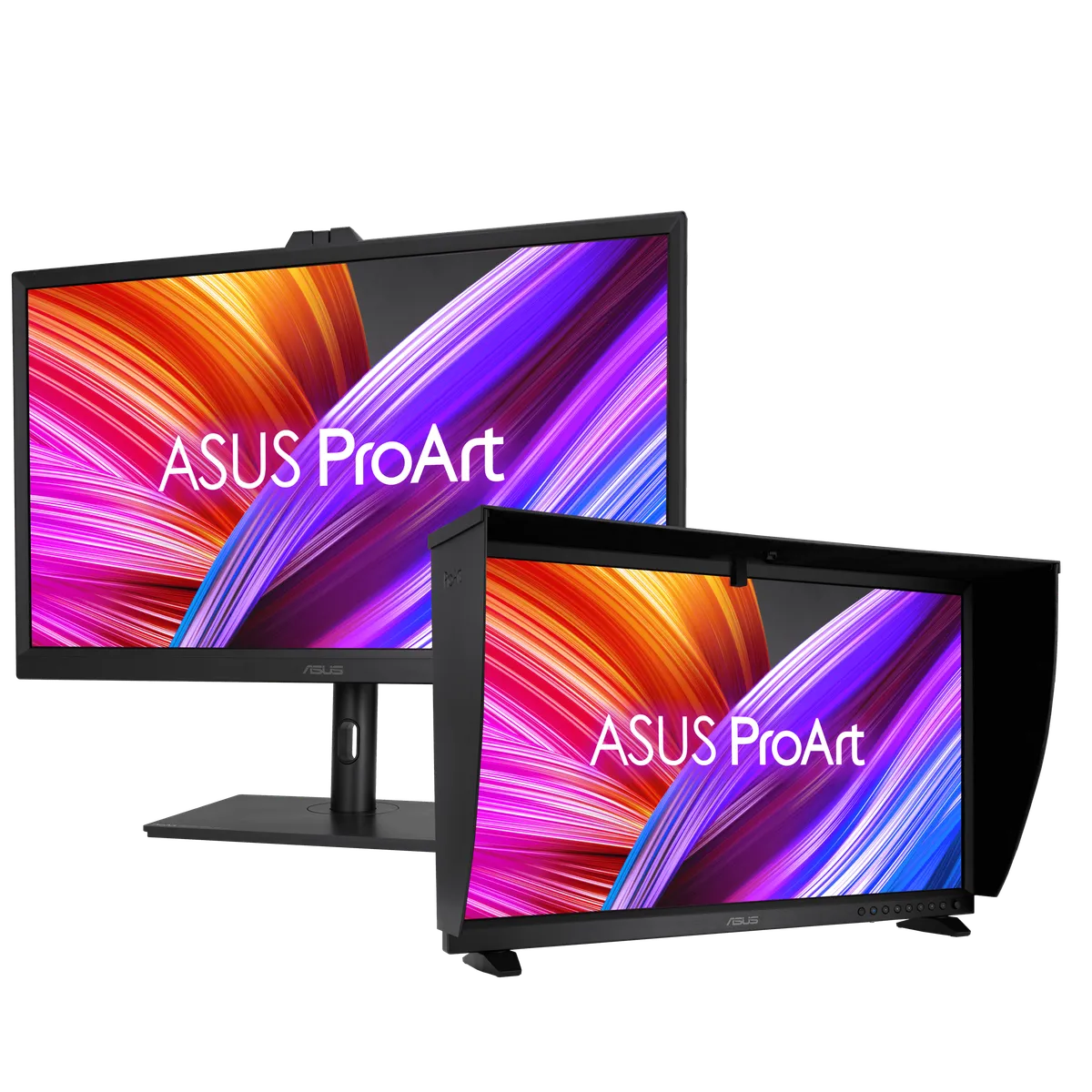

- Monitor hood
- L-shaped Screwdriver
- HDMI cable
- Ergonomic Stand
- DisplayPort cable
- Color pre-calibration report
- Cable Clip
Certificate
- Mac Compliance
- Calman Ready
- VESA DisplayHDR 400 True Black
- TÜV Low Blue Light
- TÜV Flicker-free
- Energy Star
Warranty
2 years (including panel burn-in)
Physical Dimensions
Length Mm
735.4
Width Mm
626.9
Height Mm
245
Weight G
7600
