ASRock Intel SPC741D8-2L2T/BCM CEB Motherboard
Quick Specs
SocketLGA 4677
MemoryRDIMM (Registered)
Form FactorCEB
M.2 Slots2
Model: SPC741D8-2L2T/BCM
Technical Specifications31 specs
Additional Information
Model Number
SPC741D8-2L2T/BCM
Gtin
4711430520193
Additional Specifications
Water Cooled
No
Cooling
-
Qpi Speed
N/A
Dimensions
204.8 x 266.7 mm
Note
-
Core Specifications
Edition
SPC741D8-2L2T/BCM
Form Factor
CEB
Socket
4677
Chipset
-
External Connectivity
Network Interface Type
Dual Wired 10G LAN
Dual Wired Gigabit LAN (10/100/1000)
Network Chip Modules
-

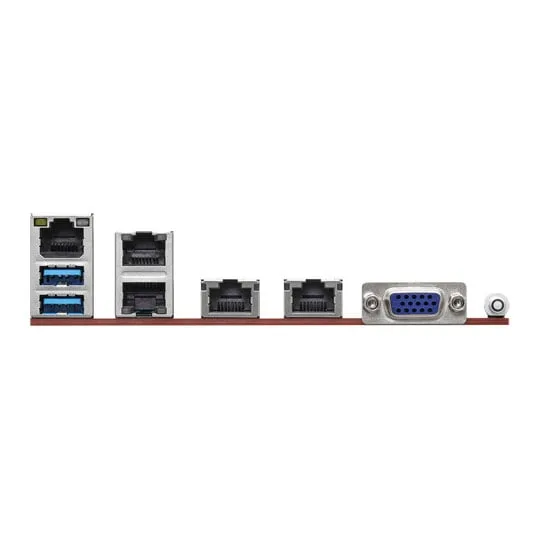

Rear I O Connectors
4 x RJ-45
1 x RJ45 Dedicated IPMI port
1 x UID Button/UID LED
2 x USB 3.2 Gen1 Type-A
1 x VGA
Graphics Support
Primary Gpu Interface
PCIe 5.0 (x16)
Nvidia Sli Support
N/A
Amd Crossfire Support
N/A
Integrated Graphics
Integrated ASPEED AST2600
On Board Graphics Connectors
D-Sub (VGA)
Internal Connectivity
Expansion Slots
1 x M.2 PCIe
1 x M.2, 22-80/110, PCIe Gen3
1 x PCIe 3.0 x4
4 x PCIe 5.0 x16
2 x PCIe 5.0 x8
Sata Support
SATA3
Raid Support Via
-
Storage Mode Support
RAID 0
RAID 1
RAID 10
RAID 5
Internal I O
1 x 4-pin (Power)
3 x 8-pin (Power)
1 x Auxiliary Panel Header
1 x Clear CMOS jumper
1 x Front LAN LED
1 x IPMB Connector/Header
1 x Serial (COM) Header
2 x SGPIO header
1 x speaker header
6 x System Fan header
1 x System panel connector
1 x Thermal Sensor Header
1 x TPM (SPI_TPM) header
1 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
1 x VROC Connector
RAM Memory Support
Memory Type
DDR5
Memory Channel
Dual (2)
Memory Type Ecc
-
Memory Type R U
RDIMM (Registered)
Memory Speed Mhz
DDR5 - 5600
Max Memory Capacity
96GB
General
Audio
-
