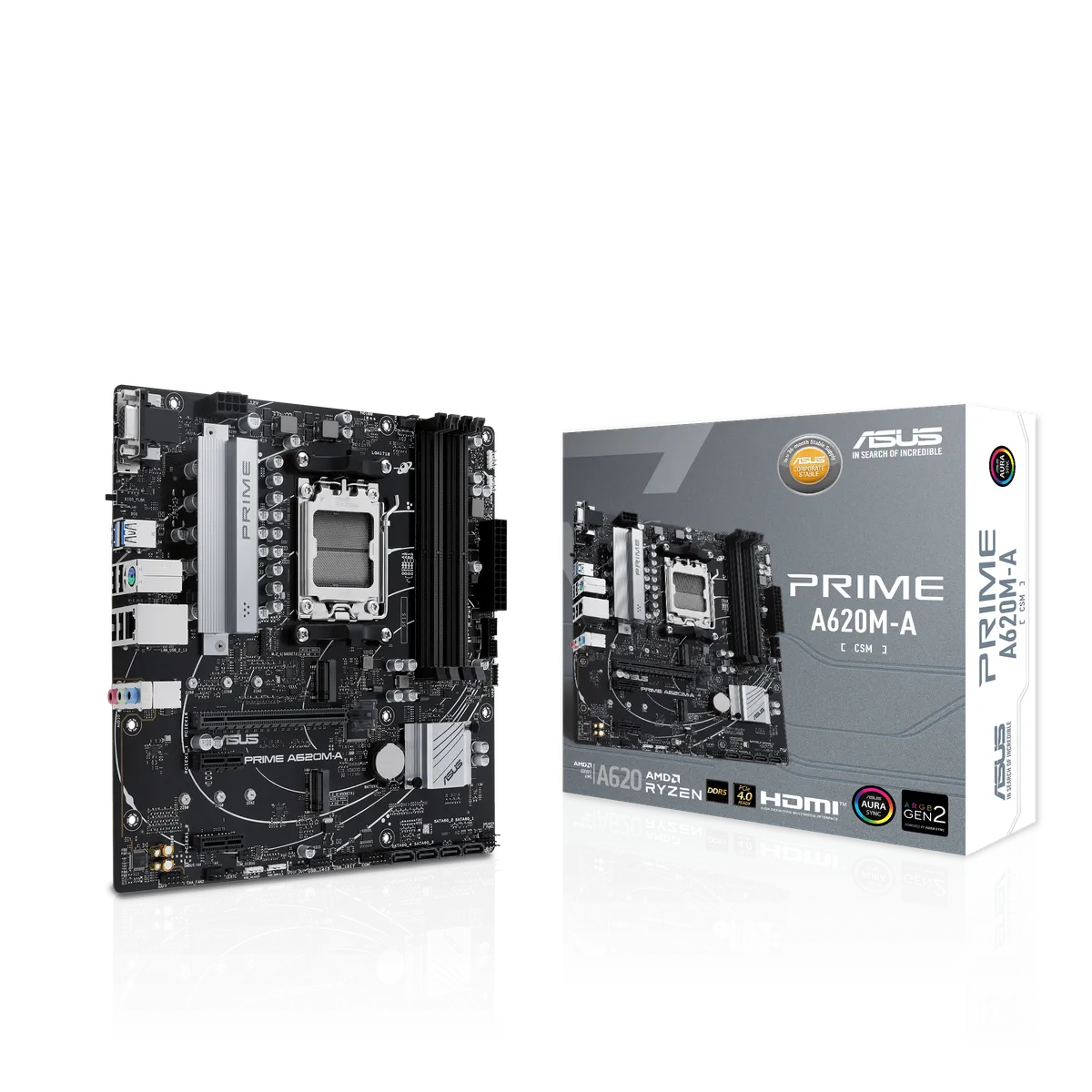

ASUS PRIME A620M-A-CSM
MotherboardsAsus

ASUS PRIME A620M-A-CSM

Price TBC

Compatibility Data

SocketAM5
ChipsetAMD A620 Chipset
Memory TypeDDR5
M2 Slots5
Form FactormATX
Model: 23596

Technical Specifications22 specs

General

Model
PRIME A620M-A-CSM
Cpu
  • AMD Socket AM5 for AMD Ryzen
  • ™
  • 9000 & 8000 & 7000 Series Desktop Processors
  • * Refer to
  • www.asus.com
  • for CPU support list.
Chipset
AMD A620 Chipset
Memory
  • 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO
  • ™
  • )
  • OptiMem II
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI
  • ™
  • port
  • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
  • AMD Ryzen
  • ™
  • 9000 & 7000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x16 mode)
  • AMD Ryzen
  • ™
  • 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • AMD A620 Chipset
  • 2 x PCIe 3.0 x1 slots
  • * Please check the PCIe bifurcation table on the support site (
  • https://www.asus.com/support/FAQ/ 1037507/
  • ).
  • ** Specifications vary by CPU types.
  • - To ensure compatibility of the device installed, please refer to
  • https://www.asus.com/support/
  • for the list of supported peripherals.
Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • AMD Ryzen
  • ™
  • 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • AMD Ryzen
  • ™
  • 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
  • AMD A620 Chipset
  • 4 x SATA 6Gb/s ports
  • * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
  • ** Specifications vary by CPU types.
Ethernet
1 x Realtek 1Gb Ethernet
Usb
  • Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C
  • ®
  • )
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I O Ports
  • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI
  • ™
  • port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack
  • ™
  • button
  • 1 x PS/2 Keyboard/Mouse combo port
Internal I O
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C
  • ®
  • )
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-LED core
  • - Q-Slot
  • ASUS Thermal Solution
  • - VRM heatsink design
  • ASUS EZ DIY
  • - BIOS FlashBack
  • ™
  • button
  • - BIOS FlashBack
  • ™
  • LED
  • Aura Sync
  • - Aura RGB header
  • - Addressable Gen 2 headers
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 2+
  • - Power Saving
  • - Two-Way AI Noise Cancellation
  • AI Suite 3
  • - TurboV EVO
  • - DIGI+ VRM
  • - PC Cleaner
  • ASUS CPU-Z
  • IT Management software supported
  • - ASUS Control Center Express(ACCE)
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
Bios
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x I/O Shield
  • 1 x Screw package for M.2 SSD
  • Documentation
  • 1 x ACC Express Activation Key Card
  • 1 x User guide
Operating System
  • Windows
  • ®
  • 11, Windows
  • ®
  • 10 64-bit
Form Factor
  • micro-ATX Form Factor
  • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Physical Dimensions

Length Mm
243.8
Width Mm
243.8
Height Mm
619.8
