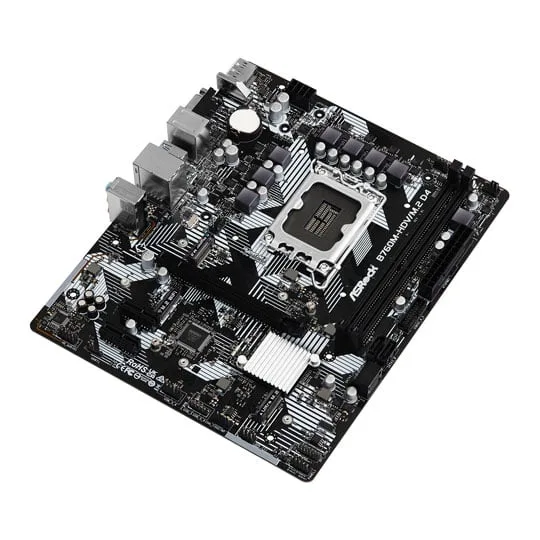

ASRock Intel B760M-HDV/M.2 D4 Micro-ATX Motherboard
MPN: 90-MXBL40-A0UAYZ
Key specifications
SocketLGA 1700
Form factormATX
ChipsetIntel B760
Memory typeDDR4
M.2 slots3
Max Memory64 GB
Full Specifications31 fields
Additional Information
Model Number
90-MXBL40-A0UAYZ
Gtin
4710483942020
Additional Specifications
Water Cooled
No
Cooling
Passive Heatsinks
Qpi Speed
N/A
Dimensions
244 x 201 mm
Note
-
Core Specifications
Edition
B760M-HDV/M.2 D4
Form Factor
MicroATX
Socket
1700
Chipset
Intel B760
External Connectivity
Network Interface Type
Wired Gigabit LAN (10/100/1000)
Network Chip Modules
1 x Realtek RTL8111H (Gigabit LAN)
Rear I O Connectors
1 x D-Sub (VGA)
1 x DisplayPort 1.4
1 x HDMI 2.1
1 x Line In
1 x Line Out
1 x Mic-In
1 x PS/2 Keyboard
1 x RJ-45
2 x USB 2.0
3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
Graphics Support
Primary Gpu Interface
PCIe 4.0 (x16)
Nvidia Sli Support
N/A
Amd Crossfire Support
N/A
Integrated Graphics
-
On Board Graphics Connectors
D-Sub (VGA)
DisplayPort 1.4 (DSC)
HDMI 2.1
Internal Connectivity
Expansion Slots
1 x M.2 Key E (Supports Wi-Fi modules)
1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
1 x M.2, 22-60/80, PCIe Gen4x4
2 x PCIe 3.0 x1
1 x PCIe 4.0 x16
4 x SATA 6GB/s
Sata Support
SATA3
Raid Support Via
-
Storage Mode Support
-
Internal I O
1 x 24-pin (Power)
1 x 4-pin CPU Fan Connector
1 x 8-pin (Power)
1 x Chassis Intrusion/Speaker Header
2 x Chassis Water Pump/Fan Connector
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x TPM (SPI_TPM) header
2 x USB 2.0 Header
1 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type-C Front Panel Header
RAM Memory Support
Memory Type
DDR4
Memory Channel
Dual (2)
Memory Type Ecc
-
Memory Type R U
-
Memory Speed Mhz
DDR4 - 3200
DDR4 - 4400+(OC)
DDR4 - 5333(0C)
Max Memory Capacity
64GB (2x32GB)
General
Audio
7.1 Channel HD Audio
