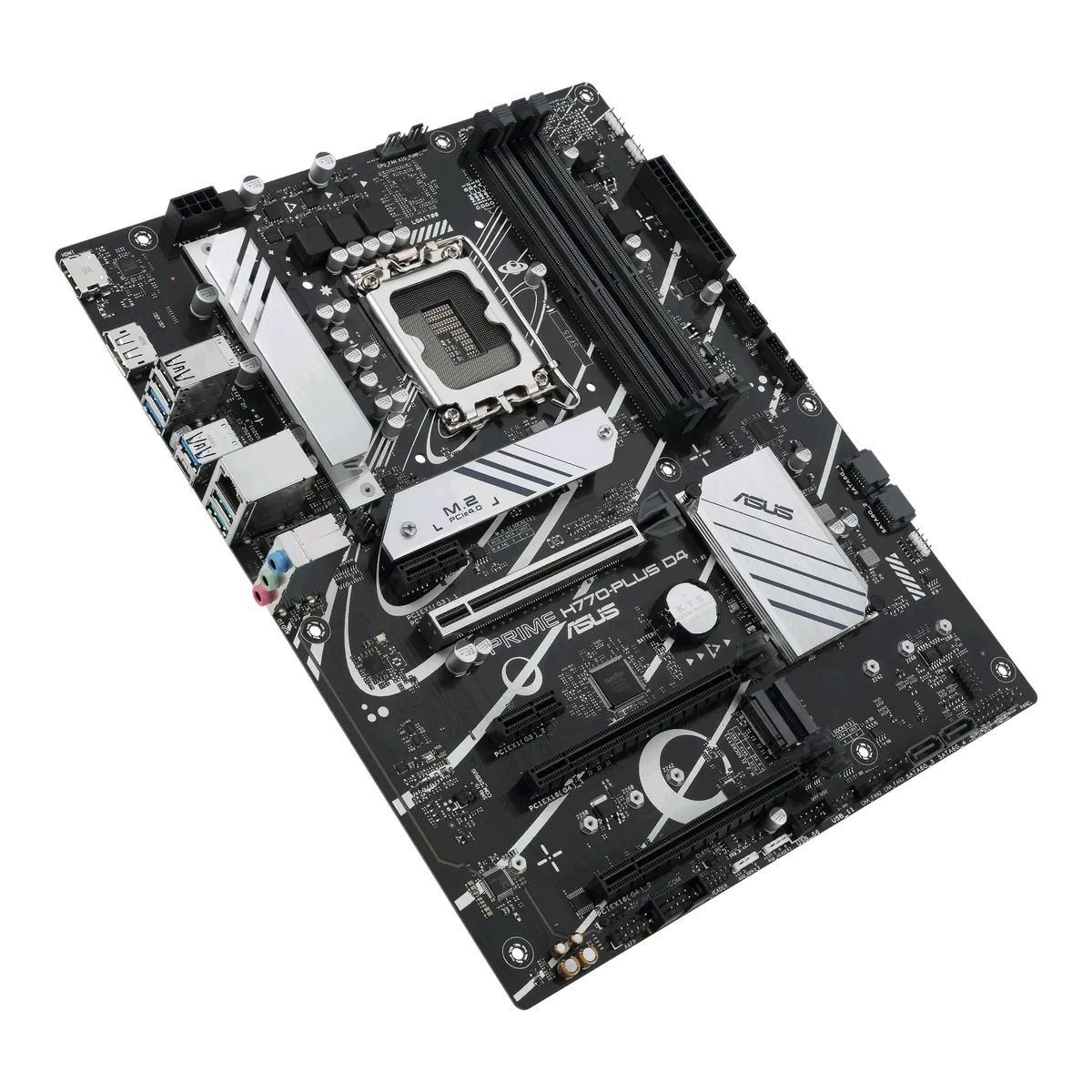

ASUS PRIME H770-PLUS D4
MotherboardsAsus

ASUS PRIME H770-PLUS D4

Price TBC

Compatibility Data

SocketLGA 1700
ChipsetIntel | ® | H770 Chipset
Memory TypeDDR4
M2 Slots4
WifiYes
Form FactorATX
Model: 22238

Technical Specifications23 specs

General

Model
PRIME H770-PLUS D4
Cpu
  • Intel
  • ®
  • Socket LGA1700 for Intel
  • ®
  • Core™ 14
  • th
  • & 13
  • th
  • Gen Processors, Intel
  • ®
  • Core™ 12
  • th
  • Gen, Pentium
  • ®
  • Gold and Celeron
  • ®
  • Processors
  • Supports Intel
  • ®
  • Turbo Boost Technology 2.0 and Intel
  • ®
  • Turbo Boost Max Technology 3.0
  • * Refer to
  • www.asus.com
  • for CPU support list.
  • ** Intel
  • ®
  • Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
  • Intel
  • ®
  • H770 Chipset
Memory
  • 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/ 2800/2666/2400/2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel
  • ®
  • Extreme Memory Profile (XMP)
  • OptiMem
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
  • https://www.asus.com/support/
  • .
Graphics
  • 1 x DisplayPort
  • 1 x HDMI
  • ®
  • port
  • * Graphics specifications may vary between CPU types. Please refer to
  • www.intel.com
  • for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI
  • ®
  • 2.1.
Expansion Slots
  • Intel
  • ®
  • Core™ Processors (14
  • th
  • & 13
  • th
  • & 12
  • th
  • Gen)
  • 1 x PCIe 5.0 x16 slot
  • Intel
  • ®
  • H770 Chipset
  • 2 x PCIe 4.0 x16 slots (support x4 mode)
  • 2 x PCIe 3.0 x1 slots
  • * Please check the PCIe bifurcation table on the support site (
  • https://www.asus.com/support/FAQ/ 1037507/
  • ).
  • Note: To ensure compatibility of the device installed, please refer to
  • https://www.asus.com/support/
  • for the list of supported peripherals.
Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel
  • ®
  • Core™ Processors (14
  • th
  • & 13
  • th
  • & 12
  • th
  • Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel
  • ®
  • H770 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel
  • ®
  • Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/ 5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless Bluetooth
  • Vertical M.2 slot only (Key E, CNVi & PCIe)
  • * Wi-Fi module is sold separately.
Usb
  • Rear USB (Total 8 ports)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C
  • ®
  • )
  • 3 x USB 3.2 Gen 1 ports (3 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 7 ports)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

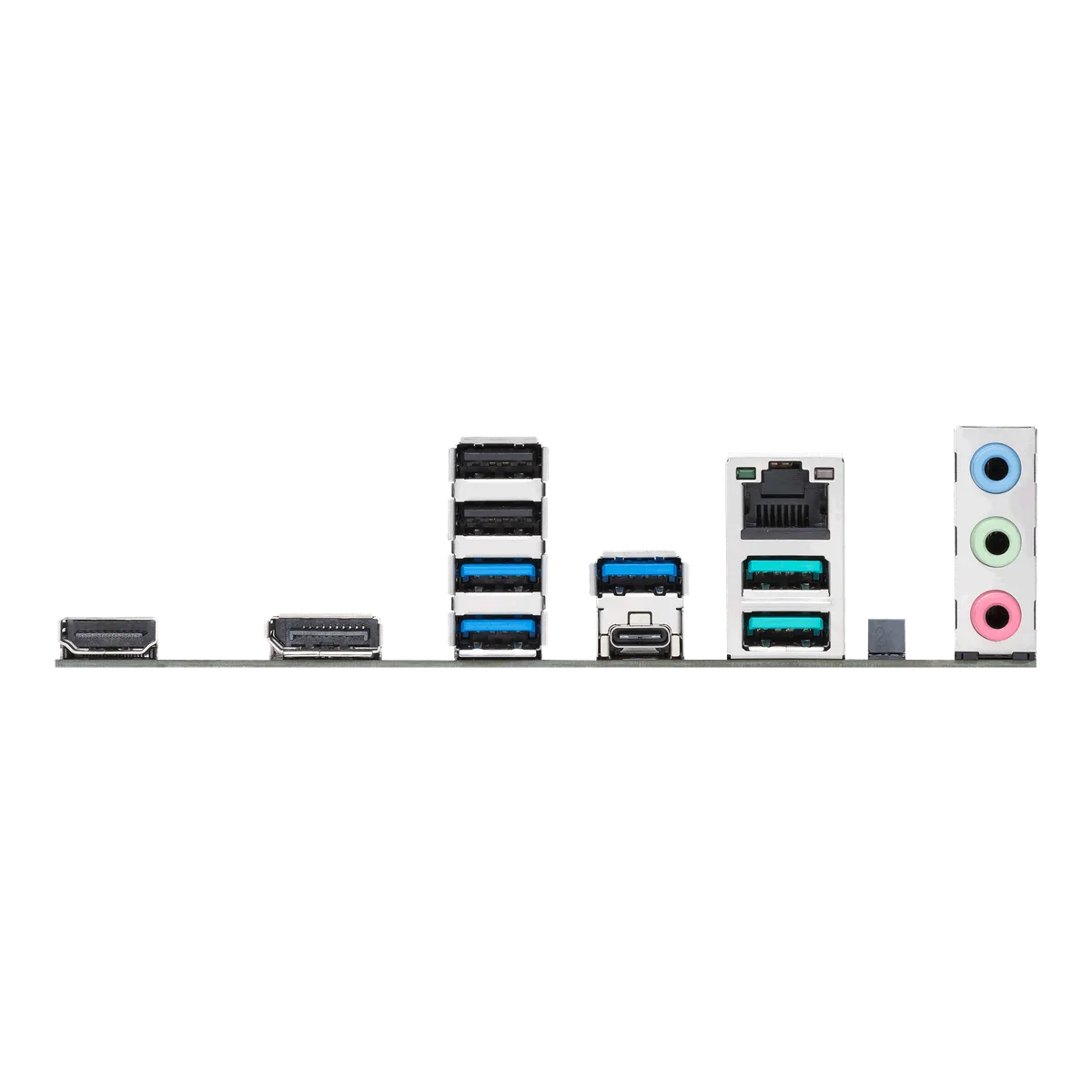

Back Panel I O Ports
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C
  • ®
  • )
  • 3 x USB 3.2 Gen 1 ports (3 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI
  • ®
  • port
  • 1 x Vertical M.2 slot (Key E)
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
Internal I O
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 2 x Aura RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ (USB4
  • ®
  • ) header
Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core+
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-LED Core
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - ProCool
  • Aura Sync
  • - Aura RGB headers
  • - Addressable Gen 2 headers
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • - Fan Xpert 2+
  • - Power Saving
  • AI Suite 3
  • - DIGI+ VRM
  • - PC Cleaner
  • ASUS CPU-Z
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
Bios
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 2 x Screw Packages for M.2 SSD
  • Documentation
  • 1 x User guide
Operating System
  • Windows
  • ®
  • 11, Windows
  • ®
  • 10 64-bit
Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Physical Dimensions

Length Mm
304.8
Width Mm
243.8
Height Mm
774.7
