Technical Specifications66 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
C-L700N-NN0H-G0W
Gtin
6977029650209
Back Connect
Back Connect
Yes
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
Yes
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Compliance
Compliance Documents
TRYX Case Compliance and Safety
Connectivity
Card Reader
No
Dimensions
Length Depth
540 mm
Width
262 mm
Height
572 mm
Weight
16.2 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
9
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
9
3 5 Inch Internal Drive Bay
2
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7

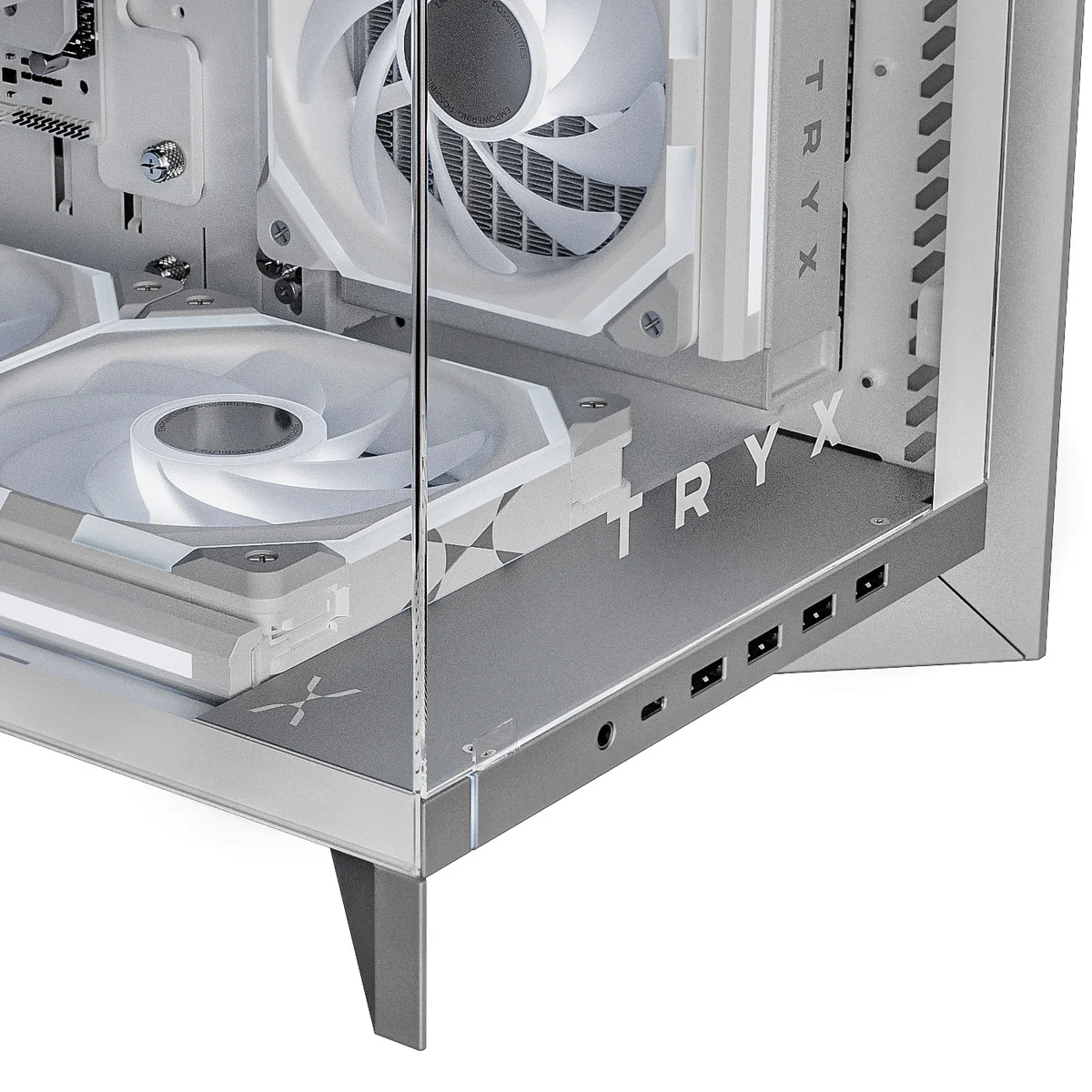

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
4
Usb 3 2 External Type C
1
Usb 3 0 External Type A
4
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
9
Case Fan Support Side
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (3x)
120 Mm Fans
9
140 Mm Fans
8
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
170 mm
Max Gpu Length
460 mm
Max Psu Length Depth
190 mm
Inner Volume
75.2 l
Lighting
Lighting Rgb
No
Materials
Materials
Aluminium, Steel, Tempered Glass
Motherboard Support
Max Motherboard Format
E-ATX
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
Rear Bottom or Top
Radiator Support
Max Radiator Compatibility
1x Triple (360 mm), 2x Triple (420 mm)
Radiator Aio Support Bottom
240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator Aio Support Side
240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
Radiator Aio Support Top
240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
