Graphics CardsSapphire

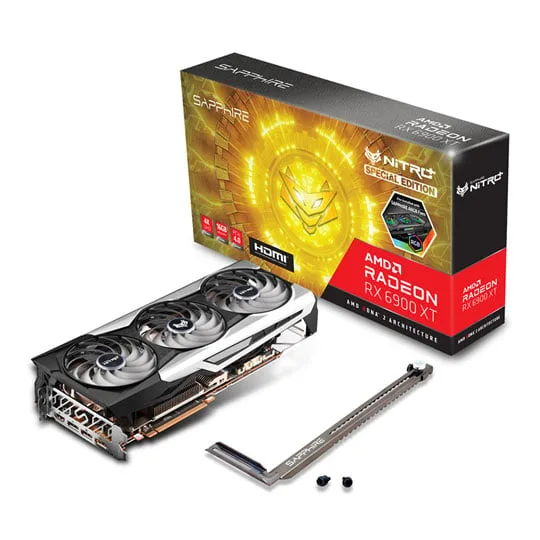

Sapphire AMD Radeon RX 6900 XT NITRO+ Special Edition 16GB Graphics Card
£684.12
Quick Specs
ChipsetRX 6900 XT
VRAM16 GB
MemoryGDDR6
Length310 mm
Min PSU850 W
Model: 11308-03-20G
Technical Specifications38 specs
Additional Information
Model Number
11308-03-20G
Gtin
4895106290198
Cooling
Included Backplate
Yes
Cores & Clocks
Streams
5120
Core Clock
2135 MHz
Boost Clock
2365 MHz
I/O & Connectivity
Interface
PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
3 x DisplayPort 1.4 (DSC)
1 x HDMI 2.1
Key Specifications
Chipset
Radeon RX 6900 XT
Edition
NITRO+ SE
Manufacturing Process
7 nm
Microarchitecture
RDNA 2
Physical
Width
2.75 Slot
Low Profile Support
N/A
Dimensions
310 x 134.3 x 55.3 mm
Package Type
Retail
Power & Thermals
Graphics Card Power Connectors
1 x 6-pin PCIe
2 x 8-pin PCIe
Tdp
363 W
Minimum Recommended Psu
850 W
Maximum Gpu Temperature
-
Video Memory (VRAM)
Vram Size
16GB
Memory Type
GDDR6
Memory Clock
16000 MHz
Memory Speed Effective With Ddr
-
Memory Bus
256 Bit
Memory Bandwidth
-
Memory Data Rate
-
Visuals
Amd Crossfire Support
-
Amd Freesync Support
Yes
Hdr Support
Yes
Microsoft Directx Support
12 API
Max Concurrent Displays
4 Displays
Maximum Digital Resolution
7680x4320 (8K UHD)
Maximum Analog Vga Resolution
-
General
Solution
Tri Fan (3)
Peak Half Precision Compute Performance Fp16
-
Peak Single Precision Compute Performance Fp32
-
Peak Double Precision Compute Performance Fp64
-
