CasesPhanteks

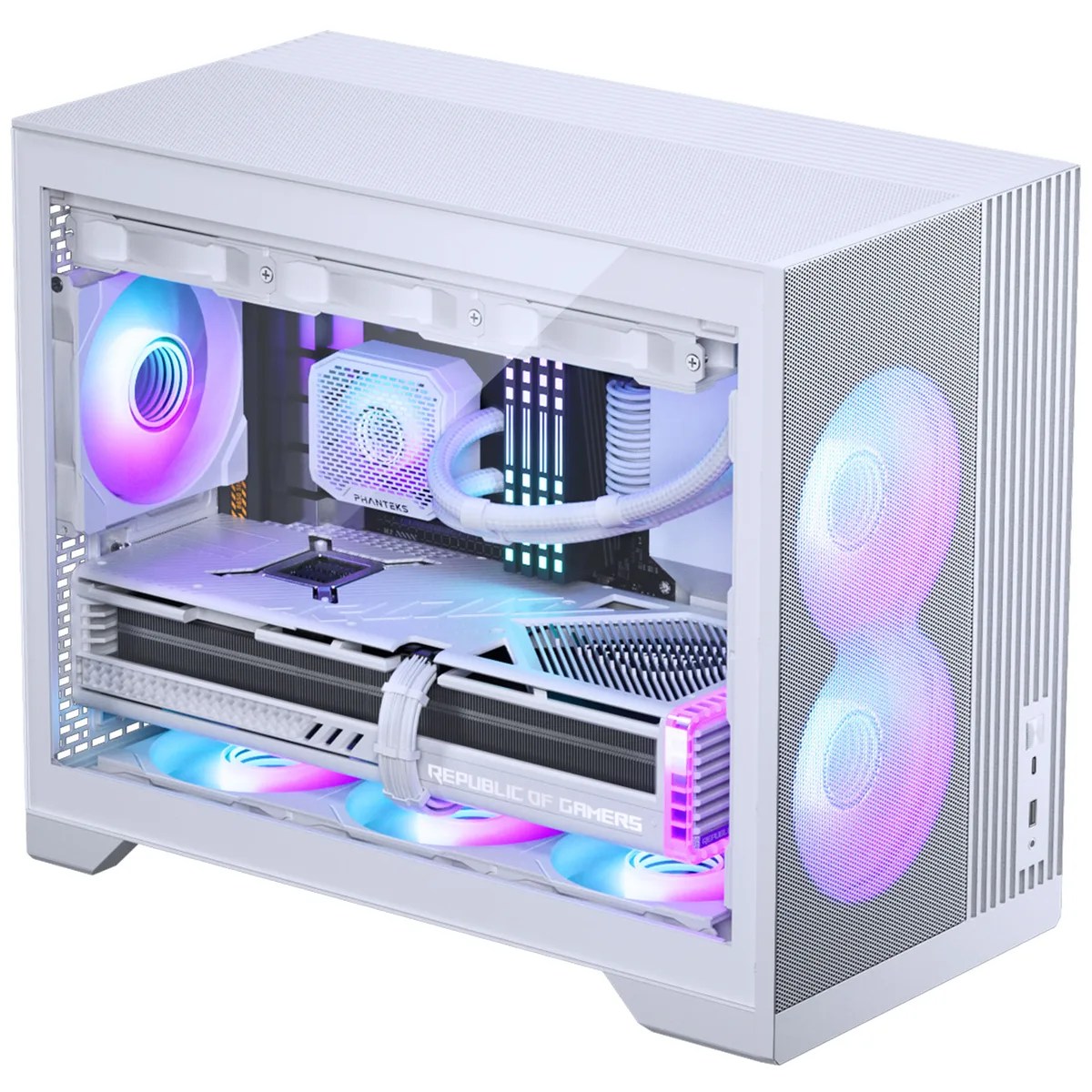

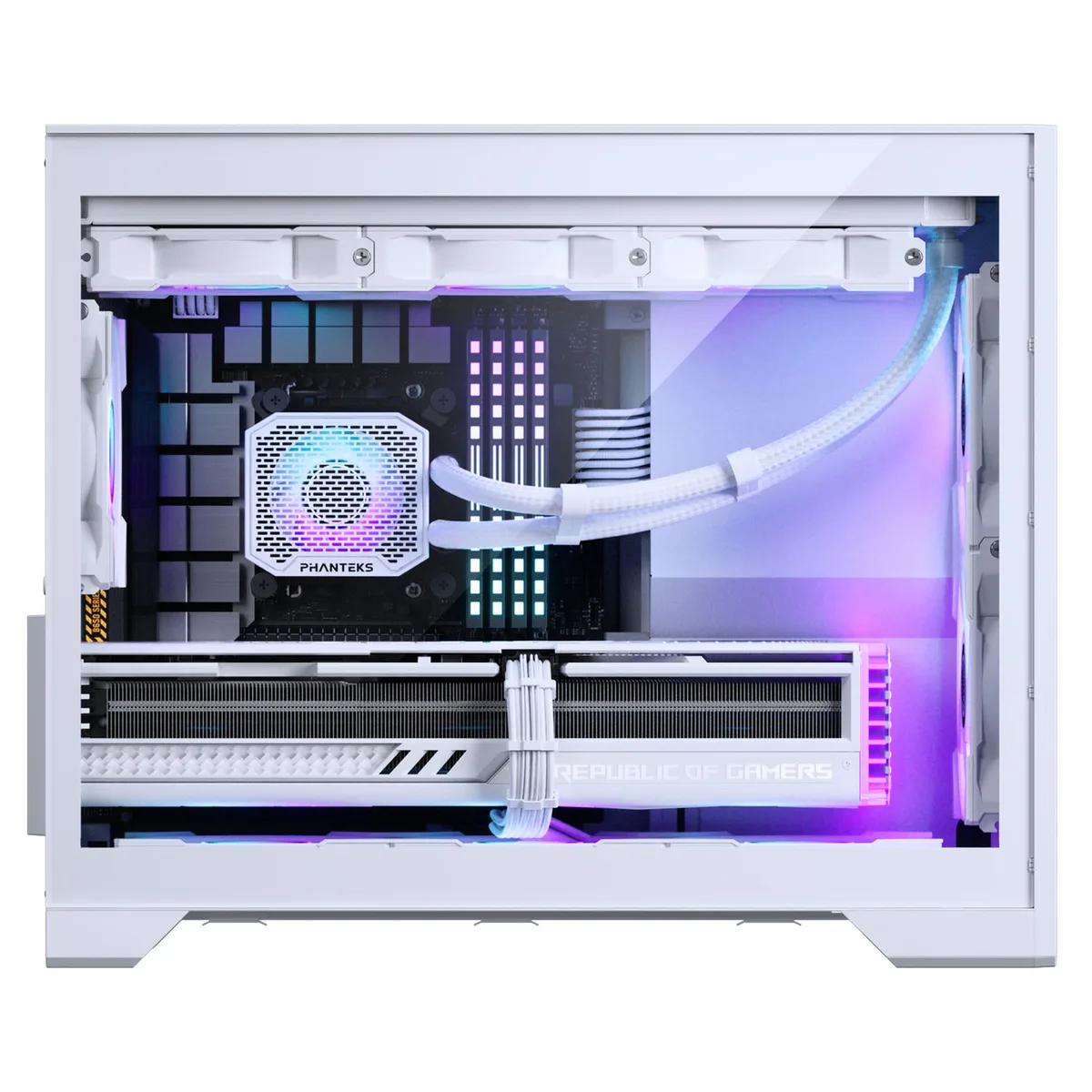

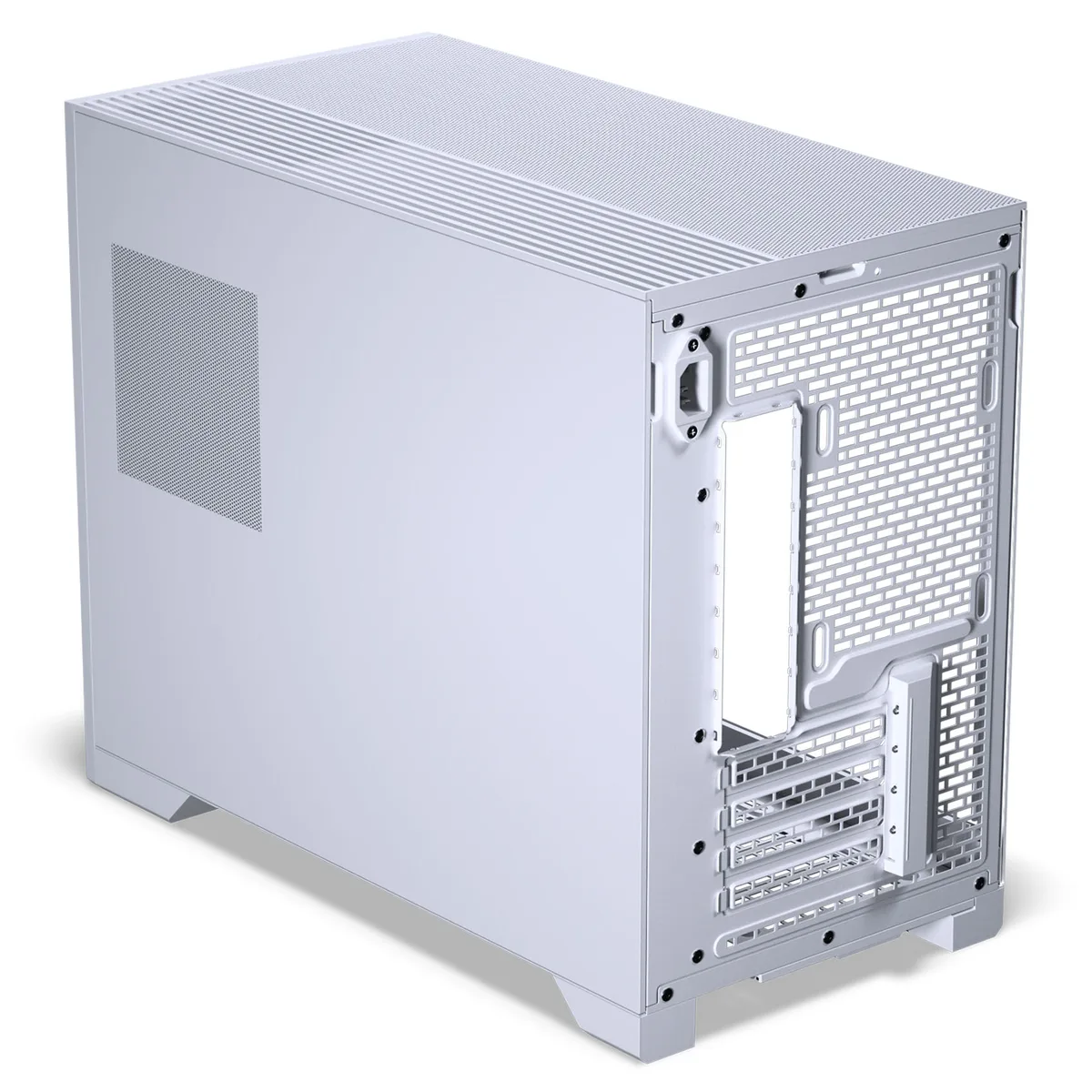

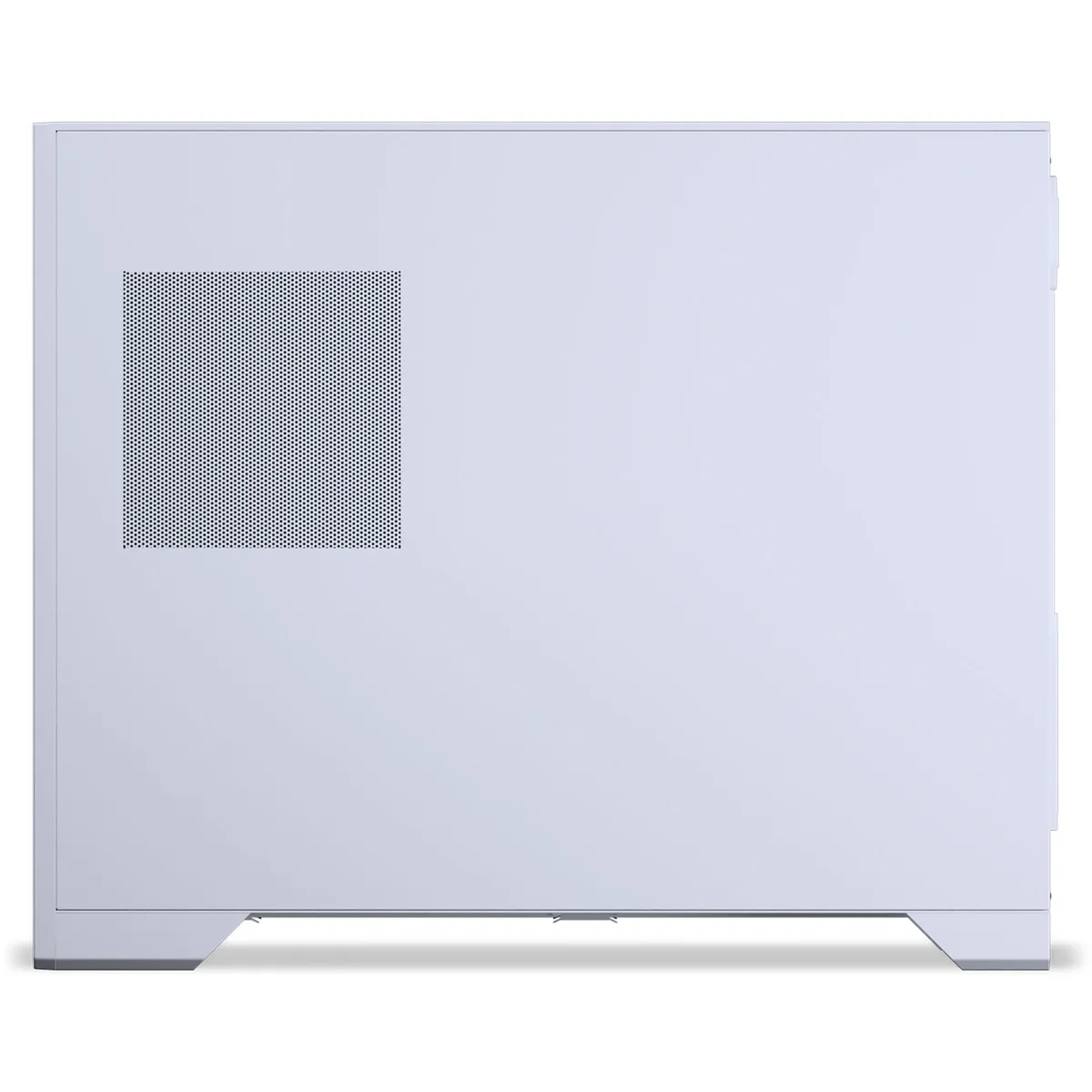

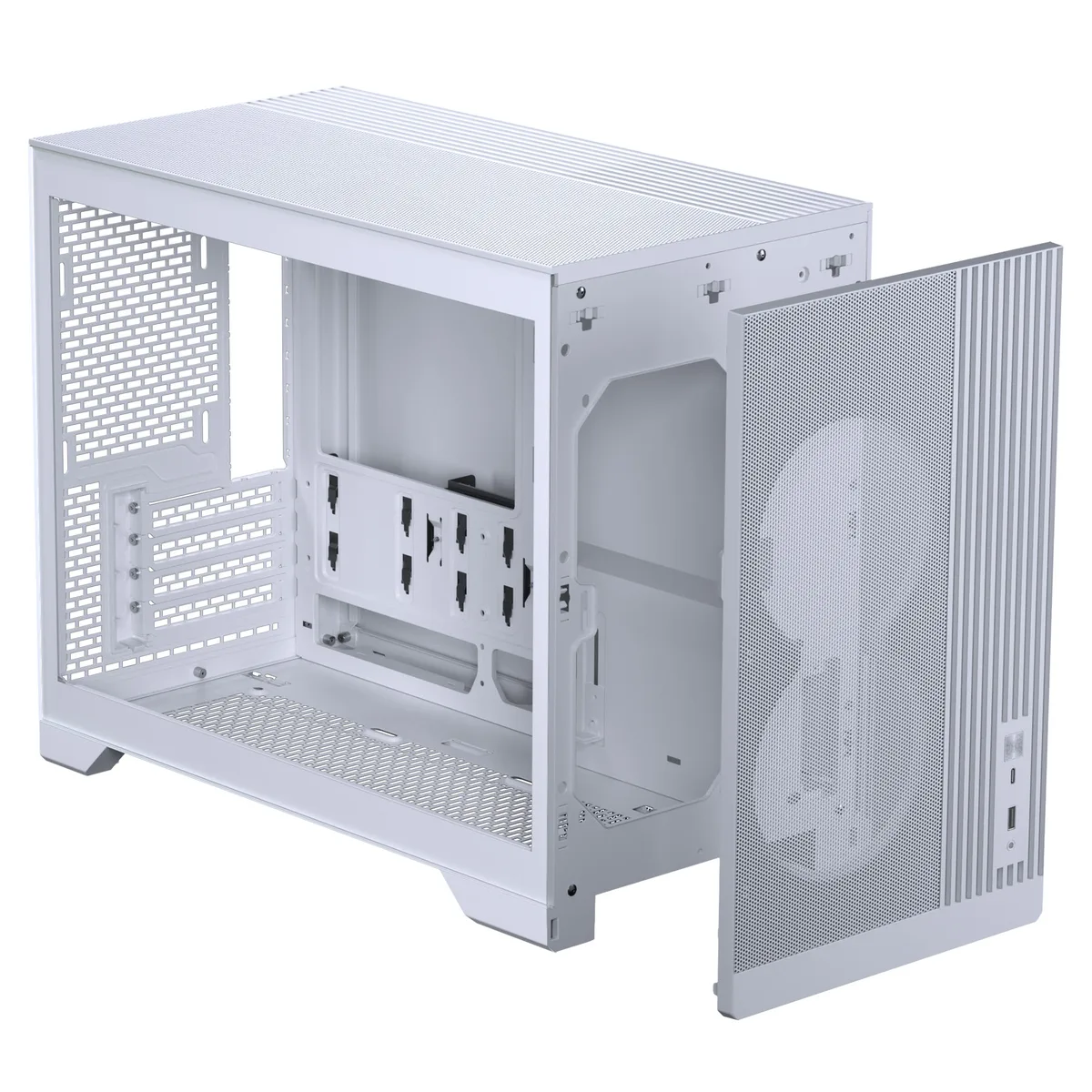

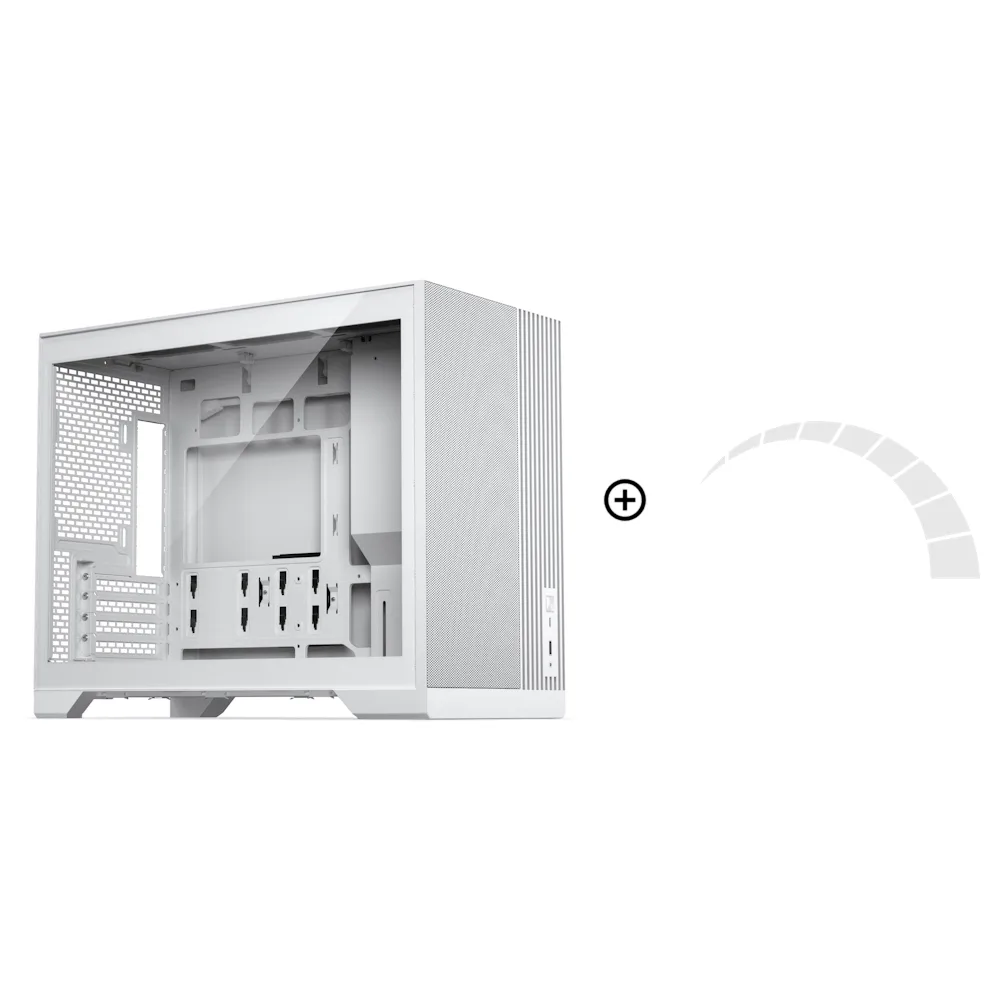

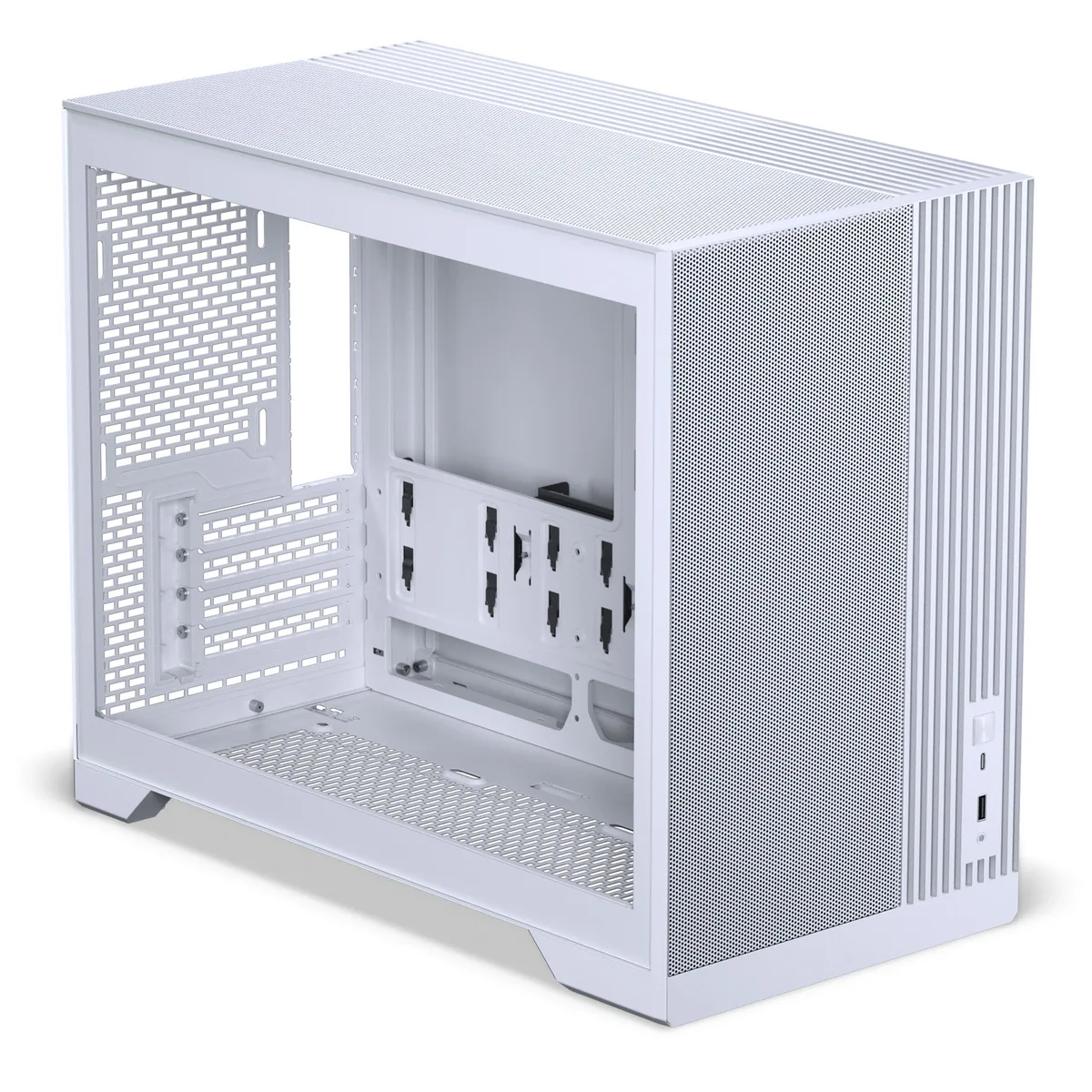

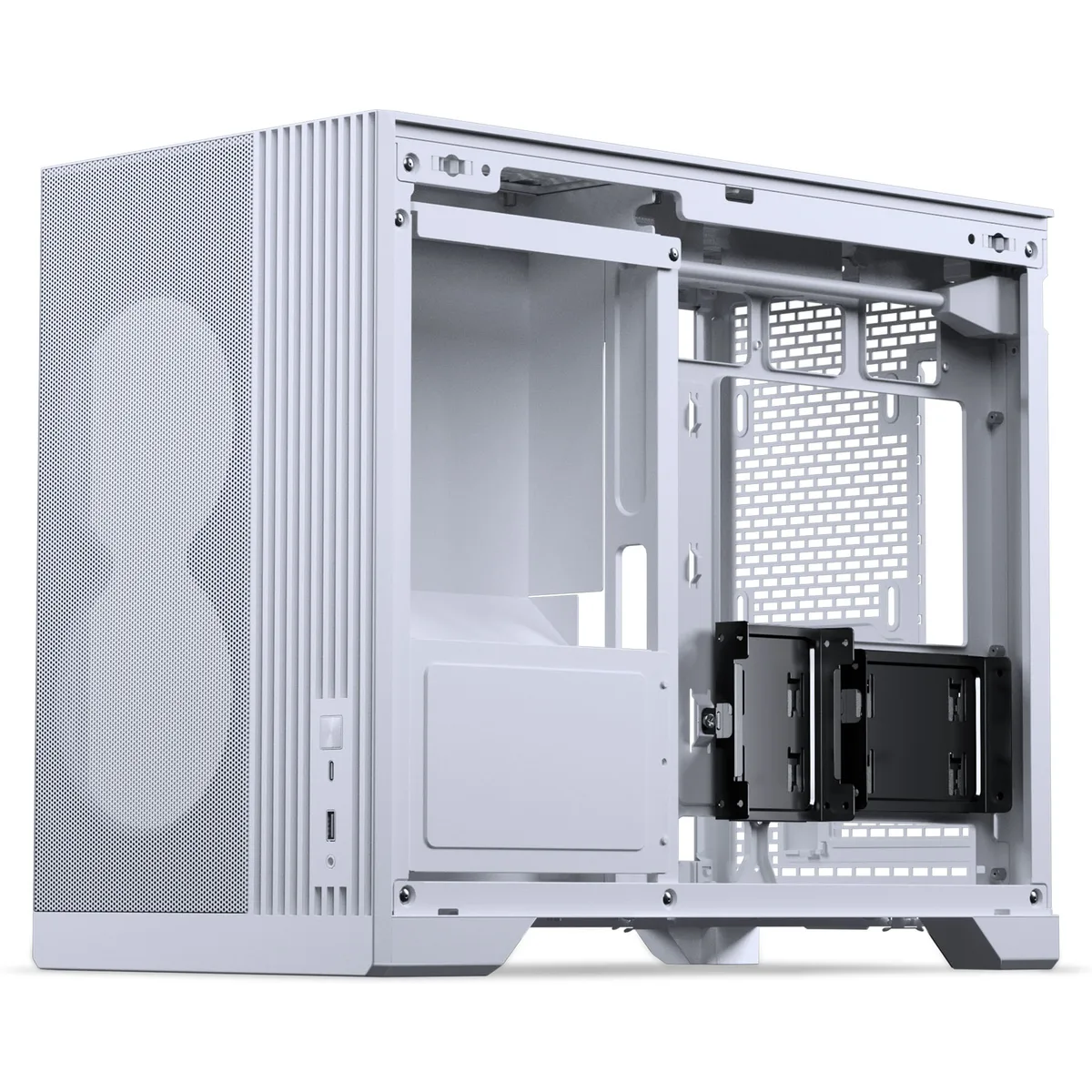

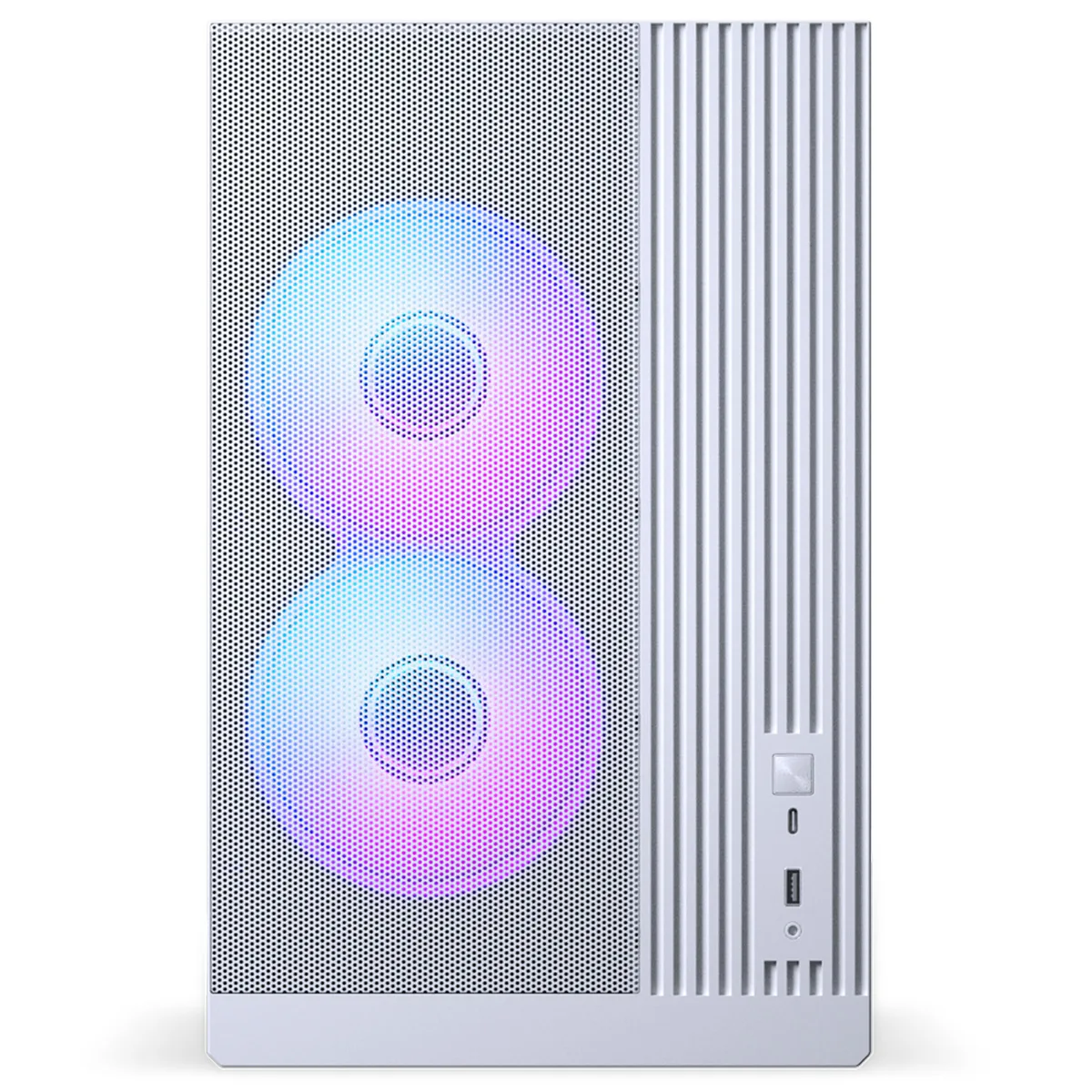

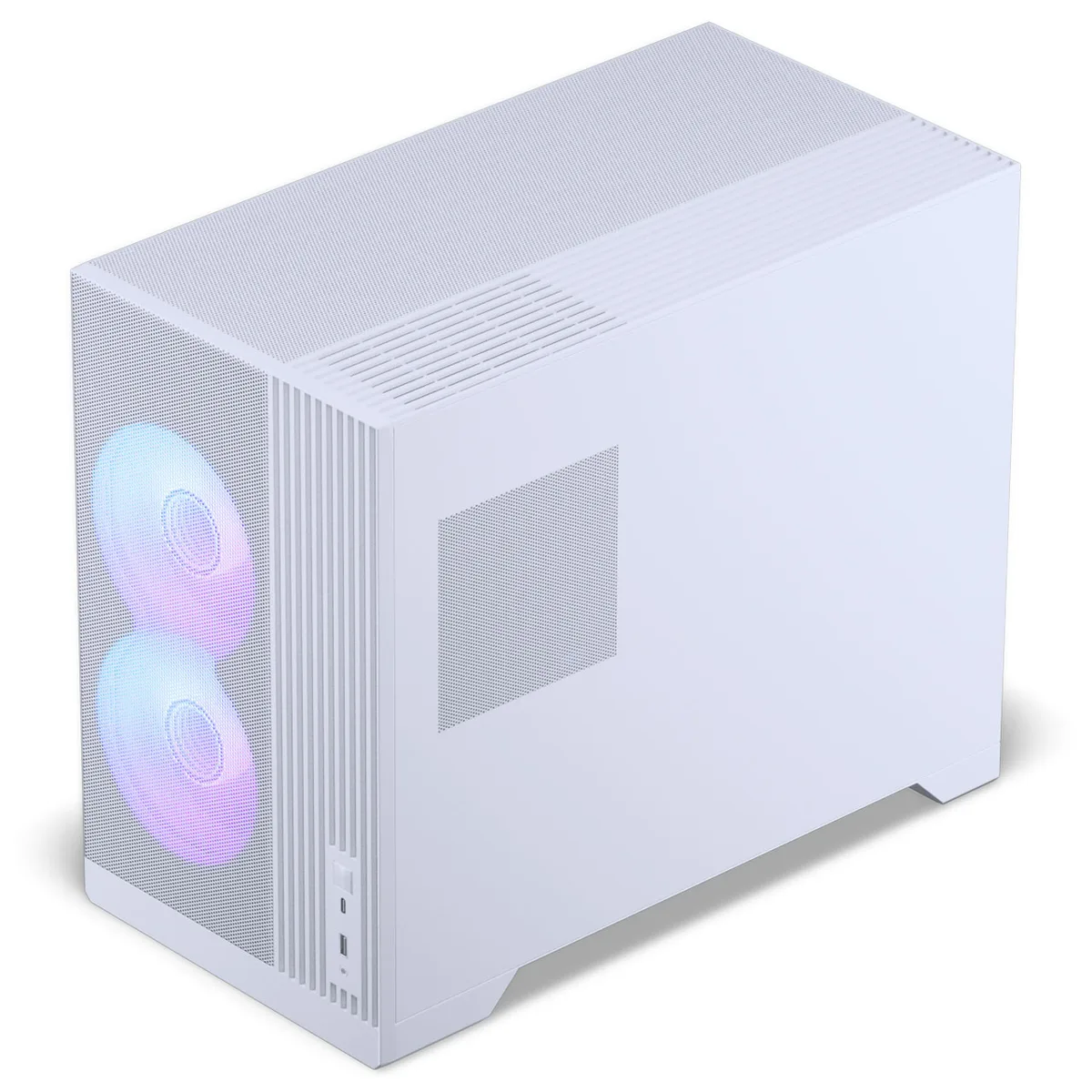

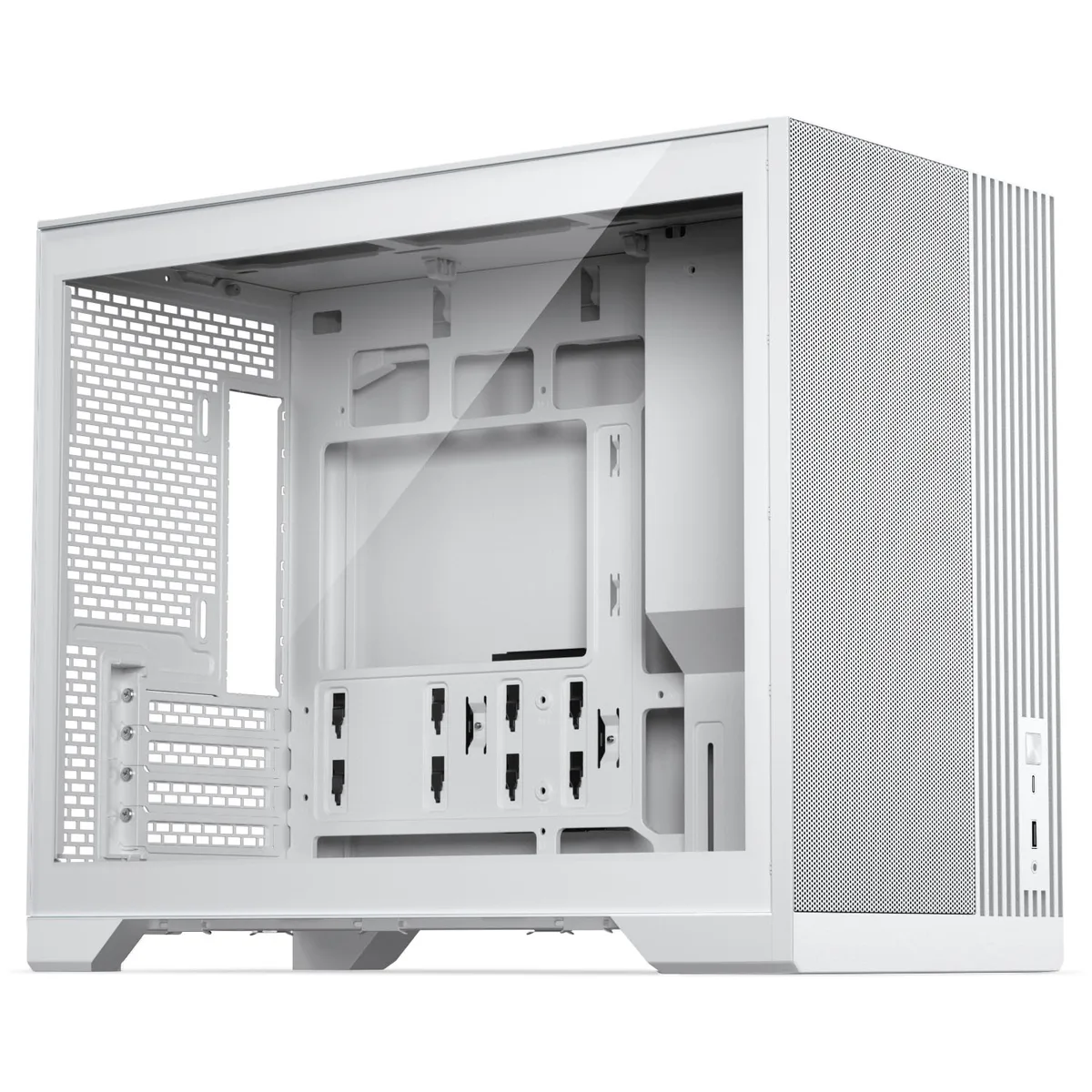

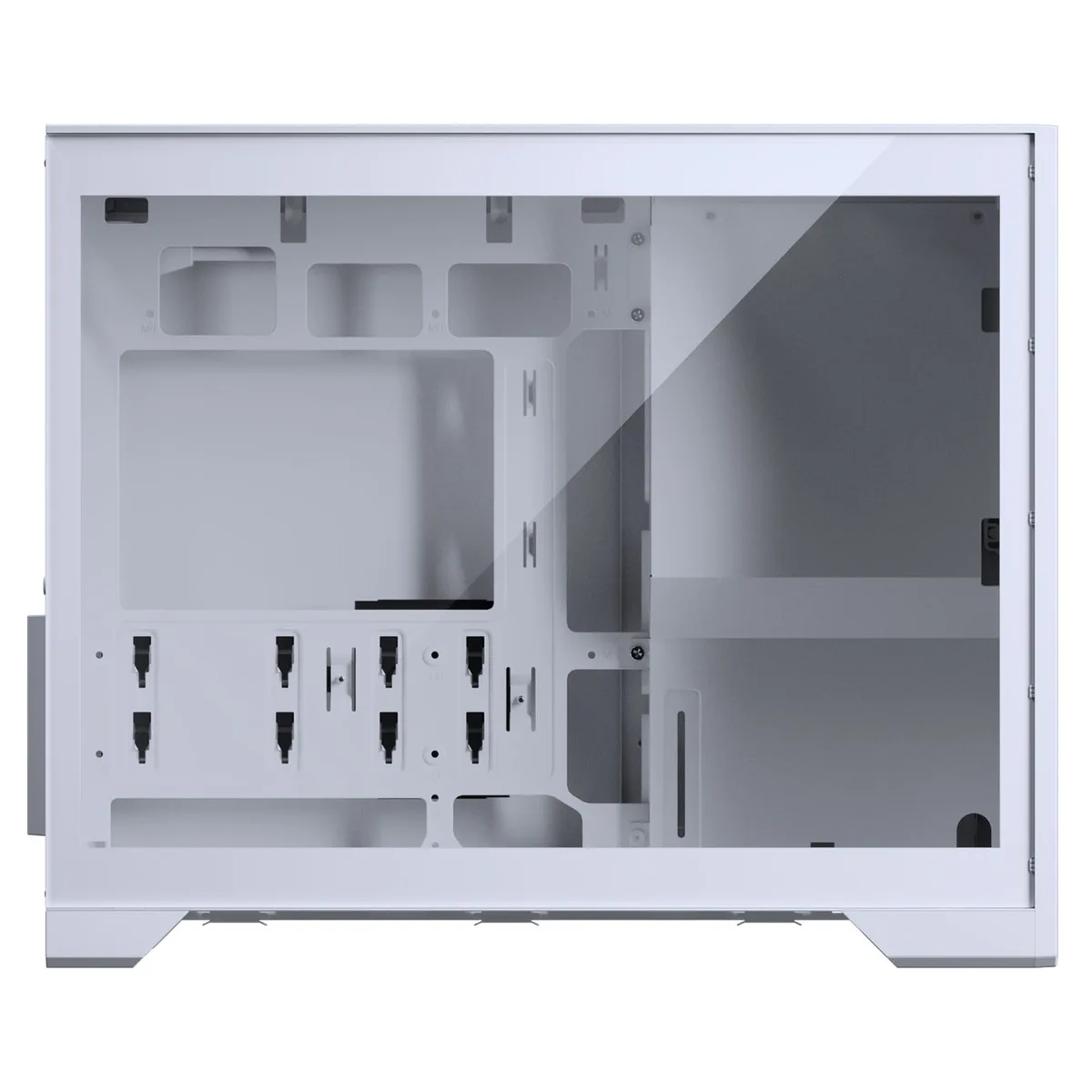

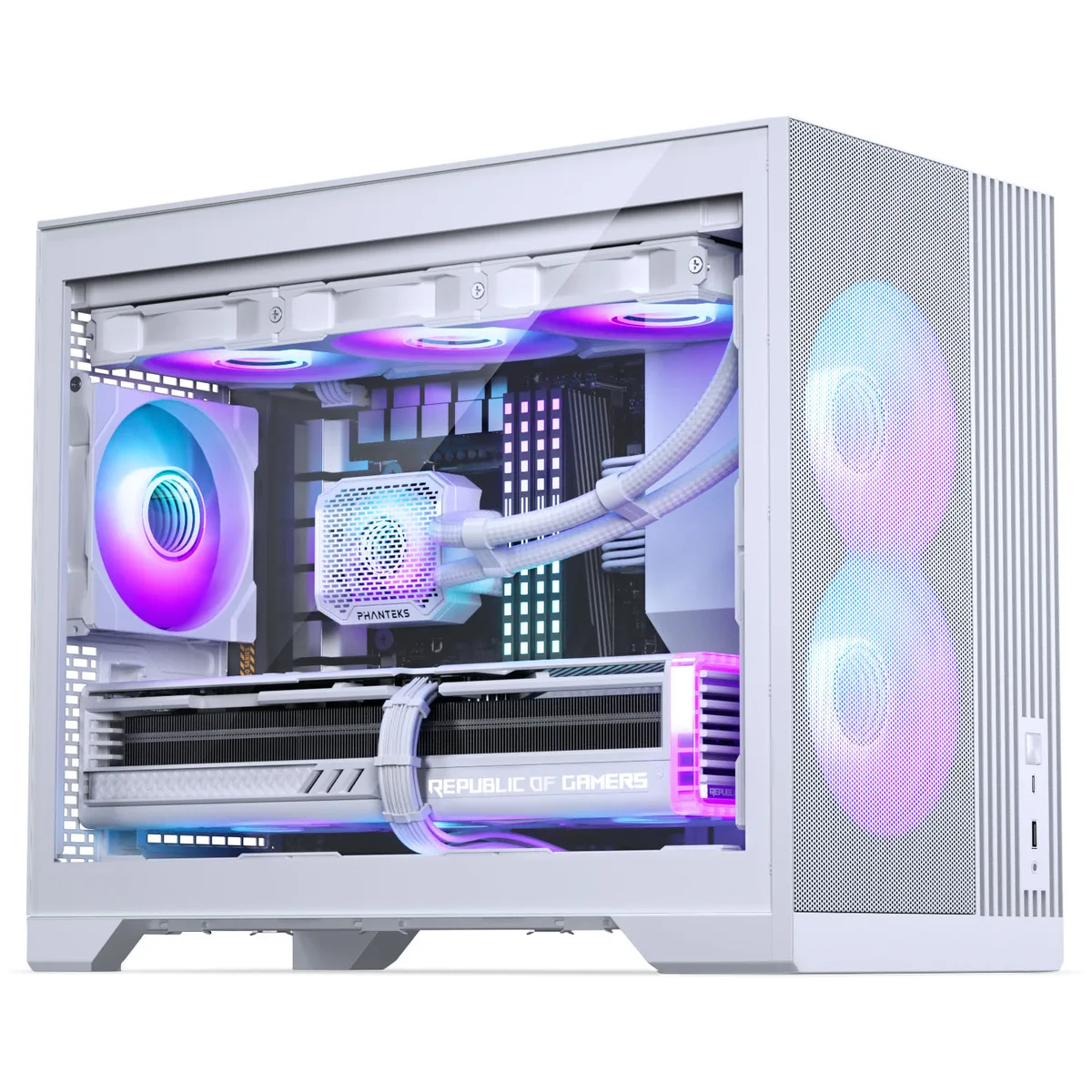

PHANTEKS XT M3 Micro-ATX Case - White
£51.89
Model: PH-XT325M_WT01
Technical Specifications64 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
PH-XT325M_WT01
Gtin
0886523303770
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mini Case
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
460 mm
Width
235 mm
Height
370 mm
Weight
5.57 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
4
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb4 Gen 2x2 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Front
120mm Fan (2x)
Max Number Of Fans
9
Case Fan Support Bottom
120mm Fan (3x)
Case Fan Support Top
120mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
120 Mm Fans
9
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
175 mm
Max Gpu Length
430 mm
Max Gpu Width
175 mm
Max Psu Length Depth
150 mm
Lighting
Lighting Rgb
No
Materials
Materials
ABS, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
Micro-ATX, Mini-ITX
Max Motherboard Format
Micro-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Max Radiator Compatibility
1x Triple (360 mm)
Radiator Aio Support Top
360mm Radiator
