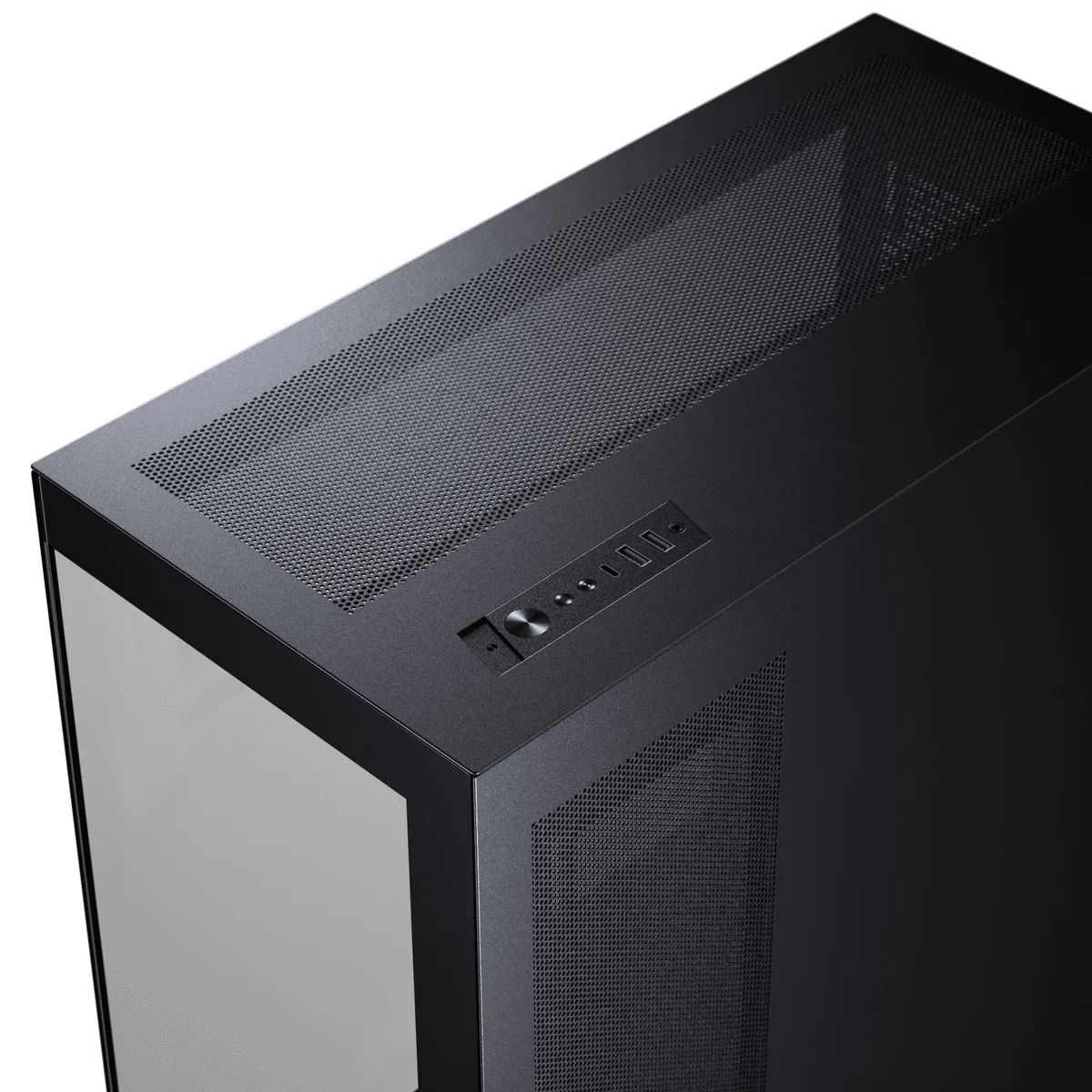

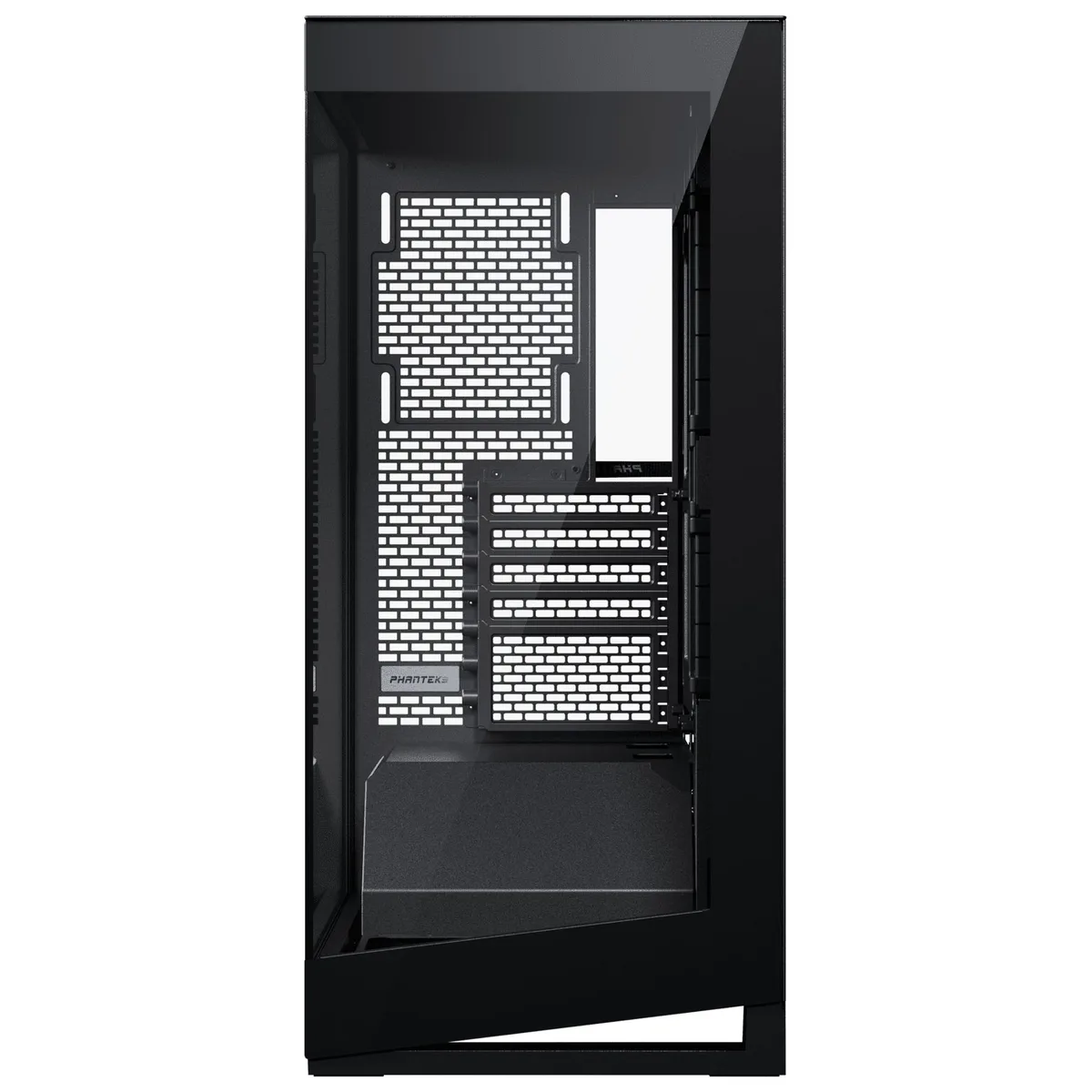

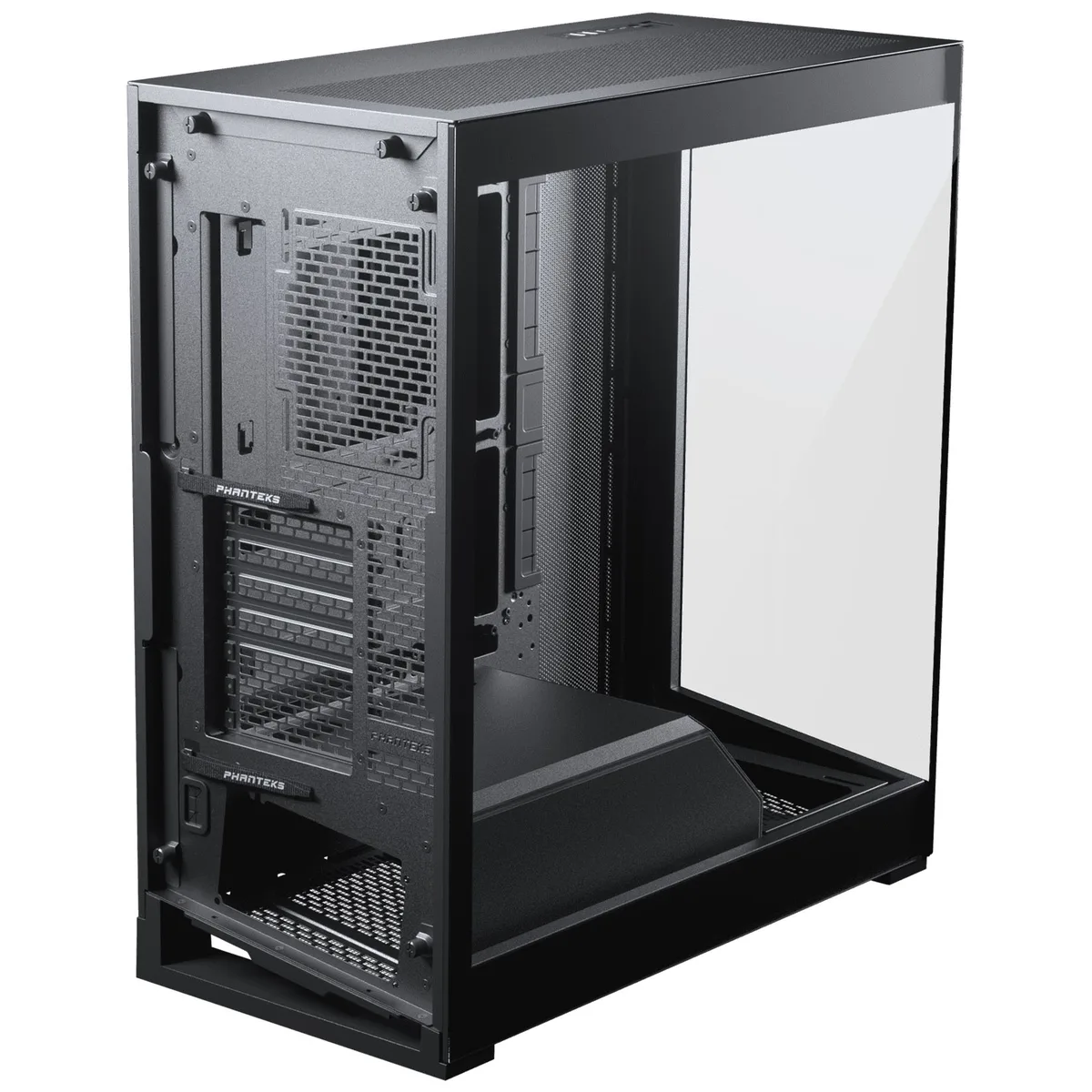

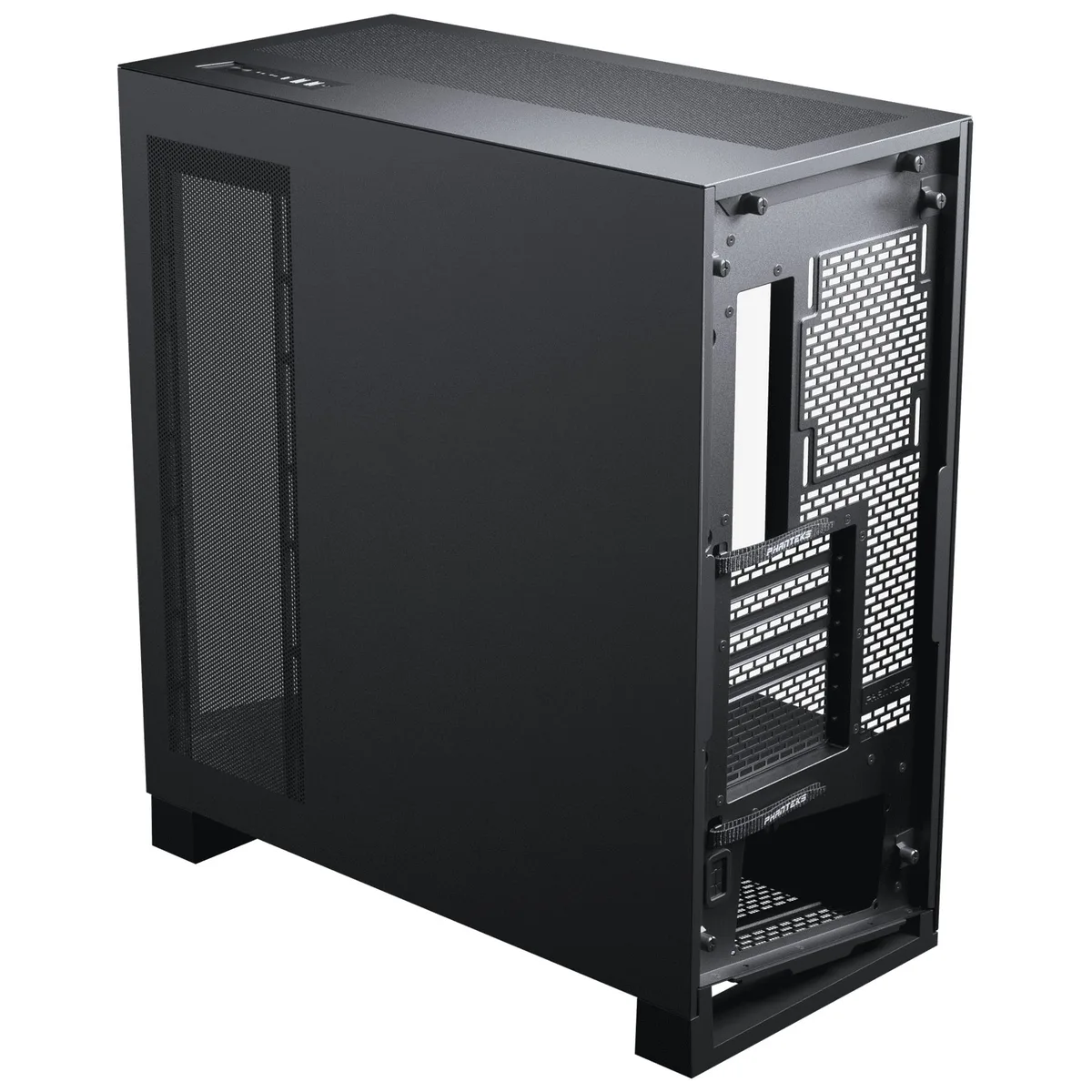

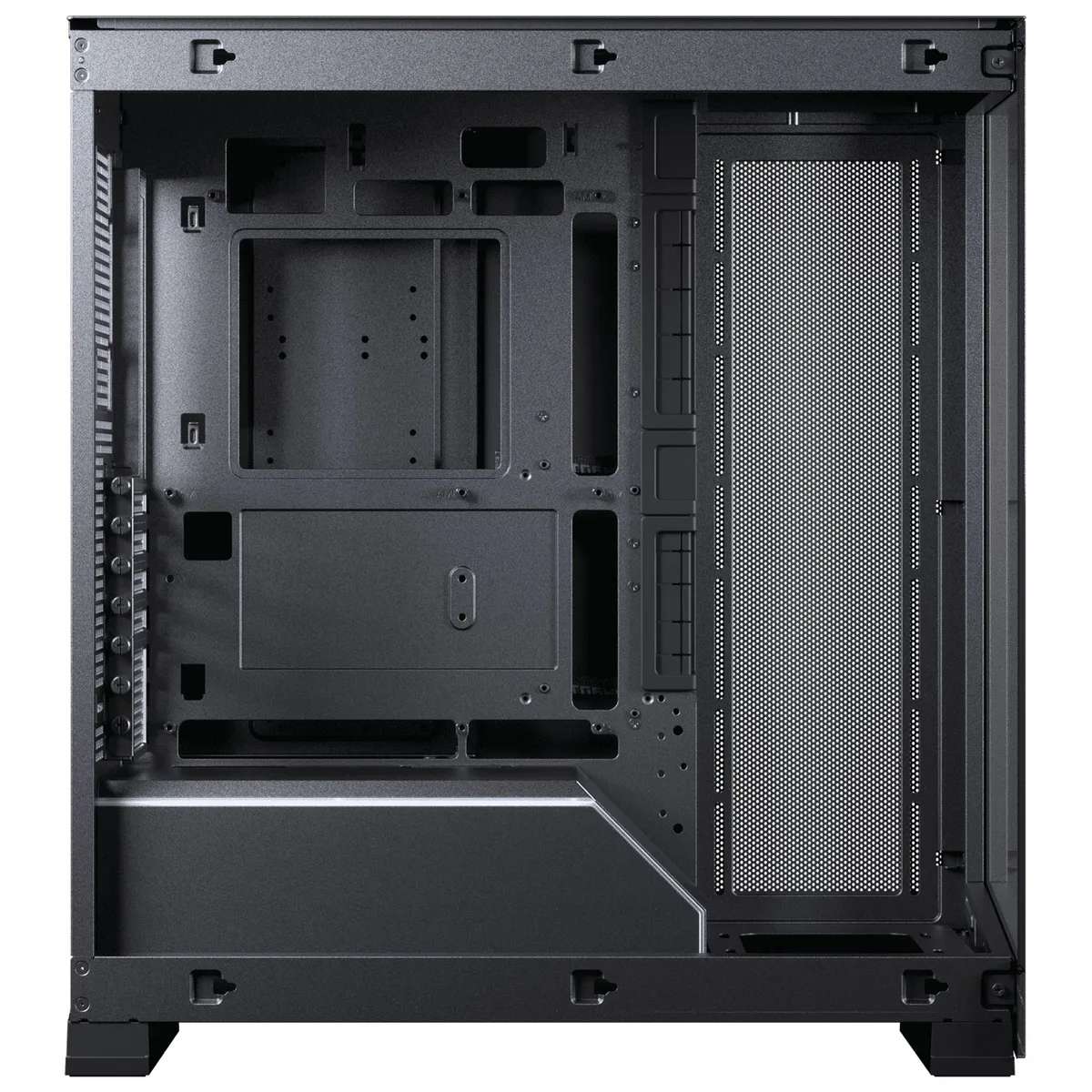

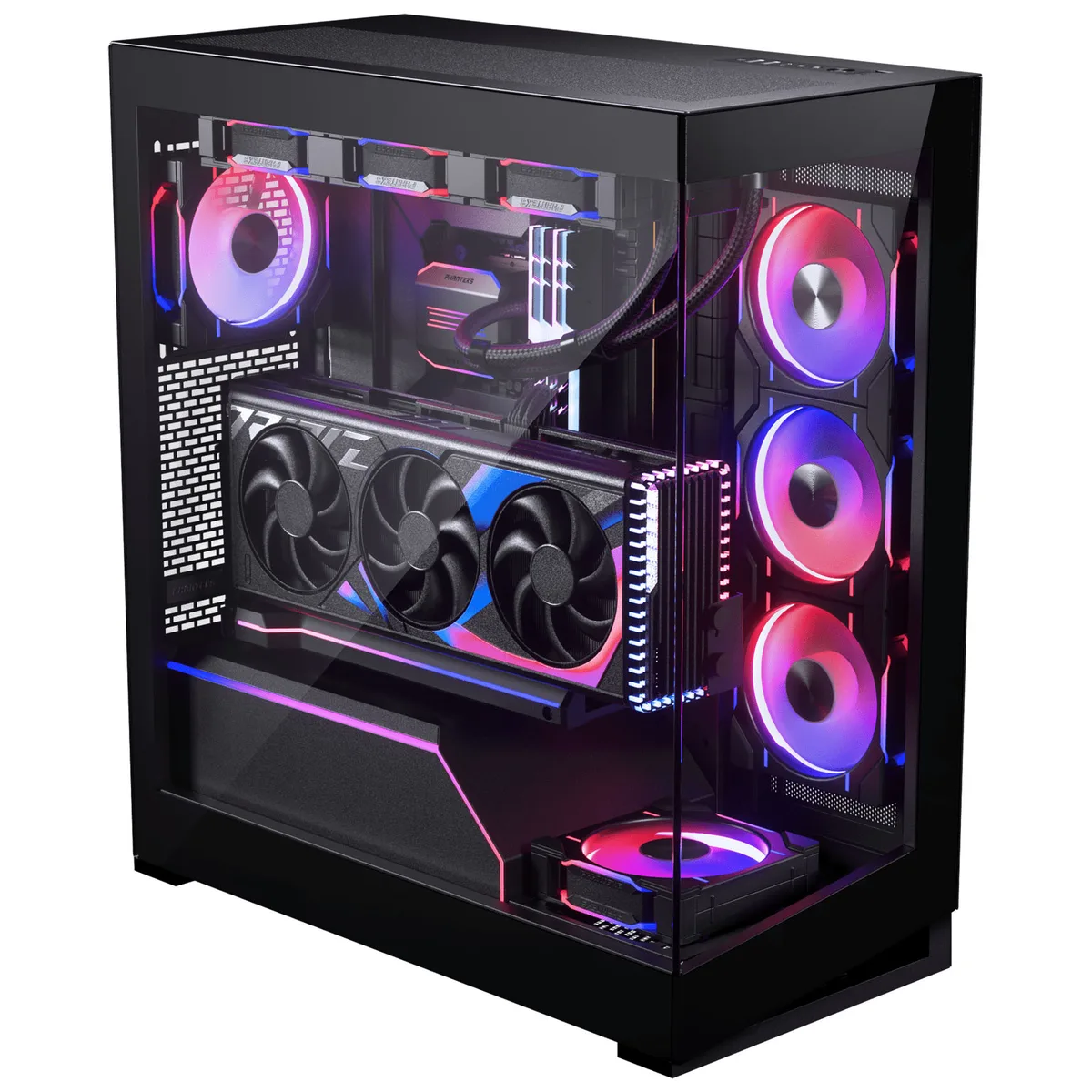

Phanteks NV5 v2 - Black
MPN: PH-NV523TG_DBK02
Key specifications
Max GPU440.0 mm
Max Cooler180.0 mm
Max PSU230.0 mm
Form factorUnknown
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 440.0mm GPU clearance.
Supports up to 180.0mm CPU cooler height.
Full Specifications70 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
PH-NV523TG_DBK02
Gtin
0886523303466
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
No
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Fan Main Colour Frame
Black
Fan Main Colour Rotor
Black
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
477 mm
Width
239 mm
Height
528 mm
Weight
11.28 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
3
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 1 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Side
120mm Fan (3x)
Case Fan Support Bottom
120mm Fan (1x)
Case Fan Support Top
120mm Fan (3x)
Max Number Of Fans
8
Case Fan Support Rear
120mm Fan (1x)
120 Mm Fans
8
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
180 mm
Max Gpu Length
440 mm
Max Gpu Width
170 mm
Max Psu Length Depth
230 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Max Motherboard Format
E-ATX
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
NV5
Radiator Support
Radiator Aio Support Top
360mm Radiator
Radiator Aio Support Rear
120mm Radiator
Radiator Aio Support Side
360mm Radiator
Max Radiator Compatibility
2x Triple (360 mm)
