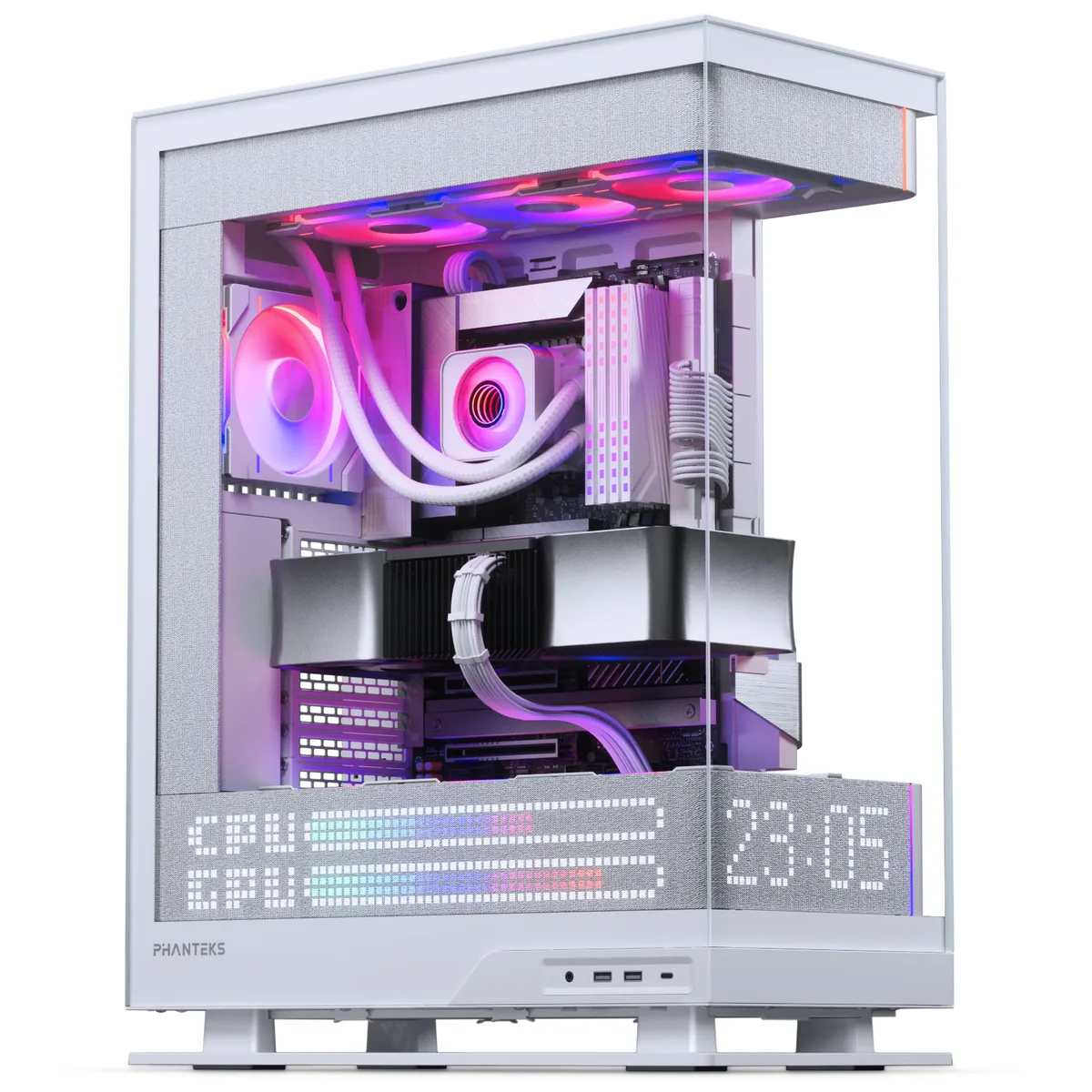

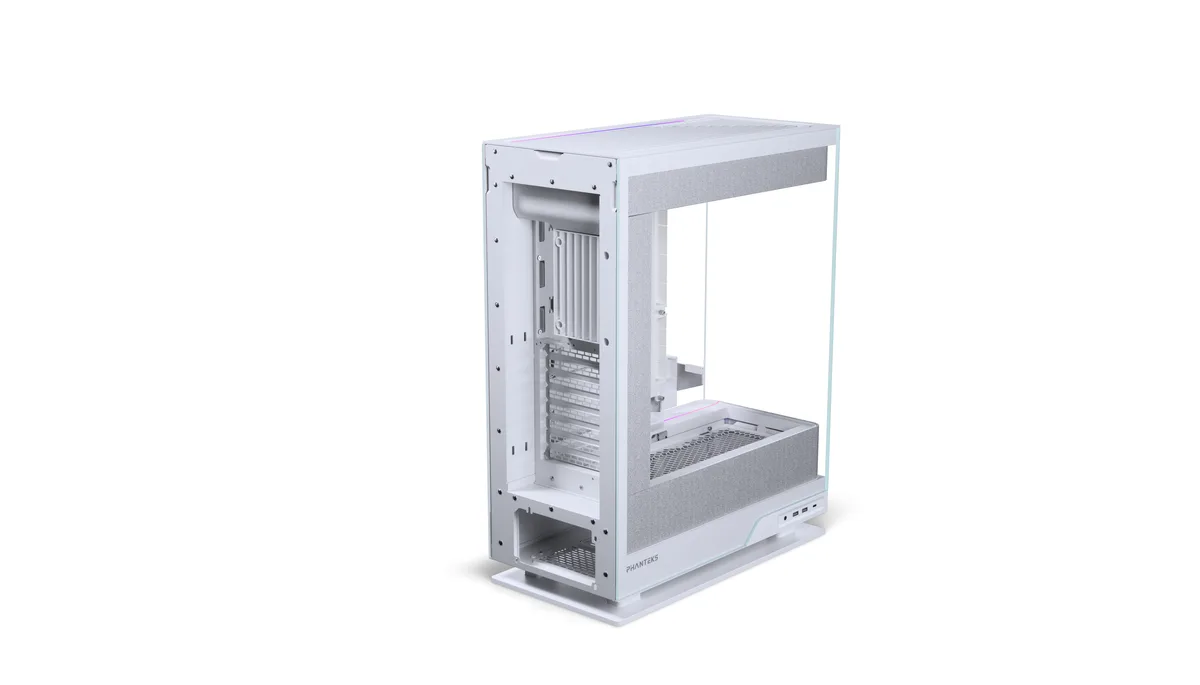

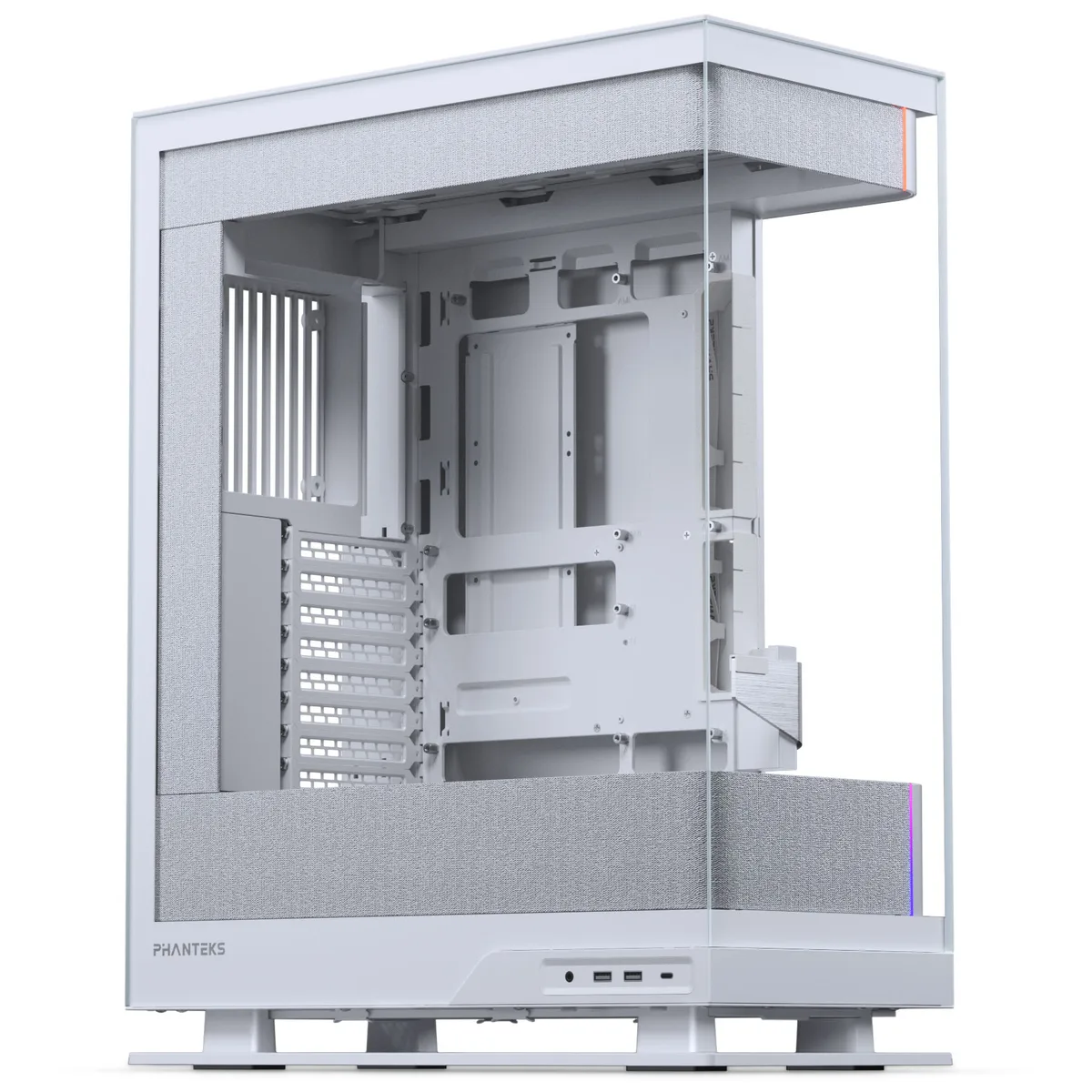

Phanteks Evolv Series X2 Case LED Matrix DRGB - Grey White
MPN: PH-ES524XM_DMW01
Key specifications
Max GPU380.0 mm
Max Cooler170.0 mm
Max PSU250.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 380.0mm GPU clearance.
Supports up to 170.0mm CPU cooler height.
Full Specifications65 fields
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
PH-ES524XM_DMW01
Gtin
0886523304074
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Side
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes

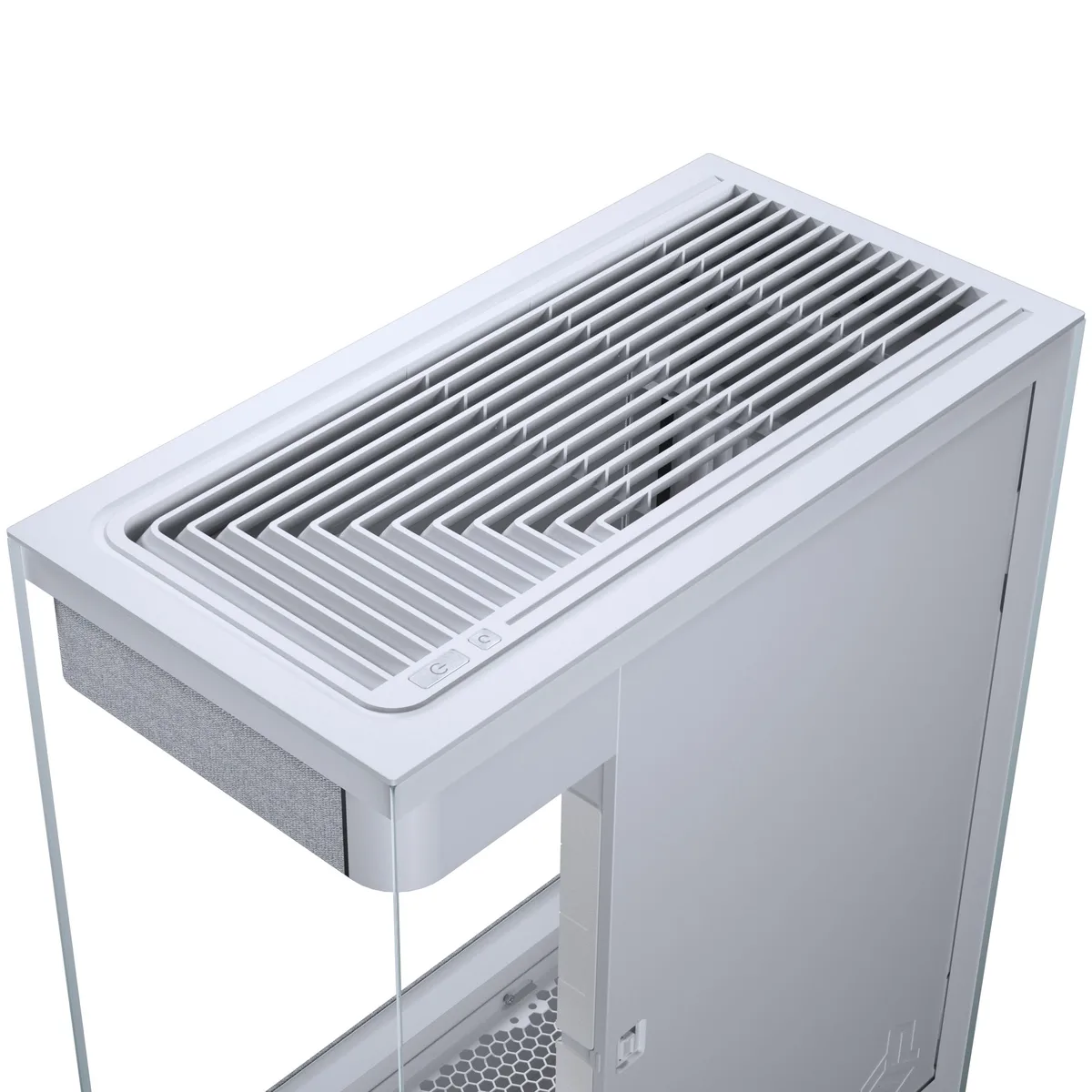

Filters Included
Yes
Filter Position
Top, Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Connectivity
Card Reader
No
Dimensions
Length Depth
454 mm
Width
228 mm
Height
588 mm
Weight
14.6 kg

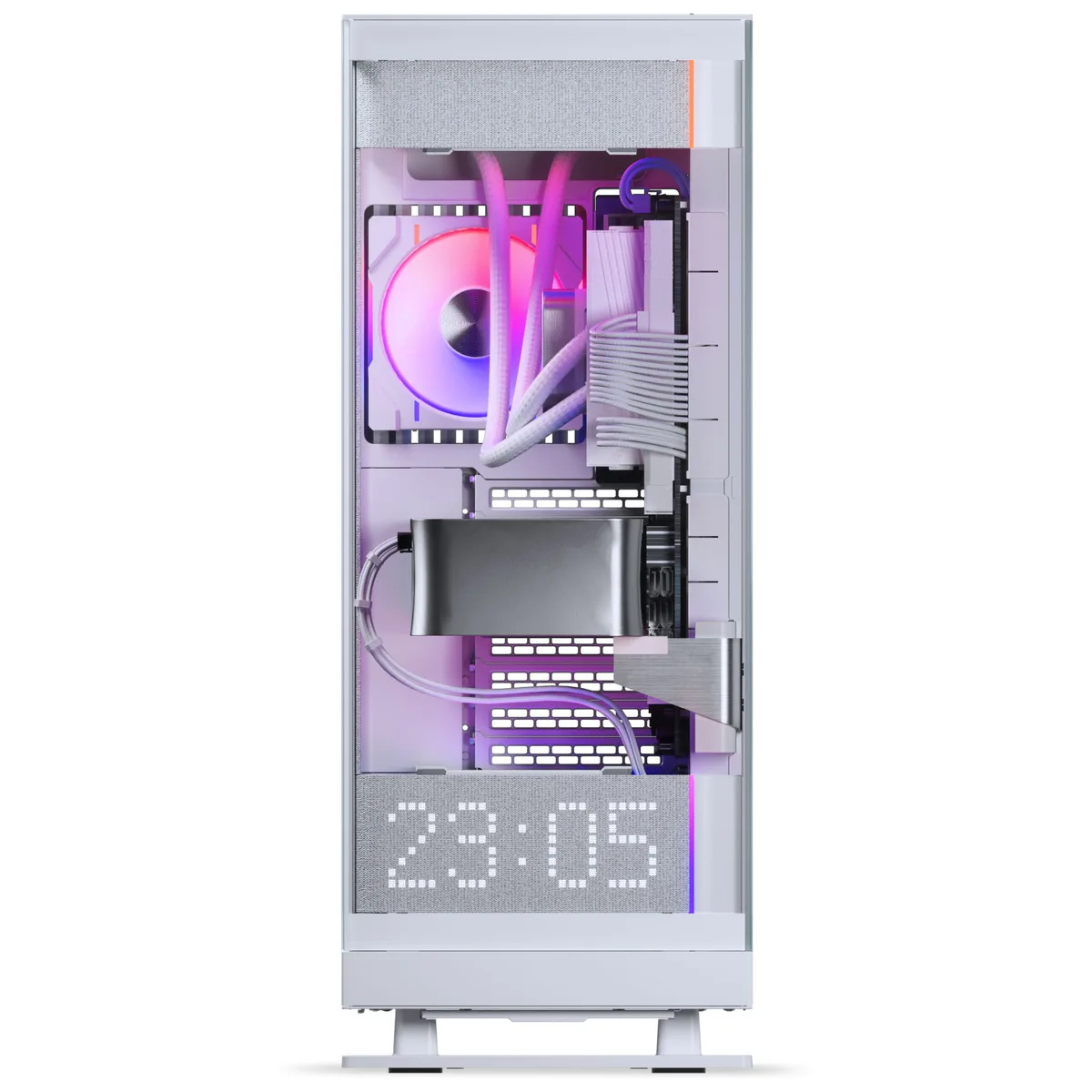

Display
Display Included
Yes
Display Resolution
900 Pixel
Display Panel Type
LED Panel

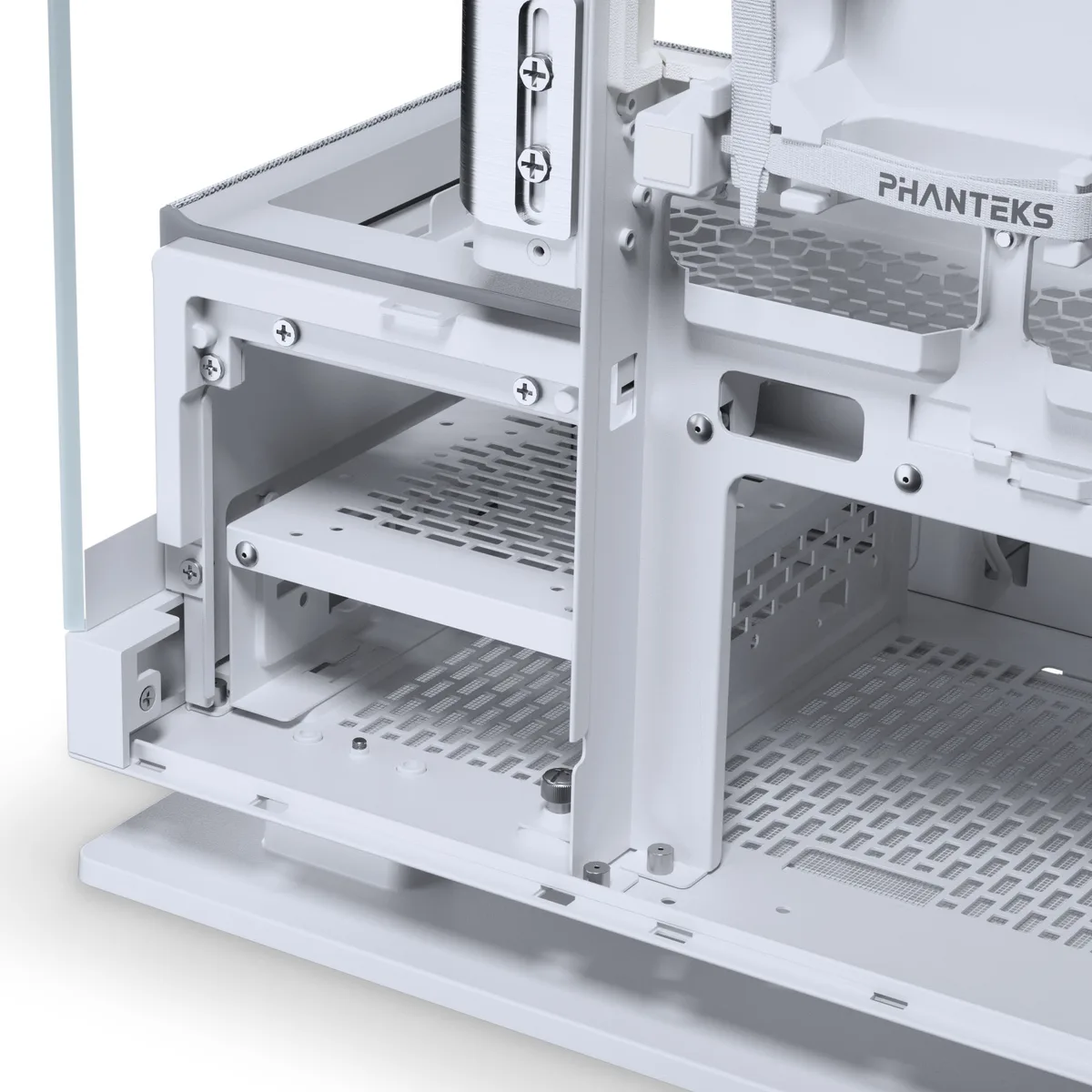

Drive Bays
Max 2 5 Inch Drives
5
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
8
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x)
Case Fan Support Bottom
120mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
7
120 Mm Fans
7
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
170 mm
Max Gpu Length
380 mm
Max Gpu Width
170 mm
Max Psu Length Depth
250 mm
Lighting
Lighting Rgb
No
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
Evolv X2
Radiator Support
Radiator Aio Support Top
360mm Radiator
Max Radiator Compatibility
1x Triple (360 mm)
