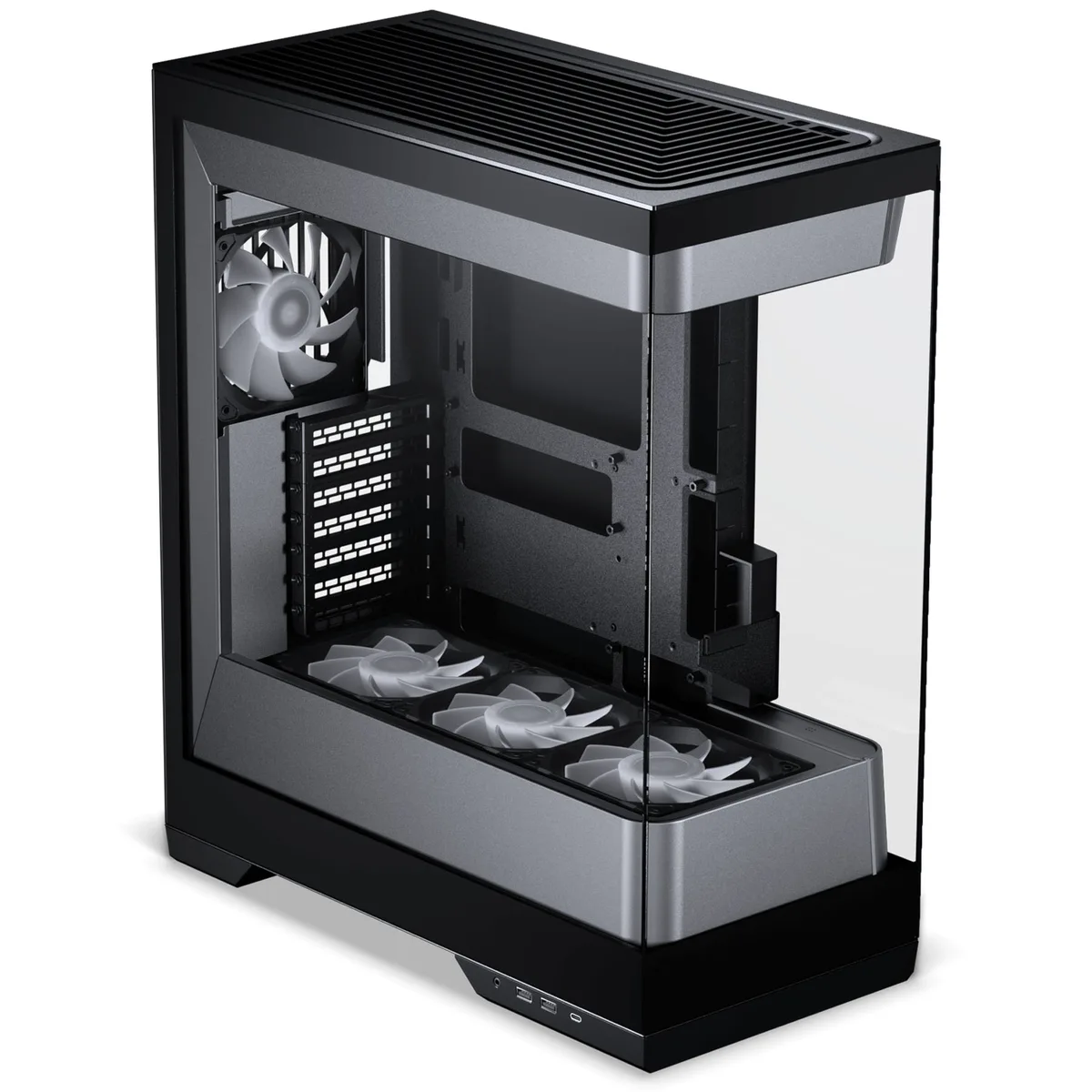

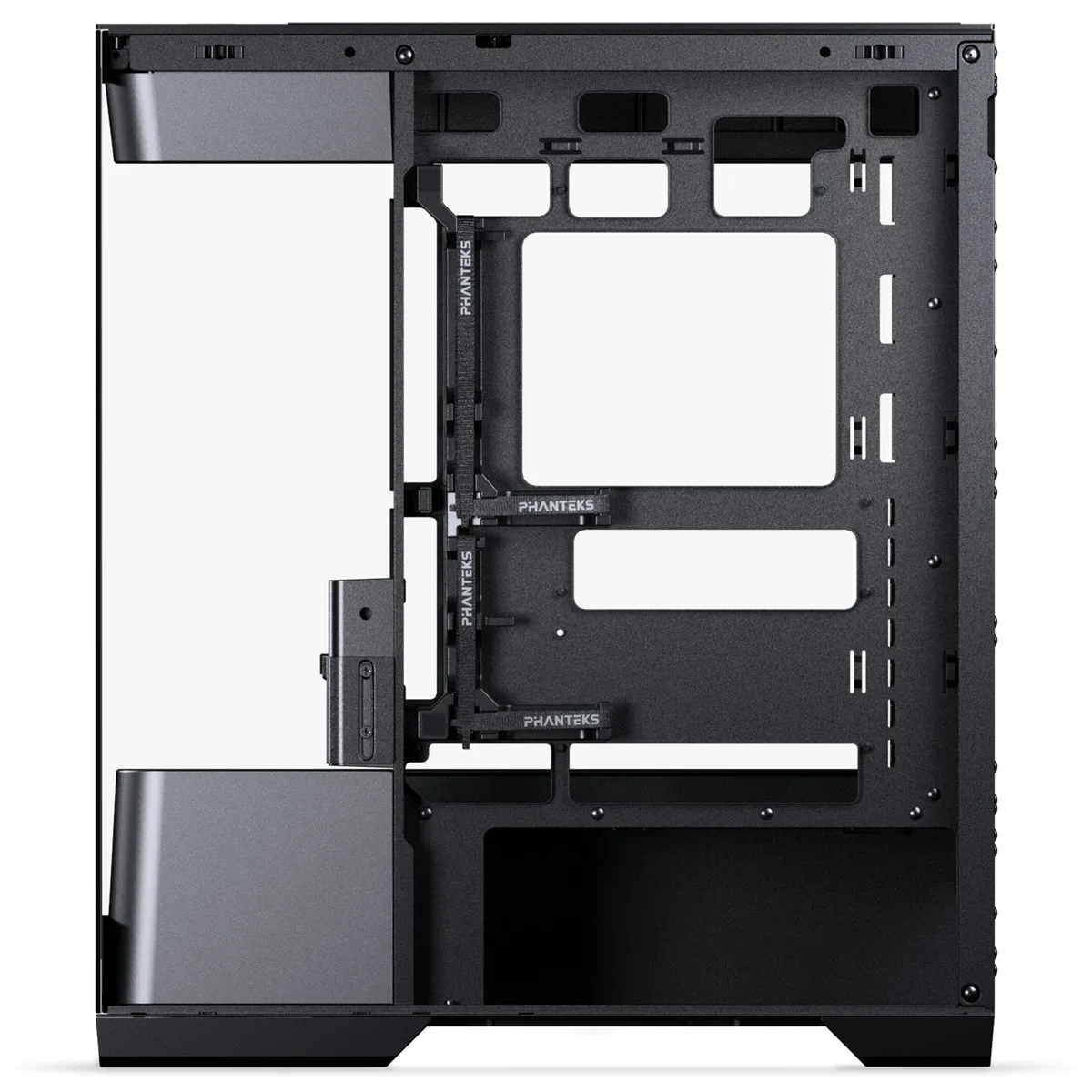

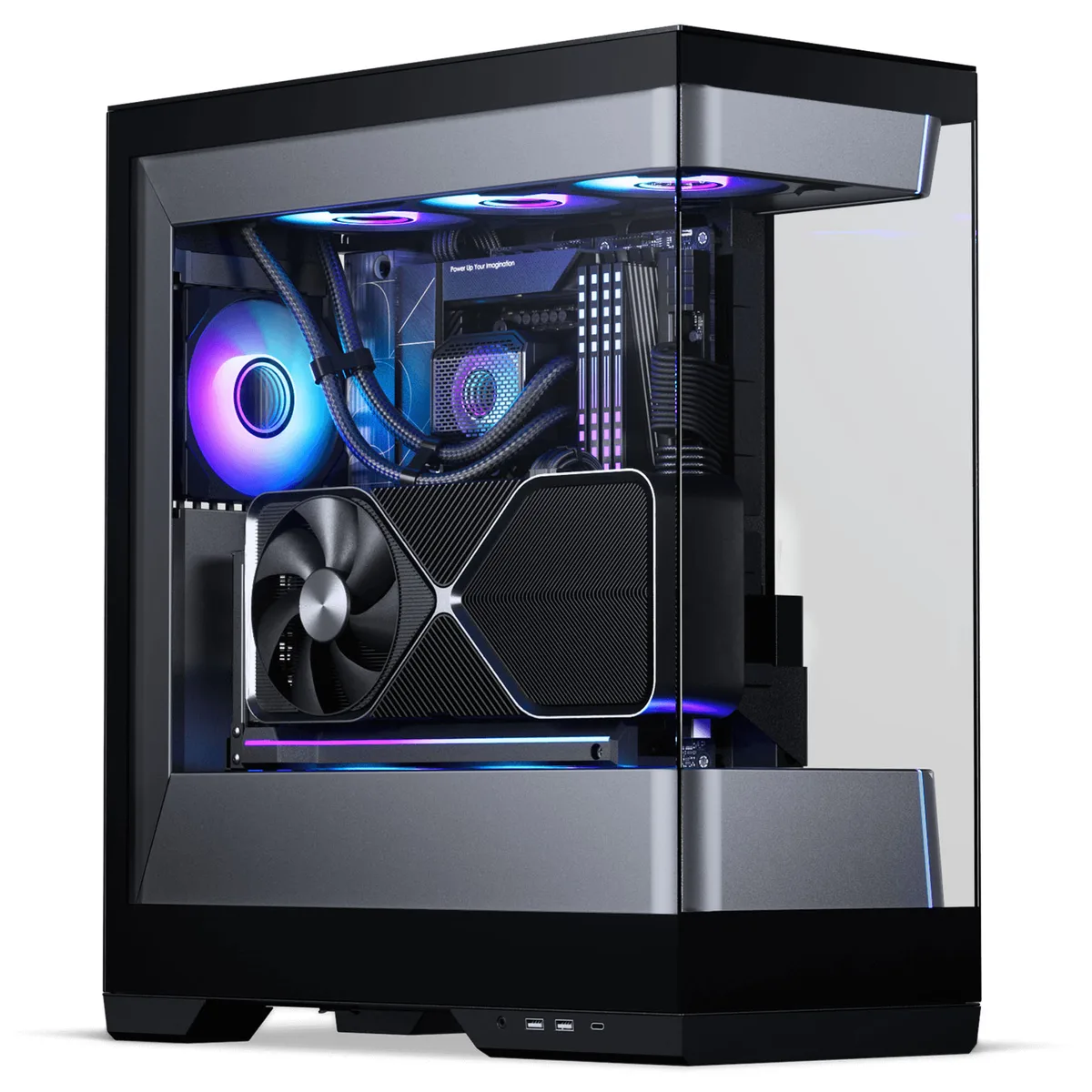

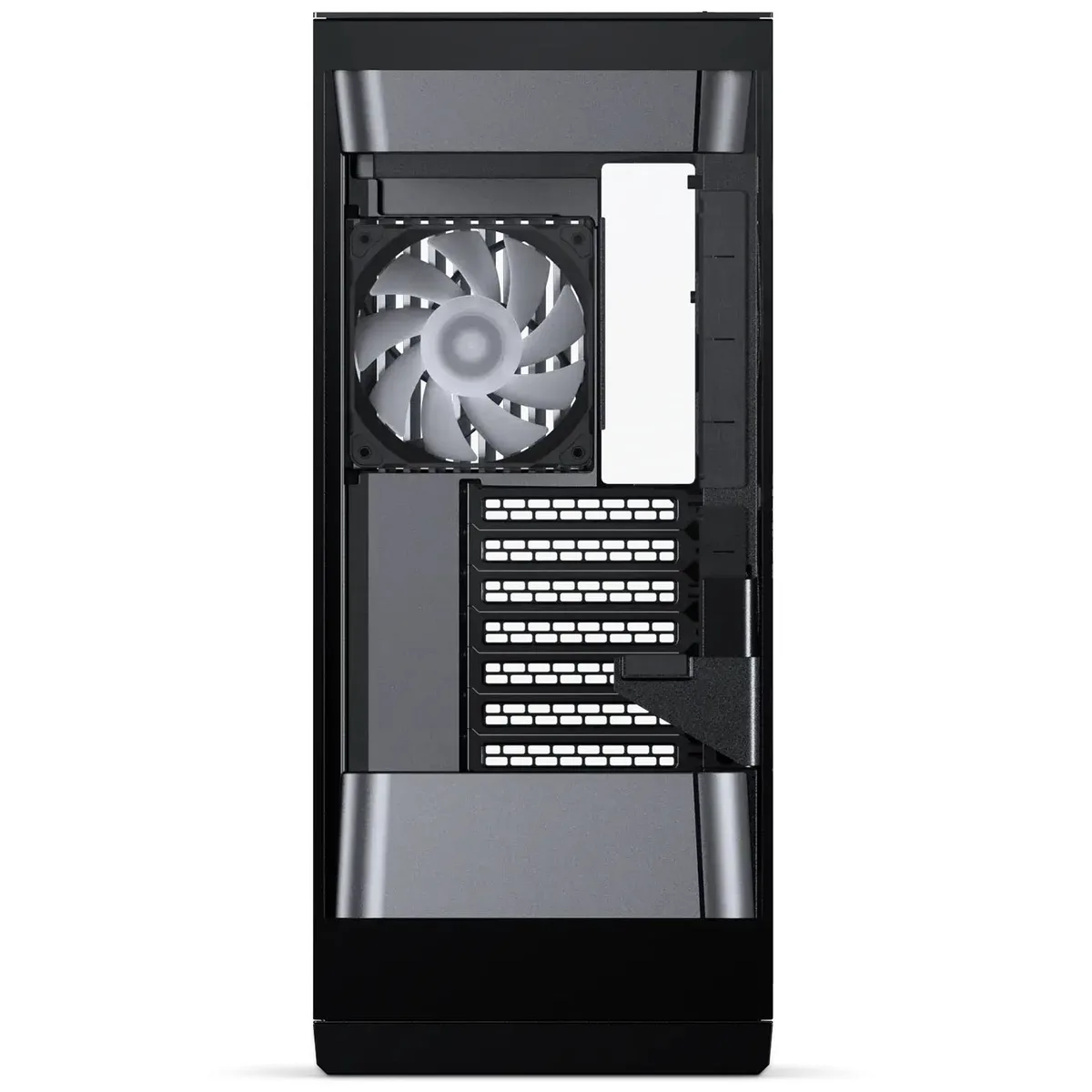

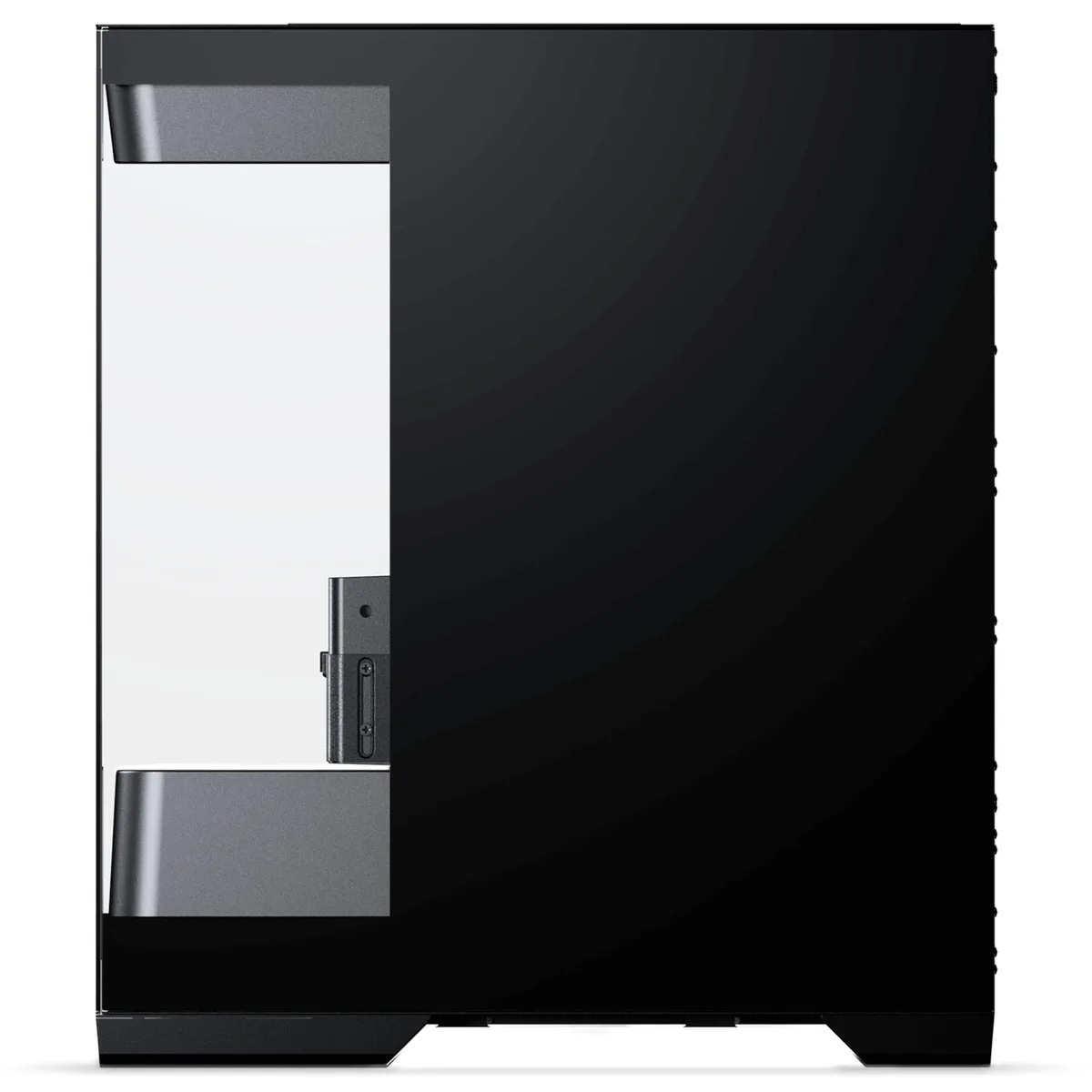

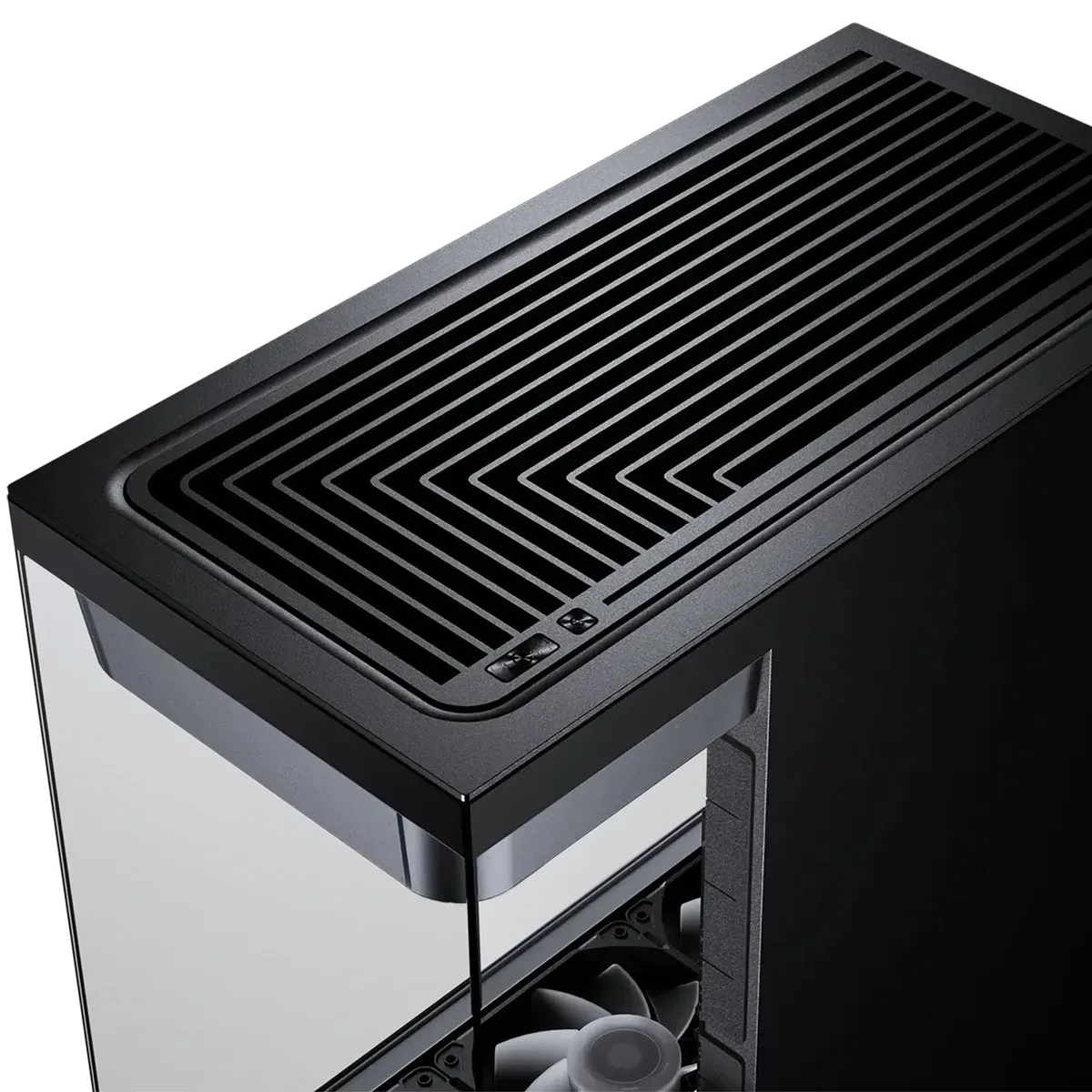

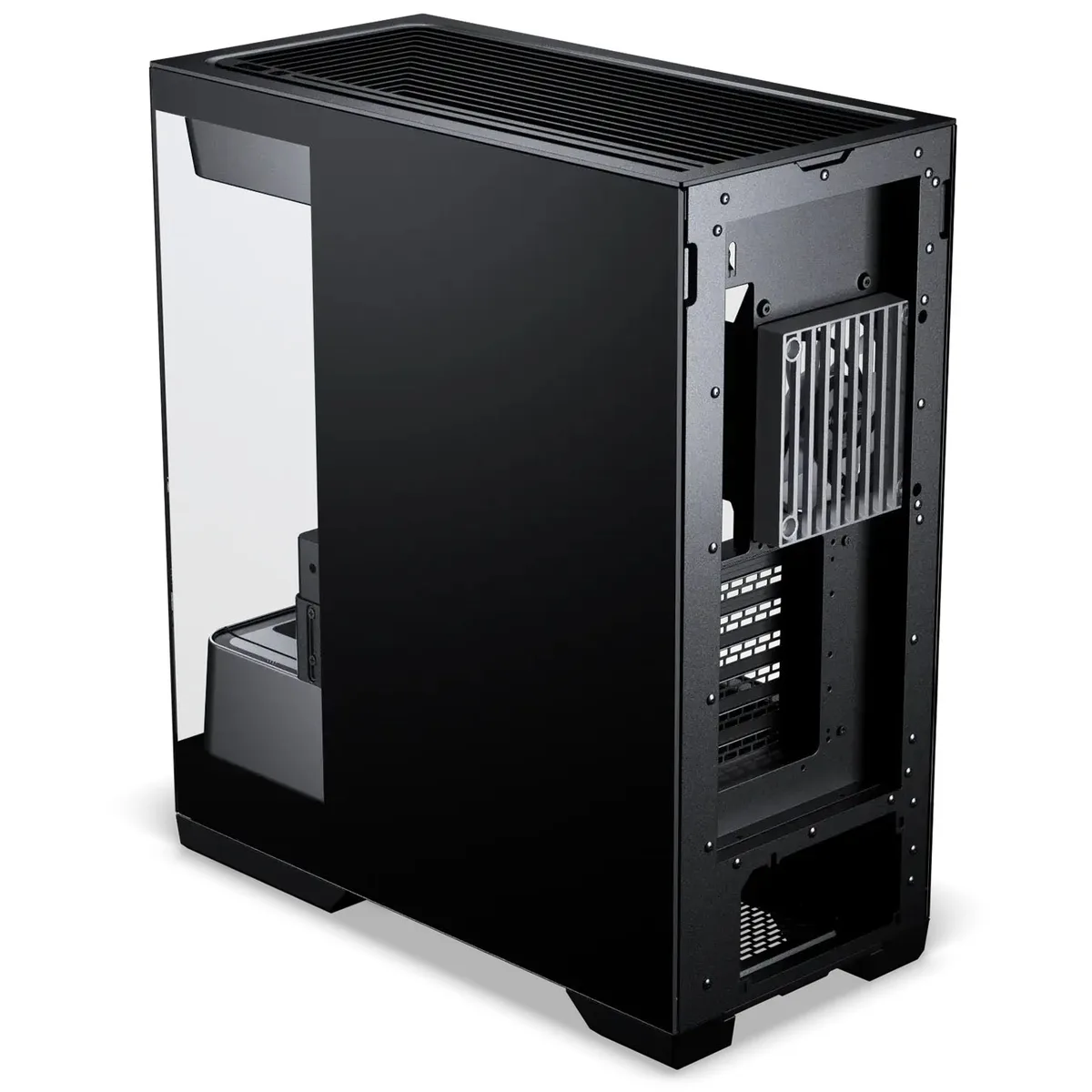

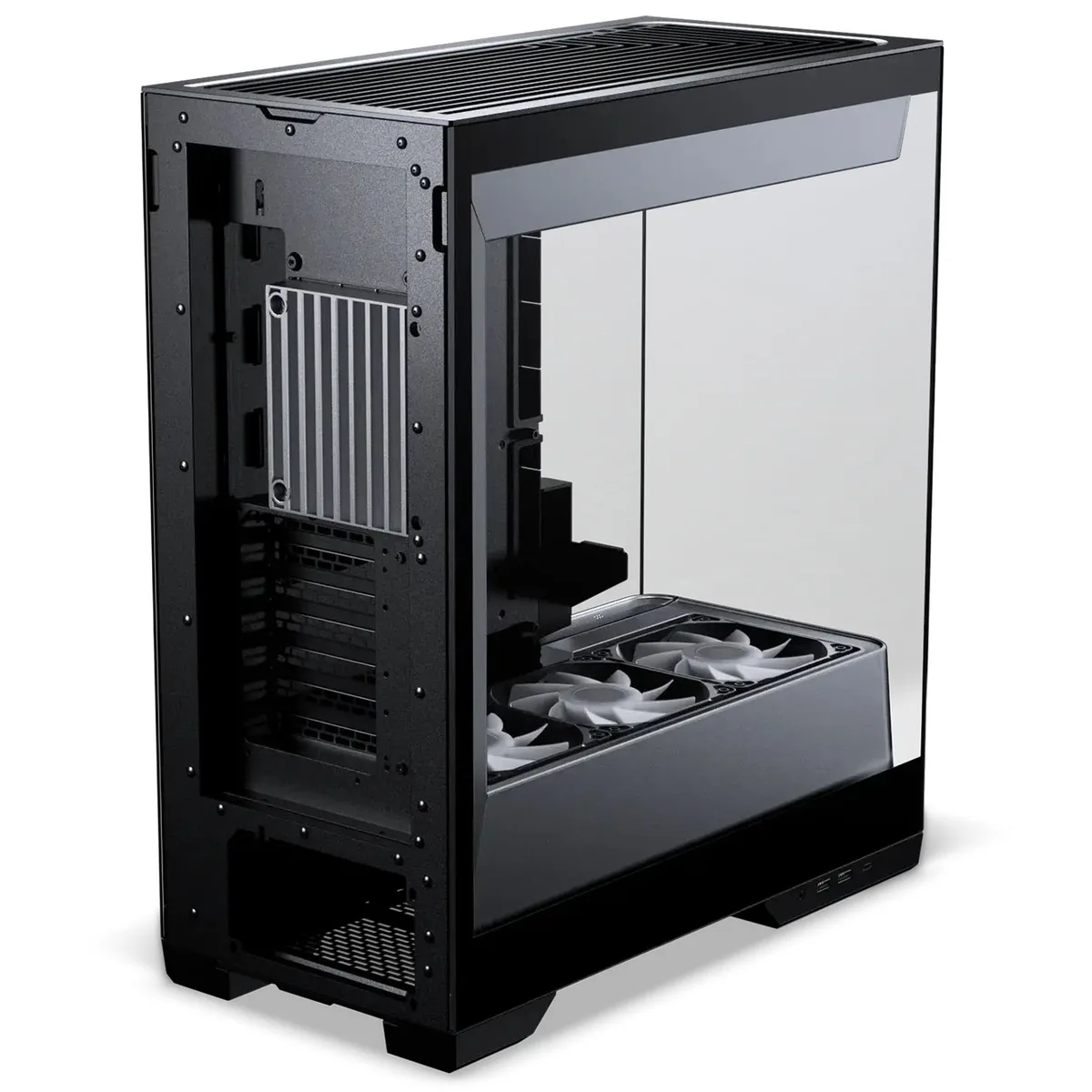

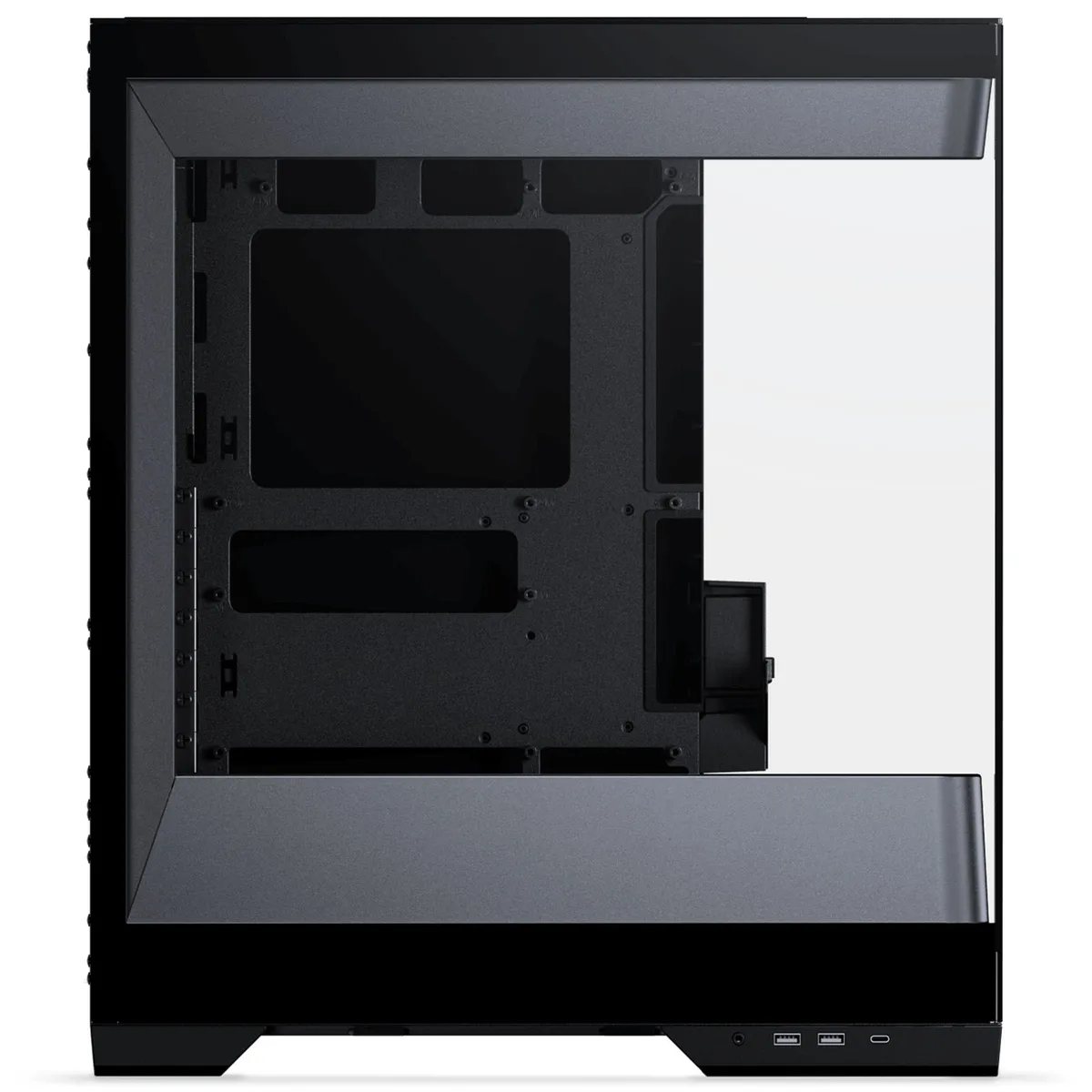

Phanteks Evolv Series S2 Case - Silver Black
MPN: PH-ES524S2_DBK01
Key specifications
Max GPU395.0 mm
Max Cooler175.0 mm
Max PSU210.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKProduct link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 395.0mm GPU clearance.
Supports up to 175.0mm CPU cooler height.
Related Products
Full Specifications58 fields
Additional Contents
Included Fans
4x 120 mm
Additional Information
Model Number
PH-ES524S2_DBK01
Gtin
0886523303749
Back Connect
Back Connect
Yes
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Side
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Connectivity
Card Reader
No
Dimensions
Length Depth
455 mm
Width
230 mm
Height
525 mm
Weight
9.9 kg
Display
Display Included
No

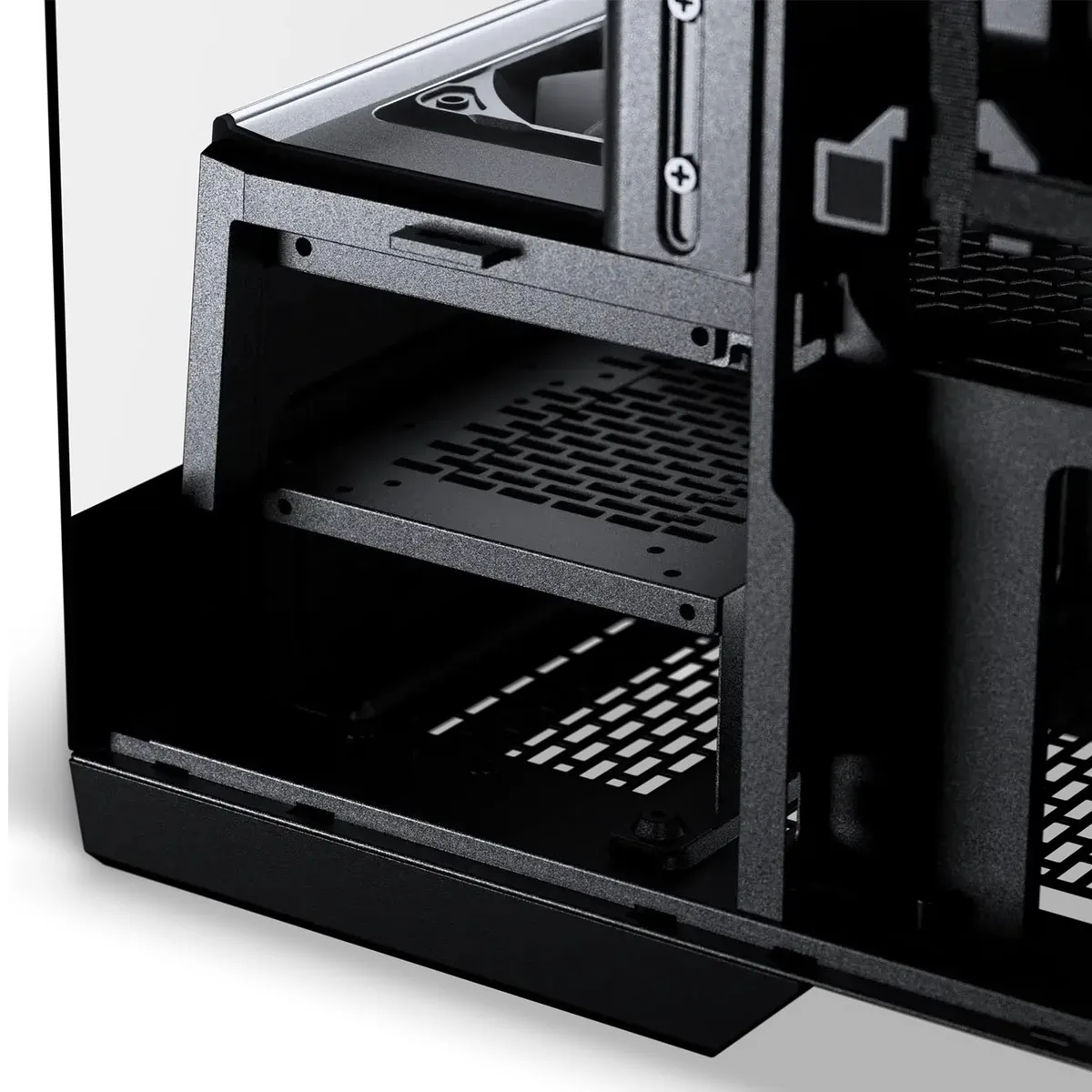

Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Usb 3 1 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No

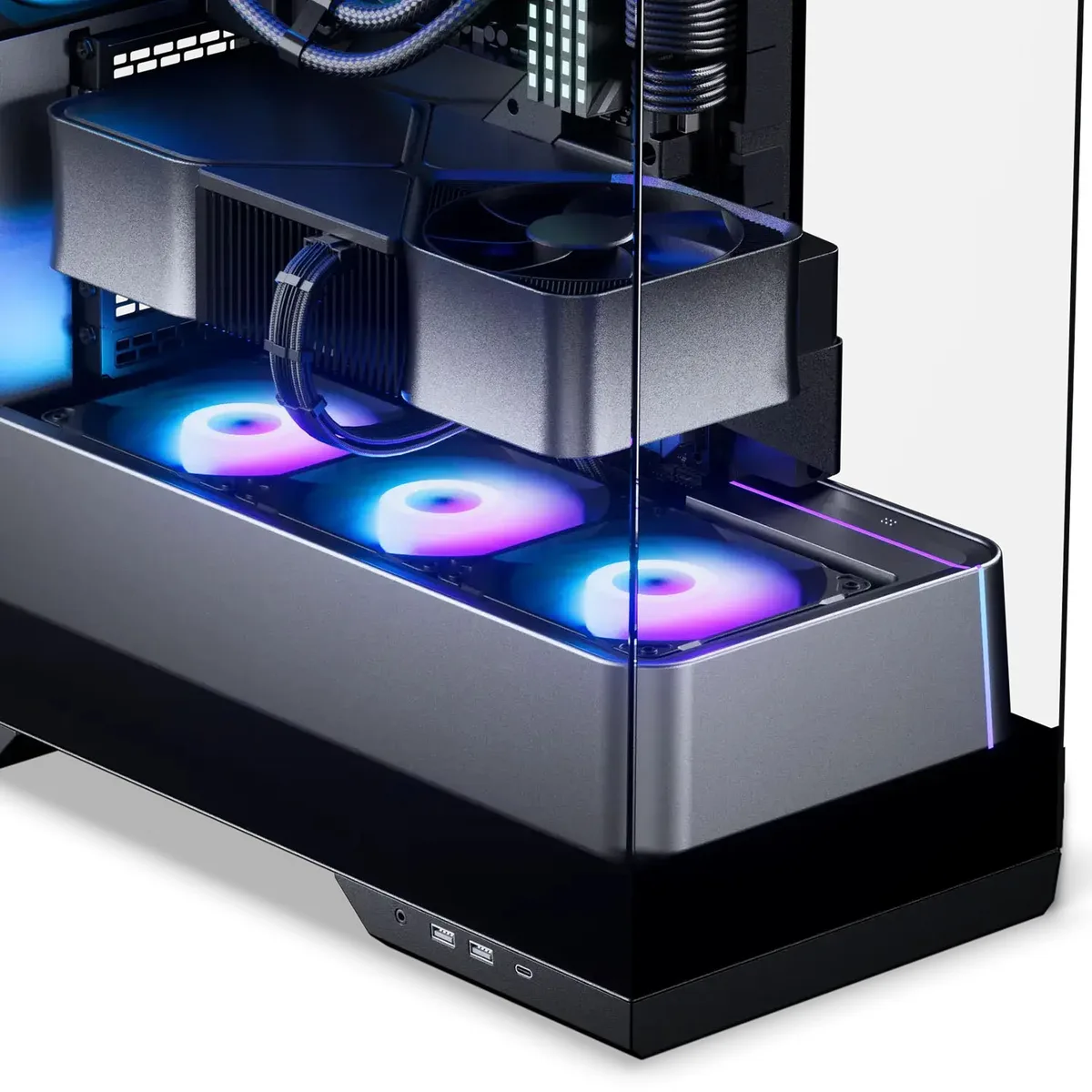

Fan Support
Case Fan Support Bottom
120mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
7
Case Fan Support Top
120mm Fan (3x)
120 Mm Fans
7
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
175 mm
Max Gpu Length
395 mm
Max Psu Length Depth
210 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
No
Rgb Type
ARGB / DRGB
Materials
Materials
ABS, Steel, Tempered Glass
Motherboard Support
Max Motherboard Format
E-ATX
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Max Radiator Compatibility
1x Triple (360 mm)
Radiator Aio Support Top
360mm Radiator
