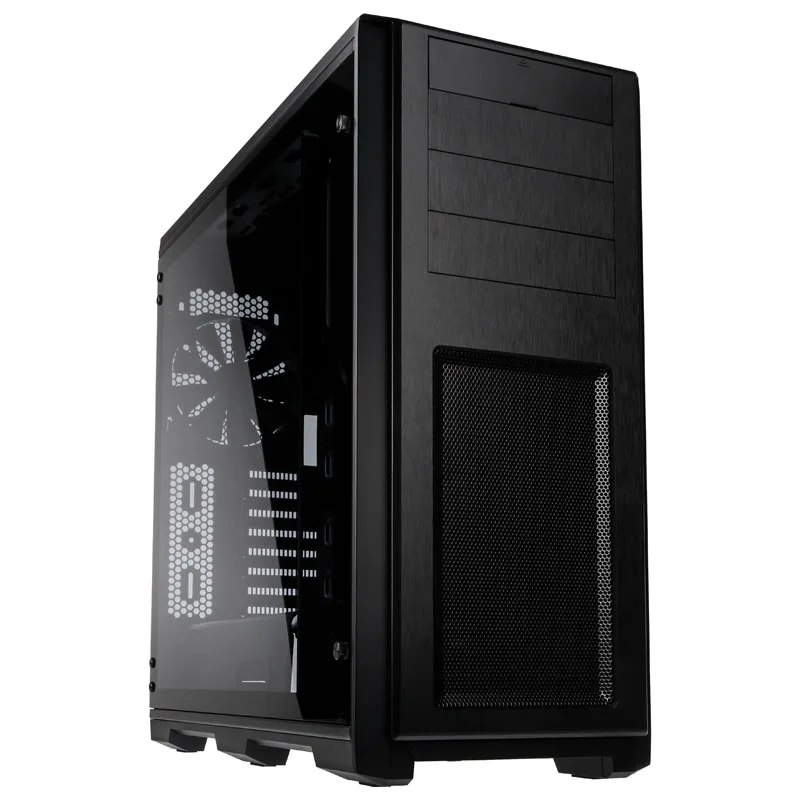

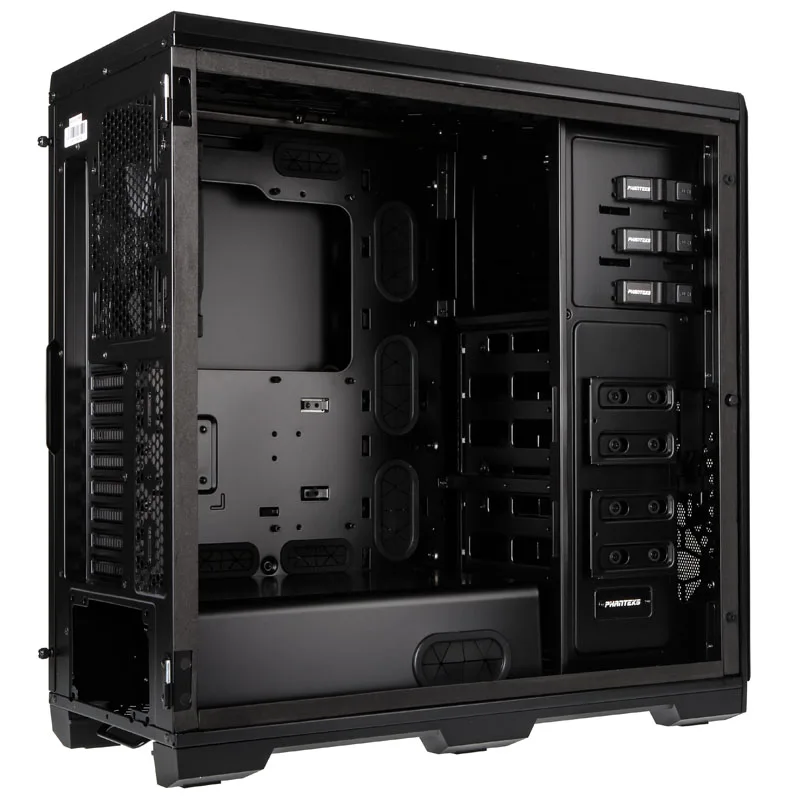

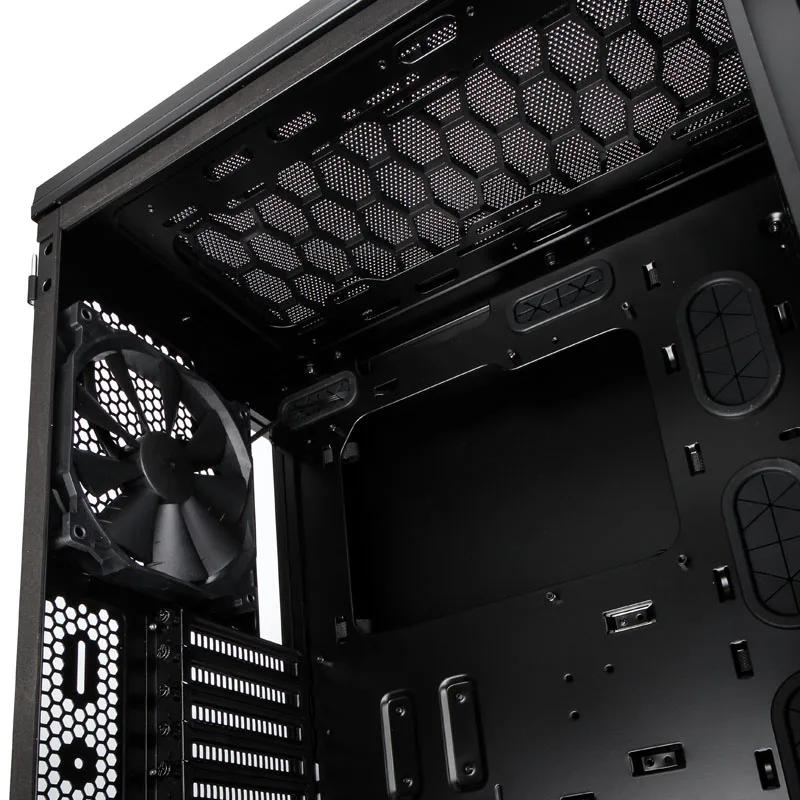

Phanteks Enthoo Pro Glass Midi Tower Case - Black
£158.29
Model: PH-ES614PTG_BK
Technical Specifications75 specs
Additional Contents
Fans Included
Yes
Included Fans
2x 140 mm
Additional Information
Model Number
PH-ES614PTG_BK
Gtin
0886523301288
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front

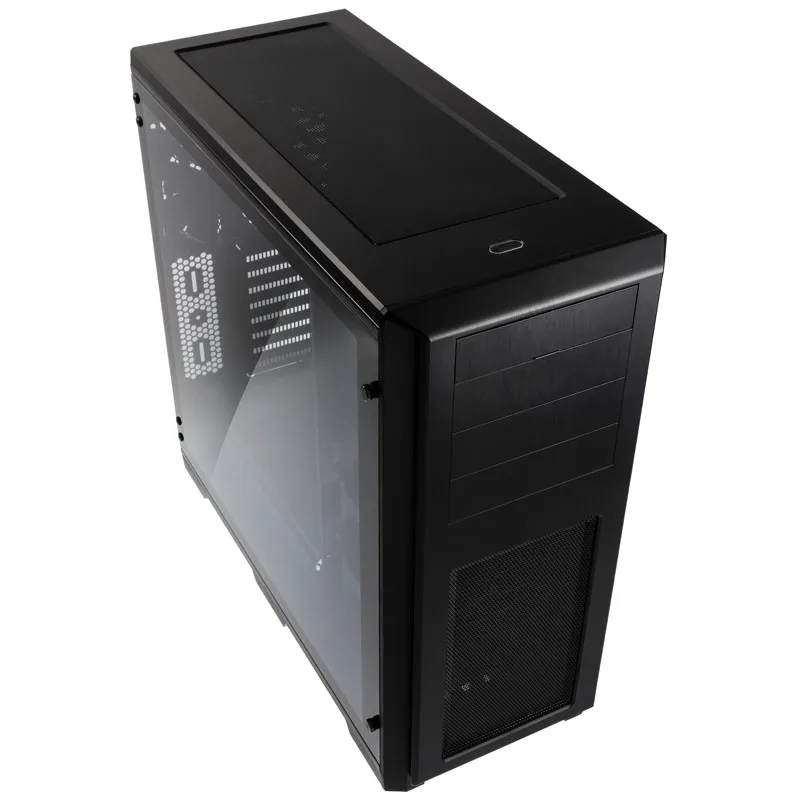

Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No

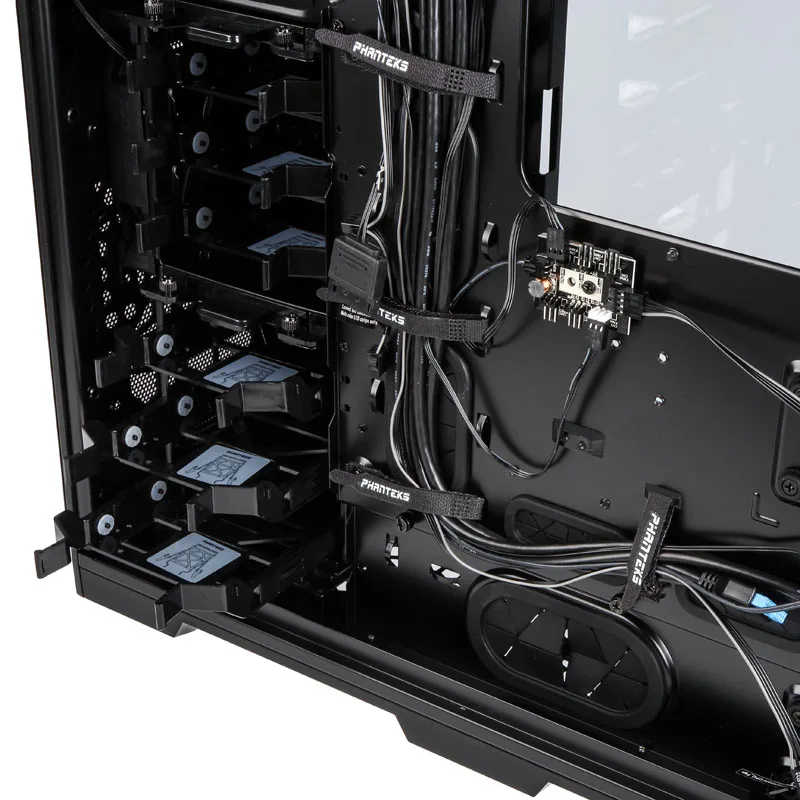

Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom, Front
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Colour
Primary Colour
Black
Fan Main Colour Frame
Black
Fan Main Colour Rotor
Black
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
550 mm
Width
235 mm
Height
535 mm
Weight
11 kg
Display
Display Included
No

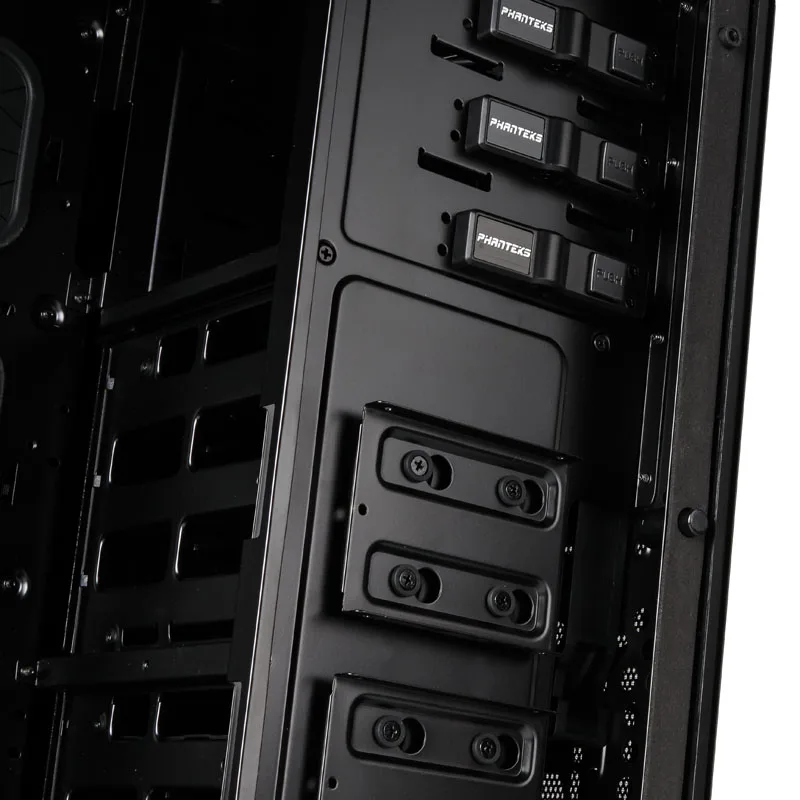

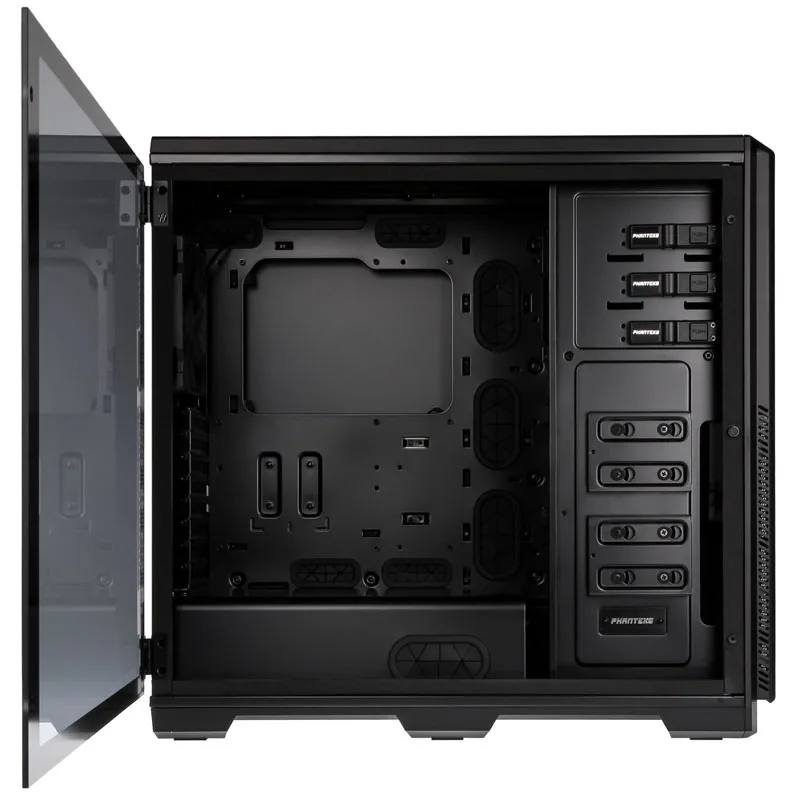

Drive Bays
Max 2 5 Inch Drives
11
Max 3 5 Inch Drives
6
Max 5 25 Inch Drives
3
2 5 Inch Internal Drive Bay
10
3 5 Inch Internal Drive Bay
6
5 25 Inch External Drive Bay
3
Hot Swap Drive Bays
No

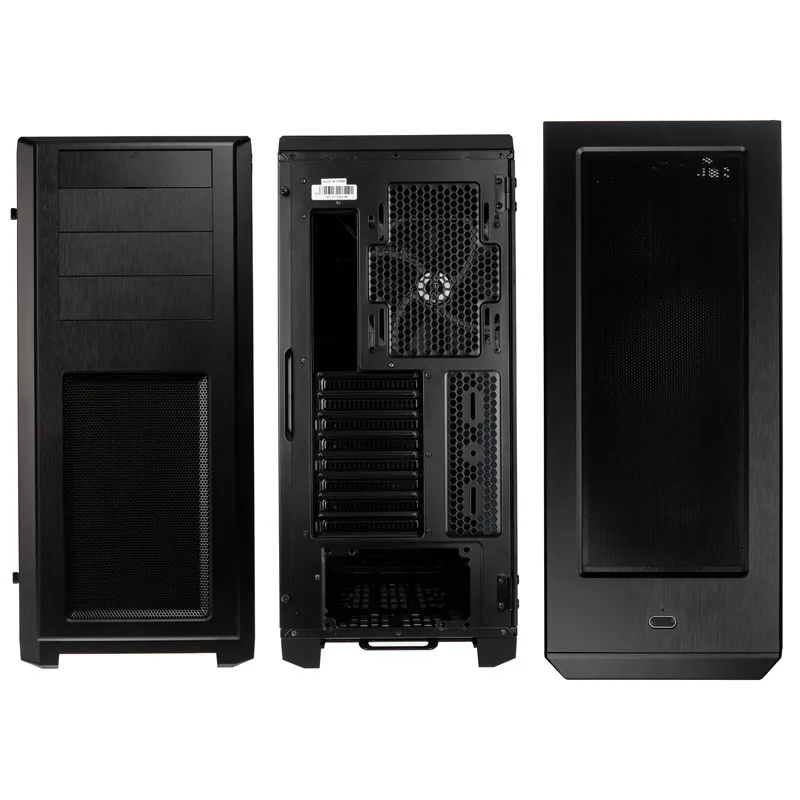

Expansion Slots
Expansion Slots Pci Slots
8

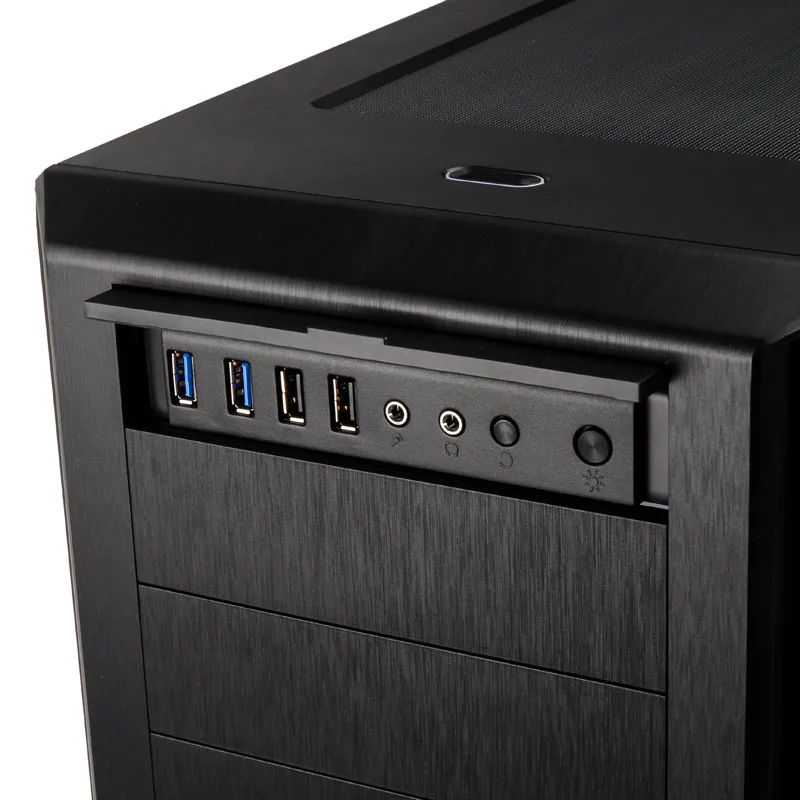

External Ports
Front I O Usb Type A Ports Total
2
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
Yes
3 Pin Fan Connectors
6
Fan Support
Case Fan Support Bottom
120mm Fan (2x), 140mm Fan (1x)
Max Number Of Fans
10
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x), 200mm Fan (1x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Front
120mm Fan (2x), 140mm Fan (2x), 200mm Fan (1x)
120 Mm Fans
10
140 Mm Fans
7
200 Mm Fans
2
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
185 mm
Max Gpu Length
472 mm
Max Psu Length Depth
318 mm
Lighting
Lighting Rgb
Yes
Rgb Controller
Yes
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Materials
Materials
Plastic, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX, SSI-EEB
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
Enthoo Pro
Radiator Support
Radiator Aio Support Front
120mm Radiator, 140mm Radiator, 240mm Radiator
Radiator Aio Support Bottom
120mm Radiator, 140mm Radiator, 240mm Radiator
Radiator Aio Support Rear
120mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 2x Dual (240 mm), 1x Triple (420 mm)
Radiator Aio Support Top
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
