CasesPhanteks

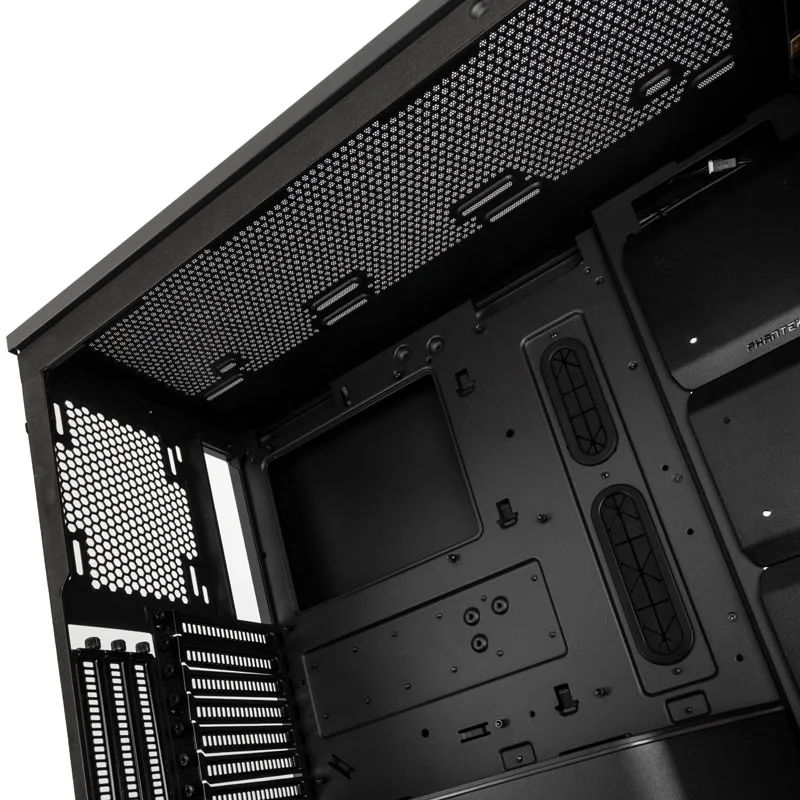

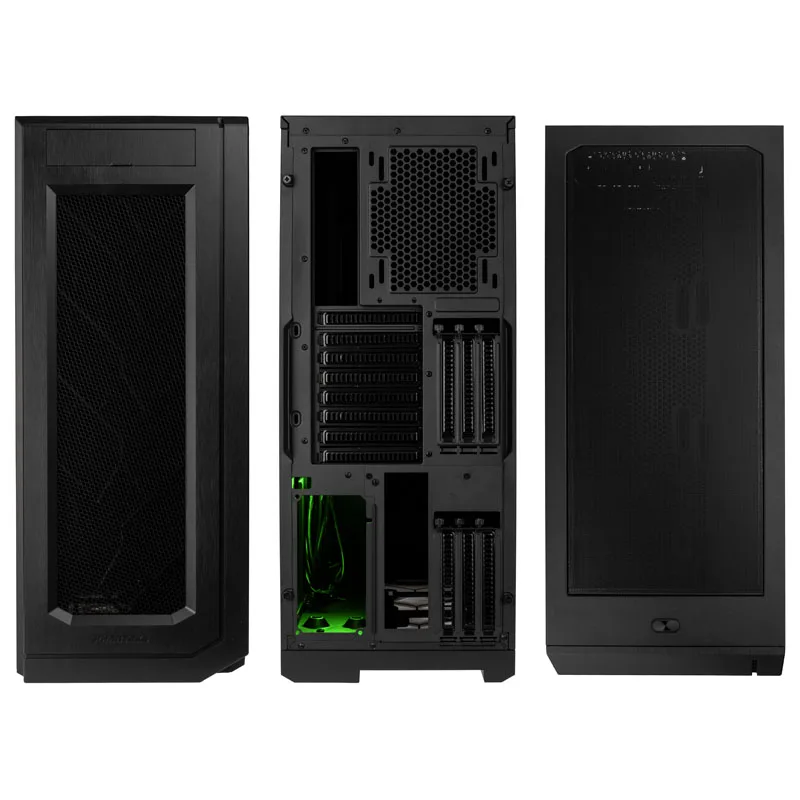

Phanteks Enthoo Pro 2 Full Tower Case Tempered Glass Window DRGB Satin Black
£172.89
Model: PH-ES620PTG_DBK01
Technical Specifications75 specs
Additional Contents
Fans Included
No
Included Fans
None
Additional Information
Model Number
PH-ES620PTG_DBK01
Gtin
0886523301950
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Full Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
Yes
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom, Side, Front
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Colour
Primary Colour
Black
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
560 mm
Width
240 mm
Height
580 mm
Weight
13 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
11
Max 3 5 Inch Drives
12
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
11
3 5 Inch Internal Drive Bay
12
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
8
Pci Slot Allocation
8 + 3
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
4
Usb 3 1 External Type C
1
Usb 3 0 External Type A
4
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (1x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Side
120mm Fan (4x)
Max Number Of Fans
15
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Front
120mm Fan (4x), 140mm Fan (3x)
120 Mm Fans
15
140 Mm Fans
8
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
195 mm
Max Gpu Length
503 mm
Lighting
Lighting Rgb
Yes
Fan Rgb Control
Yes
Rgb Controller
Yes
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Lighting Compatibility
ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, BIOSTAR Vivid LED DJ, ASRock Polychrome Sync
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX, XL-ATX, SSI-EEB
Max Motherboard Format
SSI-EEB
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear top
Product Series
Product Series Family
Enthoo Pro
Radiator Support
Max Radiator Compatibility
360
Radiator Aio Support Front
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator, 480mm Radiator
Radiator Aio Support Bottom
120mm Radiator, 240mm Radiator, 360mm Radiator
Radiator Aio Support Side
120mm Radiator, 240mm Radiator, 360mm Radiator, 480mm Radiator
Radiator Aio Support Top
120mm Radiator, 240mm Radiator, 360mm Radiator
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
