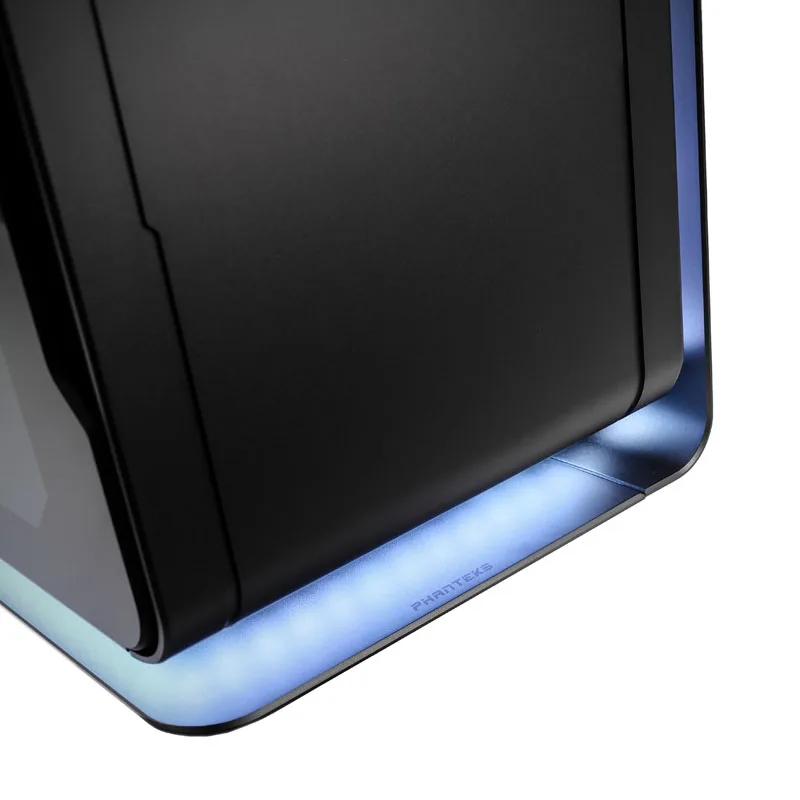

Phanteks Enthoo Elite Super Tower Case - Black
£909.57
Model: PH-ES916E_BK
Technical Specifications82 specs
Additional Contents
Fans Included
Yes
Included Fans
5x 140 mm
Additional Information
Model Number
PH-ES916E_BK
Gtin
0886523301233
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
Yes
Case
Case Type
Full Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
Yes
Adjustable Vertical Gpu Bracket
No
Front Door
No

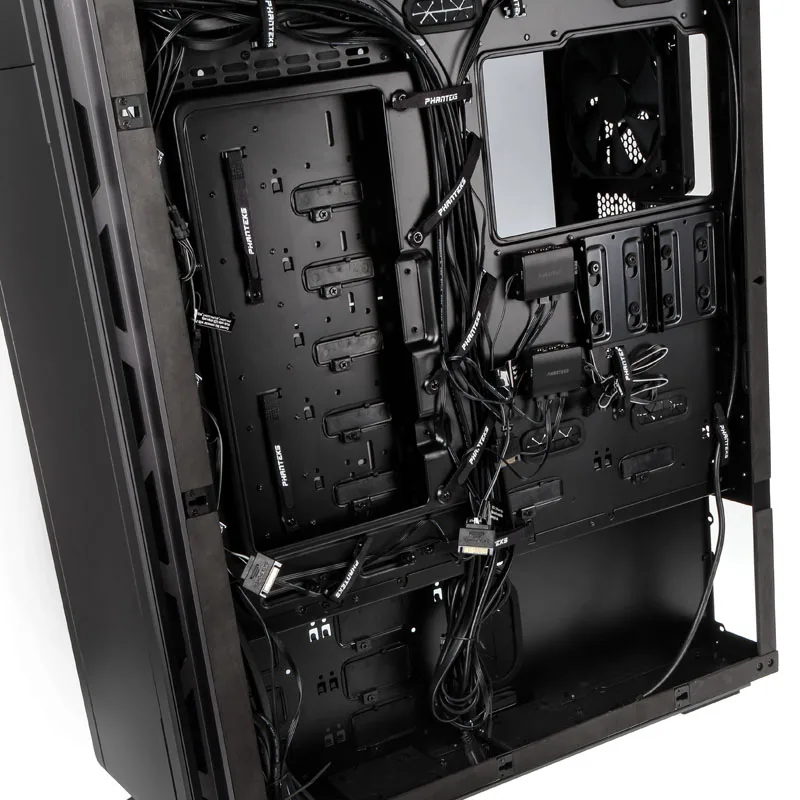

Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Side, Front
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Colour
Primary Colour
Black
Secondary Colour
Red
Fan Main Colour Frame
Black
Fan Main Colour Rotor
Black
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
615 mm
Width
270 mm
Height
750 mm
Weight
33 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
6
Max 3 5 Inch Drives
13
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
6
3 5 Inch Internal Drive Bay
13
5 25 Inch External Drive Bay
1
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
10
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
4
Usb 3 1 External Type C
1
Usb 3 0 External Type A
4
Audio Outputs Inputs
2x output + 2x input (3.5 mm jack, 3-pin, TRS)
Card Reader
No
Hdmi Sockets
1x
Fan Header
Fan Controller Fan Hub
Yes
4 Pin Fan Connectors
12
Fan Support
Case Fan Support Rear
120mm Fan (2x), 140mm Fan (2x)
Max Number Of Fans
20
Case Fan Support Top
120mm Fan (4x), 140mm Fan (3x)
Case Fan Support Bottom
120mm Fan (4x), 140mm Fan (3x)
Case Fan Support Side
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Front
120mm Fan (4x), 140mm Fan (3x)
120 Mm Fans
20
140 Mm Fans
17
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
210 mm
Max Gpu Length
554 mm
Max Psu Length Depth
291 mm
Lighting
Lighting Rgb
Yes
Fan Rgb Control
Yes
Rgb Controller
Yes
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Lighting Compatibility
ASUS Aura Sync, MSI Mystic Light Sync
Materials
Materials
Anodised aluminium, Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX, SSI-EEB
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
Enthoo Elite
Radiator Support
Radiator Aio Support Front
480mm Radiator, 560mm Radiator
Radiator Aio Support Bottom
420mm Radiator, 480mm Radiator
Radiator Aio Support Top
420mm Radiator, 480mm Radiator
Max Radiator Compatibility
1x Single (140 mm), 4x Triple (360 mm), 3x Quad (480 mm)
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
Radiator Aio Support Side
240mm Radiator, 360mm Radiator
