CasesPhanteks

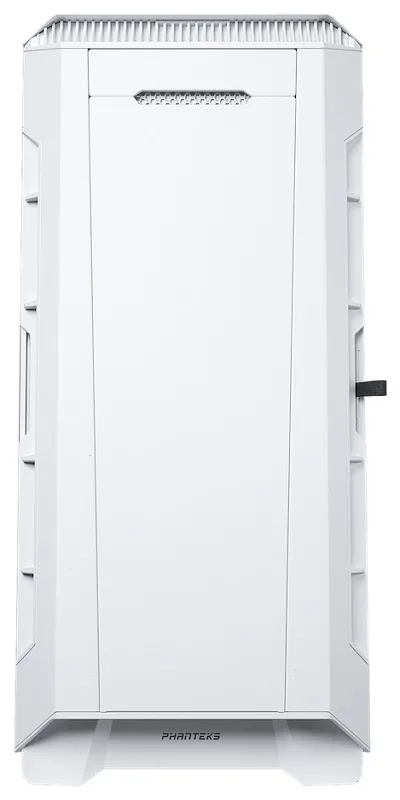

Phanteks Eclipse P600S Matte White Mid-Tower
MPN: PH-EC600PSTG_DMW01
Key specifications
Max GPU435.0 mm
Max Cooler190.0 mm
Max PSU195.0 mm
Form factorUnknown
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 435.0mm GPU clearance.
Supports up to 190.0mm CPU cooler height.
Full Specifications73 fields
Additional Contents
Fans Included
Yes

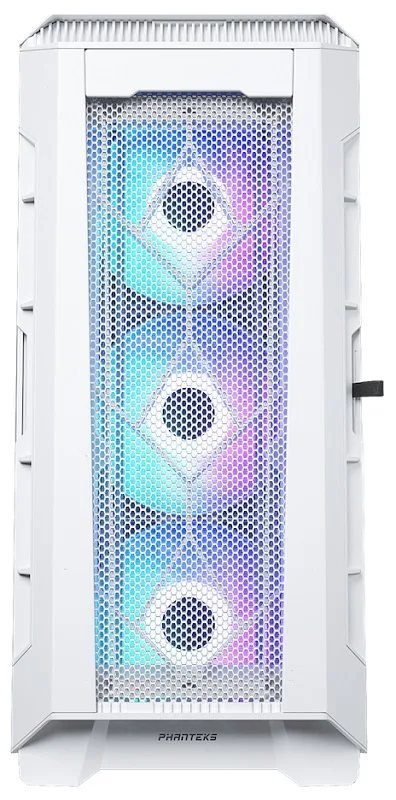

Included Fans
3x 140 mm
Additional Information
Model Number
PH-EC600PSTG_DMW01
Gtin
0886523302377
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front

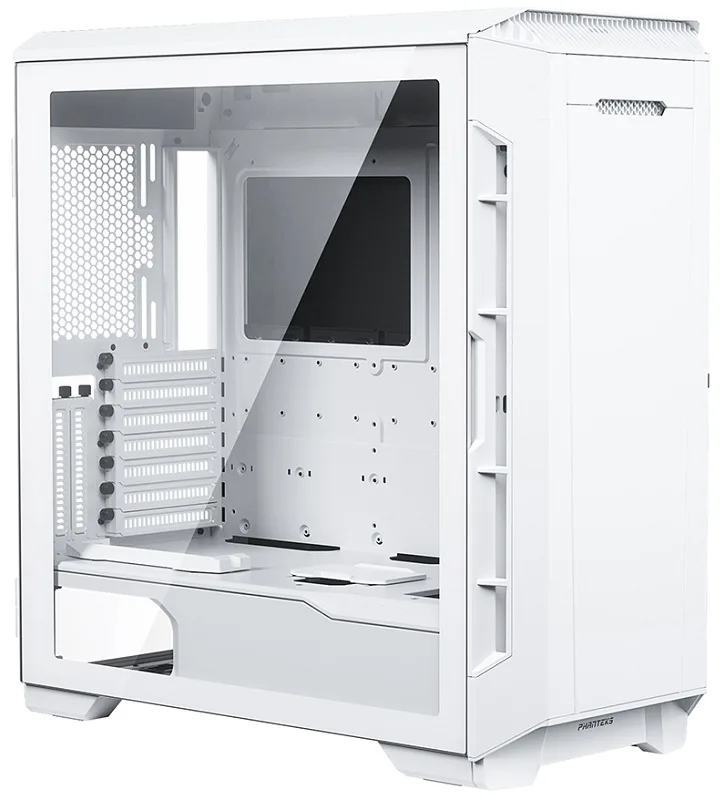

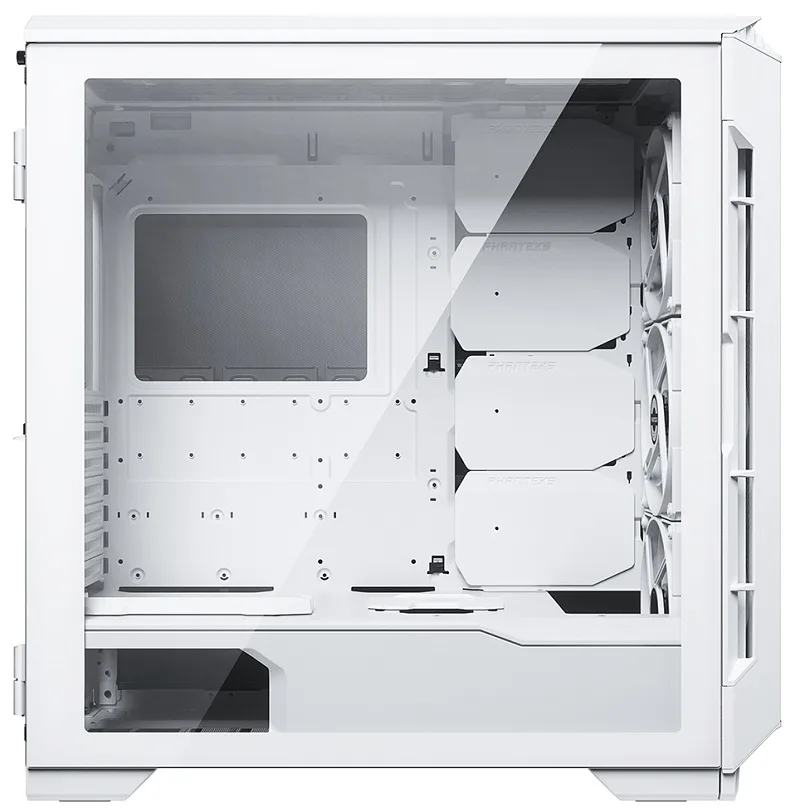

Side Panel
with window
Vertical Gpu Mount
Yes
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes

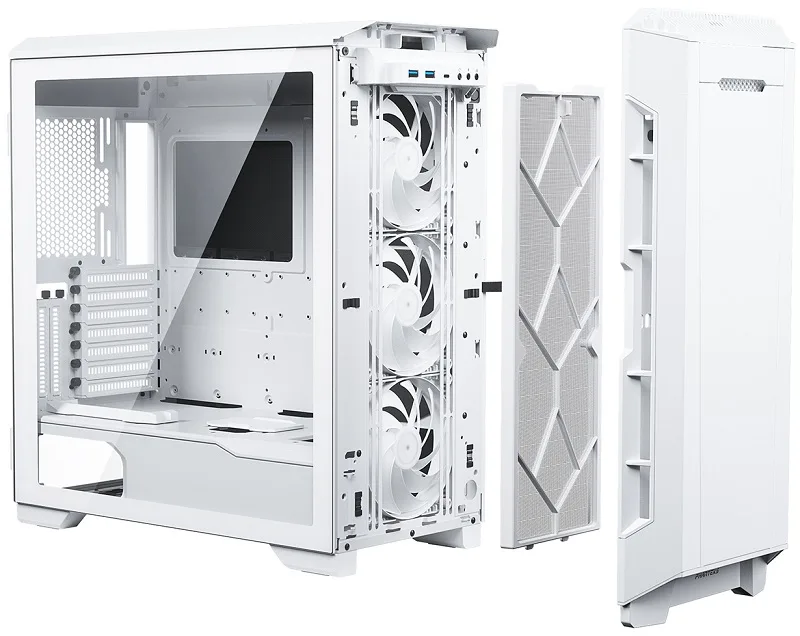

Filters Included
Yes
Filter Position
Bottom, Front
Noise Dampening
Yes
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Colour
Primary Colour
White
Secondary Colour
Black
Fan Main Colour Frame
White
Fan Main Colour Rotor
White
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
510 mm
Width
240 mm
Height
520 mm
Weight
13.5 kg
Display
Display Included
No

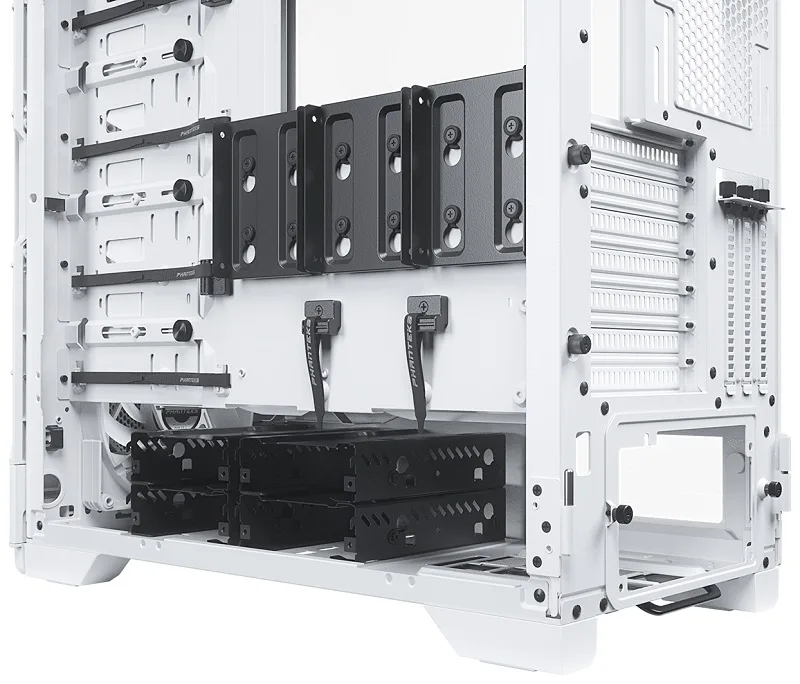

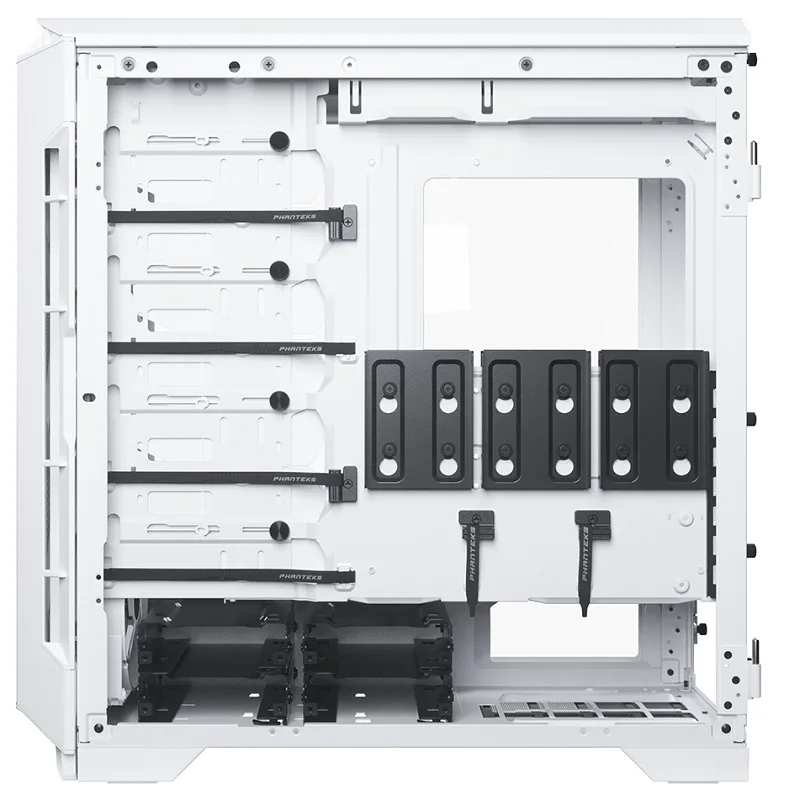

Drive Bays
Max 2 5 Inch Drives
3
Max 3 5 Inch Drives
10
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
3
3 5 Inch Internal Drive Bay
4
Hot Swap Drive Bays
No

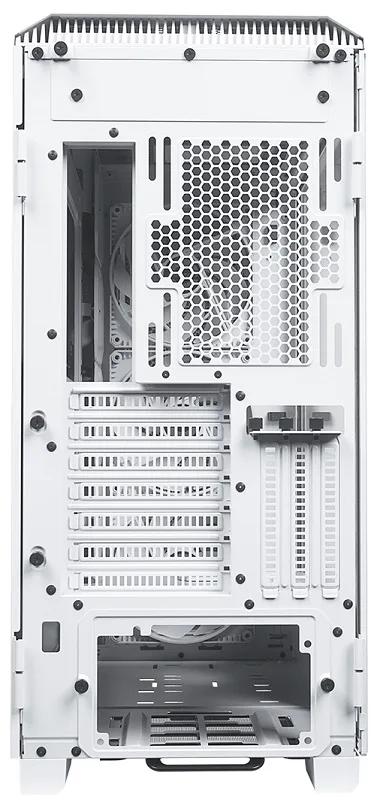

Expansion Slots
Expansion Slots Pci Slots
10
Pci Slot Allocation
7 + 3

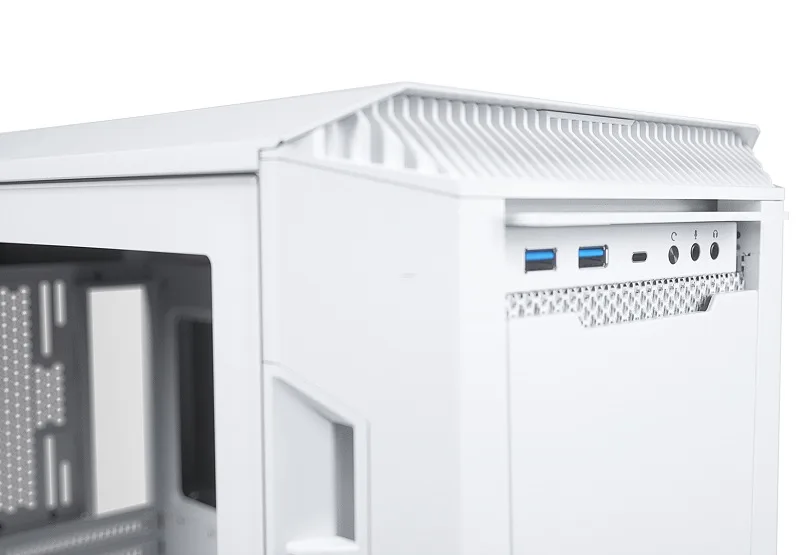

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
Yes
3 Pin Fan Connectors
3
4 Pin Fan Connectors
4
Fan Support
Max Number Of Fans
7
Case Fan Support Front
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
120 Mm Fans
7
140 Mm Fans
6
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
190 mm
Max Gpu Length
435 mm
Max Psu Length Depth
195 mm
Lighting
Lighting Rgb
No
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX, SFX
Power Supply Position
rear bottom
Product Series
Product Series Family
Eclipse
Radiator Support
Radiator Aio Support Front
360mm Radiator, 420mm Radiator
Max Radiator Compatibility
1x 120/140 mm, 1x Triple (360 mm), 1x Triple (420 mm)
Radiator Aio Support Rear
120mm Radiator, 140mm Radiator
Radiator Aio Support Top
280mm Radiator, 360mm Radiator
