Phanteks Eclipse G500A D-RGB Mid-tower PC case - Matte White
MPN: PH-EC500GA_DMW01A
Key specifications
Max GPU435.0 mm
Max Cooler185.0 mm
Max PSU250.0 mm
Form factorUnknown
Retailer offers
Amazon UKProduct link
Find on AmazonMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 435.0mm GPU clearance.
Supports up to 185.0mm CPU cooler height.
Related Products
Full Specifications75 fields
Additional Contents

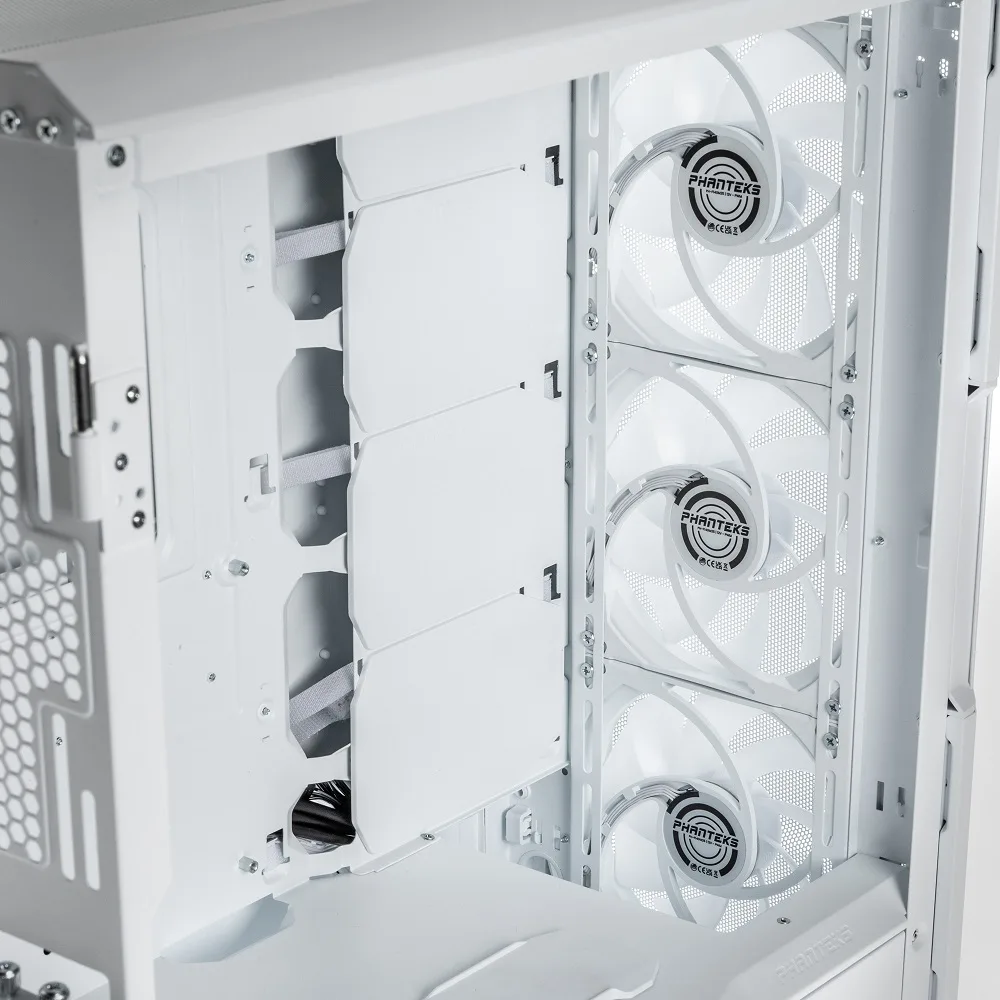

Fans Included
Yes
Included Fans
3x 140 mm
Additional Information
Model Number
PH-EC500GA_DMW01A
Gtin
0886523302629
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No

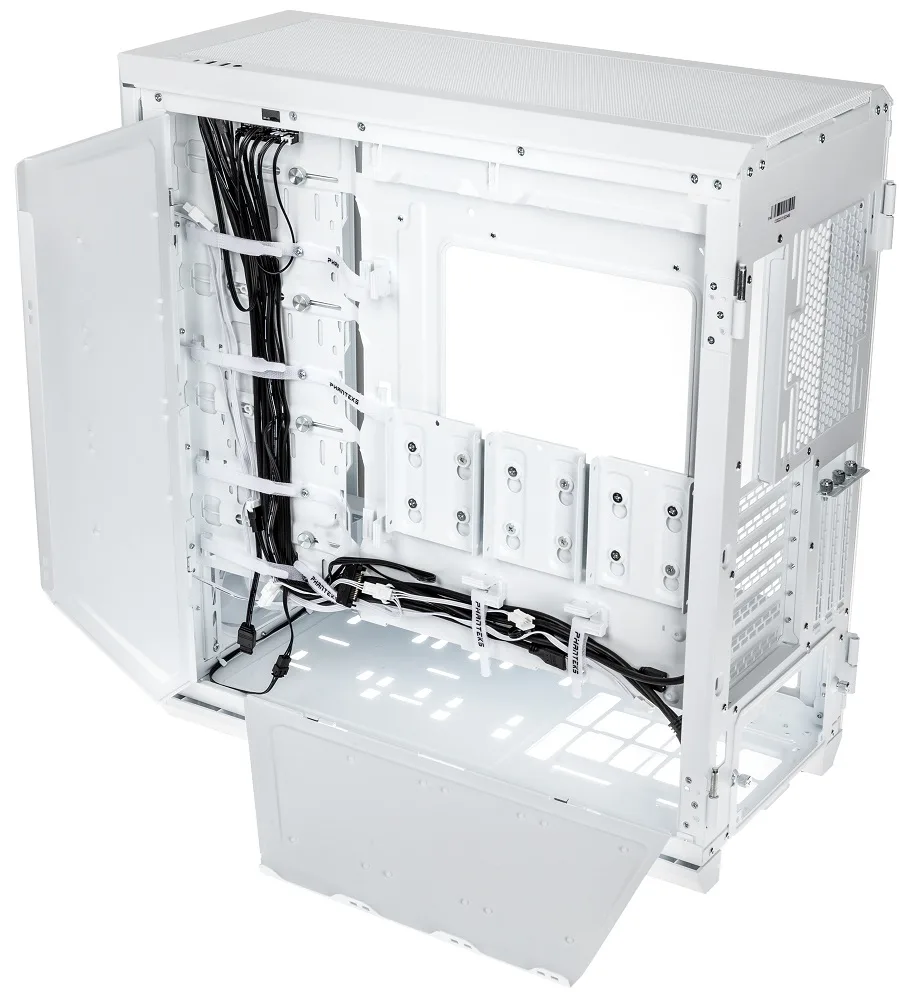

Cable Management
Yes
Filters Included
Yes
Filter Position
Top, Bottom
Noise Dampening
No
Mainboard Slide Tray
No
Remote Included
No
Transport System
No
Colour
Primary Colour
White
Colour Finish
Matt
Secondary Colour
Transparent
Fan Main Colour Frame
White
Fan Main Colour Rotor
White
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
500 mm
Width
240 mm
Height
515 mm
Weight
10.68 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
9
Max 3 5 Inch Drives
10
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
9
3 5 Inch Internal Drive Bay
10
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7

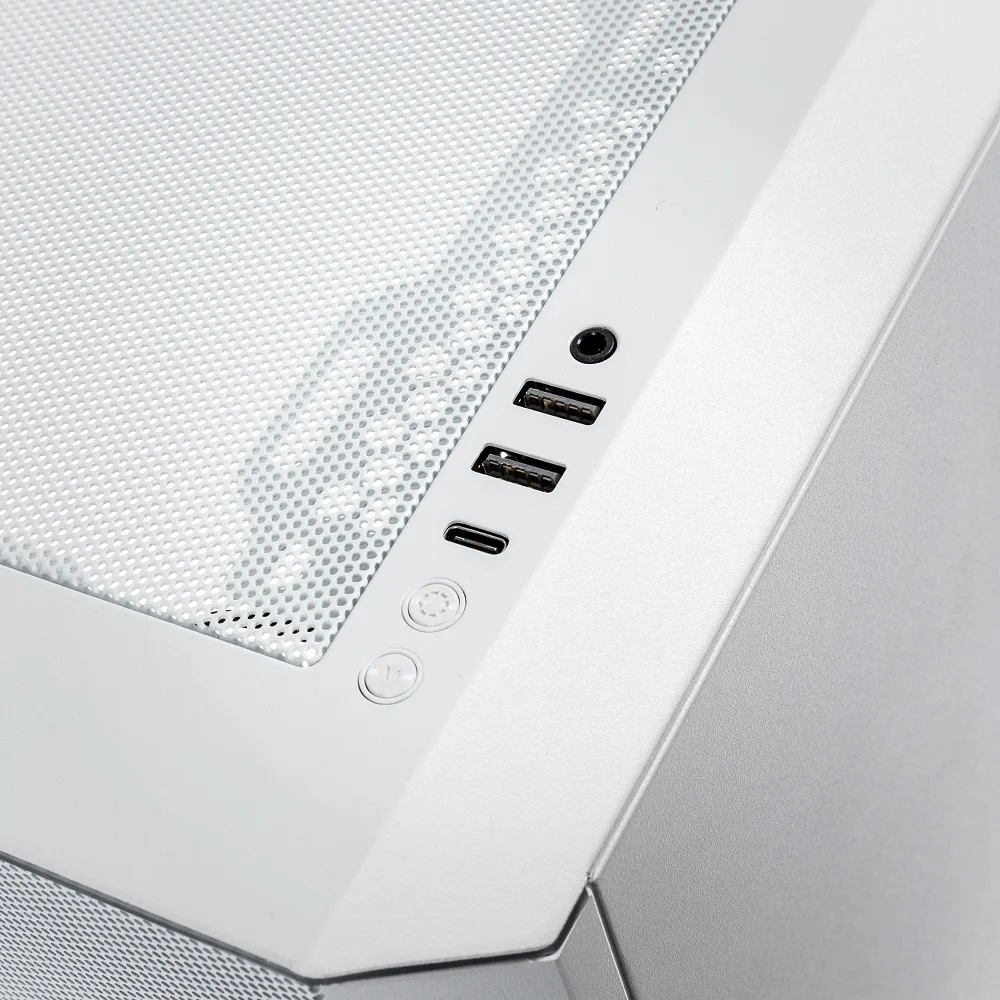

External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Max Number Of Fans
7
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
120 Mm Fans
7
140 Mm Fans
7
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
185 mm
Max Gpu Length
435 mm
Max Psu Length Depth
250 mm
Lighting
Lighting Rgb
Yes
Fan Rgb Control
Yes
Rgb Controller
Yes
Rgb Type
ARGB / DRGB
Lighting Colour
RGB
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Product Series
Product Series Family
Eclipse
Radiator Support
Radiator Aio Support Front
360mm Radiator, 420mm Radiator
Radiator Aio Support Top
280mm Radiator, 360mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Dual (280 mm), 2x Triple (360 mm), 1x Triple (420 mm)
Radiator Aio Support Rear
120mm Radiator
