CasesPhanteks

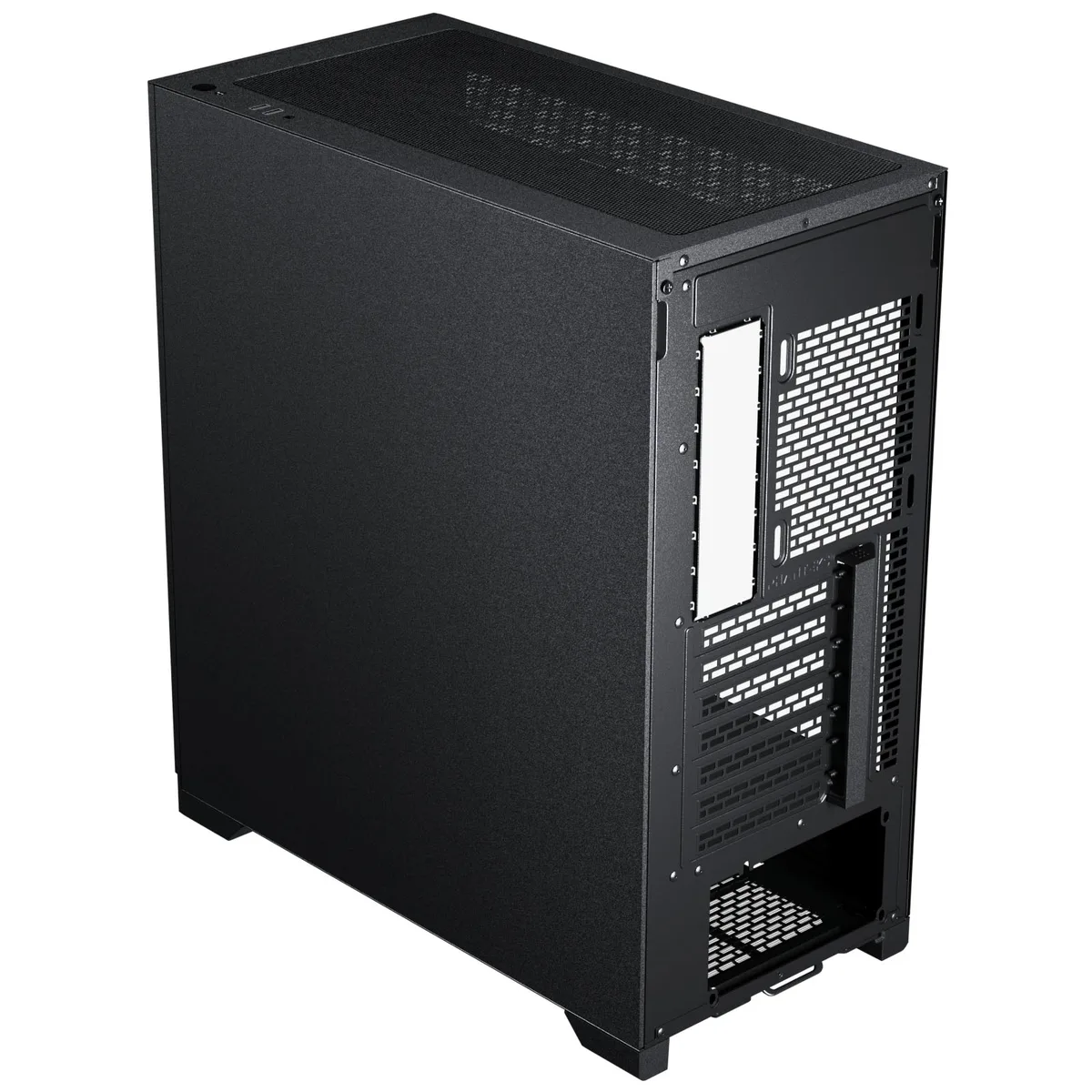

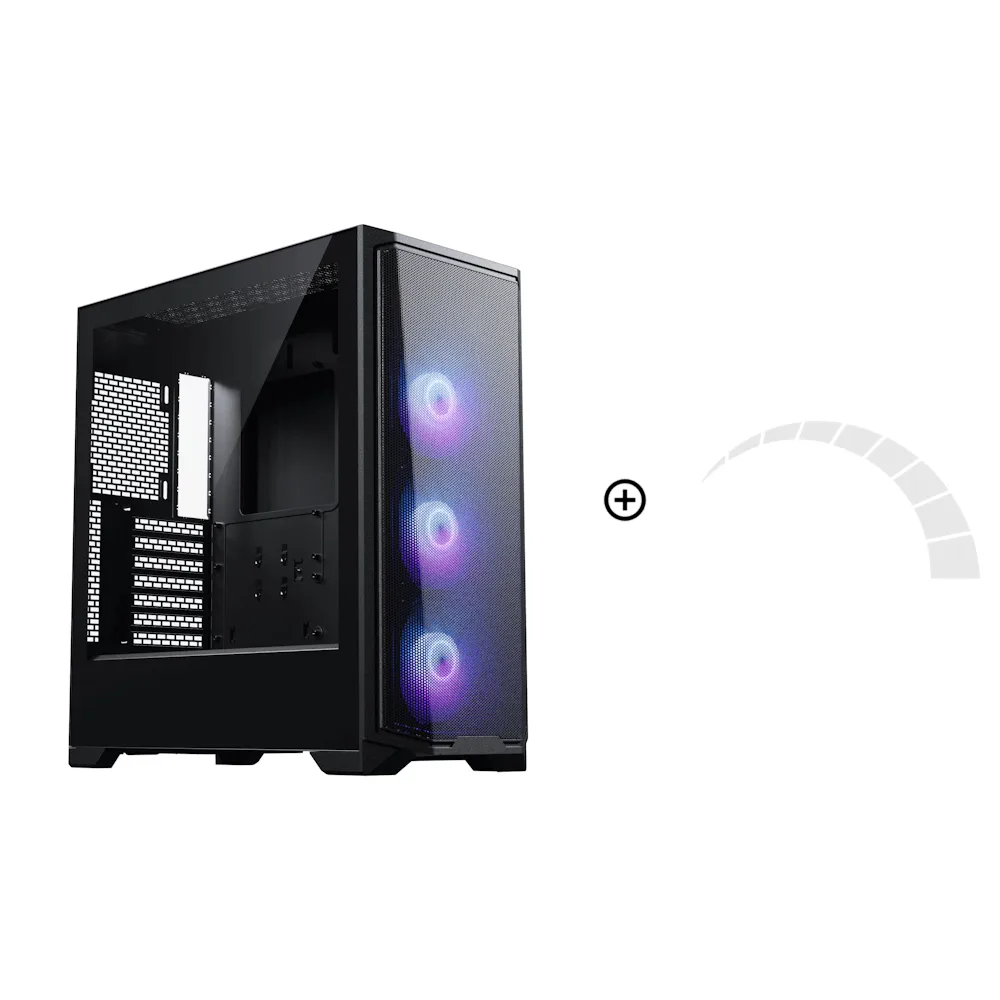

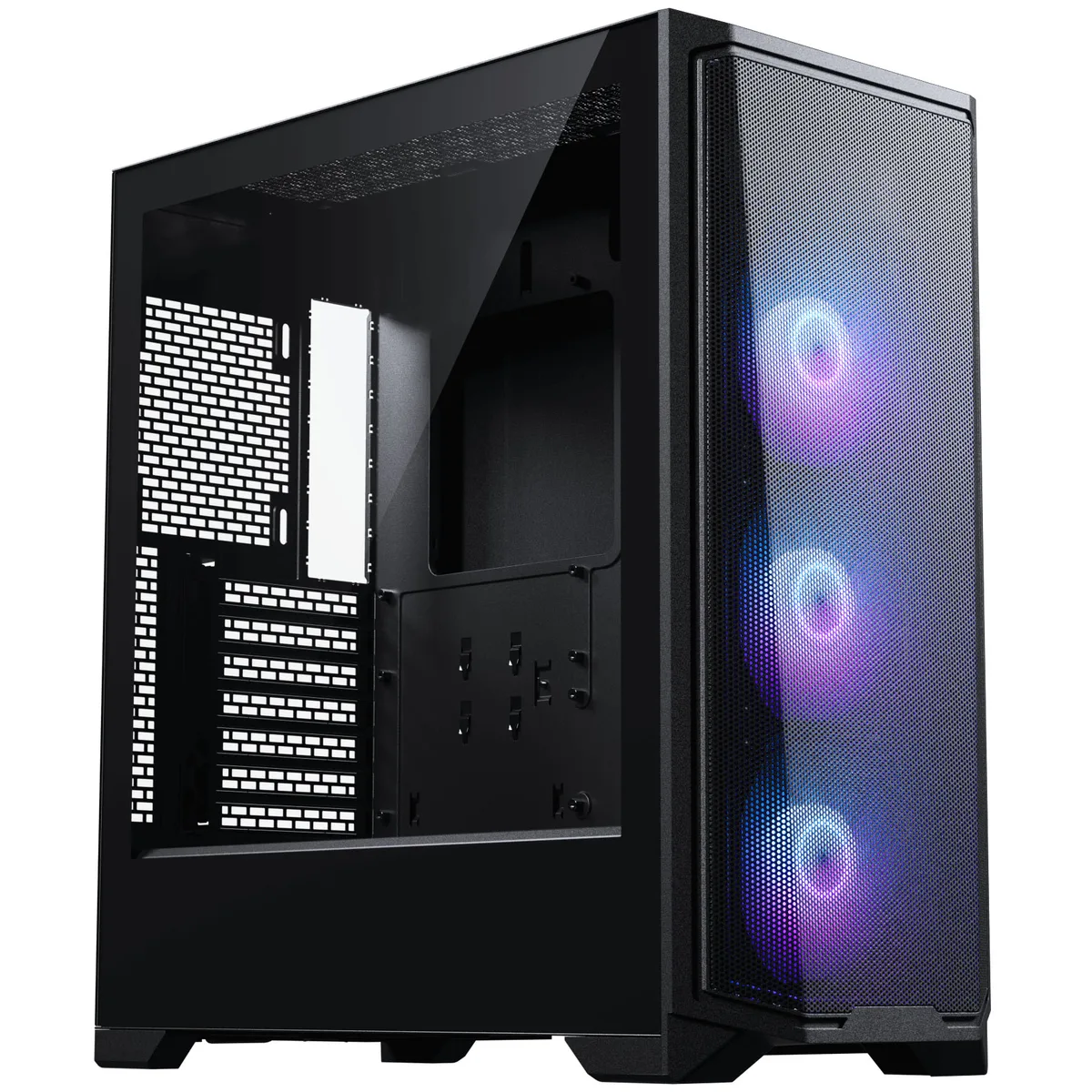

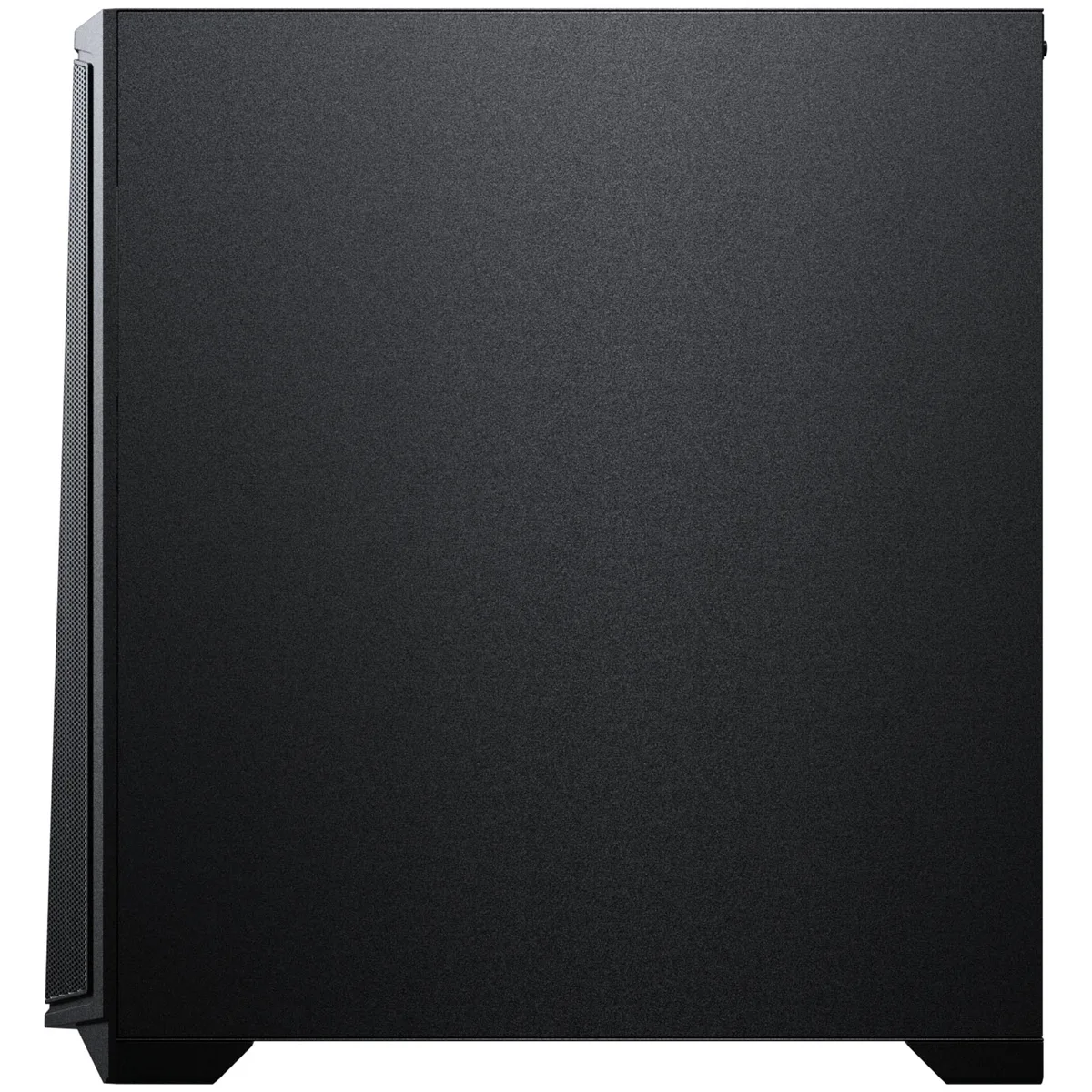

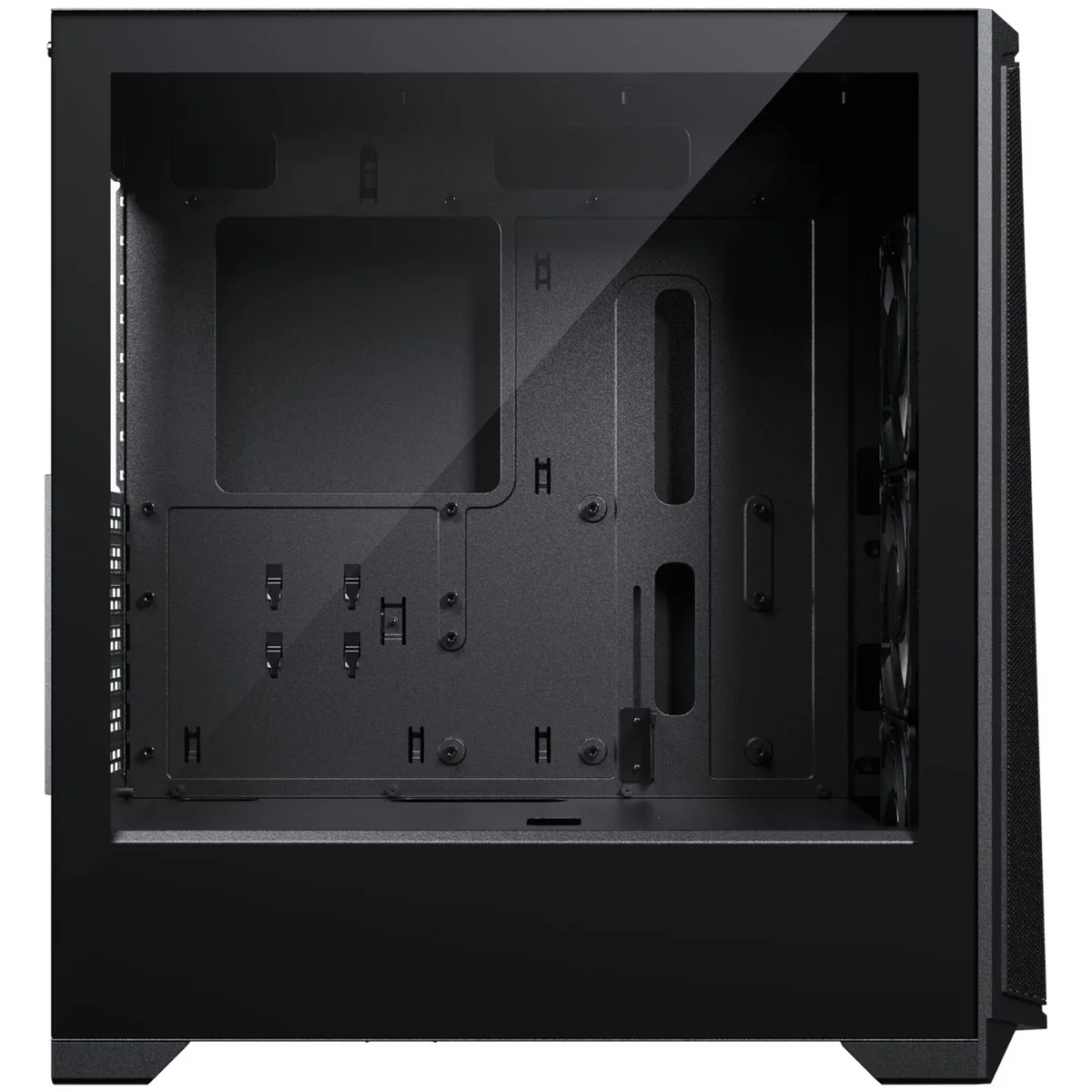

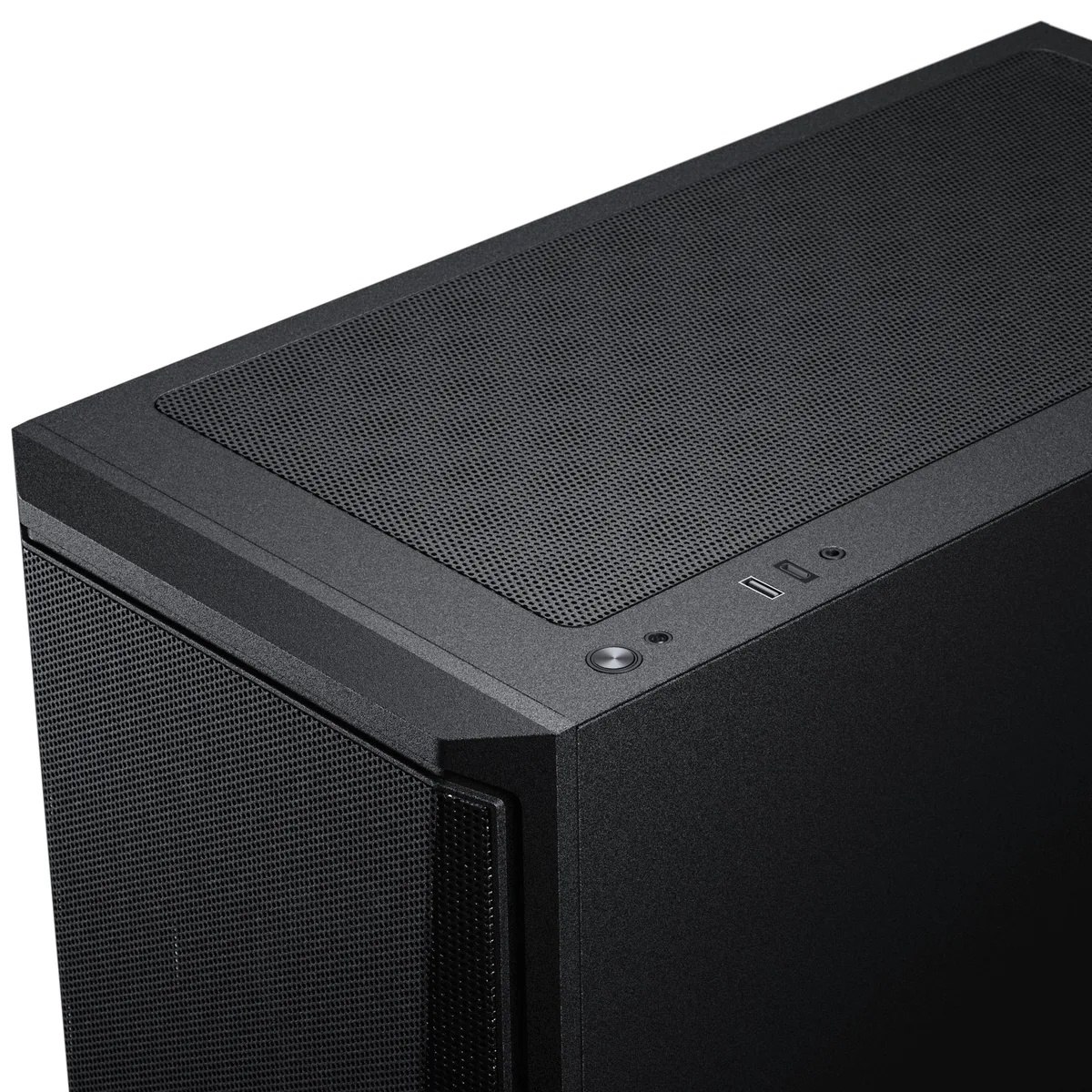

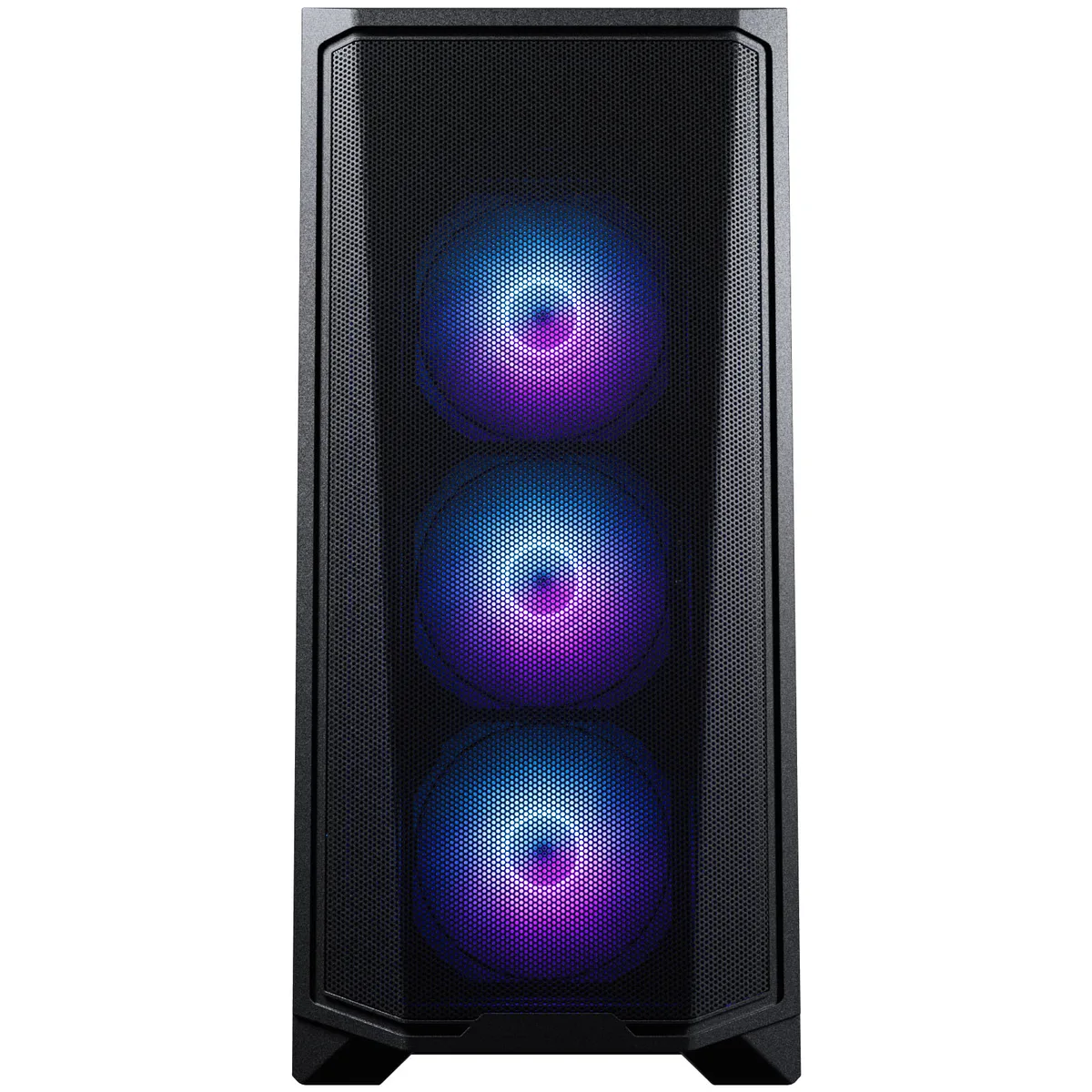

PHANTEKS Eclipse G370A - ATX Mid-Tower Case - Black
MPN: PH-EC370A_DBK01
Key specifications
Max GPU375.0 mm
Max Cooler170.0 mm
Max PSU200.0 mm
Form factorUnknown
Full Specifications62 fields
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm
Additional Information
Model Number
PH-EC370A_DBK01
Gtin
886523303930
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Filter Position
Top
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
Black
Compliance
Compliance Documents
Phanteks Case Compliance and Safety
Dimensions
Length Depth
465 mm
Width
220 mm
Height
476 mm
Weight
6.43 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
1
Usb 3 1 External Type C
1
Usb 3 0 External Type A
1
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card Reader
No
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x)
Max Number Of Fans
7
Case Fan Support Front
120mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
120 Mm Fans
7
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
170 mm
Max Gpu Length
375 mm
Max Gpu Width
170 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
No
Materials
Materials
ABS, Steel, Tempered Glass
Motherboard Support
Max Motherboard Format
SSI-EEB
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX, SSI-EEB
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Max Radiator Compatibility
1x Triple (360 mm)
Radiator Aio Support Top
360mm Radiator
Radiator Aio Support Front
240mm Radiator
Best indexed price
£54.90GBP
Indexed 24 May 2026 — verify at retailer
