Graphics CardsPalit

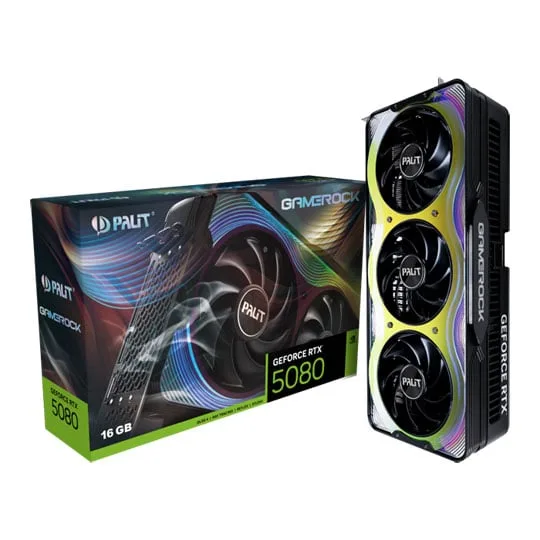

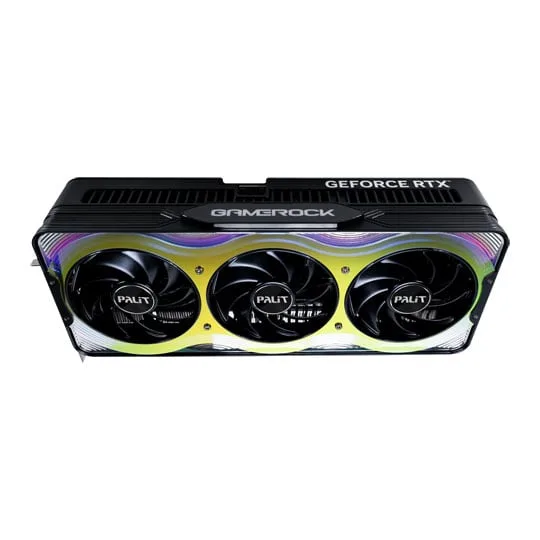

PALIT NVIDIA GeForce RTX 5080 16GB GAMING PRO Blackwell Graphics Card
£1,133.00
Quick Specs
ChipsetRTX 5080
VRAM16 GB
MemoryGDDR7
Length331.9 mm
Min PSU850 W
Model: NE75080019T2-GB2031A
Technical Specifications35 specs
Additional Information
Model Number
NE75080019T2-GB2031A
Gtin
4710562244939
Cooling
Included Backplate
Yes
Cores & Clocks
Cores
10752
Core Clock
2295 MHz
Boost Clock
2617 MHz
Ai Tops
1801
I/O & Connectivity
Interface
PCIe 5.0 (x16)
Connectivity
3 x DisplayPort 2.1
1 x HDMI 2.1b
Key Specifications
Chipset
GeForce RTX 5080
Edition
GeForce RTX 5080 GamingPro
Manufacturing Process
4 nm
Microarchitecture
Blackwell
Physical
Width
Triple Slot
Low Profile Support
N/A
Dimensions
331.9 x 127.1 x 60 mm
Package Type
Retail
Power & Thermals
Graphics Card Power Connectors
1 x 16-pin PCIe
Tdp
-
Minimum Recommended Psu
850 W
Maximum Gpu Temperature
-
Ray
Tracing Real Time Ray Tracing
Yes
Tracing Nvidia Rt Cores
84 (4th Gen)
Tracing Nvidia Tensor Cores
336 (5th Gen)
Video Memory (VRAM)
Vram Size
16GB
Memory Type
GDDR7
Memory Clock
-
Memory Bus
256 Bit
Visuals
Geforce Vr Ready
Yes
Multi Way Graphics Support
Not Supported
Microsoft Directx Support
12 API
Hdcp Ready
Yes
Max Concurrent Displays
4 Displays
Maximum Digital Resolution
7680x4320 (8K UHD)
General
Solution
Tri Fan (3)
