CasesNZXT

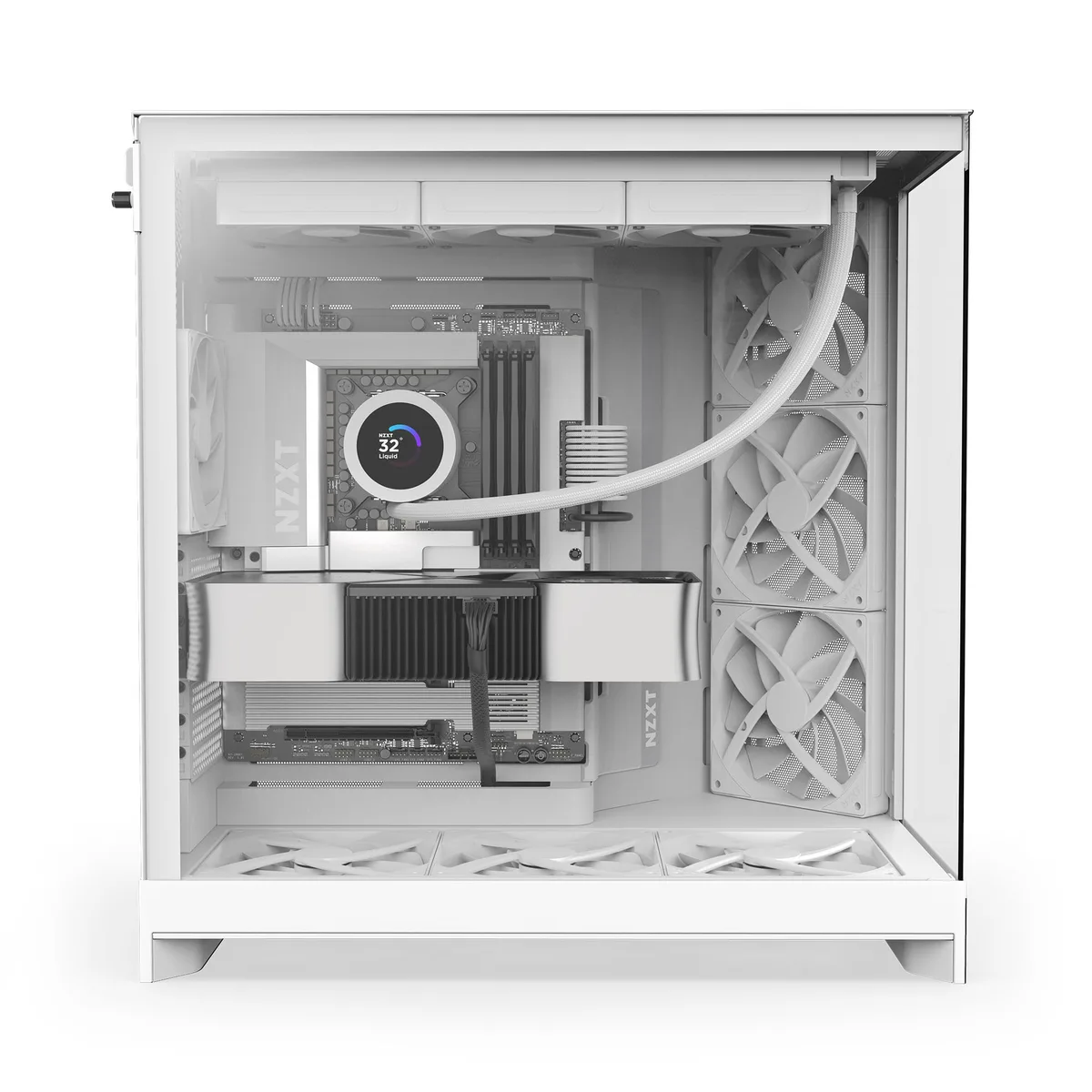

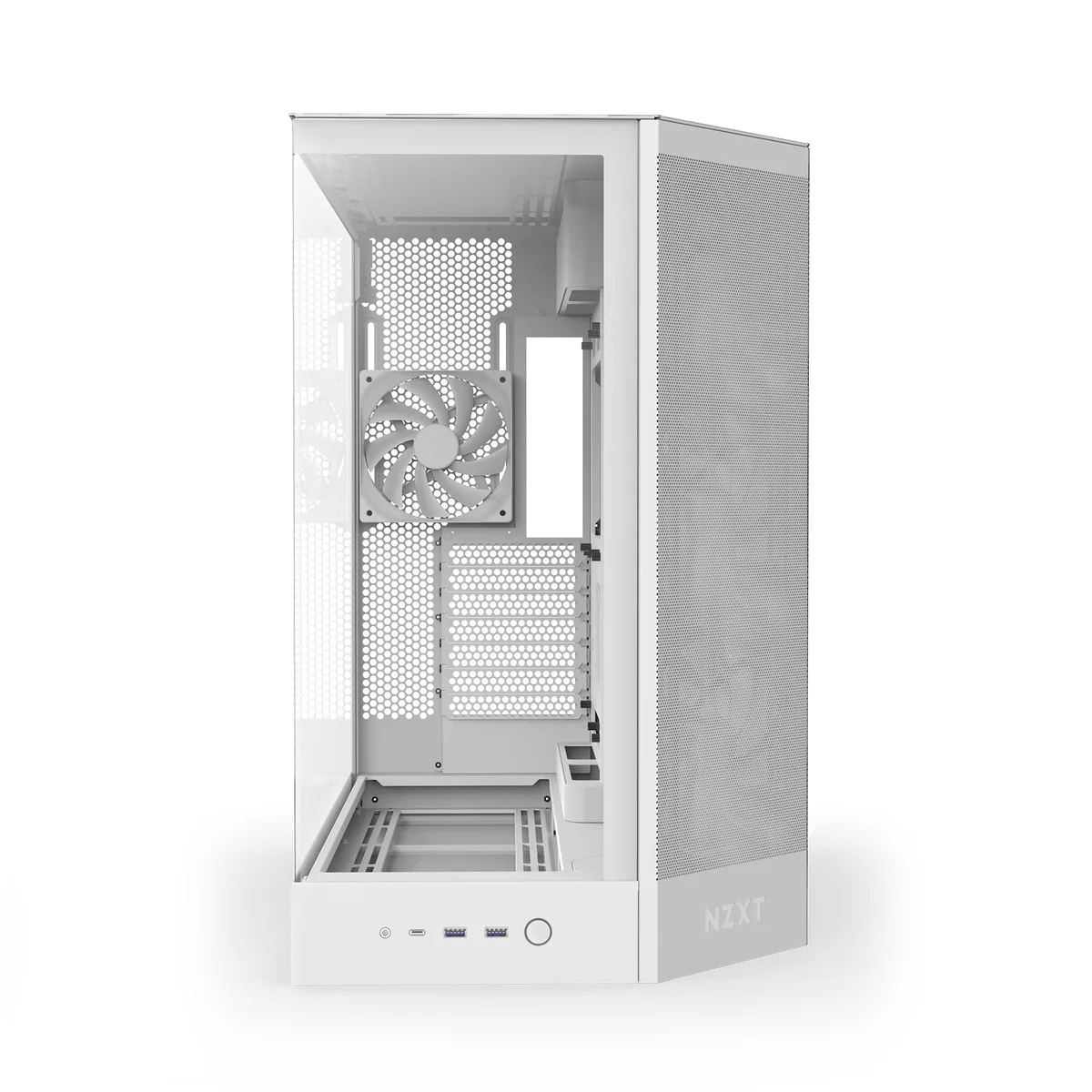

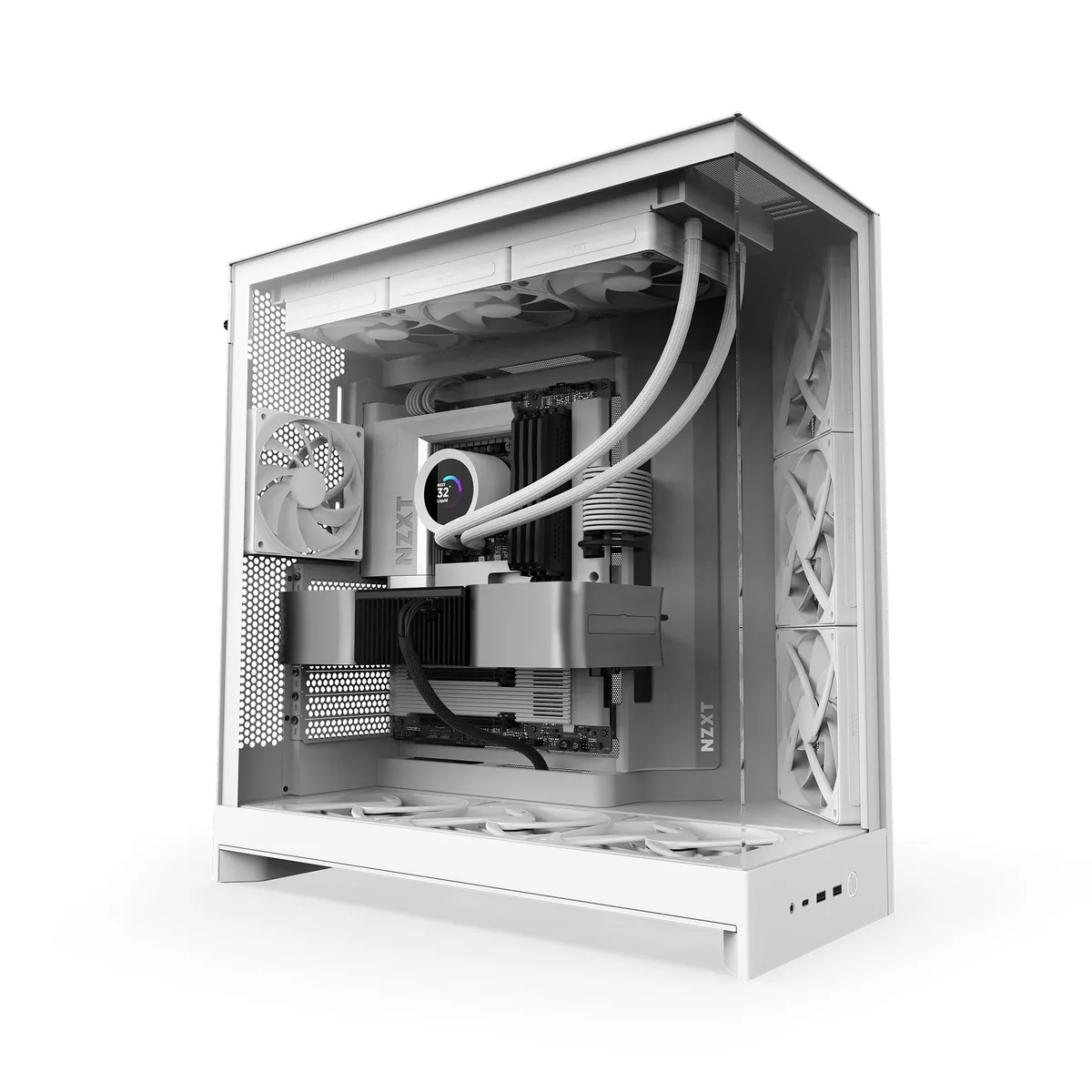

NZXT H9 Air Flow (2025) Large Dual-Chamber Mid Tower Case - White
£149.99
Model: CM-H92FW-01
Technical Specifications65 specs
Additional Contents
Fans Included
Yes
Included Fans
1x 120 mm, 3x 140 mm
Additional Information
Model Number
CM-H92FW-01
Gtin
5056547207636
Back Connect
Back Connect
Yes
Back Connect Compatibility
ASUS BTF, MSI Project Zero
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Connectivity
Card Reader
No
Dimensions
Length Depth
481 mm
Width
315 mm
Height
506 mm
Weight
12.46 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
6
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Top
120mm Fan (3x), 140mm Fan (3x)
Max Number Of Fans
10
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Bottom
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Rear
120mm Fan (1x)
120 Mm Fans
10
140 Mm Fans
9
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
165 mm
Max Gpu Length
459 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
No
Materials
Materials
Tempered Glass, SGCC (Steel)
Motherboard Support
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
E-ATX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear side
Radiator Support
Radiator Aio Support Front
420mm Radiator
Radiator Aio Support Bottom
360mm Radiator
Radiator Aio Support Top
420mm Radiator
Radiator Aio Support Rear
120mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Triple (360 mm), 2x Triple (420 mm)
