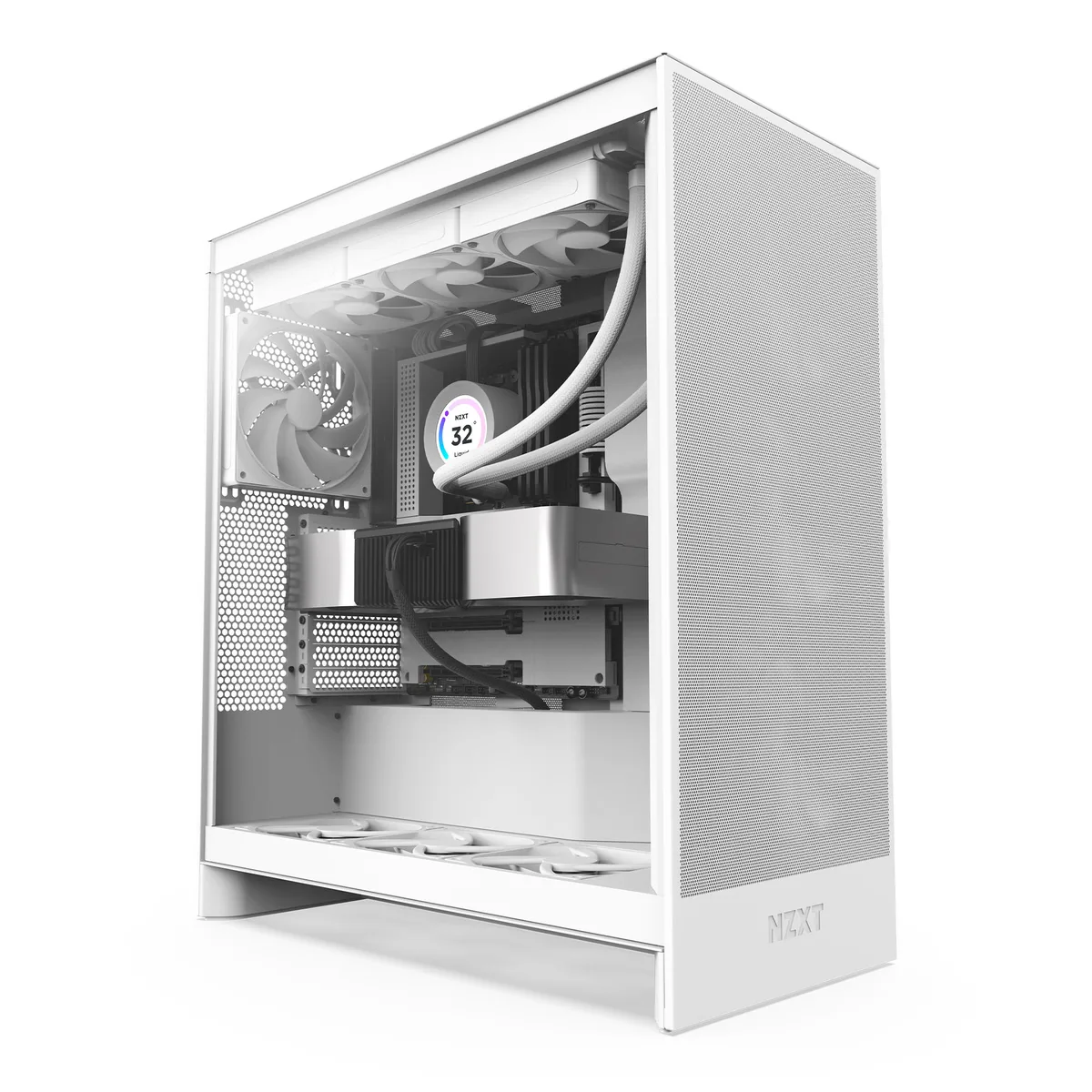

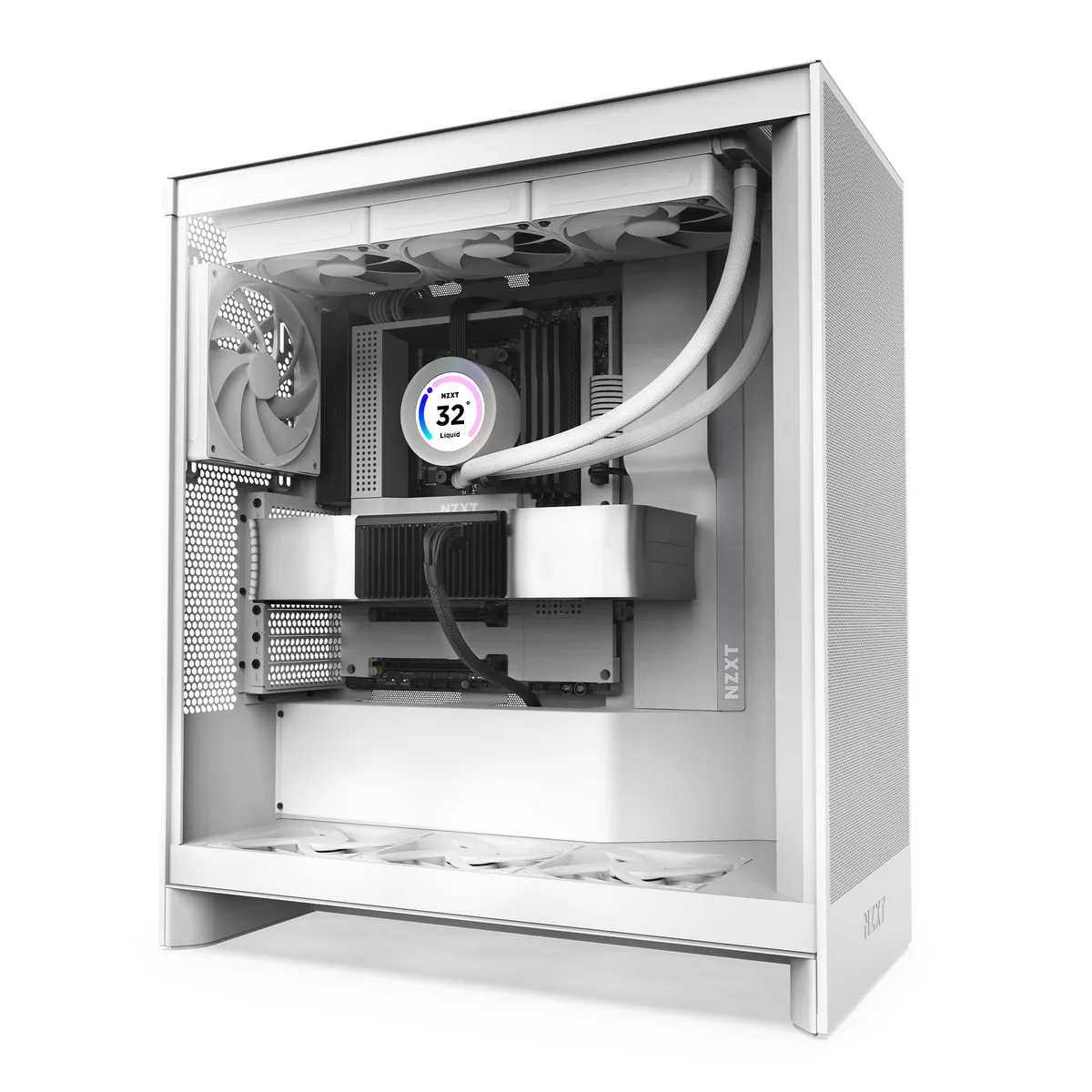

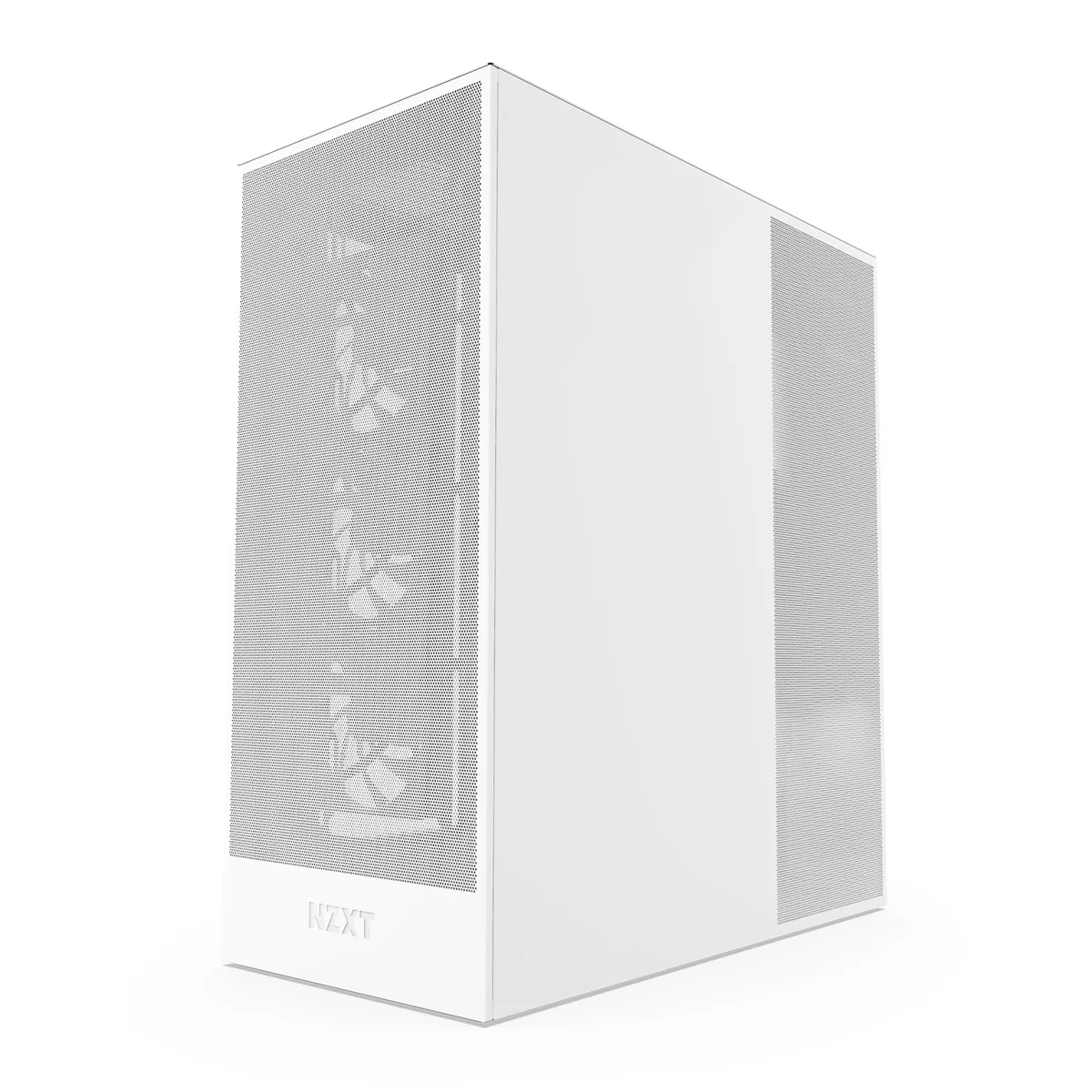

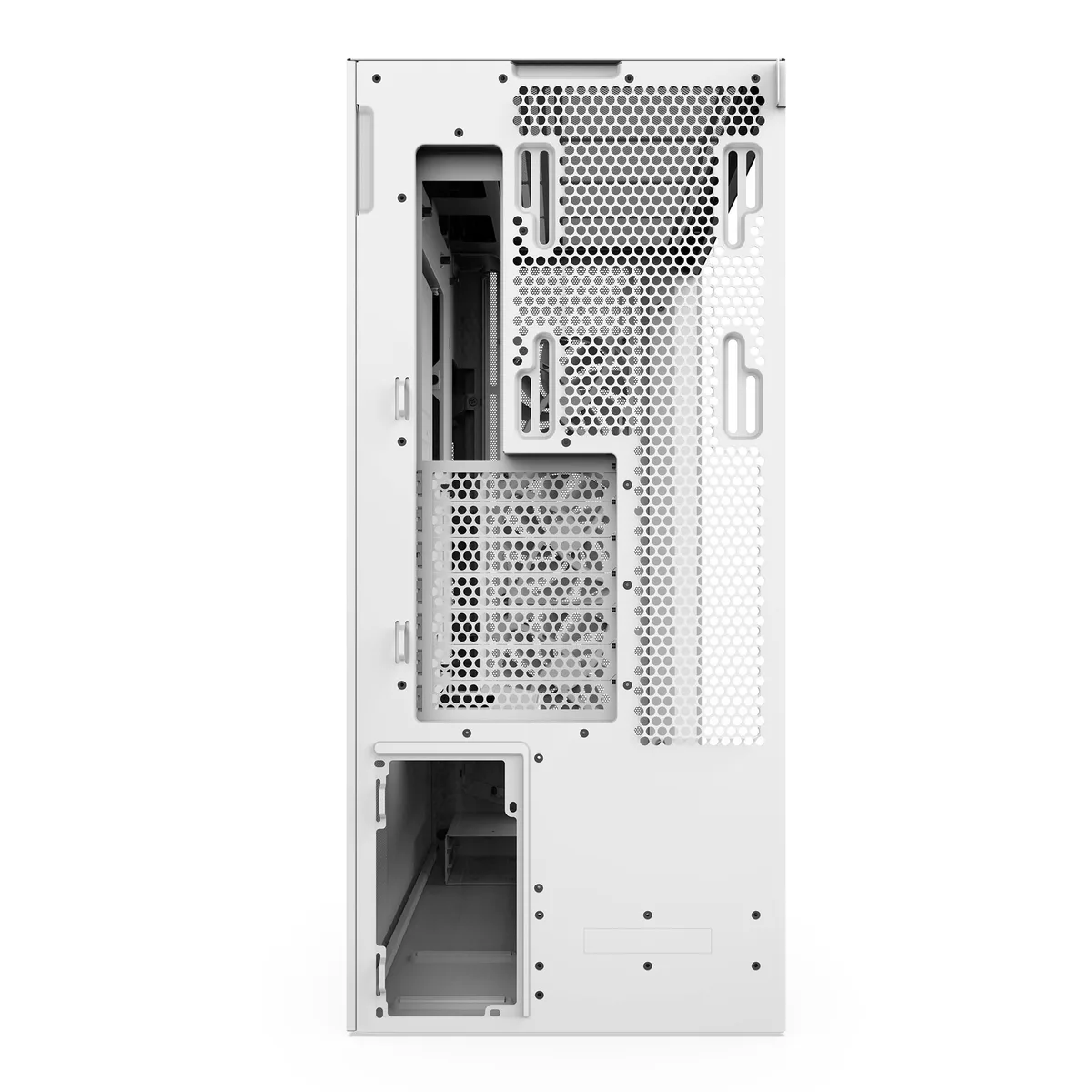

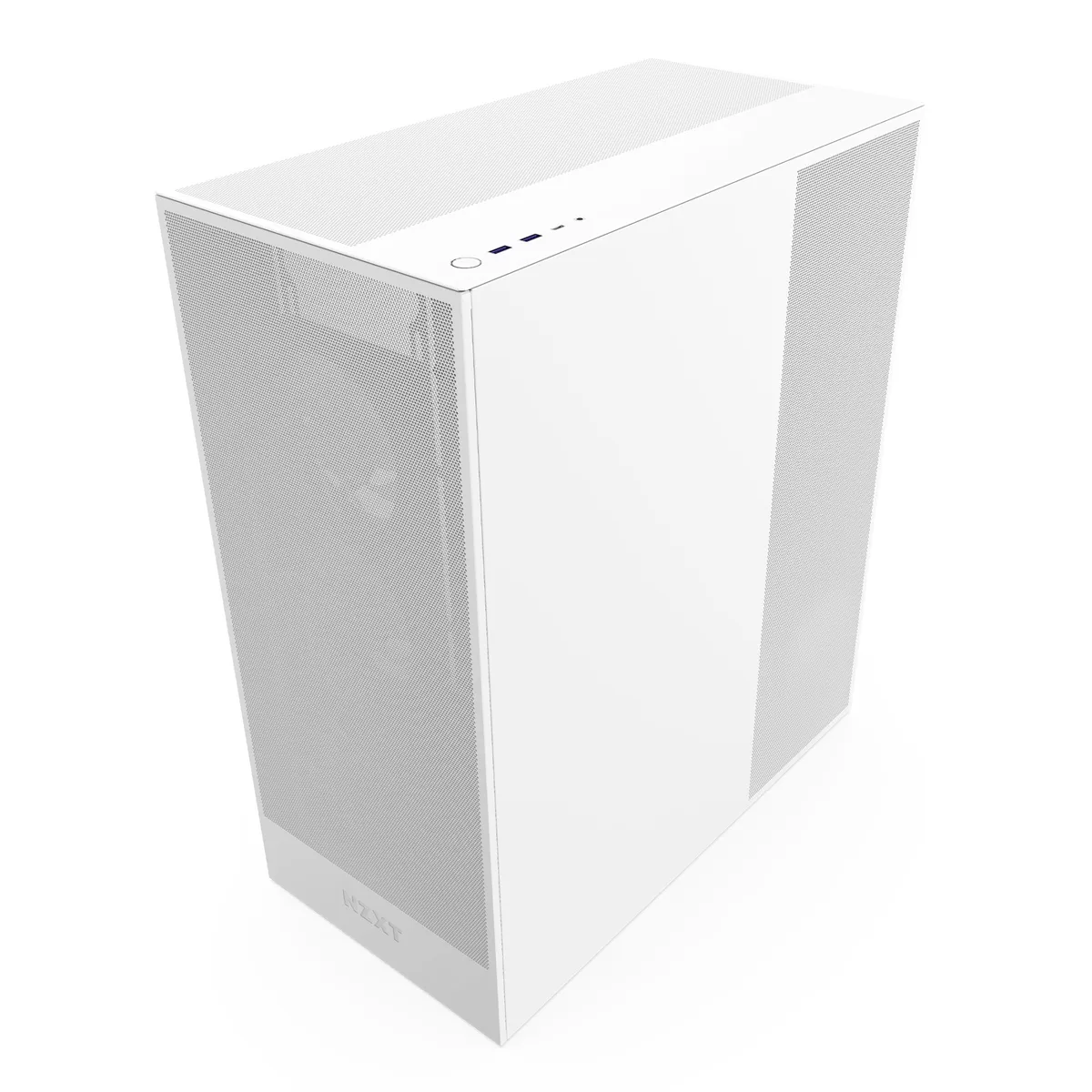

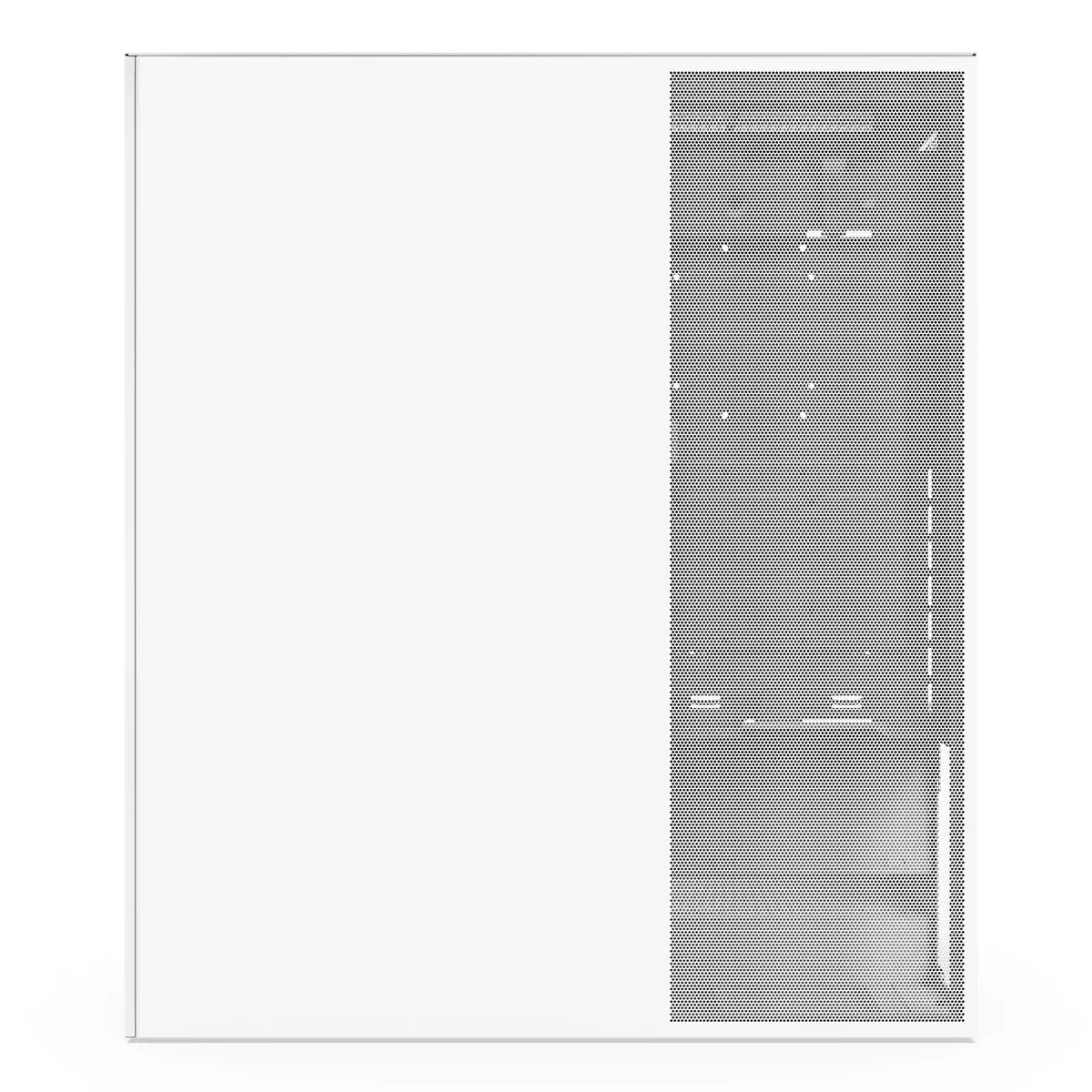

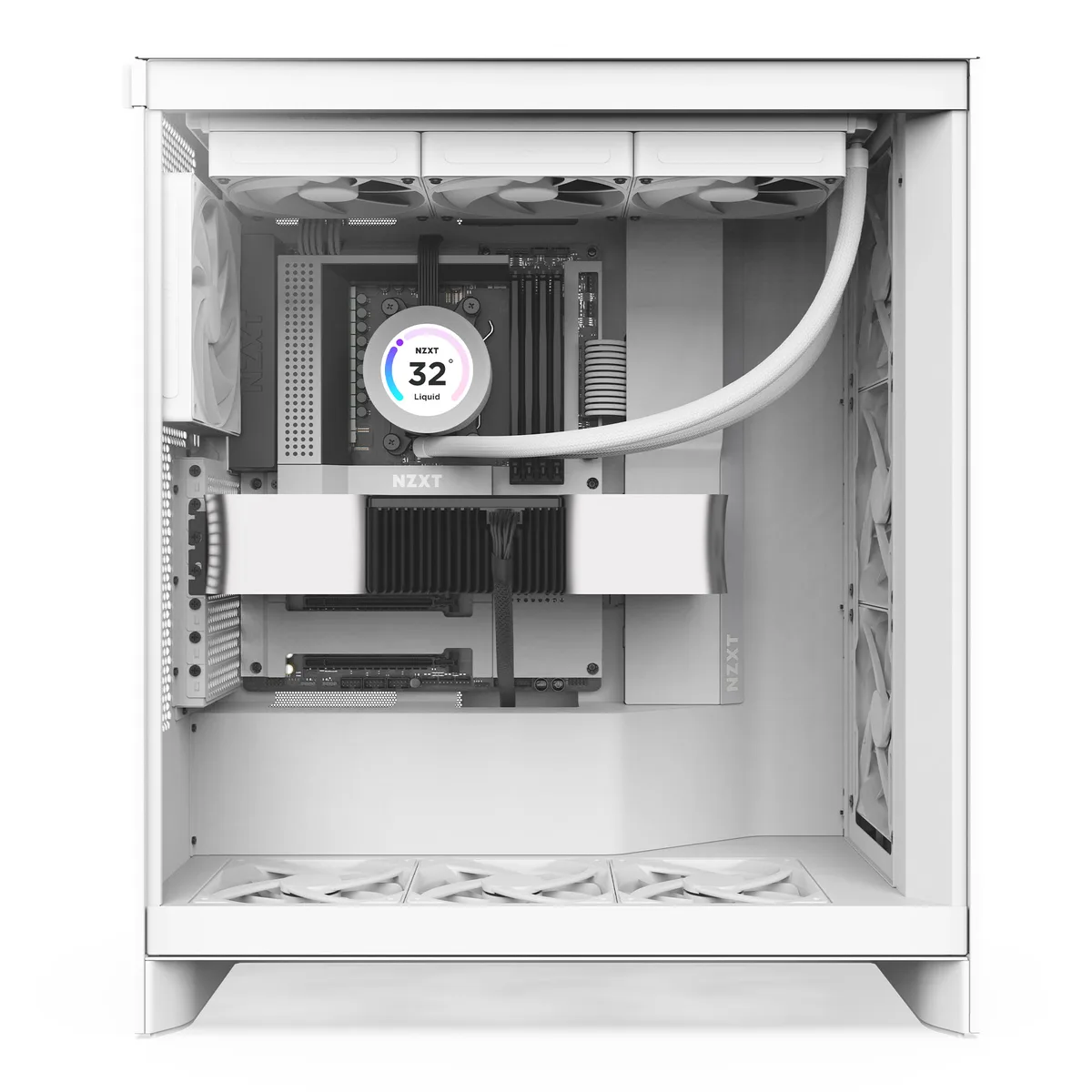

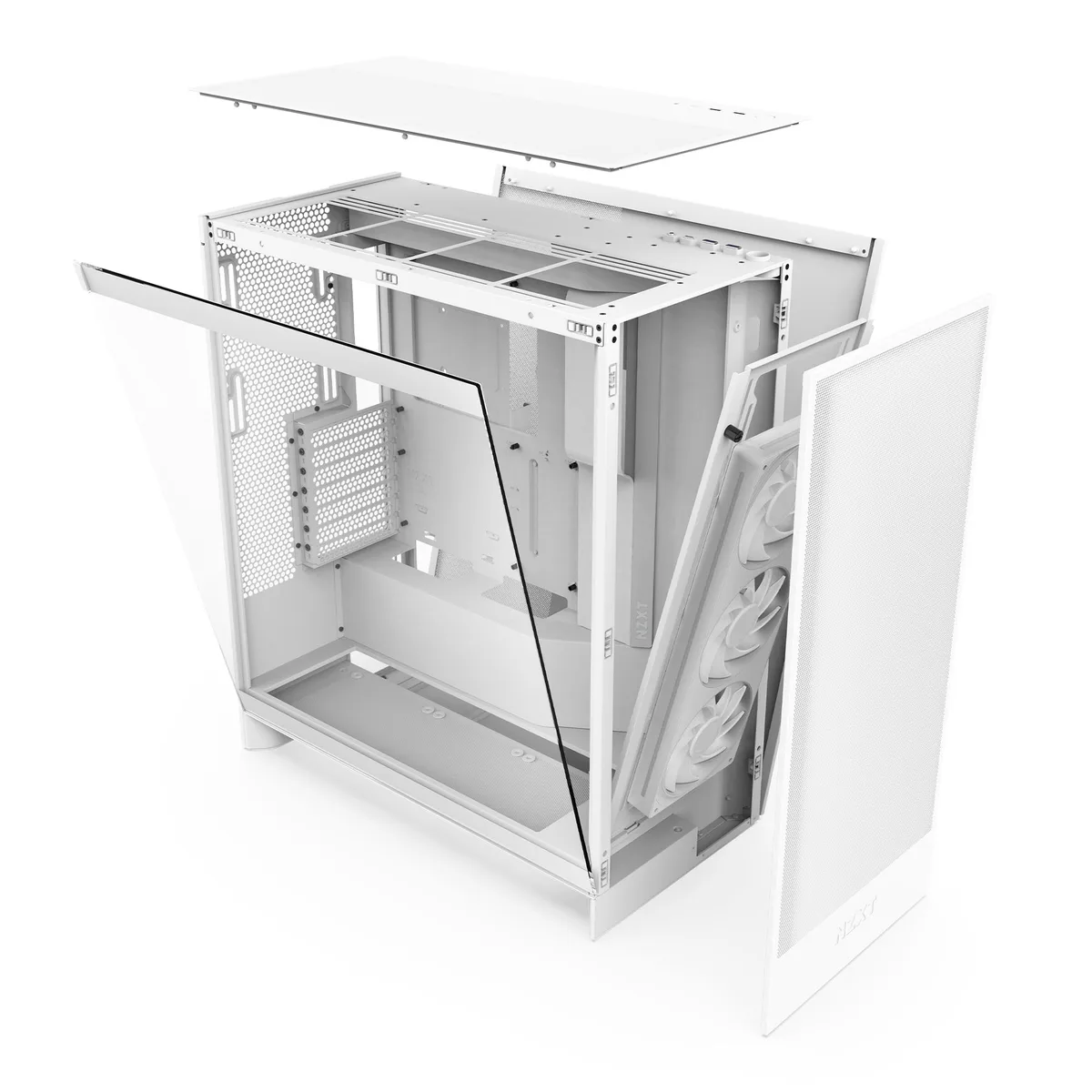

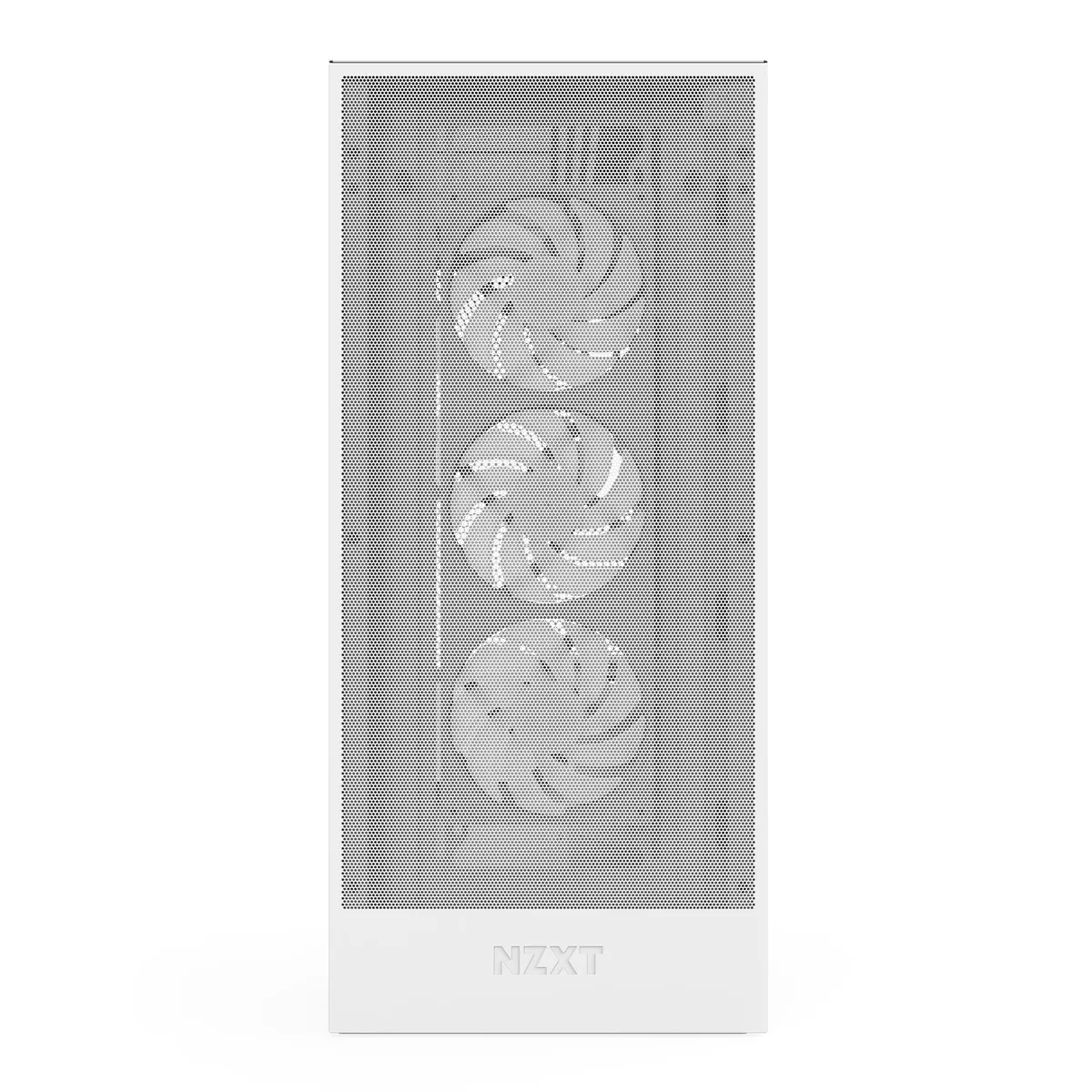

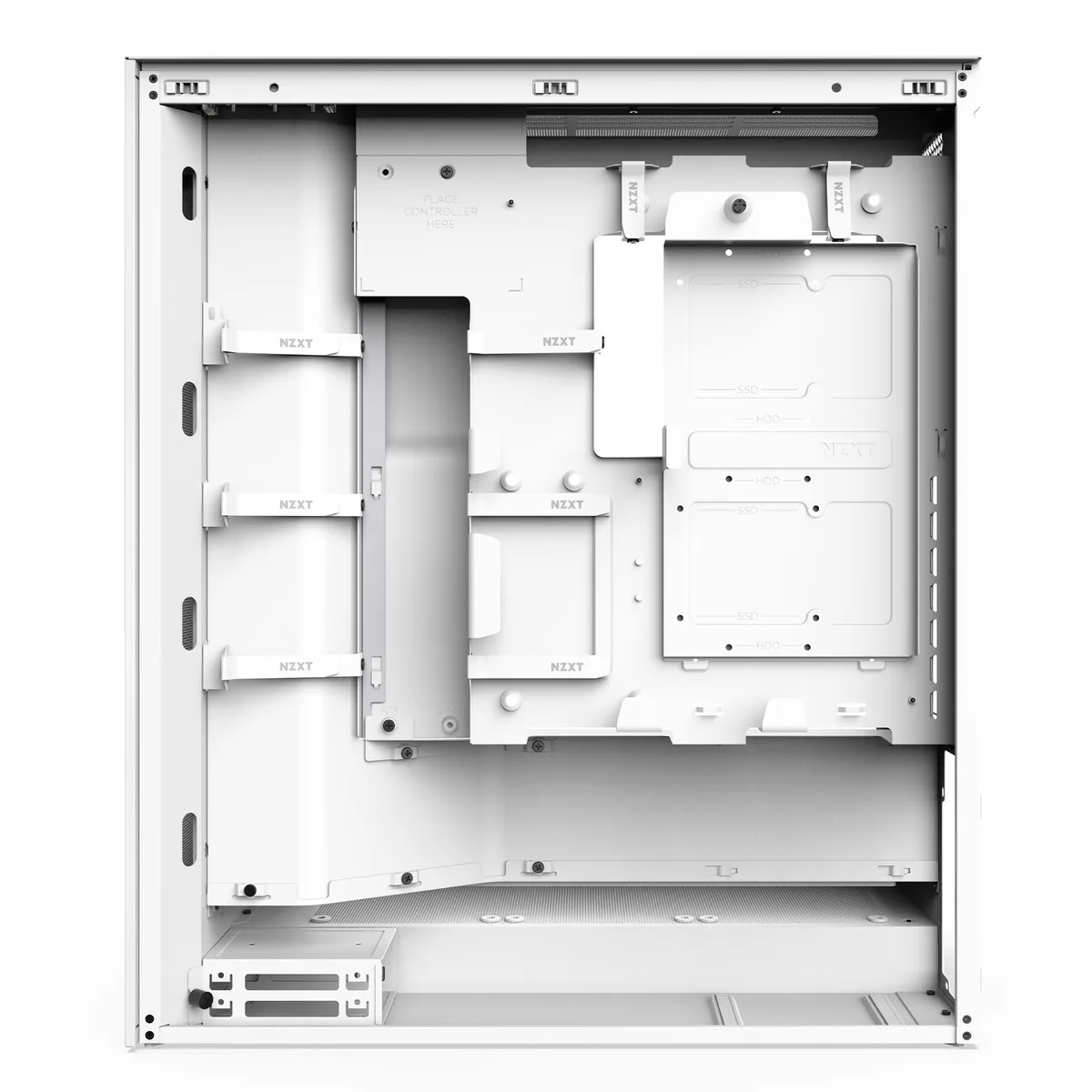

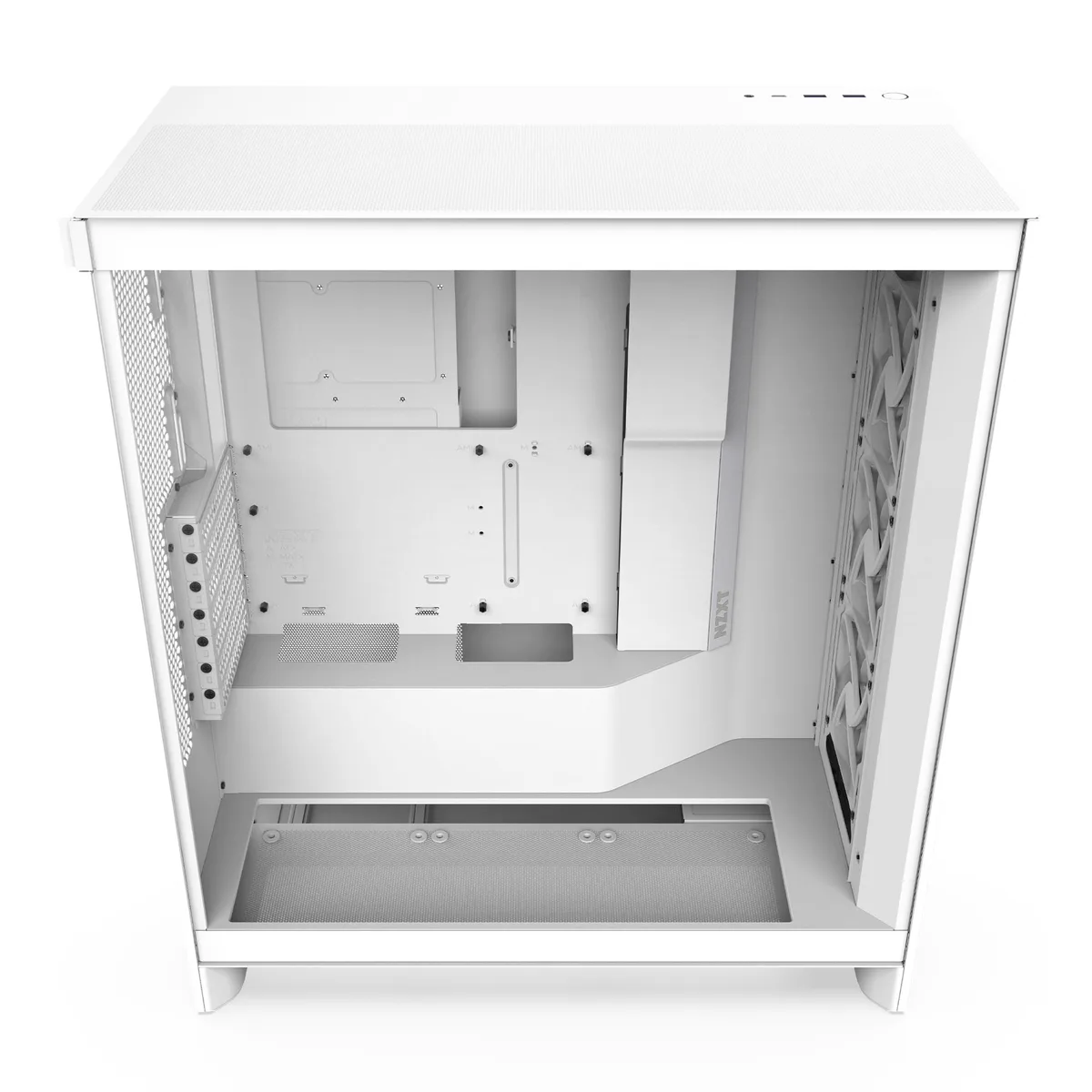

NZXT H7 Flow (2024) Mid-Tower Case - All White
MPN: CM-H72FW-01
Key specifications
Max GPU410.0 mm
Max Cooler185.0 mm
Max PSU200.0 mm
Form factorUnknown
Best indexed price
Price unavailable
Retailer offers
Amazon UKSearch link
Find on AmazoneBay UKSearch link
Search eBayMore retailers coming
We only list a retailer once we hold verified offer data for it. No placeholder prices, ever.
Indexed prices are snapshots, not live quotes. Confirm price, stock and delivery on the retailer's site — checkout completes there.
We may earn a commission from these links. How it works
Fit check
Supports up to 410.0mm GPU clearance.
Supports up to 185.0mm CPU cooler height.
Full Specifications63 fields
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm
Additional Information
Model Number
CM-H72FW-01
Gtin
5056547205519
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Top
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Colour
Primary Colour
White
Connectivity
Card Reader
No
Dimensions
Length Depth
468 mm
Width
244 mm
Height
544 mm
Weight
11.13 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
4
Max 3 5 Inch Drives
2
Max 5 25 Inch Drives
0
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fan Support
Case Fan Support Bottom
120mm Fan (3x)
Max Number Of Fans
10
Case Fan Support Front
120mm Fan (3x), 140mm Fan (3x)
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x), 140mm Fan (1x)
120 Mm Fans
10
140 Mm Fans
6
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
185 mm
Max Gpu Length
410 mm
Max Psu Length Depth
200 mm
Lighting
Lighting Rgb
No
Materials
Materials
Tempered Glass, SGCC (Steel)
Motherboard Support
Max Motherboard Format
E-ATX
Compatible Motherboard Formats
E-ATX, ATX, Micro-ATX, Mini-ITX
Mounting
Case Vesa Mountable
No
Internal Monitor Mount
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear bottom
Radiator Support
Radiator Aio Support Front
420mm Radiator
Max Radiator Compatibility
1x Single (140 mm), 1x Triple (360 mm), 1x Triple (420 mm)
Radiator Aio Support Rear
140mm Radiator
Radiator Aio Support Top
360mm Radiator
