CasesNZXT

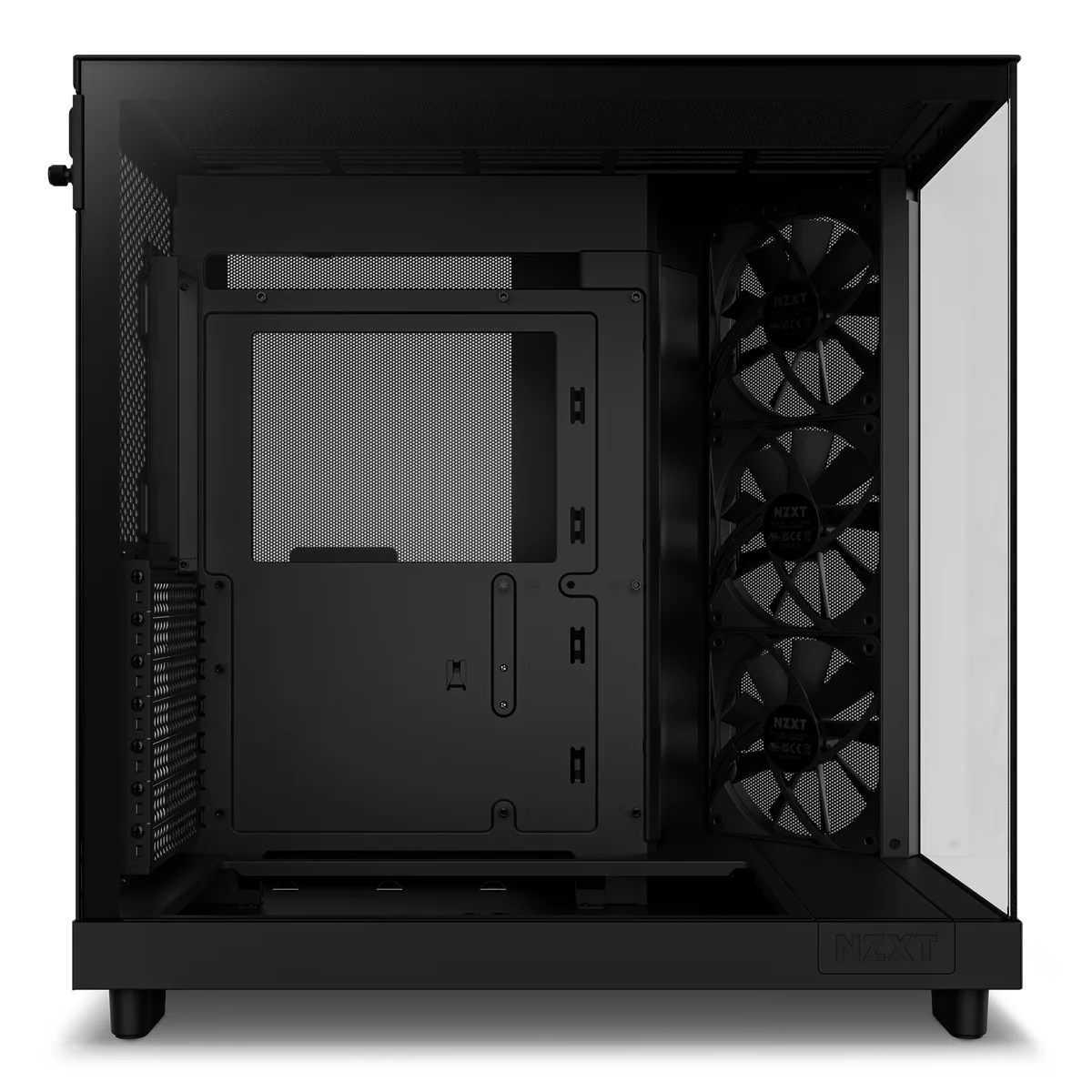

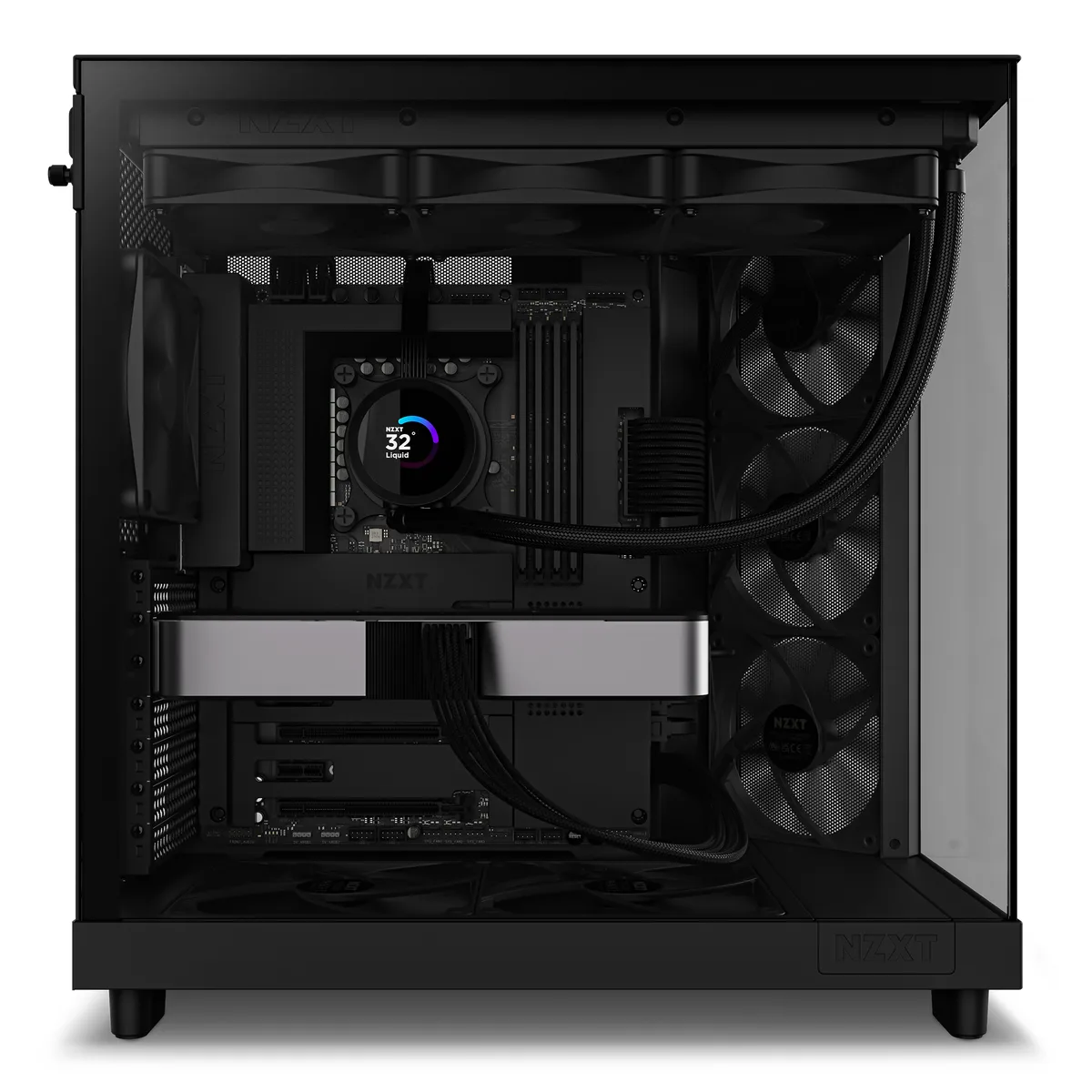

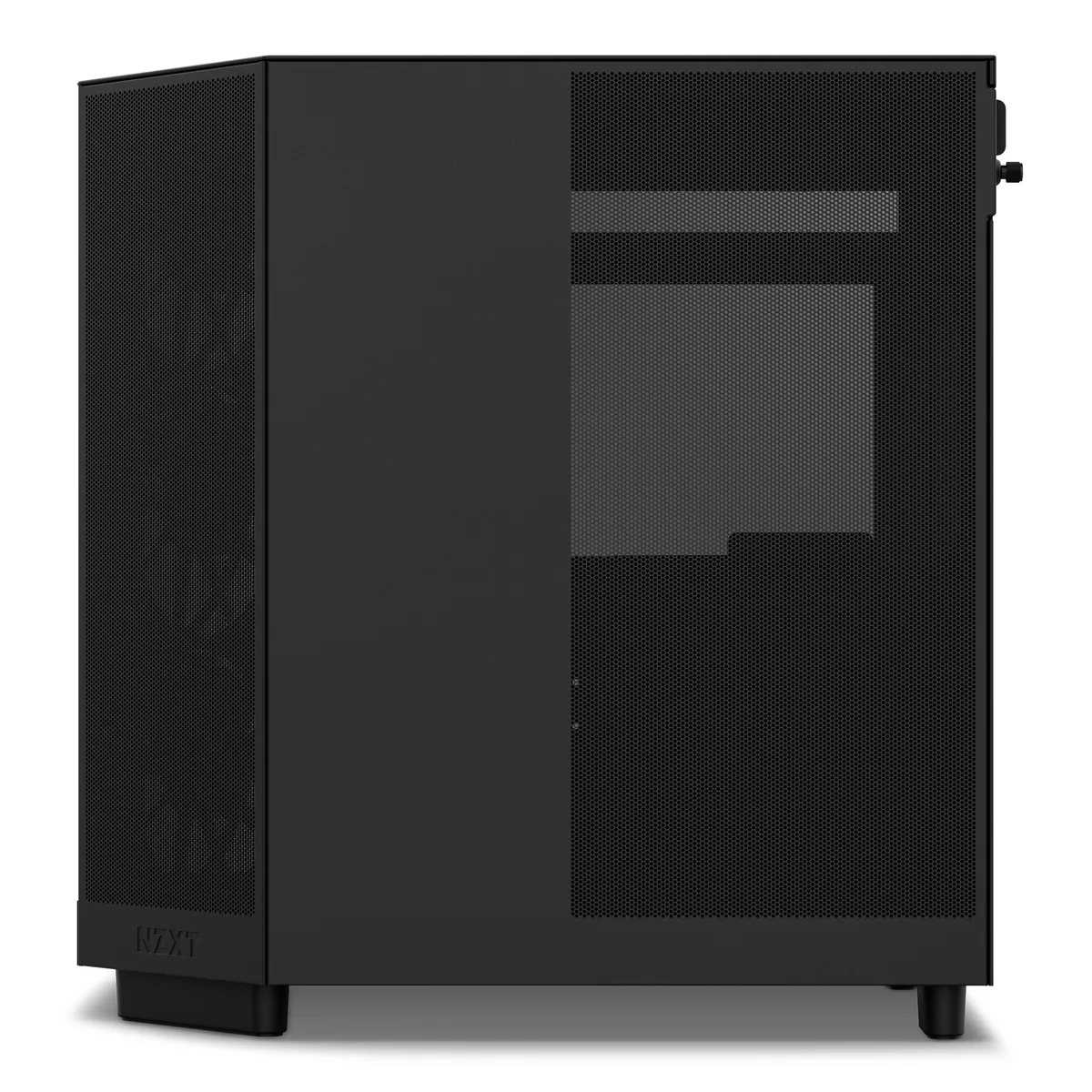

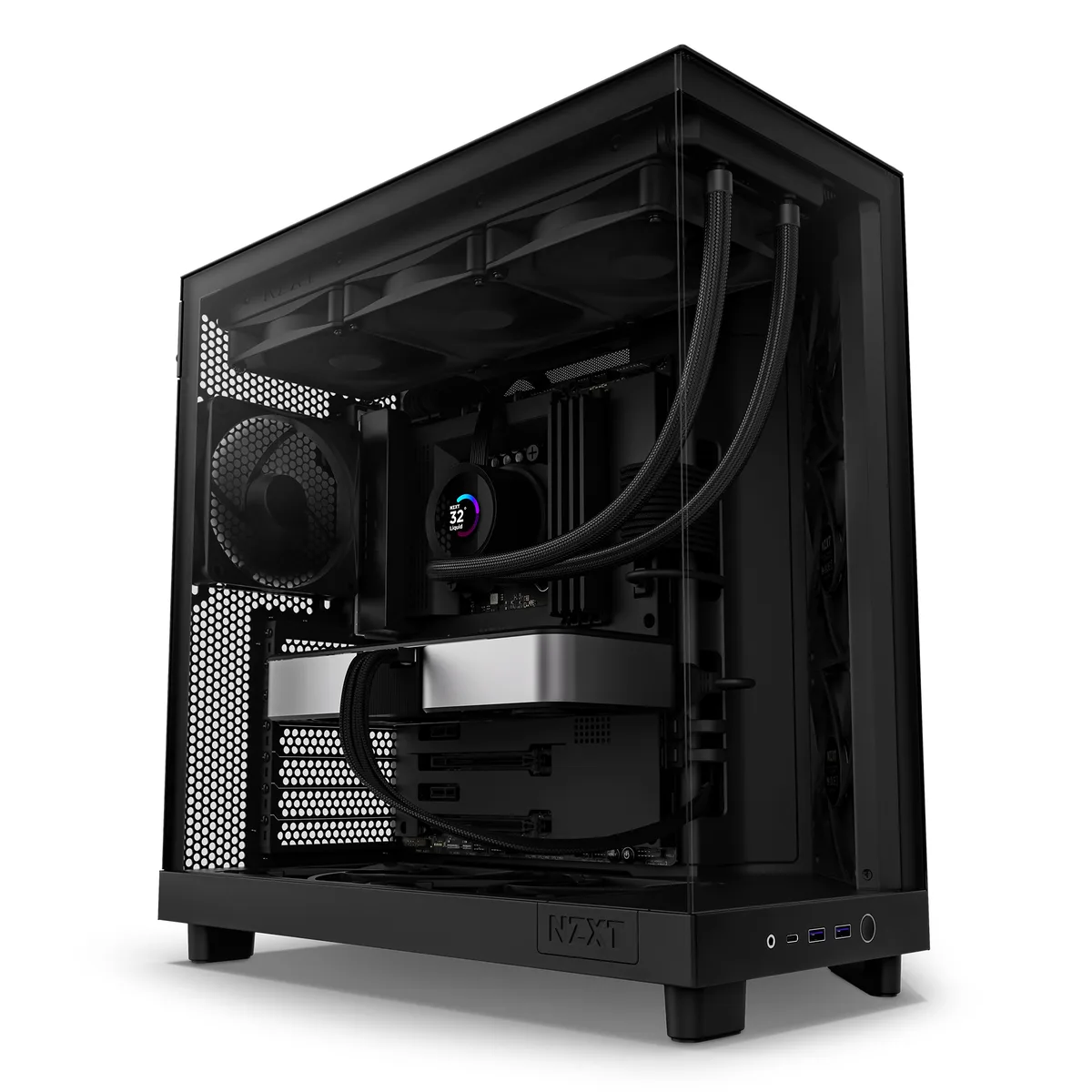

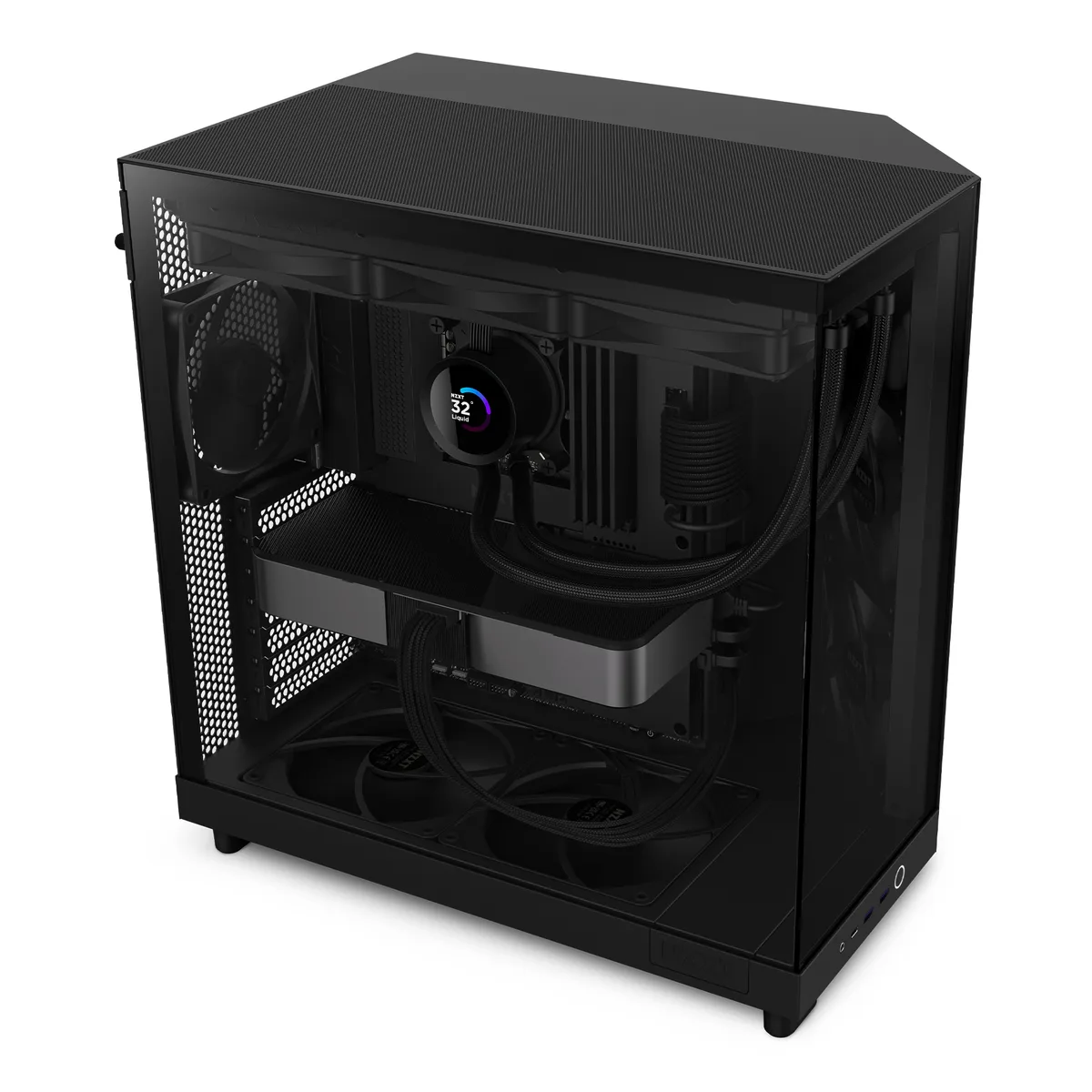

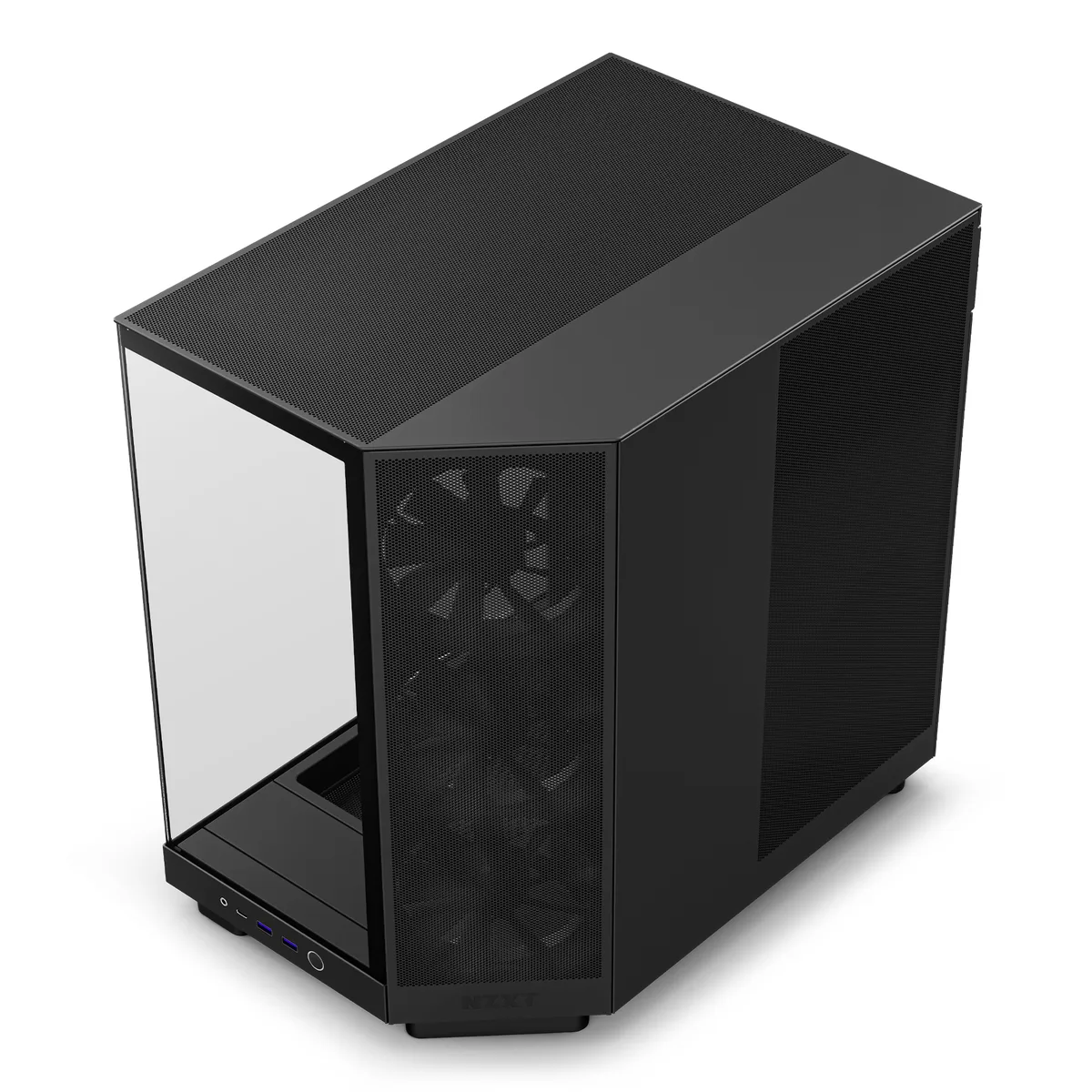

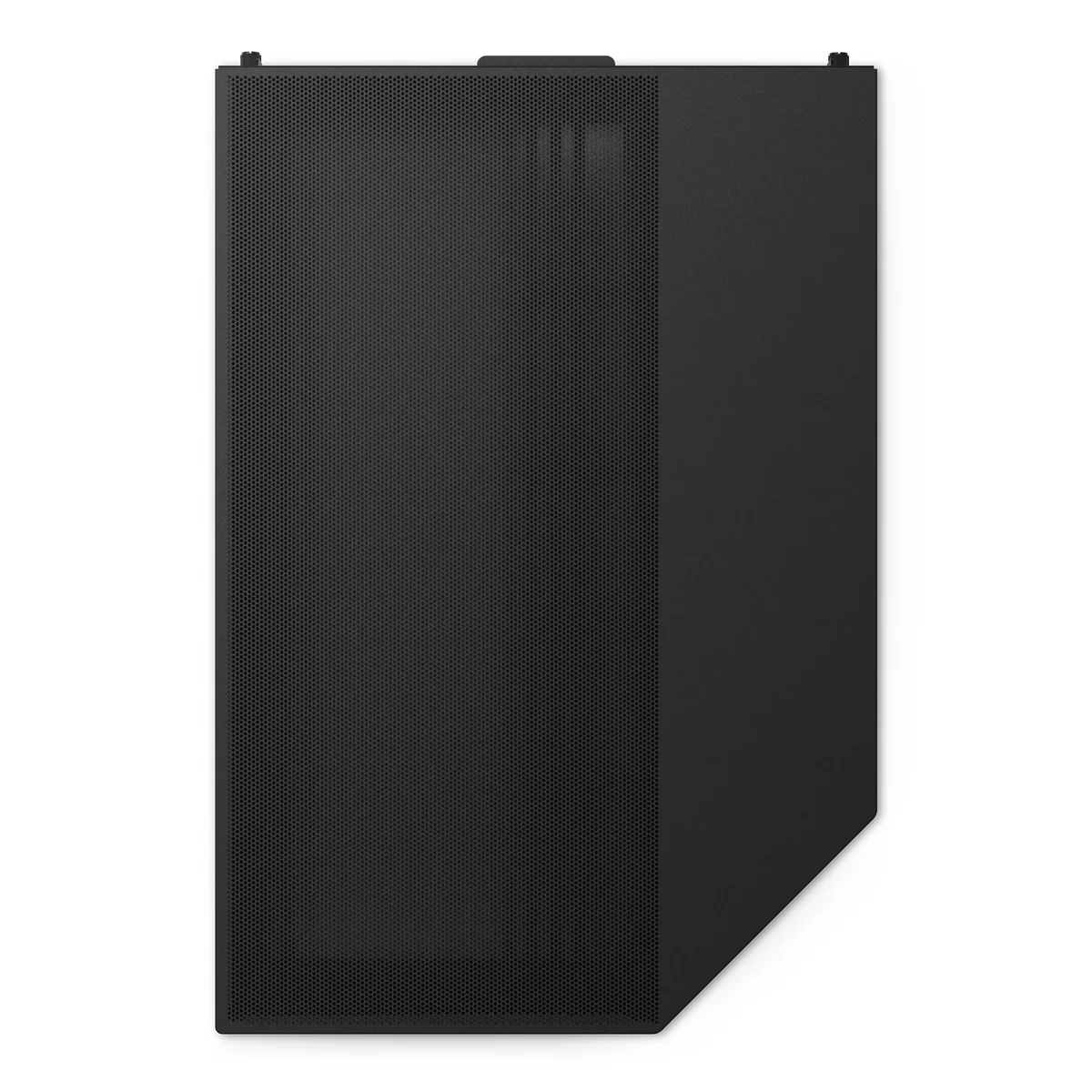

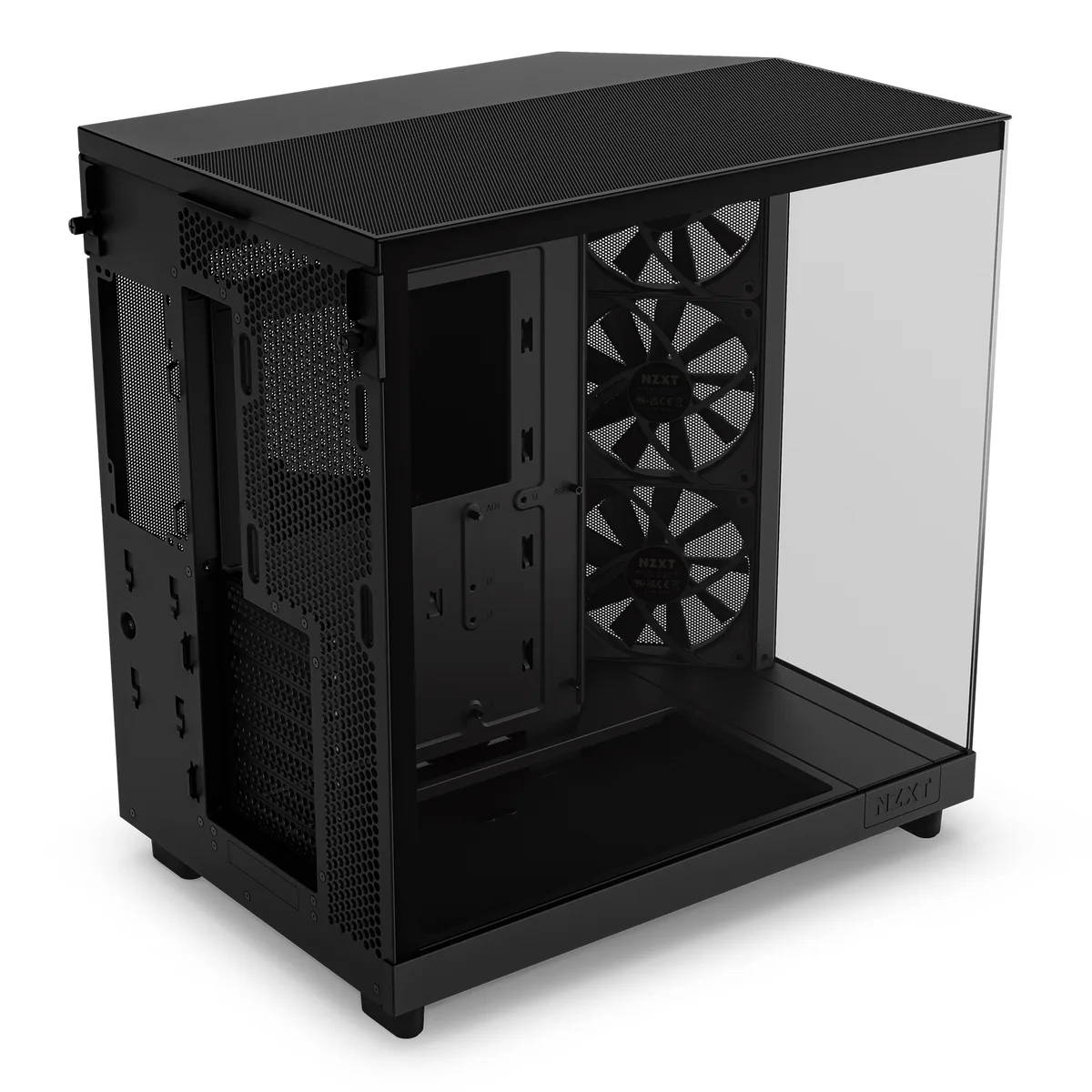

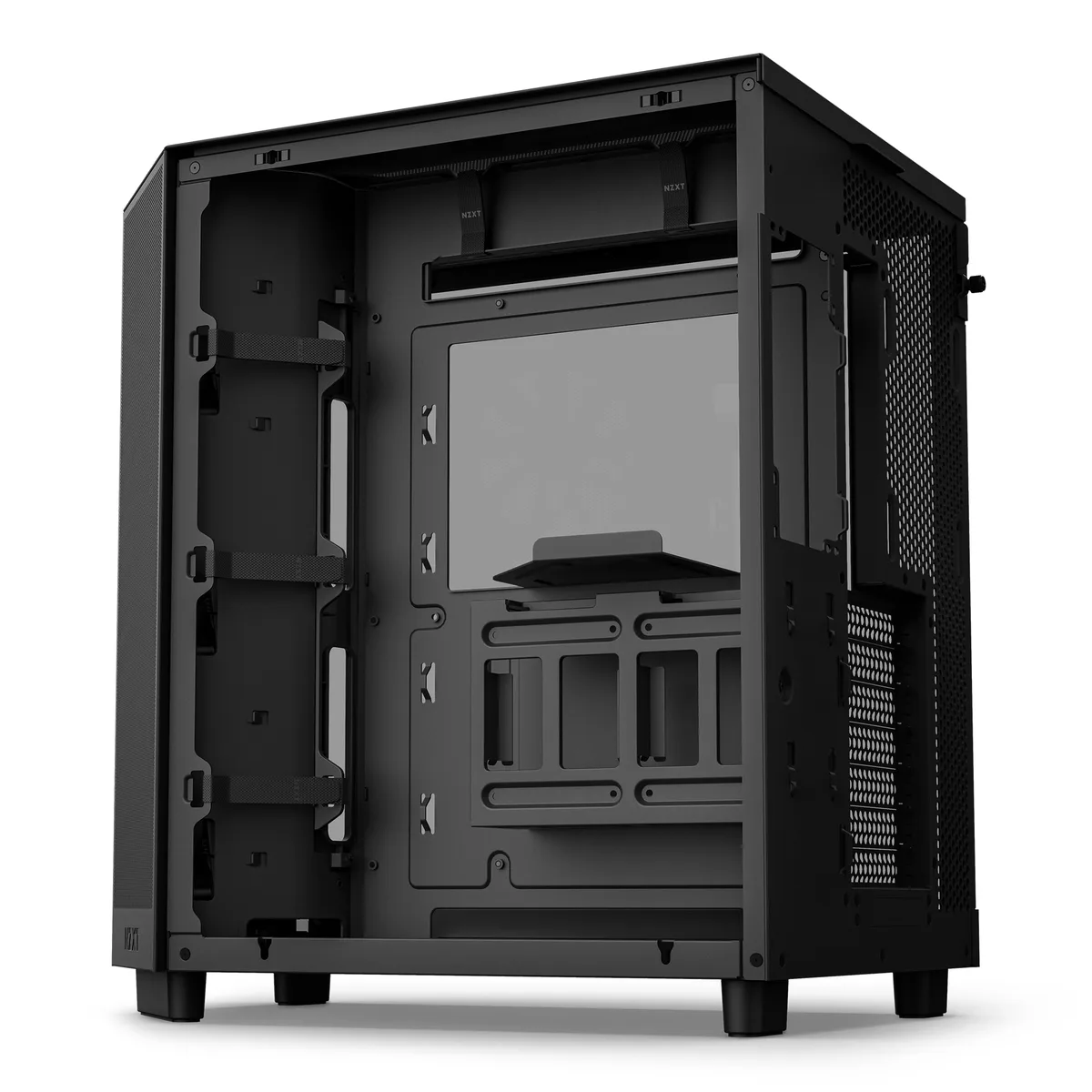

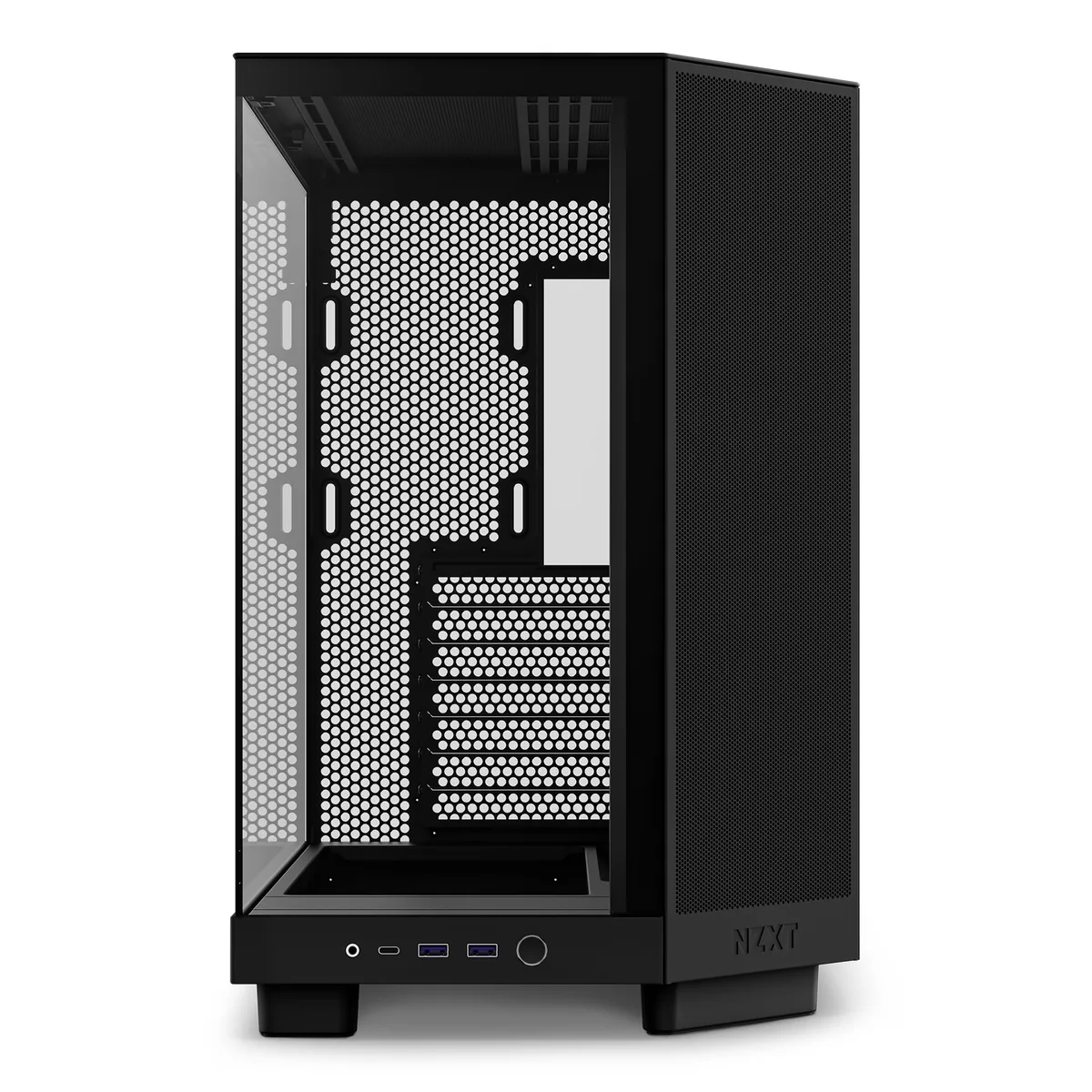

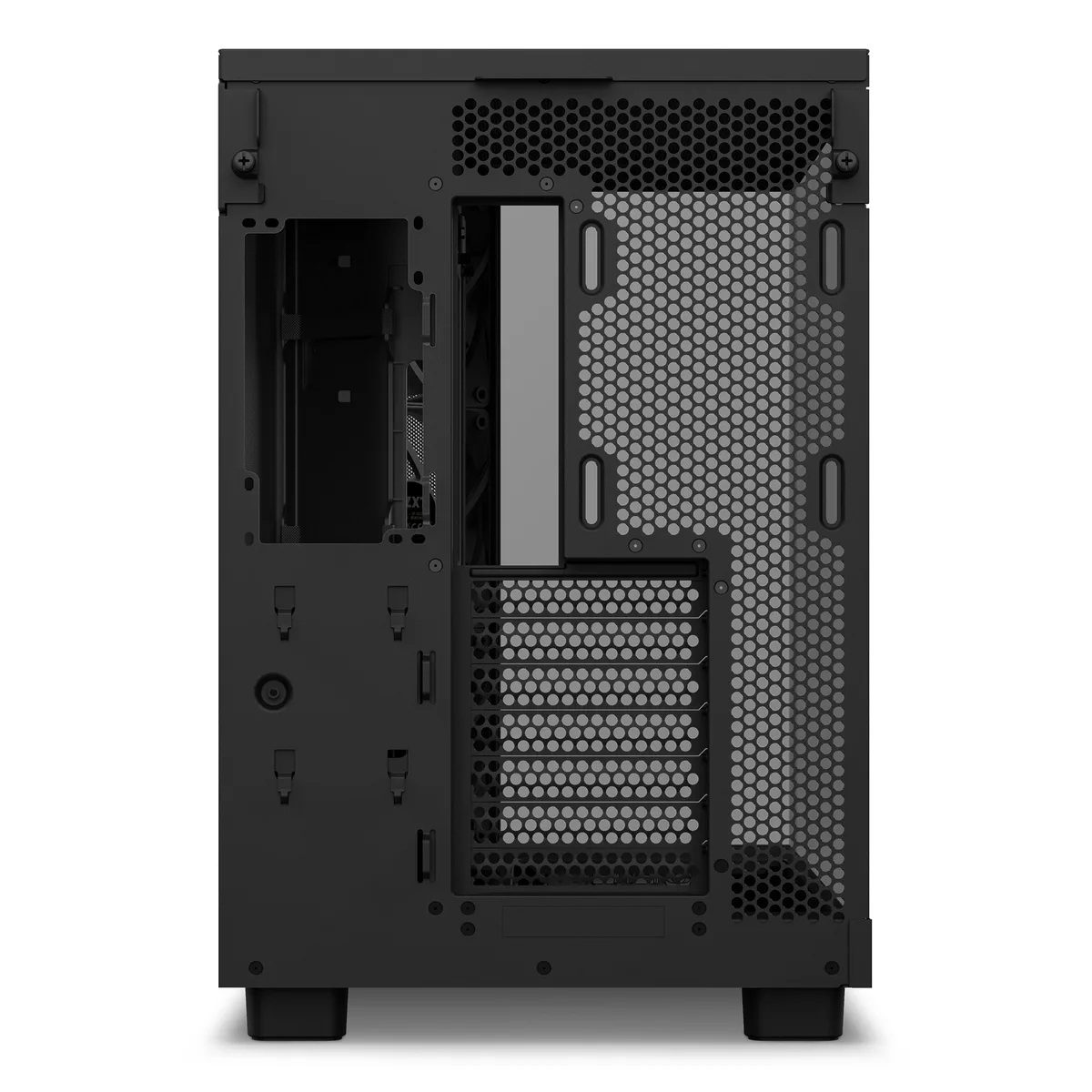

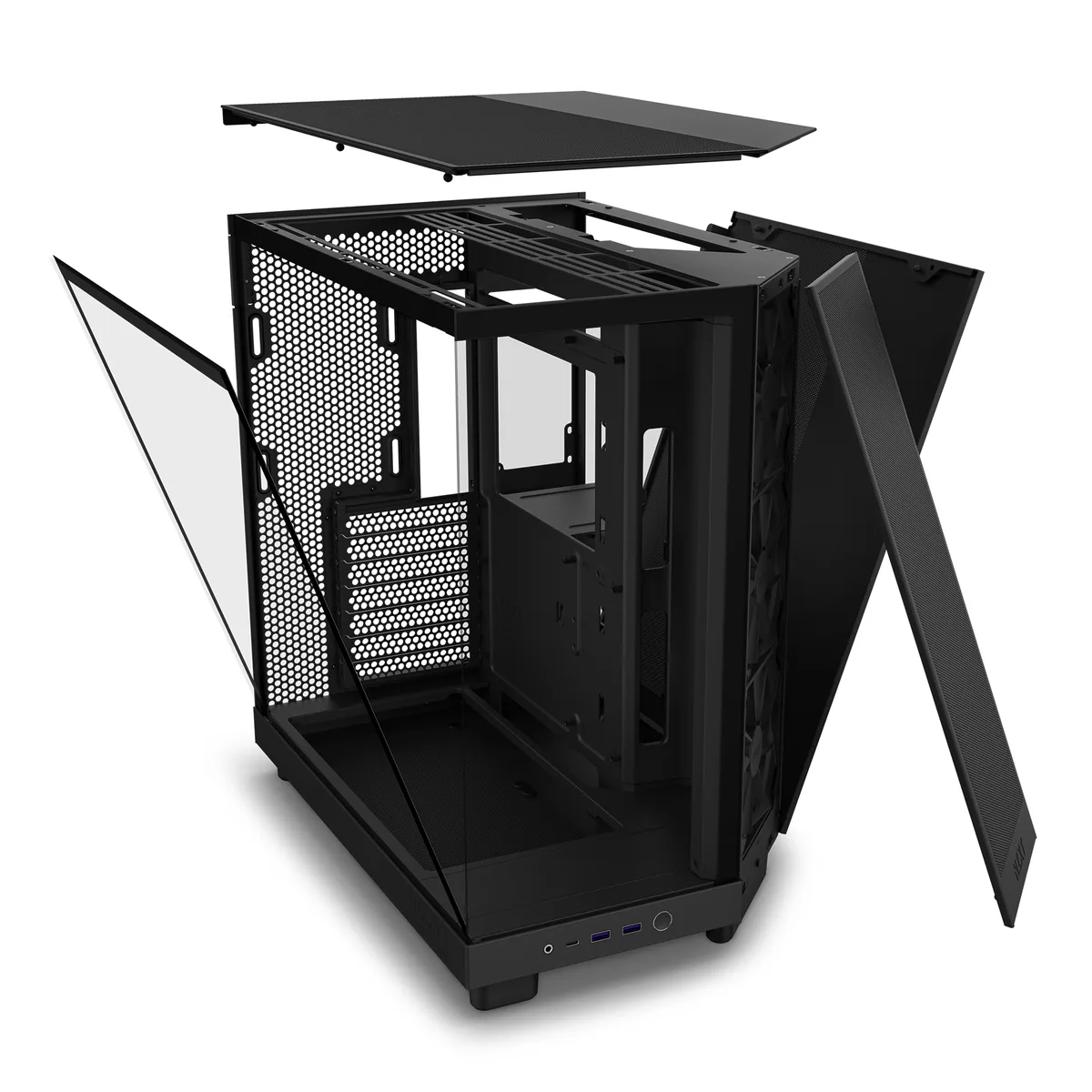

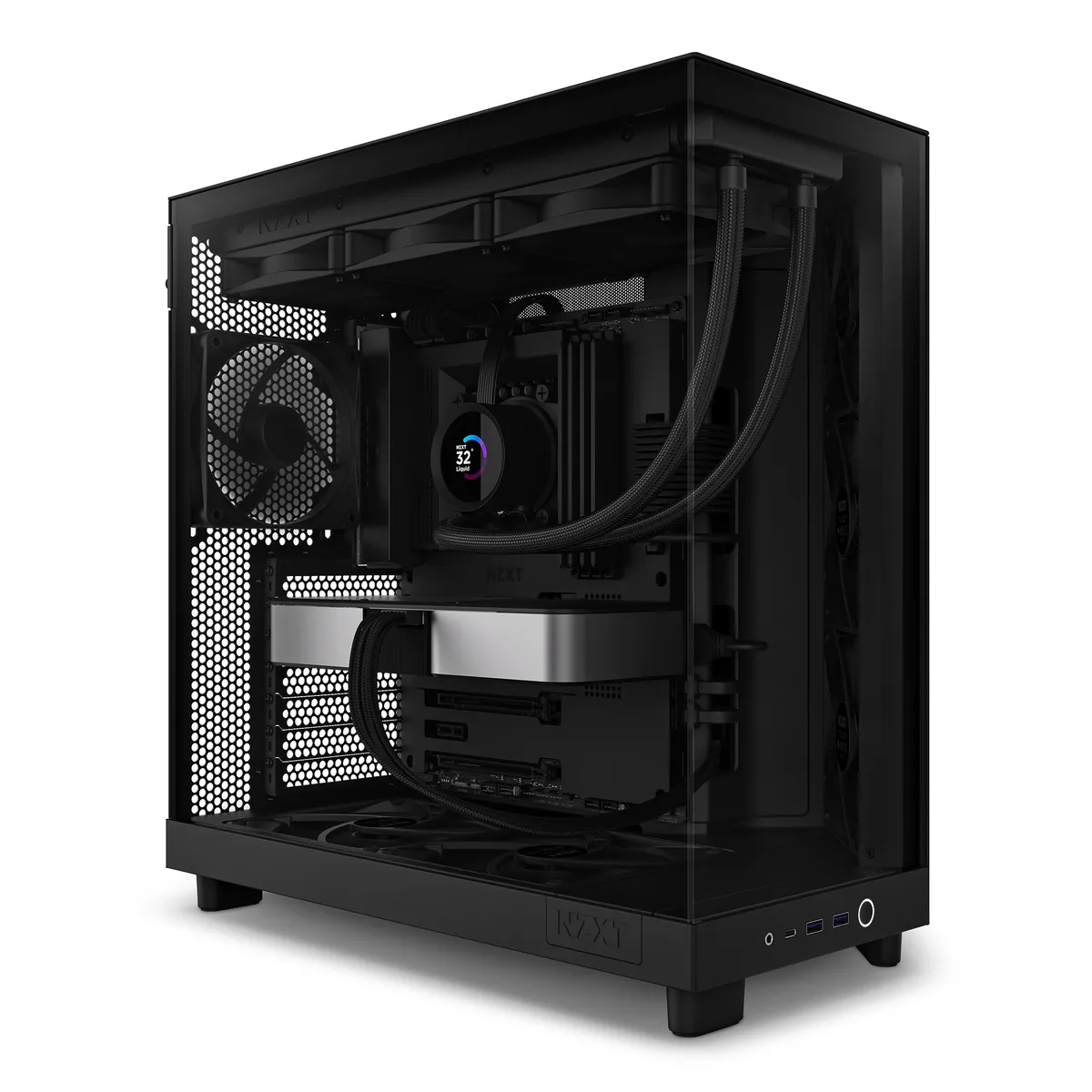

NZXT H6 Flow Mid-Tower Case - Black
£149.99
Model: CC-H61FB-01
Technical Specifications98 specs
Additional Contents
Fans Included
Yes
Included Fans
3x 120 mm
Additional Information
Model Number
CC-H61FB-01
Gtin
5056547204055
Back Connect
Back Connect
No
Cable Specifications
Riser Cable Included
No
Case
Case Type
Mid Tower
Case Features
I O Position
Front
Side Panel
with window
Vertical Gpu Mount
No
Adjustable Vertical Gpu Bracket
No
Front Door
No
Cable Management
Yes
Filters Included
Yes
Noise Dampening
No
Mainboard Slide Tray
No
Transport System
No
Chassis Physical Specifications
Colour
Black
Chassis Construction Materials
SGCC
Dimensions
287 x 435 x 415 (WxHxD mm)
Package Type
-
Please Note
-
Clearances
Cable Routing Space
91 mm
Colour
Primary Colour
Black
Connectivity
Card Reader
No
Core Chassis Specifications
Edition
H6 Flow
Case Form Factor
Dual Chamber Mid Tower
Motherboard Form Factor
ATX
E-ATX
MicroATX
Mini-ITX
Back Connect Compatible
No
Dimensions
Length Depth
415 mm
Width
287 mm
Height
435 mm
Weight
9.4 kg
Display
Display Included
No
Drive Bays
Max 2 5 Inch Drives
2
Max 3 5 Inch Drives
1
Max 5 25 Inch Drives
0
2 5 Inch Internal Drive Bay
2
3 5 Inch Internal Drive Bay
1
Hot Swap Drive Bays
No
Expansion Slots
Expansion Slots Pci Slots
7
External Ports
Front I O Usb Type C Ports Total
1
Front I O Usb Type A Ports Total
2
Usb 3 2 External Type C
1
Usb 3 0 External Type A
2
Audio Outputs Inputs
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller Fan Hub
No
Fans & Filters
Fan Bays
6 x 120mm
3 x 120mm / 2x 140mm
2 x 140mm
Fan Controller Hub
-
Dust Filters
-
Fan Support
Case Fan Support Front
120mm Fan (3x)
Case Fan Support Bottom
140mm Fan (2x)
Case Fan Support Rear
120mm Fan (1x)
Max Number Of Fans
9
Case Fan Support Top
120mm Fan (3x), 140mm Fan (2x)
120 Mm Fans
7
140 Mm Fans
4
Features
Housing Feedthrough
No
Internal Dimensions
Max Cooler Height
163 mm
Max Gpu Length
365 mm
Max Psu Length Depth
200 mm
I/O, Bays & Expansion
Front Side Top Panel I O
1 x Headphone/Mic Combo
2 x USB 3.2 Gen1 Type-A
Drive Bays
2 x 2.5" Internal
1 x 3.5" Internal
Standard Expansion Slots
7
Vertical Expansion Slots
-
LED Lighting Functionality
Led Lighting
No
Led Lighting Emitters
-
Led Lighting Colour
-
Led Lighting Support Control
-
Lighting
Lighting Rgb
No
Liquid Cooling Support
Front Radiator Compatibility
-
Top Radiator Compatibility
1 x 120/140/240/280/360mm
Bottom Radiator Compatibility
-
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
-
Materials
Materials
Steel, Tempered Glass
Motherboard Support
Compatible Motherboard Formats
ATX, Micro-ATX, Mini-ITX
Max Motherboard Format
ATX
Mounting
Internal Monitor Mount
No
Case Vesa Mountable
No
Power Supply
Psu Included
No
Psu Format
ATX
Power Supply Position
rear side
Power Supply Compatibility
Psu Wattage If Included
-
Psu 80 Rating If Included
-
Psu Support
ATX
Psu Mounting Location
Top Mount, Rear
Max Psu Length
200 mm
Radiator Support
Radiator Aio Support Rear
120mm Radiator
Max Radiator Compatibility
1x Single (120 mm), 1x Triple (360 mm)
Radiator Aio Support Top
360mm Radiator
Side Panels
Window S
Yes
Window Configuration
1 x Front
1 x Main Side
Window Construction
Tempered Glass
