Air CoolersNoctua

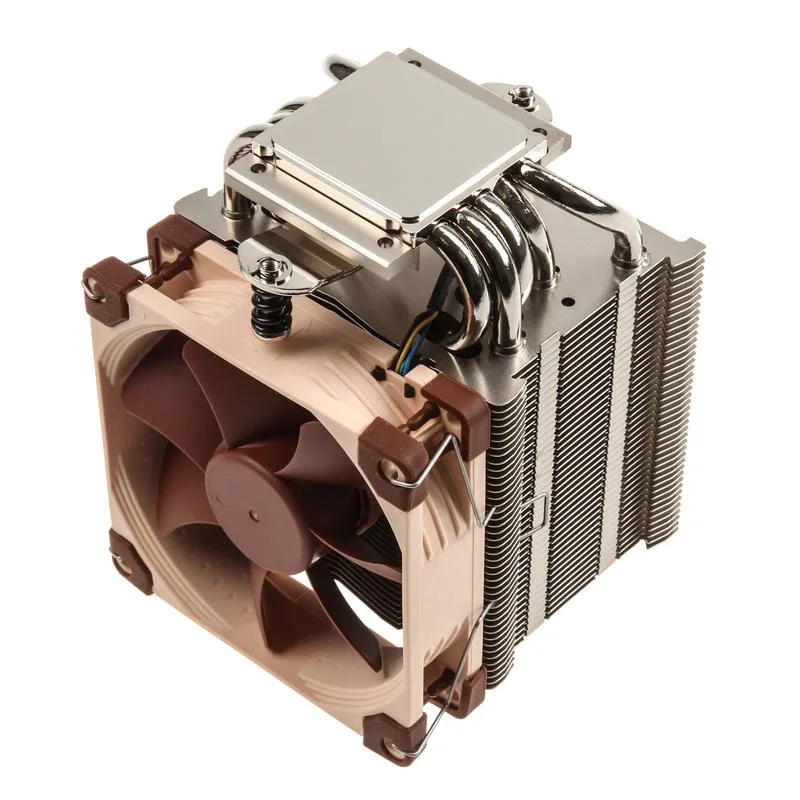

Noctua NH-U9S PU Cooler - 92mm
£61.99
Model: NH-U9S
Technical Specifications49 specs
Additional Information
Model Number
NH-U9S
Gtin
4716123315575
Cooler Specifications
Edition
Noctua NH-U9S
Cooler Form Factor
Single Tower
Heatpipes
5
Cooler Features
Aluminium Fins
Copper Base
Nickel-Plated Copper Heatpipes
Socket Compatibility
1150
1151
1155
1156
1200
1700
1851
2011
2011-3
2066
AM2/AM2+
AM3/AM3+
FM1
FM2
FM2+
Max Tdp
94W
Design
Product Colour
Brown, Metallic
Material
Aluminium, Copper
Number Of Fans
1 fan(s)
Dimensions & Weight
Heatsink Radiator Dimensions
95 x 125 x 125 mm (WxHxD)
Total Dimensions
-
Fan Specifications
Included Fan Configuration
1 x 92mm
Fan Edition
Noctua NF-A9 PWM
Pwm Fan
Yes
Fan Bearing Type
SSO2
Fan Colour
Beige/Brown
Led Lighting
-
Fan Pump Connectors
-
Max Fan Speed
400 - 2000 rpm
Max Fan Airflow
46.4 CFM
Max Air Pressure
-
Max Sound Level
22.8 dBA
Materials
Included Tim Thermal Interface Material
-
Other features
Heatsink Dimensions W X D X H
95 x 68 x 125 mm
Performance
Suitable Location
Processor
Type
Cooler
Fan Diameter
9.2 cm
Supported Processor Sockets
Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Rotational Speed Min
400 RPM
Rotational Speed Max
2000 RPM
Noise Level Low Speed
16.3 dB
Noise Level High Speed
22.8 dB
Airflow
78.9 m³/h
Mean Time Between Failures Mtbf
150000 h
Power
Power Supply
1.2 W
Voltage
12 V
Weight & dimensions
Width
95 mm
Depth
95 mm
Height
125 mm
Weight
618 g
Fan Dimensions W X D X H
92 x 92 x 25 mm
Fan Thickness
2.5 cm
Fan Weight
94 g
Heatsink Weight
524 g
General
Cooler Materials
Aluminium / Copper
