Air CoolersNoctua

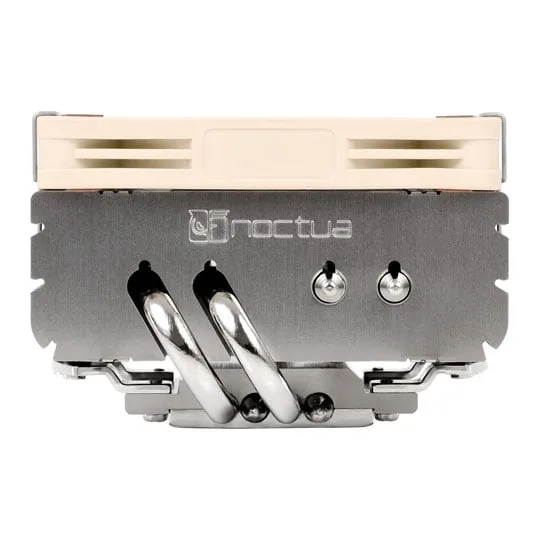

Noctua NH-L9x65 65mm Low Profile CPU Cooler
£49.99
Model: NH-L9X65
Technical Specifications45 specs
Additional Information
Model Number
NH-L9X65
Gtin
4716123315629
Cooler Specifications
Edition
NH-L9x65
Cooler Form Factor
Compact Single Tower
Heatpipes
4
Cooler Features
Aluminium Fins
Low-Noise Cable
Nickel-Plated Copper Base
Nickel-Plated Copper Heatpipes
Socket Compatibility
1150
1151
1155
1156
1700
1851
2011
2011-3
2066
AM2
AM2+
AM3/AM3+
AM4 (Bracket Required)
FM1
FM2
FM2+
Max Tdp
65W
Dimensions & Weight
Heatsink Radiator Dimensions
95 x 51 x 95 mm (WxHxD)
Total Dimensions
95 x 65 x 95 mm (WxHxD)
Weight
413 g
Fan Specifications
Included Fan Configuration
1 x 92mm
Fan Edition
Noctua NF-A9 PWM
Pwm Fan
Yes
Fan Bearing Type
SSO2
Fan Colour
Beige/Brown
Led Lighting
-
Fan Pump Connectors
1 x 4-pin
Max Fan Speed
2500 rpm
Max Fan Airflow
33.8 CFM
Max Air Pressure
1.64 mm H²O
Max Sound Level
23.6 dBA
Materials
Included Tim Thermal Interface Material
NT-H1 High-Grade Thermal Compound (Included)
Other features
Heatsink Dimensions W X D X H
95 x 51 x 95 mm
Performance
Suitable Location
Processor
Type
Cooler
Fan Diameter
9.2 cm
Supported Processor Sockets
Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Rotational Speed Min
600 RPM
Rotational Speed Max
2500 RPM
Noise Level Low Speed
14.8 dB
Noise Level High Speed
23.6 dB
Airflow
57.5 m³/h
Minimum Air Pressure
1.06 mmH2O
Maximum Air Pressure
2.11 mmH2O
Mean Time Between Failures Mtbf
150000 h
Power
Voltage
12 V
Weight & dimensions
Width
95 mm
Depth
65 mm
Height
95 mm
Fan Dimensions W X D X H
92 x 14 x 92 mm
Heatsink Weight
340 g
General
Cooler Materials
Aluminium / Nickel Plated / Copper
